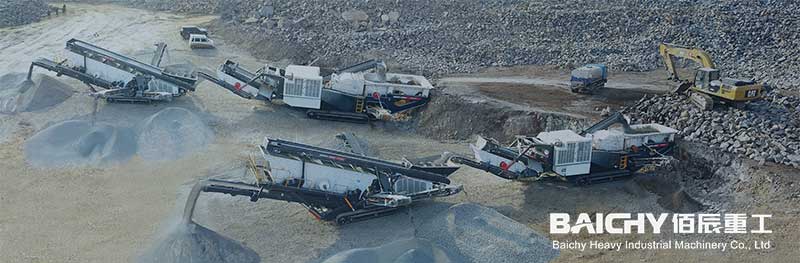

Limestone Crushing Site with Track-Mounted Plant
In traditional sand, gravel, and mining operations, the greatest cost sinkholes and efficiency bottlenecks often lie not in the crushing process itself, but in the material transfer. Fixed production lines imply that—regardless of how the mining face advances—a massive fleet of vehicles is required to continuously haul materials back to the processing site. This entails not only exorbitant fuel, labor, and equipment costs but is also accompanied by road wear, safety hazards, and unpredictable downtime.
The core of the solution lies in relocating the production line directly to the source of the material. The Baite Track-Mounted Mobile Cone Crushing Station represents the engineering realization of this very concept. It is no longer merely an isolated piece of equipment, but a complete mobile plant integrating high-performance crushing, a self-propelled chassis, and intelligent controls—deploying a production capacity of 100–450 tons per hour exactly where it is needed most.
Crawler Crusher PDF,Download ↓↓↓
I. Three Core Capabilities Redefining Production Efficiency

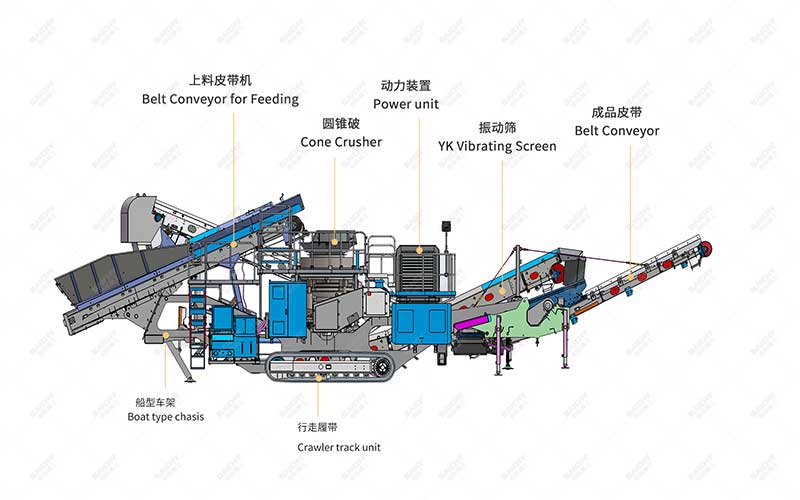

Structural Diagram of a Crawler-Mounted Mobile Cone Crushing Station
1. True "Zero-Distance" Crushing
◦ Challenge: High infrastructure costs and lengthy construction cycles associated with fixed lines in remote mining areas and complex terrains.
◦ Baite Solution: Powered by a heavy-duty track chassis, the equipment can autonomously traverse muddy, rugged, and undeveloped terrain to reach the mining face or material stockpile directly. Requiring no complex foundations, the unit can commence production immediately after its hydraulic outriggers complete rapid leveling—realizing the principle: "Crush exactly where the material is located."
2. "High-Quality" Output Comparable to Fixed Lines
◦ Challenge: Can mobile equipment produce high-quality aggregates that meet the rigorous construction standards required for projects such as high-speed railways and expressways?
◦ Baite Solution: Centered around a high-performance hydraulic cone crusher, the system ensures a large crushing ratio, high throughput, and superior product shape (characterized by a high proportion of cubical particles and a low proportion of flaky or needle-like particles). The gradation and shape of the resulting aggregates meet the most stringent construction standards, thereby guaranteeing high added value for the finished product.
3. A Quantifiable Revolution in "Economic Efficiency"
◦ Reduced Transfer Costs: On-site crushing can save between 30% and 50% on material transportation expenses.
◦ Lower Initial Investment: By eliminating the need for long-distance conveyor belts and the extensive civil engineering required for fixed-line facilities, the barrier to entry for investment is significantly lowered.
◦ Enhanced Asset Flexibility: Upon the completion of a project, the unit can be rapidly relocated to the next site, maximizing equipment utilization—a feature particularly well-suited for engineering projects involving multiple work points and short operational cycles.
When considering mobile crushing solutions, a critical decision involves choosing between crawler-driven and wheel-driven systems. These two drive mechanisms represent distinct design philosophies and application scenarios; the choice you make directly impacts your return on investment and operational efficiency.
Further Reading: Track-Driven Vs Tire-Driven Mobile Crushing Plants

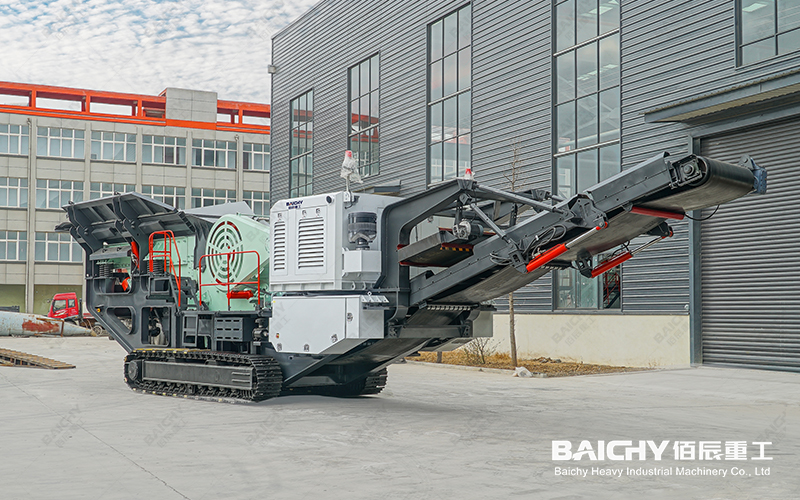

Cralwer Jaw Crusher

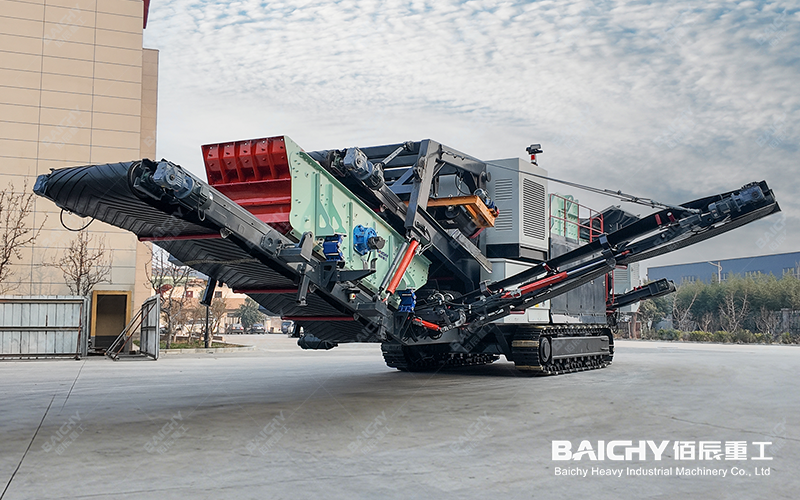

Crawler Impact Crusher
II. Technical Highlights: The Fusion of Intelligence and Reliability
| Module | Core Features | Value Delivered to Customers |
| Crushing Core | High-Efficiency Hydraulic Cone Crusher | Strong processing capacity, superior product shape, and controllable wear costs. |
| Mobility System | Fully Hydraulic Tracked Chassis | Exceptional site adaptability and maneuverability; capable of climbing slopes and operating on soft ground. |
| Power System | Diesel Generator Set (Standard) / External Mains Power (Optional) | Adaptable to off-grid field operations; alternatively, utilizes mains power in suitable locations to reduce energy consumption. |
| Control System | PLC Intelligent Control + Remote Monitoring (Optional) | Simple operation, diagnostic fault detection, and support for remote management—enhancing both safety and efficiency. |
| Integrated Design | Unified Feeding, Crushing, Screening, and Conveying | A self-contained production line within a single unit; features a compact layout and rapid site-to-site relocation. |
III. Applicable Scenarios: The Optimal Choice for Solving Key Pain Points
• Mining Operations: As the mining face advances, the production line can move in tandem, enabling continuous, on-site primary and secondary crushing.
• Aggregate Production: Conduct operations across multiple dispersed material yards or quarries, thereby avoiding the need for redundant investment in fixed production lines.
• Large-Scale Engineering Projects: Such as highway, railway, and hydroelectric power plant construction—enabling on-site aggregate production directly along the project route.
• Construction Waste Recycling: Facilitating the direct crushing and recycling of construction waste at urban redevelopment or demolition sites.

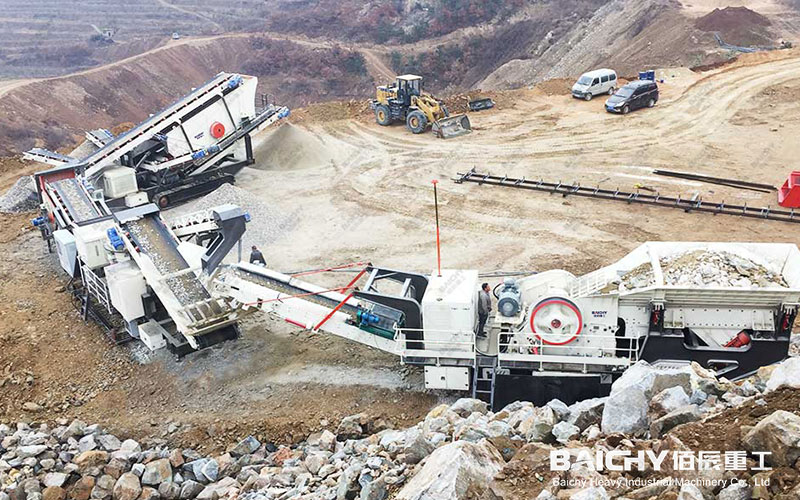

Crawler-Mounted Mobile Crushing Station: On-Site Operation
IV. Beyond the Equipment: Baite’s Commitment to Full-Lifecycle Value
We fully understand that the true value of complex machinery is ultimately realized through its stable operation and consistent output throughout its entire lifecycle. Therefore, we offer far more than just the equipment itself:
• Customized Solutions: We provide optimal configuration recommendations tailored to your specific material hardness, production capacity requirements, and site constraints.
• Turnkey Services: We offer comprehensive support throughout the entire process—from factory testing, shipping, and on-site installation guidance to operator training.
• Lifetime Support Network: Featuring 24/7 technical support and a rapid global spare parts supply system to ensure the uninterrupted continuity of your production operations.
Conclusion
In today's environment—characterized by increasingly fierce competition and nearly exacting demands for efficiency and cost control—innovation in production models is the key to securing the future. The Baite Track-Mounted Mobile Cone Crushing Station represents far more than a mere equipment upgrade; it signifies a fundamental revolution in production logic—transforming fixed, rigid production frameworks into flexible, efficient, and cost-effective "mobile production units."
If you wish to evaluate the specific benefits this model can deliver to your project, we stand ready to provide you with expert analysis and tailored solutions.
