Multi-chamber Pulse Bag Dust Collector

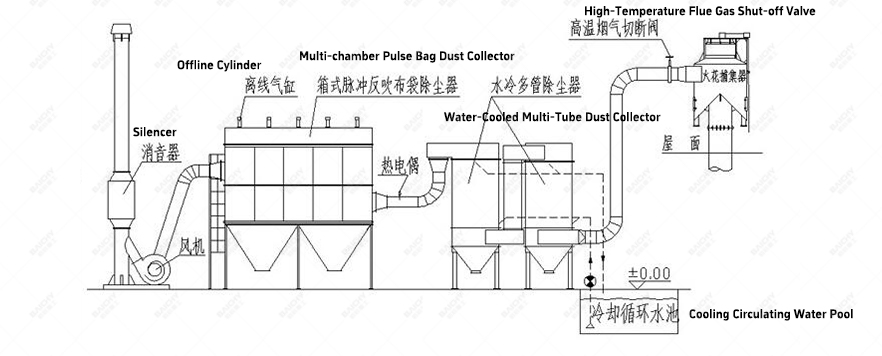

The Multi-chamber Pulse Bag Dust Collector is a type of pulse dust collector characterized by its compartmentalized structure and "offline" cleaning mechanism. Its defining feature lies in the internal pision of the collector into several independent "air boxes" (chambers). During the cleaning cycle, the filtration airflow to a specific chamber is temporarily cut off (placing it in an "offline" state); compressed air is then pulsed through the entire chamber, causing the filter bags to vibrate at a high frequency instantaneously, thereby dislodging the accumulated dust.

Core Structural Logic

Its structure consists of four primary components:

• Upper Housing (Clean Air Chamber/Air Box): Contains the pulse valves and lifting valves (shut-off valves). This space functions as a unified "pressure-stabilizing air box," eliminating the need for complex internal spray pipes and Venturi tubes.

• Middle Housing (Filtration Chamber): Houses the filter bags and bag cages (support frames). Dust is captured and retained on the outer surfaces of the filter bags within this section.

• Lower Housing (Hopper): Collects the dislodged dust and features an air inlet and a flow-guiding baffle.

• Cleaning System: Comprises the compressed air piping, air storage tank, and an intelligent PLC controller.

Key Technical Features of the Multi-chamber Pulse Bag Dust Collector

1. Thorough Offline Cleaning: Unlike "online" systems—which clean the bags while filtration is still in progress—offline cleaning prevents dust from being re-adsorbed by adjacent filter bags (secondary entrainment) during the cleaning cycle, resulting in exceptionally high cleaning efficiency.

2. High Dust-Loading Capacity: Capable of directly processing gas streams with inlet dust concentrations reaching up to 1000 g/m³ (standard conditions). It is frequently deployed in heavy-duty industrial environments—such as cement grinding mills and raw meal mills—where it can effectively eliminate the need for a primary pre-dust removal stage.

3. Low-Pressure Operation, Extended Service Life: The air-box design ensures a uniform distribution of pulse-jet kinetic energy, minimizing mechanical wear on the filter bags and effectively extending their service life (typically exceeding two years).

4. Simplified Maintenance: Filter bag replacement is performed entirely from above the clean-gas chamber, eliminating the need to enter the dirty filtration chamber. Furthermore, the system supports "compartmentalized maintenance without system shutdown."

Primary Application Fields for Air-Box Pulse Bag Dust Collectors

Due to their exceptional reliability, air-box pulse dust collectors have become the preferred choice for managing large-volume airflow and high-concentration dust environments:

• Cement & Building Materials: Crushers, packaging machines, material transfer points, and cement kiln outlets.

• Iron & Steel / Metallurgy: Blast furnace gas purification, electric arc furnace flue gas treatment, and sinter plant dust removal.

• Chemicals & Energy: Carbon black production, dry mortar manufacturing, and biomass boilers.

• Mining & Mineral Processing: Ore crushing, vibrating screening, and conveyor belt transfer points.
