The mobile sand making machine is an efficient, flexible, environmentally friendly and intelligent sand making equipment suitable for various construction projects and operating scenarios. Its emergence has greatly improved the efficiency and quality of sand making operations and provided strong support for the development of the construction industry.
☛ Contact Us Now To Get A Customized Production Line Configuration Plan.

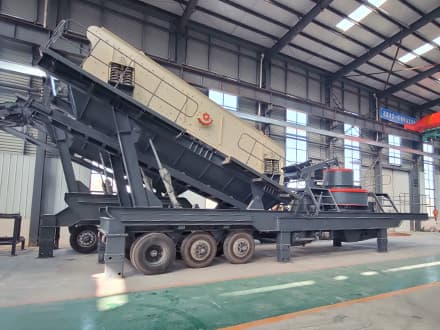

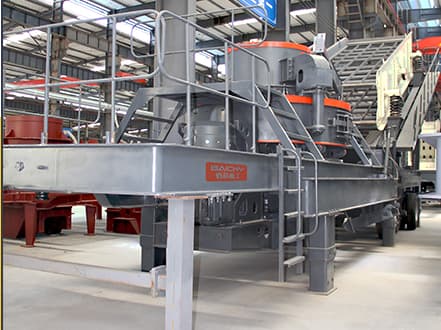

Mobile sand making machine is a kind of mobile crushing equipment integrating crushing, sand making, screening and conveying. It adopts vehicle-mounted chassis (tires or tracks) and can be driven directly to the work site to process large stones into machine-made sand (0-5mm) that meets construction standards.
Mobile sand making machine is suitable for processing medium and high hardness stones, such as:
• Pebbles, river pebbles (rounded particles, need VSI impact crushing)
• Granite, basalt (high hardness, need cone crusher + sand making machine combination)
• Limestone, construction waste (medium hardness, can be crushed by impact or impact)
• Tailings, coal gangue (environmentally friendly recycling)
Mobile Sand Making Equipment

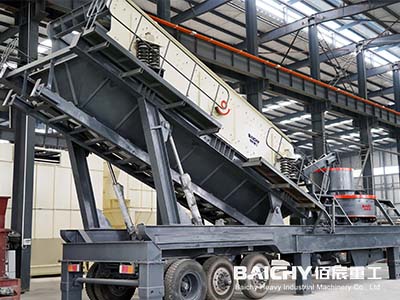

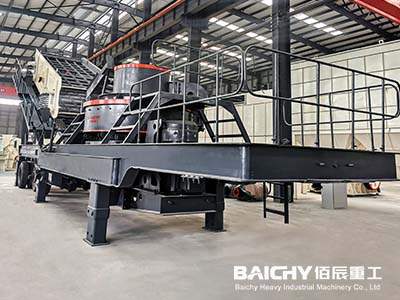

Mobile Sand Making Machine

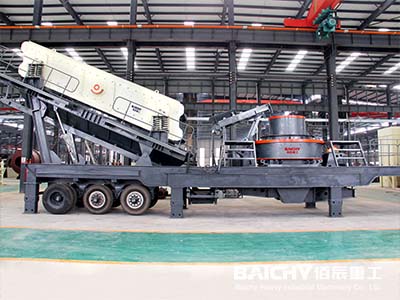

Mobile Sand Making Production Line

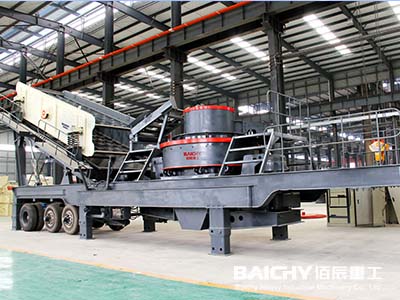

Vehicle-Mounted Sand Making Machine
Mobile sand making machine: The core goal is to produce high-quality machine-made sand (0-5mm). Through the "stone hitting stone" or "stone hitting iron" principle of impact sand making machine (VSI), the sand particle shape and gradation are optimized, which is suitable for high-demand scenes such as concrete and asphalt aggregate.
Mobile impact crusher: Mainly used for medium and fine crushing (discharge 10-40mm), the finished product is cubic, suitable for roadbed, building materials and other gravel processing with high requirements for particle shape, but it is difficult to directly produce fine sand.
Mobile sand making machine specializes in the production of machine-made sand (fine crushing + shaping), while mobile impact crusher focuses on medium crushing and gravel processing. The two can be used in combination (such as coarse crushing by impact crusher + fine crushing by sand making machine).
• Flexible transfer: no fixed infrastructure is required, and the crawler/tire design is suitable for complex terrains such as mines and construction waste dumps.
• Sand and gravel are produced at the same time: a single machine can simultaneously produce 0-5mm sand and 5-10mm gravel, reducing equipment investment.
• Grain shape optimization: VSI sand making machine has good roundness and excellent grading of finished sand, which can replace natural sand.
• Environmental protection and energy saving: closed design + pulse dust removal, low noise and dust pollution.
• Intelligent control: PLC system adjusts parameters in real time, with low failure rate.
The mobile sand making machine first sends the raw materials into the crushing chamber through the feeding device. In the crushing chamber, the materials are initially crushed into smaller particles. Subsequently, the crushed material enters the grinding chamber. Under the action of the high-speed rotating grinding body, the material is further impacted and ground, making its particle size smaller.
The ground material then enters the screening device. The screening device classifies the materials and collects sand and gravel of different sizes respectively. By adjusting the aperture of the screen, the particle size of the sand and gravel can be controlled to meet the needs of different construction projects.
During the entire working process, the driving device of the mobile sand making machine plays a key role. It provides power so that components such as crushing, grinding, and screening can operate efficiently and stably. At the same time, the mobile sand making machine is also equipped with an advanced control system, which can monitor the operating status of the equipment in real-time and make adjustments as needed to ensure the smooth progress of the production process.
| Model | YDPZ7615-1848 | YDPZ8522-1860 | YDPZ9532-2160 | YDPZ1145-2460 | YDPZ1150-2460 |
| Sand Making Machine | 5X-7615 | 5X-8522 | 5X-9532 | 5X-1145 | 5X-1150 |
| Feeding Size (mm) | ＜35-40 | ＜40-50 | ＜45-50 | ＜45-50 | ＜45-55 |
| Capacity (t/h) | 70-280 | 120-380 | 180-450 | 250-520 | 344-642 |
| Power (kw) | 2×75 | 2×110 | 2×160 | 2×220 | 2×250 |
| Vibrating Screen | 2/3/4YK1848 | 2/3/4YK1860 | 2/3/4YK2160 | 2/3/4YK2460 | 2/3/4YK2460 |
| Belt Conveyor | B800 | B800 | B800 | B1000 | B1000 |
| Overall Size (mm) | 13000x2580x6430 | 13500x2580x6550 | 14300x2960x6550 | 14500x2960x6780 | 14500x2960x6780 |
Have Any Questions!
Don't Hesitate To Contact Us AnyTime.
A mobile sand making machine is a wheeled or tracked crushing plant that integrates a VSI sand maker, vibrating screen, belt conveyor and feeding unit onto a single chassis. It can be driven directly to the work site to crush rocks into machine-made sand (typically 0–5 mm) without civil foundation work.
It is suitable for medium- and high-hardness materials such as river pebbles, granite, basalt, limestone, quartz, tailings, coal gangue and recycled construction waste. The 5X-series VSI rotor uses "rock-on-rock" and "rock-on-iron" modes to produce cubical, well-graded sand.
Feed size ranges from 35–55 mm depending on the model, and motor power is 147–500 kW (2×75 to 2×250 kW). The five standard models (YDPZ7615 to YDPZ1150) deliver 70–642 t/h, covering small 60 t/h plants up to large 300 t/h+ production lines. Actual output varies with material hardness and feed grading.
The mobile unit offers high mobility (no fixed foundation), fast setup and relocation, integrated crushing-screening-conveying in one unit, sealed dust-removal for environmental compliance, and an intelligent control system. It is ideal for temporary projects, urban construction-waste recycling sites, and sites that need to move between work faces.
Match the model to your raw material type, feed size, required output (t/h) and finished sand spec (0–5 mm, 5–10 mm, etc.). Baichy provides a customized production-line configuration plan; send your material, capacity and finished-size requirements via WhatsApp (+86-15093222637) or [email protected] for a tailored quotation.
