The Baichy Gold Hammer Crusher is a high-efficiency hammer mill engineered for tough silica quartz gold ores. It uses high-speed rotary impact to pulverize gold rocks from 100mm down to under 2-5mm in one pass, significantly boosting downstream ball milling and wet pan milling efficiency. Equipped with Mn13Cr2 wear-resistant alloy hammers and a heavy-duty rotor, it reduces downtime and maintenance. It is an ideal, budget-friendly solution for small-to-medium gold mines.
☛ Contact Us Now To Get A Customized Production Line Configuration Plan.
In artisanal and small-to-medium scale gold mining (ASGM), crushing is the critical first step before extraction. High-hardness silica quartz veins can easily destroy ordinary hammer mills, leading to frequent shutdowns and high replacement costs.
Baichy Heavy Duty Gold Hammer Crusher (also known as Gold Hammer Mill) is specifically engineered to handle highly abrasive gold ores. It crushes run-of-mine ore directly into an ideal fine feed size for your downstream Ball Mill or Wet Pan Mill. By crushing finer, you grind faster—significantly raising your overall gold recovery rate while slashing electricity bills.

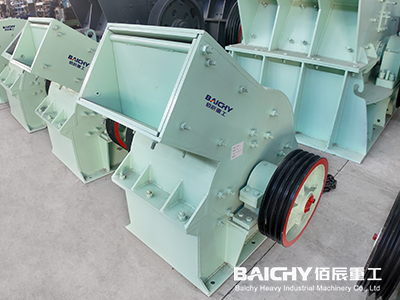

gold rock crusher machine

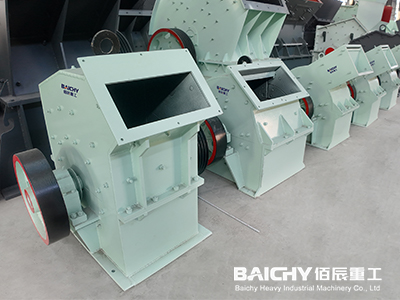

gold mining equipment

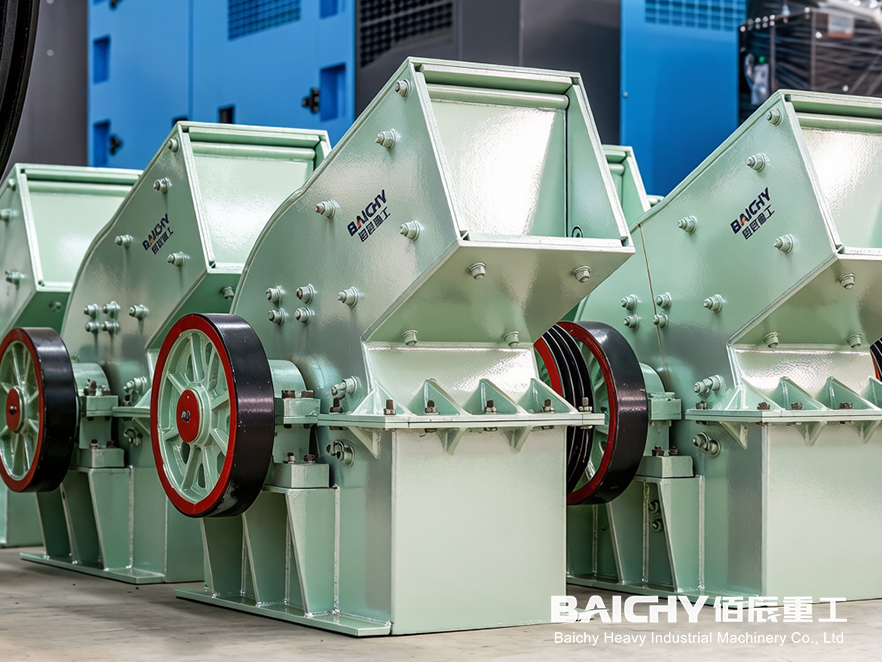

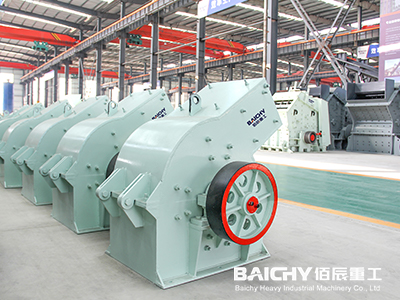

gold hammer crusher

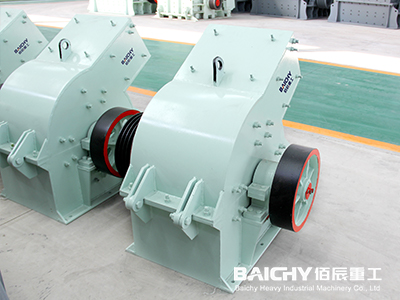

gold ore hammer mill
Baichy Heavy Industry is not just an equipment manufacturer; we are your turnkey gold processing partner. We provide full layout design and downstream mineral separation machinery to build a complete gravity gold recovery line:
• Primary Crushing: Gold Hammer Crusher pulverizes gold-bearing ores to under 3mm.
• Fine Grinding: Wet Pan Mill or Ball Mill grinds the fines into mineral slurry.
• Concentration: Gold Centrifugal Concentrator & Shaking Table separates free gold from heavy slurry.
• Purification: Gold Amalgamator & Melting Furnace outputs pure 99.9% gold bullion.
Contact our engineering team to get your customized gold plant flowchart drawing for free!
Reinforced rotor, heavy-duty shaft, and robust frame crush hard quartz smoothly without jamming.
High-manganese alloy or bimetal hammers last 150–200% longer, cutting downtime and spare part costs.
Handles 100–150 mm feed, outputs 2–5 mm fines—no secondary crushing needed, saving cost and simplifying workflow.
Screen gap adjustable to match gold processing needs—ideal 3–5 mm for wet pan mills or finer for ball mills.

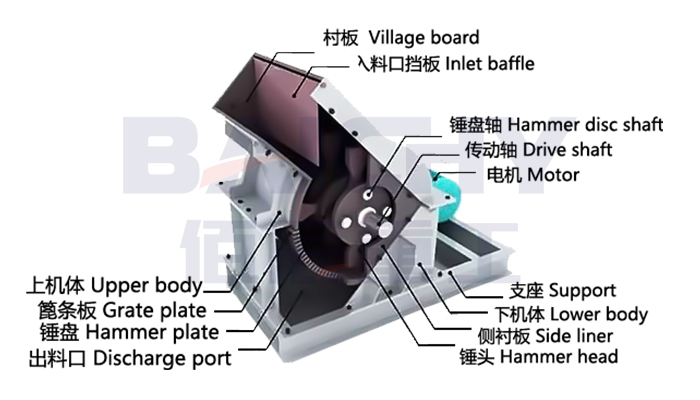

The Gold Hammer Crusher operates on the principle of high-speed impact. When gold-bearing run-of-mine ore enters the crushing chamber, it is instantly struck and shattered by heavy-duty alloy hammers rotating at extremely high velocities. These shattered ore fragments are then thrown with immense kinetic energy against the internal wear-resistant counterattack liners, causing massive secondary fragmentation and rapid size reduction before gravity pulls them down to the lower zone.
In the lower chamber, the semi-crushed gold ores are continuously sheared, squeezed, and ground between the moving hammers and the bottom adjustable grate screen. Particles that achieve the qualified size (typically under 2-5mm, ideal for downstream ball milling or wet pan milling) pass smoothly through the screen gaps to discharge, while oversized rocks remain trapped for further pulverization. Crucially, the hammers are pivotally mounted to swing back when encountering uncrushable metals, protecting the rotor assembly from damage during tough mining operations.
| Model | Input Size (mm) | Output Size (mm) | Capacity (t/h) | Power (kw) |
| PC400x300 | <100 | <15 | 5-10 | 11 |
| PC600x400 | <220 | <15 | 10-25 | 22 |
| PC800x600 | <350 | <15 | 20-40 | 55 |
| PC1000x800 | <400 | <15 | 25-80 | 110 |
Answer: The price of a gold hammer crusher typically ranges from $1,500 to $15,000 (FOB), depending on the production capacity (ranging from 1 TPH to 40 TPH). For major gold mining regions in South Africa, Ghana, Zimbabwe, and Sudan, Baichy provides direct factory shipping and customized export clearance support. By purchasing directly from our China factory, gold mine owners can eliminate middleman commissions and save up to 20% on initial investment costs. Contact our sales team for a landed cost quotation to your nearest port。
Answer: Yes, absolutely. While cheap, standard agricultural hammer mills break down instantly when hitting abrasive silica quartz, Baichy’s heavy-duty gold hammer mill is specifically engineered for tough quartz veins found in Uzbekistan, Peru, and Russia. Built with a reinforced carbon-steel frame, dynamic-balanced heavy rotor, and Mn13Cr2 high-manganese alloy hammer heads, our machine easily handles hard rock gold ore with a Mohs hardness up to 7-8, reducing the feed rock from 100mm to under 2mm in one pass.
Answer: Yes. Baichy gold hammer crushers are the perfect upstream grinding match for Wet Pan Mills, centrifugal concentrators, and shaking tables. This gravity separation combination is highly recommended for mercury-free, eco-friendly gold recovery in African artisanal and small-scale gold mining (ASGM). It pulverizes the gold ore to the exact feeding fineness (under 2mm) required by gravity separators, ensuring maximum free gold liberation and increasing your recovery rate by up to 15-25% without using harmful chemicals.
