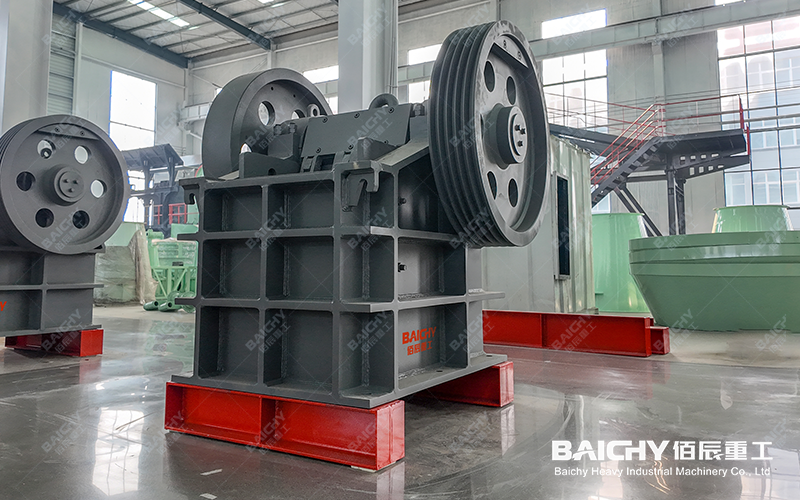

PE400x600 Jaw Crusher
For small and medium-sized crushing projects, the PE 400×600 jaw crusher is a practical primary crushing option. Its compact structure, simple operation, and flexible application make it suitable for small quarries, aggregate production, mineral processing, and selected construction waste projects. However, choosing the lowest quotation does not always result in the lowest operating cost.
A machine with weak components, short-lived jaw plates, an unsuitable motor, or limited after-sales support can create higher expenses after installation. The better approach is to compare the complete configuration, expected performance, spare-parts cost, and service terms. This guide explains how to identify a price-competitive PE 400×600 jaw crusher manufacturer and request a quotation that can be evaluated fairly.
What Does PE 400×600 Mean?
The PE designation generally identifies a traditional compound pendulum jaw crusher series. The numbers 400×600 usually refer to the approximate feed opening dimensions in millimeters. The opening affects the maximum material size that can enter the crushing chamber, while the discharge setting affects the product size and output.
Actual capacity depends on material hardness, feed size, moisture, bulk density, discharge setting, feeding method, and operating hours. Therefore, a manufacturer should not confirm performance from the model number alone. Buyers should provide complete project information and ask for data based on the intended material.
Why Consider This Model for a Budget Project?
The PE 400×600 is often selected when a project needs a relatively simple primary crusher without the investment required for a large industrial line. Potential advantages include:
• Compact installation space
• Straightforward mechanical design
• Convenient access to common wear parts
• Compatibility with feeders, conveyors, screens, and secondary crushers
Lower initial investment than larger jaw crusher models
These benefits depend on manufacturing quality and configuration. Two machines with the same model designation may have different motors, frame weights, jaw plates, bearings, and included accessories.
Applications and Suitable Materials
The crusher may be used for the primary crushing of limestone, granite, river stone, basalt, iron ore, construction aggregates, and selected recycled materials. Final suitability should be confirmed by a technical review because hardness, abrasiveness, moisture, and feed size vary between sites.
For limestone and other easier-to-crush materials, a standard configuration may be adequate. For abrasive rock or hard ore, buyers should focus on jaw-plate material, bearing protection, shaft strength, frame quality, lubrication, and maintenance access. For construction waste, large steel pieces and other contaminants should be controlled before feeding.

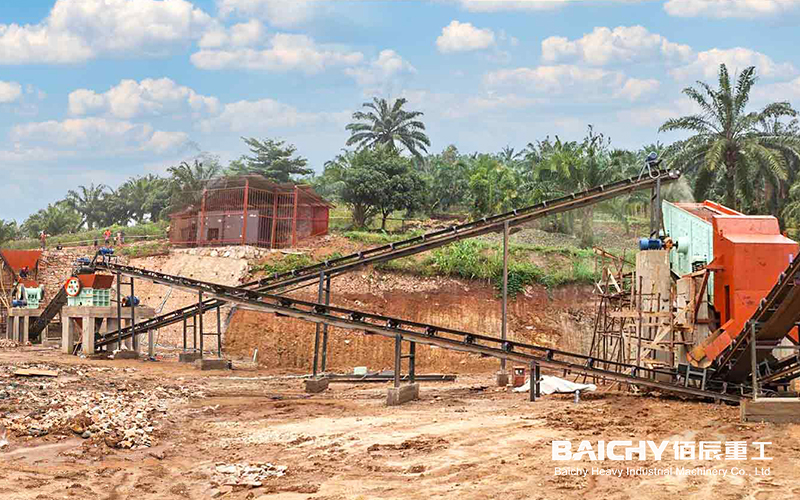

PE400x600 Jaw Crusher: Pebble Crushing Site
Specifications to Confirm Before Buying
A quotation should identify the complete equipment package instead of listing only “PE 400×600 jaw crusher.” Use the following table when comparing manufacturers:
| Item | What to Confirm | Why It Matters |
|---|---|---|
| Feed opening | Opening size and recommended maximum feed | Prevents oversized material and blockages |
| Discharge setting | Adjustable range and proposed setting | Controls product size and capacity |
| Capacity | Output for the actual material and setting | Avoids unrealistic production claims |
| Motor | Power, voltage, frequency, and brand | Ensures electrical compatibility |
| Jaw plates | Material, profile, thickness, and spare availability | Affects wear life and cost per ton |
| Bearings and shaft | Quality, sealing, and lubrication method | Influences reliability and service life |
| Included parts | Base, pulley, flywheel, guard, tools, and belts | Prevents hidden purchase costs |
| Warranty and service | Coverage, response time, and support method | Reduces downtime risk |
Capacity figures should always be linked to feed size, discharge setting, and material type. A capacity number without these conditions is difficult to compare.
How to Find a Cost-Effective Manufacturer
1. Verify production capability
A genuine manufacturer should be able to explain its production process, quality-control procedures, assembly method, and testing standards. Ask for factory photographs, production videos, inspection records, technical drawings, or a live factory discussion. These materials cannot replace a professional audit, but they can help distinguish a producer from a supplier with limited technical control.
A factory with machining, welding, casting, assembly, and testing capabilities may also provide more consistent replacement parts. Still, factory size alone does not guarantee value. The important question is whether the manufacturer can support its specifications with clear documentation.
2. Compare complete quotations
A low headline price may exclude the motor, steel base, pulley, belt guard, electrical parts, spare jaw plates, export packing, or installation guidance. Request the same scope from each supplier and ask them to separate the crusher price, optional items, shipping, insurance, taxes, and site services.
If one quotation is much lower, ask which components or services have been excluded. A fair comparison is possible only when the technical scope is consistent.
3. Calculate wear-part expenses
Jaw plates are consumable parts, so their service life can strongly affect operating costs. Ask about the proposed material, expected working conditions, replacement process, and future availability. A low-cost plate may be unsuitable for abrasive rock and may increase maintenance frequency.
It is also useful to request a price for an initial spare-parts package, including jaw plates, belts, bearings, lubrication components, and other recommended items. This makes the operating budget more realistic.
4. Review after-sales support
A reliable supplier should provide installation drawings, an operation manual, maintenance instructions, lubrication guidance, and a recommended spare-parts list. For overseas projects, remote commissioning and troubleshooting support can be especially valuable.
Ask how technical problems are handled, how quickly parts can be supplied, and whether the manufacturer has experience serving the destination country. Strong service can be worth more than a small discount on the initial order.

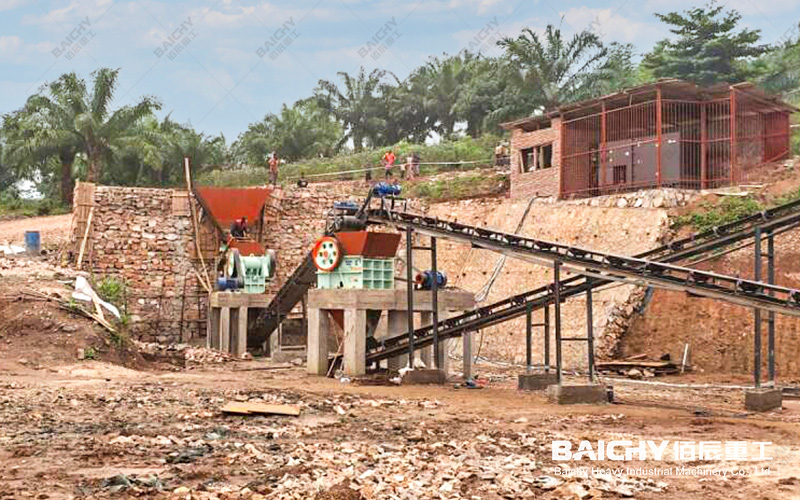

PE400x600 Jaw Crusher: Pebble Crushing Site
Frequently Asked Questions
1. What materials can a PE 400×600 jaw crusher process?
It may be used for primary crushing of limestone, granite, river stone, basalt, mineral ore, aggregates, and selected construction waste. Suitability depends on hardness, abrasiveness, moisture, feed size, and unwanted metal content.
2. How much does a PE 400×600 jaw crusher cost?
The price depends on the crusher configuration, motor, jaw plates, base, spare parts, packing, shipping, taxes, and service requirements. Request a detailed quotation based on actual project conditions.
3. Is it suitable for a small stone-crushing plant?
It may be suitable as a primary crusher when the required feed size, capacity, discharge size, feeder, screen, and downstream equipment are compatible. The manufacturer should review the complete process before confirming the model.
4. What should be included in the quotation?
The quotation should identify the crusher body, motor, flywheel, pulley, belt guard, base, jaw plates, tools, spare parts, packaging, warranty, delivery terms, and any installation or commissioning service. Optional items should be listed separately.
5. How do I choose between manufacturers with similar prices?
Compare the actual configuration, production evidence, testing procedure, wear-part quality, spare-parts availability, warranty, delivery record, and technical support. Clear documentation and dependable service may provide better long-term value than the lowest initial price.
