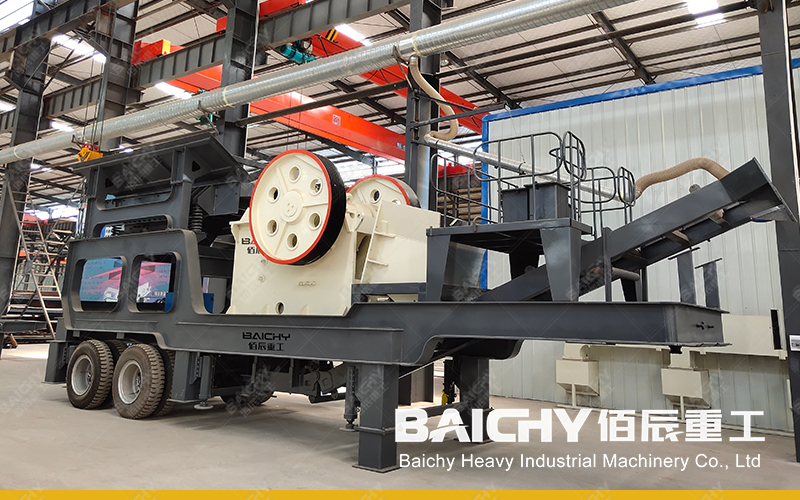

Mobile Jaw Crusher For Sale
In the ever-changing fields of mining, construction waste management, and infrastructure construction, a reliable, mobile, and high-capacity crushing machine is the cornerstone for ensuring smooth project progress and creating core value.
As a mineral processing equipment manufacturer with 20 years of experience, we deeply understand our customers' pursuit of stable and efficient production.
Why Choose the PE500x750? The Excellence of a Classic Model
The PE500x750 is a classic model in the jaw crusher series, proven by the market. Its robust structure, easy maintenance, and high crushing efficiency make it the first choice for processing various medium-hard materials (such as granite, basalt, river pebbles, limestone, and construction waste). Its outstanding performance in stationary production lines is now perfectly combined with a flexible mobile chassis, resulting in this more adaptable mobile crushing plant.
Core Advantages: More Than Just Mobility, Comprehensive Performance
1. Powerful Core, Stable High Output: The core utilizes the classic PE500x750 jaw crusher, with a feed opening size of 500mm x 750mm and a maximum allowable feed side length of 425mm. Its capacity ranges from 40-130 tons/hour, and can be flexibly adjusted according to material properties and discharge port, providing ample power for medium-sized production projects.
2. Integrated Mobility, Flexible Relocation: The integrated vehicle-mounted mobile chassis, equipped with compliant axles and tires, allows for direct towing by a tractor unit. No cumbersome foundation pouring is required; it can be quickly positioned upon arrival at the site and started with a single button, significantly reducing project preparation time and making it particularly suitable for multi-site operations.
3. Robust and Durable, Reliable Guarantee: Leveraging 20 years of design and manufacturing experience, we use high-quality steel and reinforced processes in key components (such as the moving jaw, bearing housing, and frame). The equipment has undergone rigorous durability testing to ensure continuous and stable operation under harsh conditions, reducing the risk of unexpected downtime.
4. Intelligent Integration, Convenient Operation: The entire machine integrates a feeder, crusher, vibrating screen (optional), conveyor, and electrical control system. The centralized control cabinet makes operation clear and intuitive, allowing a single person to monitor the main processes, significantly saving labor costs.
Technical Parameters Overview
To help you better understand the equipment performance, the following is a summary of core parameters:
| Item | Parameters/Description |
| Equipment Model | Mobile Jaw Crusher (Main Unit: PE500x750) |
| Main Unit Feed Inlet | 500mm x 750mm |
| Maximum Feed Size | ≤ 425mm |
| Processing Capacity | 40 - 130 tons/hour |
| Discharge Inlet Adjustment Range | 50 - 100mm |
| Main Unit Power | 55 kW (75 HP) |
| Mobile Chassis Configuration | Vehicle-mounted, with outriggers |
| Feeding Equipment | Vibrating Feeder (Optional Model) |
| Discharge Conveyor | Belt Conveyor (Width Optional) |
| Drive Method | Diesel Generator Set or External Power Supply |
Wide Application Scenarios, Significant Return on Investment
• Mining: Primary crushing in small and medium-sized mines, can be carried out directly near the mining face.
• Construction Waste Recycling: On-site crushing of concrete and bricks at demolition sites, turning waste into valuable resources.
• Highway and Railway Construction: Providing stable aggregate for roadbeds, flexibly movable according to project progress.
• Sand and Gravel Aggregate Production: As a core crushing unit, establishing flexible small-scale sand and gravel production lines.
Choose Us, Choose Twenty Years of Dedicated Support
For twenty years, we have consistently focused on technological research and process innovation in mineral processing and crushing equipment. We offer not just equipment, but a complete solution and full lifecycle service support: from site surveys, solution design, installation guidance to operation training, after-sales maintenance, and spare parts supply.
Contact us now for detailed solutions and quotations tailored to your specific material and capacity needs. Let our PE500x750 mobile jaw crusher become a powerful tool for expanding your business and improving efficiency!
