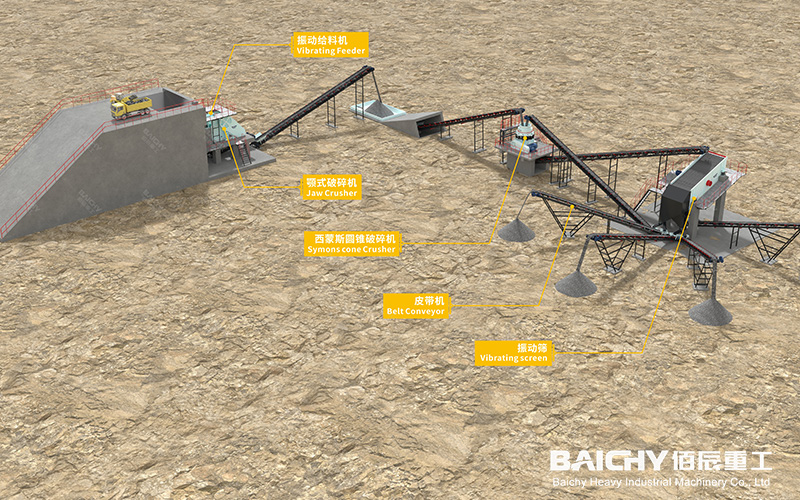

South African Chrome Ore Crushing and Screening Solution
On the global mining map, South Africa is renowned for its abundant chrome ore reserves. As global demand for the stainless steel industry and chrome alloys continues to rise, South African mine owners are placing increasingly stringent demands on the efficiency, durability, and output of their processing equipment. Recently, a specific requirement from a typical South African client captured the industry's attention: the need to configure a crushing system with a capacity of 250 tons per hour (250 t/h), paired with a screening system boasting a capacity of 400 tons per hour (400 t/h).
What production optimization wisdom lies behind this configuration logic—characterized by a "large-scale screening, medium-scale crushing" approach? This article will delve deeply into this customized solution, tailored specifically to the unique characteristics of South African chrome ore.
Baichy E-Catalog PDF，Download ↓↓↓
I. Core Challenges in South African Chrome Ore Processing
South African chrome ore typically exhibits characteristics such as high hardness, strong abrasiveness, and an uneven particle size distribution.
• High Hardness and Equipment Wear: Chromite possesses significant hardness, placing extremely high demands on the wear resistance of crusher liners and screen meshes.
• Environmental Adaptability: Many South African mining sites are situated in hot, dry, or dusty environments; consequently, equipment requires exceptional heat dissipation capabilities and robust dust-sealing mechanisms.
• Balancing Efficiency and Particle Size: The system must simultaneously guarantee high production throughput while ensuring that the finished products meet the specific particle size standards required by downstream smelting enterprises.
II. The 250 t/h Crusher: A Perfect Balance of Power and Durability
To meet the production capacity requirement of 250 t/h, a two-stage crushing solution—typically employing a combination of a Jaw Crusher and a Cone Crusher—is generally recommended.
1. Primary Crushing: Jaw Crusher

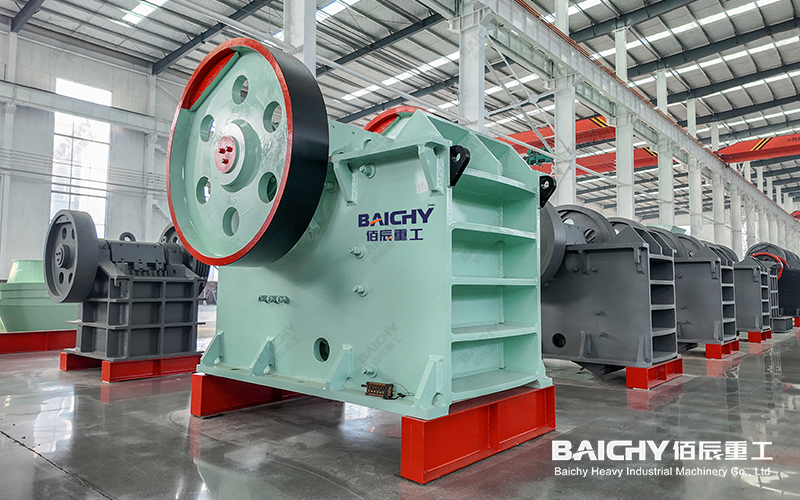

Primary Jaw Crusher
As the "vanguard" of the entire production line, the jaw crusher is responsible for reducing large lumps of raw chrome ore to a size range of 100–200 mm.
• Keywords: Deep-cavity crushing, high crushing ratio
• Advantages: Tailored to the blocky characteristics of South African chrome ore, the design features a large eccentric shaft. This not only generates greater crushing force but also ensures stable operation under a load of 250 t/h.
2. Secondary and Tertiary Crushing: High-Efficiency Cone Crusher
Symons Cone Crusher
Given the abrasive nature of chrome ore, the cone crusher stands as the optimal choice for secondary and tertiary crushing stages.
• Keywords: Laminar crushing, hydraulic adjustment
• Technical Highlights: By utilizing the principle of laminar crushing, the cone crusher significantly reduces the specific consumption of wear parts. Furthermore, the hydraulic discharge opening adjustment feature allows mine owners to quickly fine-tune the finished product's particle size in response to market demands, perfectly matching the system's throughput capacity of 250 t/h.
3. Why Match with a 400 t/h Vibrating Screen?
Many clients often ask: "If the crushing capacity is only 250 t/h, why is the screening capacity rated at 400 t/h?"
This reflects the shrewd expertise of veteran mining engineers in South Africa:
1. Throughput Reserve for Closed-Circuit Operation: Crushing production lines typically operate as closed-circuit systems. Oversized (unqualified) material is returned from the screening section to the crusher; this "recirculated material" consumes a portion of the screening machine's processing capacity.
2. Enhanced Screening Purity: A processing capacity of 400 t/h implies a thinner material layer on the screen surface. For high-value minerals like chrome ore, a thinner layer translates to higher screening precision. This effectively prevents fine particles from becoming entrapped within larger lumps and being erroneously returned to the crusher, thereby minimizing unnecessary crushing and reducing energy consumption.
3. Resilience to Feed Fluctuations: In mining operations, the feed rate is often inconsistent. The oversized configuration—rated at 400 t/h—provides an excellent operational buffer, preventing system shutdowns caused by overloading.

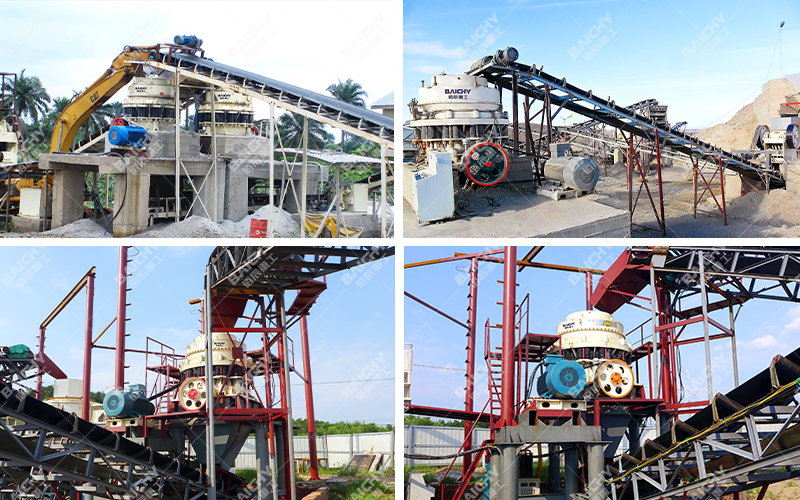

Cone Crusher Crushing Site
IV. Customized Production Line: Optimized for the South African Market
For this solution tailored to South African clients, we have incorporated the following key advantages into the design:
• Upgraded Wear-Resistant Materials: To address the highly abrasive nature of South African chrome ore, the vibrating screens utilize high-manganese steel or polyurethane materials, while the crusher liners employ a new type of composite alloy, thereby extending the replacement cycle.
• Modular Design: Given the remote locations of some mining areas in South Africa, the equipment features a modular design to facilitate easy transportation and rapid on-site assembly.
• Intelligent Control System: An integrated PLC control system monitors the load conditions of the crushing and screening stages in real-time, enabling automatic adjustment of the feed rate to ensure the entire production line operates under optimal conditions.
V. Summary and Outlook
The combination of a 250 t/h crusher and a 400 t/h vibrating screen constitutes a highly efficient production configuration specifically tailored for chrome ore processing in South Africa. This setup not only resolves the issue of balancing crushing capacity but also enhances the operational flexibility and product quality of the entire line through a redundant design approach.
If you are looking to invest in chrome ore processing in South Africa, or if you need to upgrade your existing production line, this proven technical configuration will be the key to maximizing your return on investment.
Frequently Asked Questions (FAQ)
Q1: Why does a 250 t/h crushing line require a 400 t/h vibrating screen?
A: This is to ensure the proper management of the "circulating load" and the precision of the screening process for the entire production line. Chrome ore crushing typically employs a closed-circuit loop, wherein undersized material is returned to the crusher. The 400 t/h screening capacity provides ample redundancy to effectively handle this return material flow; it prevents excessive material buildup on the screen surface—which could lead to incomplete screening—thereby improving the quality of the finished product and reducing unnecessary wear on the crusher.
Q2: How does the equipment ensure durability given the high hardness of South African chrome ore?
A: South African chrome ore is highly abrasive; therefore, we recommend utilizing high-manganese steel (Mn18Cr2) or composite alloy liners within the 250 t/h crusher (such as a cone crusher) to ensure long-term durability. For the 400 t/h vibrating screen, we recommend utilizing polyurethane screen panels or welded wear-resistant steel plates. Furthermore, high-wear components—such as the feed hopper—should be reinforced with thickened plating to extend the equipment's service life within harsh mining environments.
Q3: How is this equipment maintained in remote mining regions in South Africa?
A: Our equipment features a modular design; key components—such as the hydraulic adjustment system—support remote operation and fault diagnostics. Additionally, the 250 t/h crushing system is equipped with an automatic lubrication function, which significantly reduces the frequency of manual maintenance. Specifically for the South African market, we provide local inventory support for critical wear parts to ensure the continuity of mining operations.
