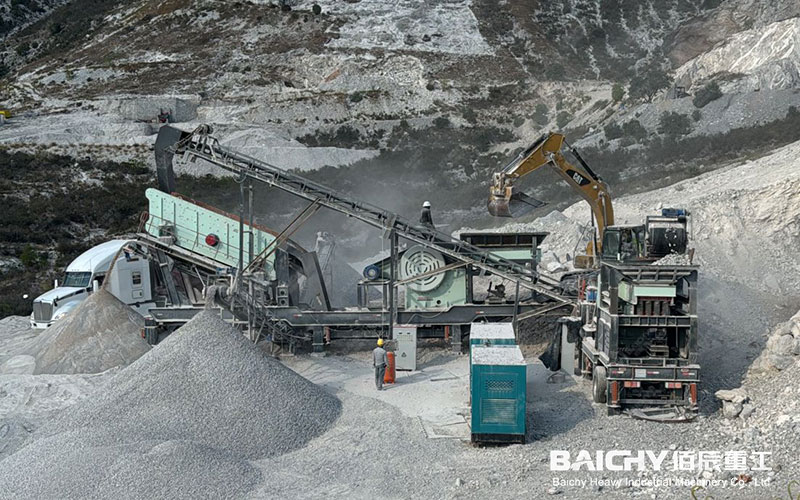

100 t/h Mobile Crushing Station — Customer Site
If you are currently searching for a mobile crushing station capable of producing 100 tons of high-quality sand and aggregate per hour, the YDPZ57 Series is undoubtedly a "star model" that simply cannot be overlooked.
Many clients, when inquiring about pricing, encounter two specific models: the YDPZ57-1210 and the YDPZ57-75. Both models feature a robust PE500x750 jaw crusher for their primary crushing stage; however, they perge significantly by adopting entirely different technical approaches for their secondary crushing stages.
Today, we will conduct a detailed breakdown of these two "four-in-one" mobile stations to help you select the perfect "money-making machine" for your specific project.
Impact Crusher PDF, Download ↓↓↓
I. The Shared "Heart": The PE500x750 Jaw Crusher
The "57" designation within the model numbers of these two mobile stations signifies that both are equipped with a PE500x750 Jaw Crusher.
Large Feed Opening: Boasting a maximum feed size of 425 mm, this unit can effortlessly process large blocks of raw stone—whether directly quarried or derived from construction waste—without the need for pre-processing. The Coarse Crushing Vanguard: As the first stage of the entire production line, it is responsible for rapidly "biting down" on large-sized raw materials to reduce them to a medium particle size, thereby laying the foundation for subsequent fine crushing.
II. Core Differences: A Technical Showdown in Secondary Crushing
While the "first stage" remains consistent, the choice of secondary crusher directly determines your operational costs and the marketability of your finished products.

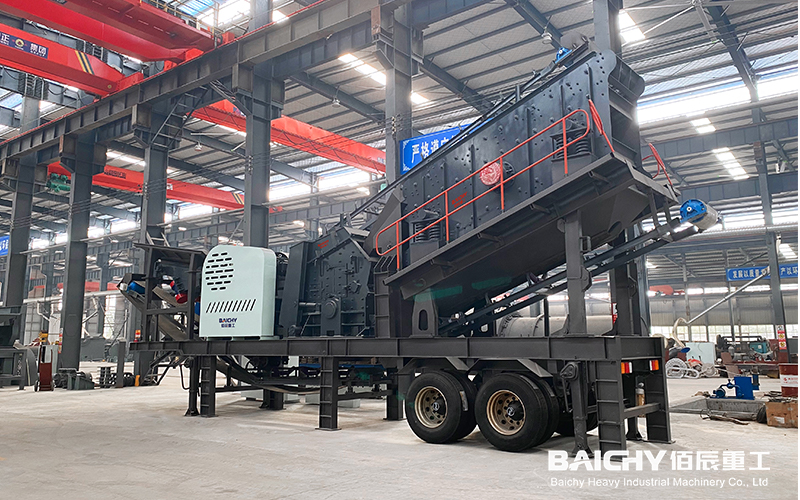

YDPZ57-1210 Mobile jaw and impact Crushing Plant
1. YDPZ57-1210: [Jaw Crusher + Impact Crusher] Combination
Secondary Configuration: PF1210 Impact Crusher.
Capacity: 70 – 130 tph (demonstrates exceptional stability at a capacity of 100 tons).
Advantages:
The King of Particle Shape: The impact crusher utilizes an impact-based crushing principle, producing aggregates with a cubic shape and minimal needle-like or flaky particles—making it the preferred choice for high-standard infrastructure projects (such as highways and high-speed railways).
Lighter Investment: For equivalent production capacities, the purchase price of a mobile impact crushing station is more affordable, allowing for a faster return on investment.
Applicable Materials: Limestone, bluestone, construction waste, and other low-to-medium hardness stone materials.
YDPZ57-75 Mobile jaw and cone crusher
2. YDPZ57-75: [Jaw Crusher + Cone Crusher] Combination
Secondary Configuration: CS75 Cone Crusher.
Capacity: 27 – 130 tph (offers a wide adjustable capacity range and strong adaptability).
Advantages:
The Hard Rock Slayer: The cone crusher employs a compression-based crushing principle, specifically designed to tackle high-hardness, highly abrasive materials such as granite, basalt, and river pebbles.
Ultra-Low Wear: When processing hard rock, the liner lifespan of a cone crusher is significantly longer than that of an impact crusher's blow bars. If your project involves hard rock, choosing this option can save you substantial costs on wear-part replacements every year. Applicable Materials: Granite, basalt, river pebbles, iron ore, and other hard ores.
III. How Should You Make a Recommendation for a 100 t/h Requirement?
When a client inquires about a mobile crushing station with a capacity of 100 tons per hour, you can offer them a "Golden Selection Formula":
1. Assess Material Hardness:
If the material is limestone or construction waste ➡️ Recommend the YDPZ57-1210. It offers stable operation, ample output, excellent product shape, and the highest return on investment.
If the material is river pebbles or granite ➡️ Recommend the YDPZ57-75. Although the initial investment is slightly higher, it results in lower long-term maintenance costs and stands as an "evergreen classic" in the hard rock crushing sector.
2. Consider the End Use of the Finished Product:
For use in high-grade concrete or asphalt paving ➡️ Prioritize the 1210 Impact Crusher Combination (due to its superior product shape).
For use in roadbed sub-bases or general fill material ➡️ Prioritize the 75 Cone Crusher Combination (due to its superior operational stability).
IV. The YDPZ Series "Four-in-One Combination": A Single Vehicle, a Complete Production Line
No matter which configuration you choose, our YDPZ "Four-in-One" series offers the following core advantages:
Truly All-in-One: The feeder, jaw crusher, secondary crusher (impact or cone), vibrating screen, and belt conveyors are all fully integrated onto a single chassis frame.
Closed-Circuit Loop: Automatically executes the "crushing-screening-re-crushing" process; oversized (non-compliant) materials are automatically recirculated for re-processing, ensuring that the final output consists entirely of qualified materials.
Dual Power (Diesel/Electric): Comes standard with electric motor drive, with an optional high-power diesel generator set available to eliminate concerns regarding power availability in remote or off-grid field operations.
Rapid Deployment: Requires no fixed infrastructure or foundation work; simply arrive at the site, extend the hydraulic support legs, and you can be up and running—generating revenue—within just 30 minutes. ---
Conclusion
For a mobile crushing plant with an output of 100 tons per hour, should you choose the YDPZ57-1210 or the YDPZ57-75?
If the stone material is relatively soft and your priority is superior particle shape, choose the 1210; if the stone material is harder and your priority is wear resistance, choose the 75!
