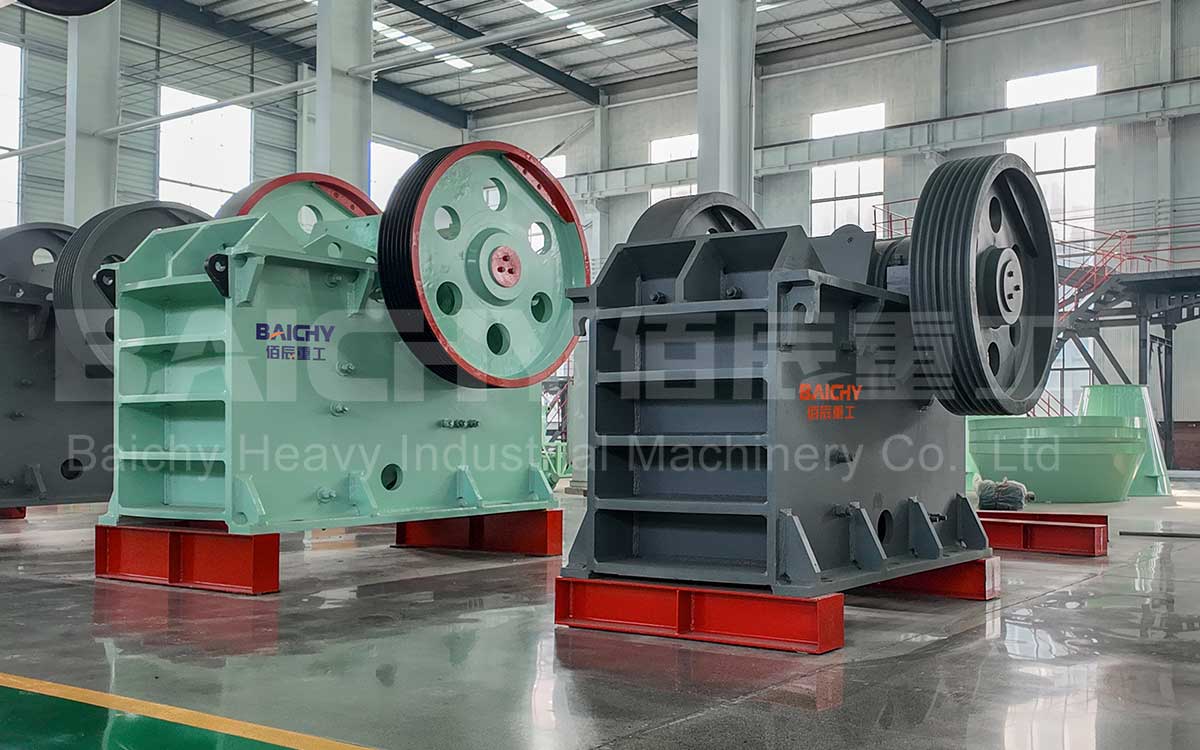

PE500x750 Jaw Crusher
PE500×750 jaw crusher delivers 40–130 t/h primary crushing with factory-customized 60Hz / 220V–440V motors. Compact footprint, high-manganese jaw plates, 15–30 day delivery. Request a quote in 1 hour.
Key Advantages of the PE500x750 Jaw Crusher
If you are running a 80–200 t/h quarry, gravel pit, or construction-recycling project in Mexico, the PE500×750 is the most cost-effective primary crusher in its class — built for your grid (60Hz / 220V–440V) at the factory, no frequency conversion, no extra cost. Mexico's construction industry is projected to grow at an average of 2.6% per year through 2029 (ResearchAndMarkets, Jan 2026), and every peso of that growth flows through primary crushing capacity first.
Why buyers replace their jaw crusher now
• Aging imported machines — parts take weeks to arrive, and downtime at 40–130 t/h costs thousands of pesos per hour.
• Voltage mismatch — 50Hz machines running on Mexico's 60Hz grid need frequency converters or burn out motors early.
• Nominal vs. real capacity — "rated" figures that never hold up on hard basalt or granite.
The PE500×750 answers all three at once.
What the specs mean for your P&L
| Item | Specification | What it means for you |
| Model & role | PE-500×750 primary jaw crusher | The standard first-stage crusher for 80–200 t/h aggregate lines |
| Feed opening | 500 × 750 mm | Accepts typical quarry output — no pre-screening needed |
| Max. feed size | ≤ 425 mm | Takes direct blasted / dug rock without extra equipment |
| Discharge setting | 50 – 100 mm, adjustable | One machine switches between road-base and aggregate specs |
| Capacity | 40 – 130 t/h (limestone basis) | Realistic mid-range output for quarry, gravel & recycling jobs |
| Motor power | 45 kW | Low kW-per-ton — keeps electricity cost down over machine life |
| Power supply | 60 Hz / 220V–440V 3-phase, customized | Plug-and-play with the Mexican grid — zero conversion cost |
| Crushing ratio | Up to 10 : 1 | Less load on the secondary crusher — saves downstream CAPEX |
| Jaw plates | High-manganese steel | Long wear life; spare plates stocked for fast replacement |
| Frame | High-strength cast steel | Stable under hard rock: basalt, granite, iron ore |
| Footprint | 2,150 × 1,900 × 1,950 mm | Compact — fits tight layouts and retrofit projects |
| Warranty & support | 12-month warranty; spare parts + installation guidance | Lower O&M risk; rapid response support |
| Delivery | EXW / FOB | Qingdao, 15–30 days Clear lead time for project planning |
Selection notes (avoid the trap)
• Capacity is material-dependent. The 40–130 t/h range is rated on limestone (≈1.6 t/m³). For basalt or granite, expect the lower half of the range — plan your secondary stage accordingly.
• Confirm voltage before ordering. Standard customization covers 220V / 440V / 480V at 60Hz; tell us your site voltage and we ship the motor already matched.
• Positioning: Between the PE400×600 (15–60 t/h) and the PE600×900 (90–180 t/h), the PE500×750 is the "sweet spot" upgrade for growing quarries — more output than entry-level machines, at roughly half the investment of a PE600×900.

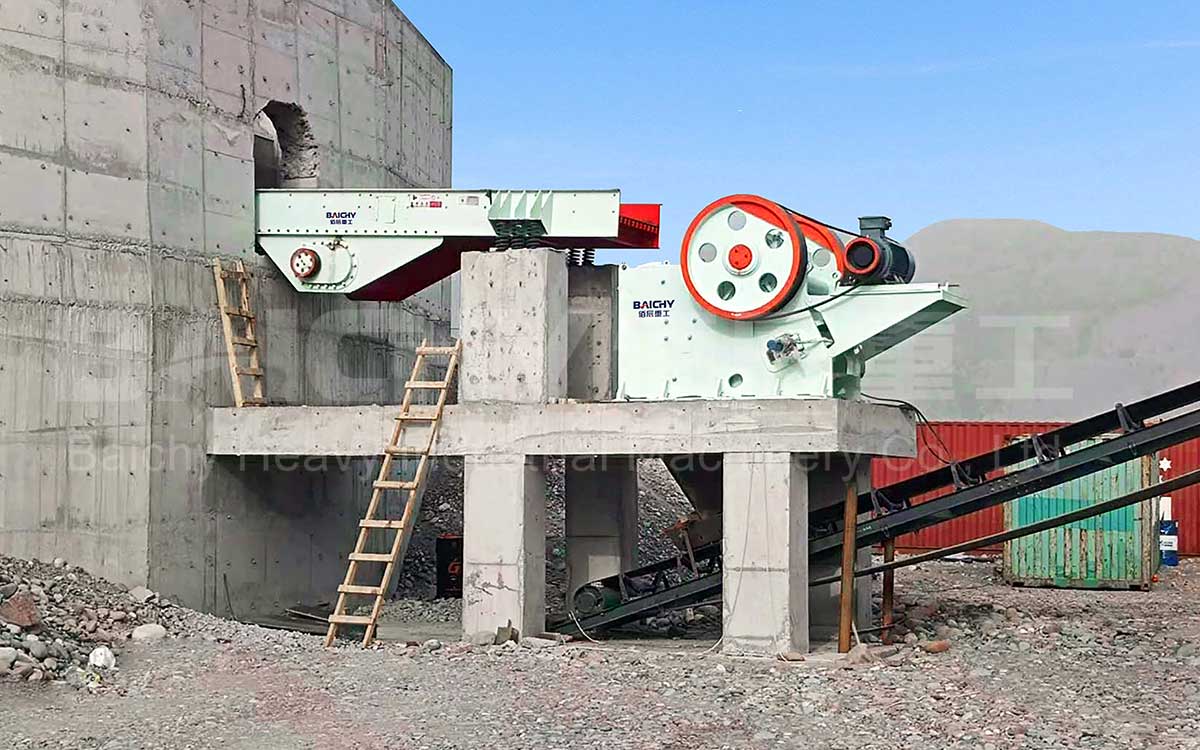

PE500x750 Jaw Crusher Production Line Site
FAQ
Q1: Does the PE500×750 work on Mexico's 60Hz grid?
Yes. Motors are customized at the factory for 60Hz / 220V–440V (or 480V) three-phase — delivered ready to run, no frequency converter required.
Q2: What is the real lead time?
Standard delivery is 15–30 days EXW / FOB Qingdao, depending on motor customization. Spare jaw plates and toggle plates are kept in stock.
Q3: Can you prove the capacity?
We have run similar models at a Mexican iron mine (PE600×900, 120 t/h achieved on site). We'll size the machine against your actual material, feed size and target output before quoting — no inflated numbers.
Q4: What if the machine needs maintenance?
High-manganese jaw plates and a high-strength cast-steel frame are designed for hard-rock duty. We supply a wear-parts list, installation guidance and remote technical support for the full warranty period (12 months).
Q5: How do I get the price?
Send us: material type, max feed size, target capacity and your site voltage. A formal quotation and production-line drawing are returned within 1 hour.
