PE400x600 Jaw Crusher
Limestone is one of the most commonly crushed materials, and the PE400x600 jaw crusher performs excellently in limestone processing lines. Learn why it is the preferred primary crusher for limestone quarries and what output you can expect.
Overview: What is the PE400x600 Jaw Crusher?
The PE400x600 Jaw Crusher stands as one of the most classic and widely utilized pieces of primary crushing equipment in the mining and crushing industry. The model designation "PE" signifies a jaw crusher, while "400x600" refers to the dimensions of its feed opening—specifically, a width of 400 millimeters and a length of 600 millimeters. Renowned for its robust structure, reliable operation, ease of maintenance, and strong adaptability, this machine is particularly well-suited for the coarse and medium-stage crushing of materials with medium hardness (such as limestone, granite, river pebbles, etc.). As the "first gateway" in a production line, its stability and efficiency directly determine the overall output of the entire processing system.

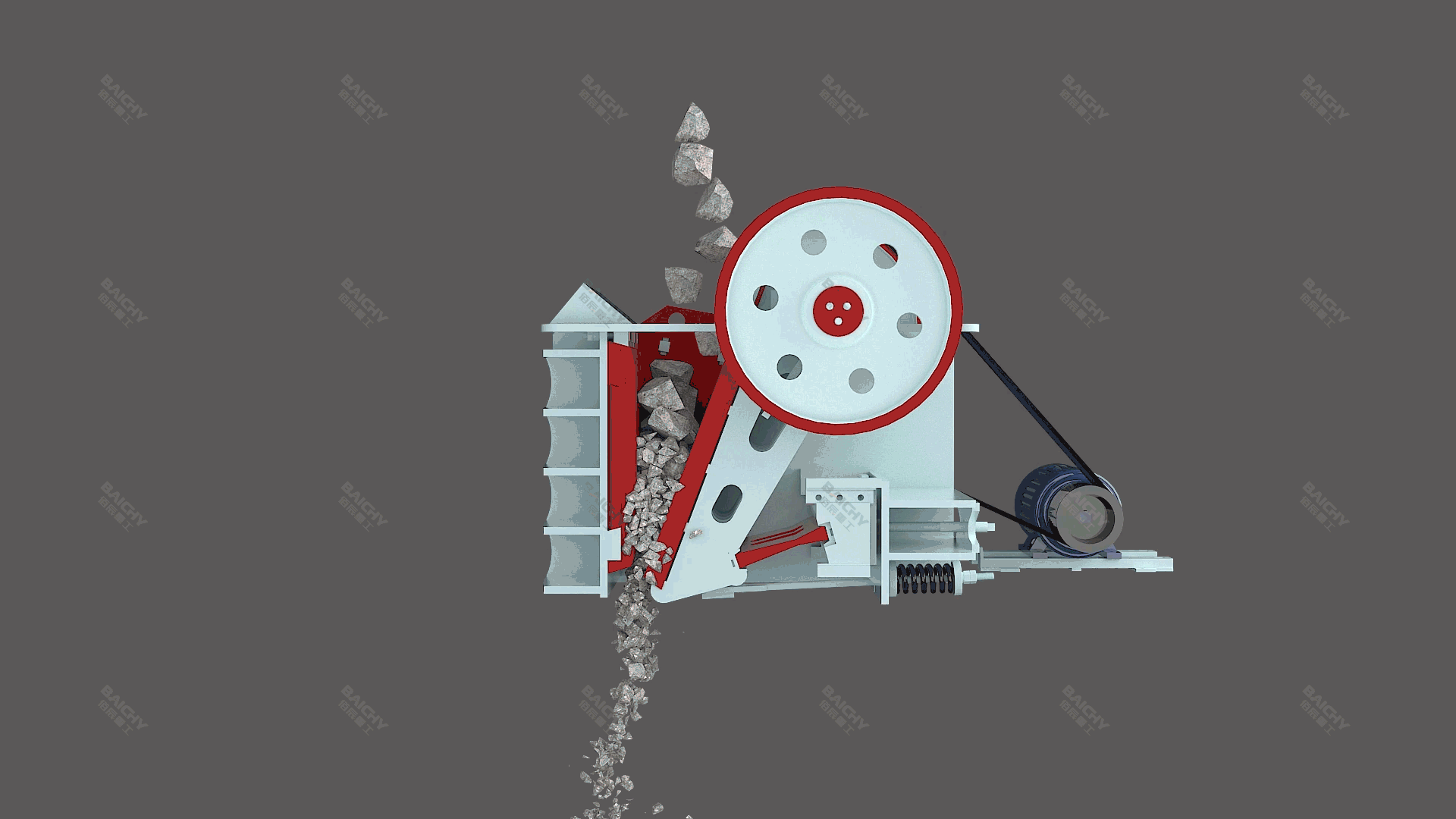

The jaw crusher employs the classic principle of curved-motion extrusion, utilizing the periodic movement of the movable jaw plate—approaching and receding from the stationary jaw plate—to achieve a combined crushing effect involving compression, splitting, and bending of the material.
Moving jaw swings backward → Discharge opening widens → Crushed material is discharged → New material enters
Moving jaw swings forward → Crushing chamber volume decreases → Jaw plates contact material → Fixed gripping
Core Application Scenarios: Why is it the Preferred Choice for Limestone Crushing?
Limestone serves as a vital raw material for industries such as construction, cement manufacturing, and metallurgy; consequently, the initial stage of its crushing and processing places specific demands on the equipment used. The PE400x600 Jaw Crusher is undoubtedly the ideal choice in this field, finding its primary applications in the following scenarios:
• Cement Production: Crushing large blocks of raw limestone down to a particle size suitable for feeding into vertical mills or ball mills (typically less than 100 mm).
• Aggregate Processing: Serving as the primary crushing unit within sand and gravel aggregate production lines, providing feed material for subsequent secondary and tertiary crushers (such as finer jaw crushers or impact crushers).
• Road and Railway Construction: Crushing limestone to produce aggregates of various specifications required for roadbeds and concrete mixtures.
• Small to Medium-Sized Quarries: Due to its moderate investment cost and high return on investment, it serves as both an entry-level and a core piece of equipment for numerous quarry operators.
Key Equipment Advantages: What Makes it a Market Classic?
Having withstood the test of time and market scrutiny, the PE400x600 Jaw Crusher boasts a set of highly distinctive advantages:
1. Exceptional Crushing Efficiency: The optimized deep "V-shaped" crushing chamber design not only enhances feed intake capacity but also increases the crushing ratio, resulting in a significant boost in the machine's single-unit output.
2. Exceptional Durability and Reliability: Constructed with a high-strength steel frame, the machine features a robust movable jaw assembly and oversized bearings capable of withstanding immense impact loads, ensuring long-term, stable operation even under the most demanding working conditions.
3. Simplified Maintenance and Low Operating Costs: The ergonomic structural design facilitates quick and easy replacement of wear parts (such as jaw plates). The simple, safe, and reliable mechanical toggle plate mechanism for adjusting the discharge opening reduces the complexity of routine maintenance and minimizes downtime.
4. Broad Material Adaptability: Not only is it ideal for processing limestone, but it also delivers outstanding performance with a wide variety of ores and rocks—including basalt, diabase, and iron ore—demonstrating exceptional versatility.

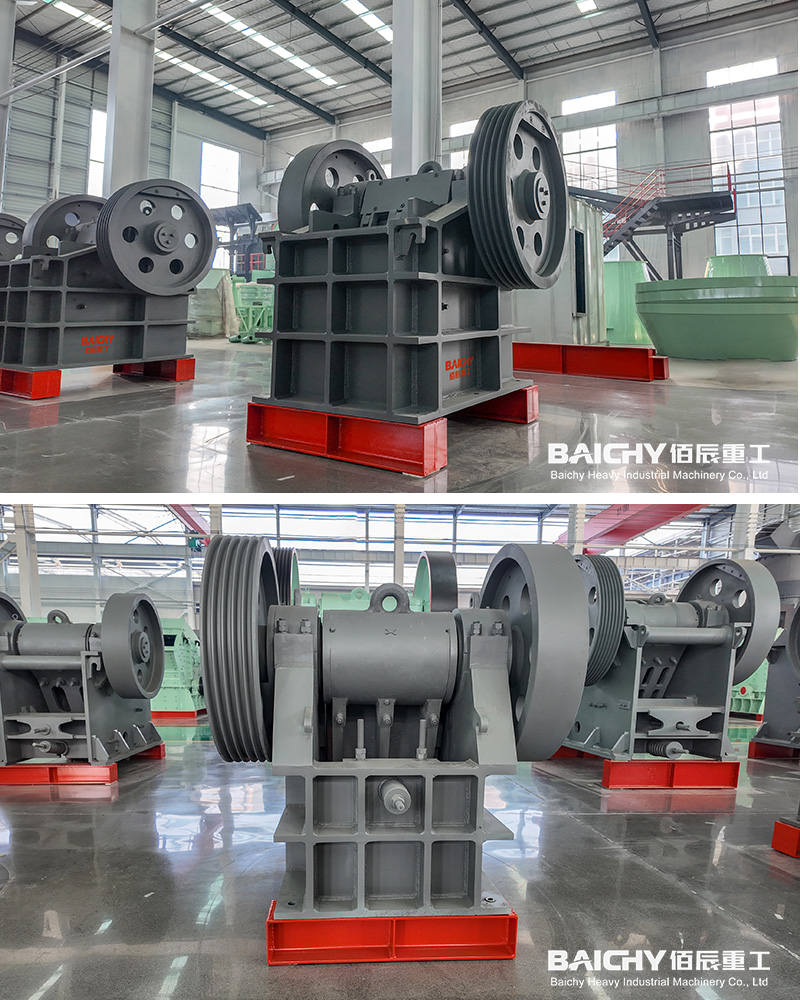

Limestone Crusher - PE400x600 Jaw Crusher
Key Parameters at a Glance
To provide you with a more quantitative understanding of the PE400x600 Jaw Crusher, listed below are its primary technical specifications:
| Parameter Name | Value/Specification | Description |
| Model | PE400x600 | Designation indicating the feed opening dimensions |
| Max. Feed Size | 340 mm | The maximum material size permitted to enter the crushing chamber |
| Discharge Opening Adjustment Range | 40–100 mm | A critical factor determining the final product particle size |
| Processing Capacity | 16–64 t/h | Varies depending on material properties and discharge opening settings |
| Main Shaft Speed | 275 r/min | Influences crushing frequency and efficiency |
| Main Motor Power | 30–37 kW | The core power source driving the equipment |
| Overall Dimensions (L × W × H) | 1700 × 1732 × 1653 mm | Reference for equipment installation footprint |
| Weight | Approx. 6.5 tons | Excluding the weight of the motor |
Success Stories
Case Study 1: A Major Cement Group in Henan Province
◦ Challenge: The existing, aging jaw crusher suffered from a high failure rate, severely disrupting the supply of limestone raw materials and preventing the clinker production line from operating at full capacity.
◦ Solution: We deployed two of our PE400x600 Jaw Crushers operating in parallel, complemented by the installation of feeders and iron separators.
◦ Results: The hourly output of limestone stabilized at over 120 tons, annual equipment operating time exceeded 7,200 hours, and the failure rate dropped by 85%. This ensured the continuous and stable operation of the main cement production line, allowing the client to recoup their investment costs within just one year.
Case Study 2: An Aggregates Production Line in Southeast Asia
◦ Challenge: The site was confined, requiring a jaw crusher—serving as the primary crusher—that featured a compact structure and allowed for rapid installation to process locally sourced limestone with a high silica content.
◦ Solution: We supplied a PE400x600 jaw crusher equipped with an integrated base frame, which significantly shortened the installation cycle. To address the highly abrasive nature of the material, the unit was fitted with high-manganese steel jaw plates.
◦ Results: The production line was quickly commissioned and brought into operation. The resulting product featured uniform particle size and low needle-and-flaky content, fully meeting local standards for high-end construction aggregates and generating excellent market returns.

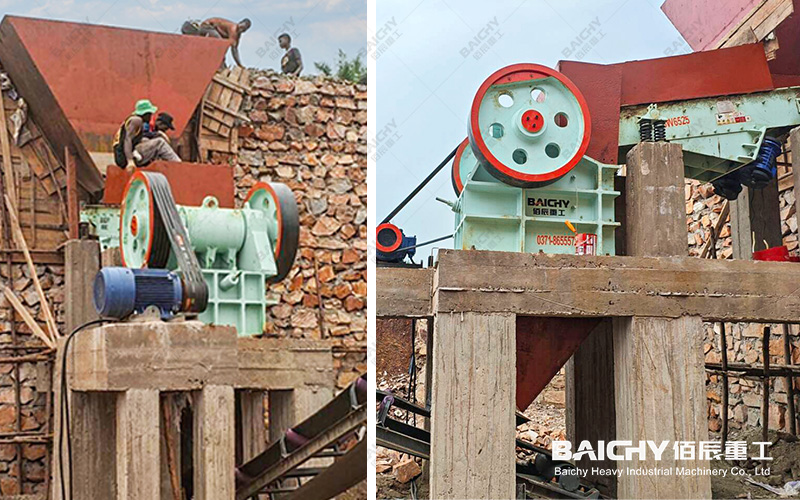

PE400x600 Jaw Crusher: On-site Operation
Recommended Related Equipment
Based on varying production process requirements—and following the completion of primary crushing by the PE400x600 jaw crusher—we recommend the following equipment for subsequent processing:
1. PF1214 Impact Crusher: Suitable for the medium-to-fine crushing of limestone. It produces material with excellent particle shape and moderate stone powder content, making it an ideal choice for manufacturing high-quality manufactured sand and construction gravel.
2. HPT300 Multi-Cylinder Hydraulic Cone Crusher: If the material to be crushed in the subsequent stage is harder (e.g., granite or river pebbles), or if there are extremely high requirements regarding output capacity and particle shape, this equipment offers a more efficient and wear-resistant solution.
3. 3YZS2160 Vibrating Screen: Used to screen the crushed mixed materials into finished products of various specifications; it is an indispensable classification device within any aggregates production line.
Frequently Asked Questions (FAQ)
Q1: What is the service life of the jaw plates on the PE400x600 jaw crusher?
A1: The service life of the jaw plates is closely correlated with the hardness and abrasiveness of the material being crushed, as well as the production output volume. For the crushing of standard limestone—under conditions of normal operation and proper maintenance—a single set of high-manganese steel jaw plates typically has a service life of 3 to 6 months. We offer jaw plates made from various materials (such as reinforced high-manganese steel, composite alloys, etc.) to suit different operating conditions and maximize customer benefits.
Q2: Can this equipment process limestone with high moisture content?
A2: Yes, though within certain limits. The PE400x600 jaw crusher possesses a certain capacity to handle materials containing moisture. However, if the moisture level is excessively high—leading to material adhesion or clogging—it will disrupt the feeding and discharge processes, thereby reducing output. We recommend pre-screening or air-drying overly wet materials prior to feeding, or incorporating anti-clogging measures into the design of the feed opening.
Q3: What are your advantages compared to equipment of the same specifications from other brands?
A3: Our core advantages lie in "reliable performance" and "comprehensive lifecycle service." Our equipment features a computer-optimized design, and all critical components (such as bearings and jaw plates) are sourced from leading international or domestic brands. More importantly, we provide end-to-end support—ranging from solution design, installation guidance, and operator training to rapid spare parts supply and periodic follow-up visits—to ensure your equipment consistently operates at peak efficiency.
In conclusion, thanks to its robust structure, highly efficient crushing capabilities, and exceptional reliability, the PE400x600 jaw crusher has established itself as a classic and preferred choice for primary crushing—not only in limestone processing but across the entire sand & aggregate and mining sectors. Selecting the right equipment is the first step toward a successful investment.
