The stone crushing plant is a kind of special plant for building stone production. BAICHY stone crushing production line is a project launched by our company after several years of development and research. Compared with the traditional crushing model, it saves a lot of energy and labor. At the same time, it has the characteristics of reasonable design, reliable operation, convenient operation, high efficiency, and energy-saving. We provide the equipment and design the production line according to the customer’s specific needs. Baichy has the ability to provide you with the best technical support.
| Max Feed Size(mm) |
Feeder |
Parimary Crsuehr |
Secondary Crusher |
Vibrating Screen |
Belt(m) |
Installed power(kw) |
Capacity(t/h) |
| 340 |
GZG8030(kw) |
PE400X600 |
PF1007 |
2YK1237 |
60-90 |
120 |
30 |
| 340 |
GZD8530(kw) |
PE400X600 |
PF1007 |
3YK1237 |
100-130 |
140 |
50 |
| 420 |
GZD9636(kw) |
PE500X750 |
PF1010 |
3YK1545 |
130-160 |
200 |
80 |
| 480 |
GZD9638(kw) |
PE600X900 |
PF1210 |
3YK1545 |
140-180 |
280 |
100 |
| 560 |
GZD1142(kw) |
PE750X1060 |
PF1214 |
3YK1860 |
200-240 |
300 |
150 |
| 630 |
GZD1142(kw) |
PE750X1060 |
PF1315 |
3YK1860 |
200 |
350 |
200 |
| 630 |
GZD1149(kw) |
PE900X1200 |
PF1214 |
3YK2160 |
200 |
400 |
250 |
| 630 |
GZD1249(kw) |
PE900X1200 |
PF1315 |
3YK2160 |
250 |
450 |
300 |
| 700 |
GZD1349(kw) |
PE1000X1200 |
PF1315 |
3YK2460 |
250 |
500 |
350 |

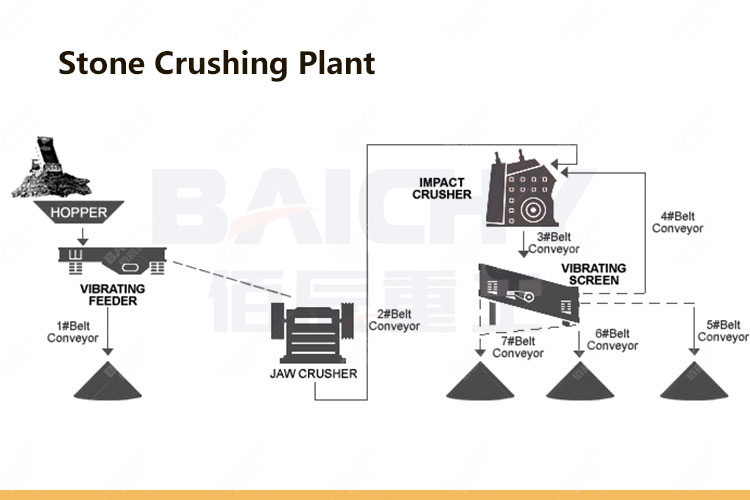

Technological Process of Stone Crushing Plant
The stone crushing plant by Baichy Machinery mainly consists of a vibrating feeder, jaw crusher, impact crusher, vibrating screen, belt conveyor， centralized electronic control system, and other equipment. The designed output is generally 30-600t/h. According to different technological requirements, we can also equip the dust collector, cone crusher, or other crushers to meet the different production needs of customers.
In the production process, large stones are evenly sent to the jaw crusher by a vibrating feeder for coarse crushing (primary crushing), then sent to the impact crusher by the belt conveyor for secondary crushing. After that, all the stones will be divided into three different sizes on the vibrating screen. The large-sized stone which is beyond the specification will be sent back to the impact crusher by the belt conveyor for re-crushing and then sent to the vibrating screen again forming closed-circuit multiple cycles until the completion of production.
Features of BAICHY Stone Crushing Plant
1. Automated Operation & Convenient Maintenance
Our stone-crushing plant has a high degree of automation. Except for equipment start-up, shutdown, and daily maintenance, the whole plant requires almost no manual operation. Besides, our equipment is easy to maintain. The wearing parts are made of high-strength wear-resistant materials, with a small loss, and long service life, which can bring considerable economic benefits to customers.
2. Wide Application
This plant has been successfully applied in the crushing processing of limestone, basalt, granite, pebbles, and other rocks. The product quality completely reaches the GB14685-2001 standard, which can be regarded as aggregate for high-grade highways, railways, water conservancies, concrete mixing plants, and other industries.
3. High Product Quality
The performance of the stone crushing plant can be judged according to the product quality. There are mainly two quality indexes of crushed stone: the ratio of elongated and flaky particles and the content of the powder. If these two indicators exceed the specified range, the product quality is unqualified and cannot be used in large projects. The quality of crushed stones produced by our crushing plant is in line with the relevant standards. The content of elongated and flaky particles and powder in the crushed stone is very small and the product particle size is uniform, the particle shape is good with no internal crack, the compressive strength is high, and the granular composition is reasonable.
4. Benefit
① BAICHY’s stone-crushing production line features high automation, high production efficiency, large output, low operating cost, and high profit.
② In the design of the process flow, the combined crushing and screening equipment has the characteristics of a small floor area, small investment cost, and high economic benefit due to the reasonable matching of the crushing equipment at all levels and the rigorous cross-layout of space.
③ The equipment used in the stone crushing plant has low loss, high quality, and long service life, which can bring considerable economic benefits to customers.
5. Timely Delivery
BAICHY has large manufacturing workshops and professional processing equipment to ensure the fast and high-quality production of related equipment in the automatic stone crusher plant. In addition, we have more than 20 years of production and sales experience, the products are exported all over the world, therefore, we can ensure timely and safe delivery, reducing the time cost of customers.
6. All-around Service
BAICHY provides EPS turnkey projects. It not only includes the manufacture of various specialized equipment in the stone crushing plant but also includes plant design, onsite installation, real-time commissioning, equipment operation training, and usual spare parts service.
7. Customization Service
Customization is the most basic service our company provides for each customer. We will design the production lines and choose equipment according to customers’ specific needs on stone specification, output, application, construction environment, etc. Every customer will get their satisfied stone crushing production line here.
Perfect after-sales service
Baichy Heavy Industry provides professional on-site guidance for installation, training of workers, and other services to ensure that customers can use the equipment smoothly.
The company has a complete after-sales service system, which can provide customers with timely technical support and equipment maintenance services to ensure the long-term stable operation of the equipment.
To prevent the rights and interests of customers from being infringed, Baichy Heavy Industry reminds customers: please contact our customer service staff through the official website of Baichy Heavy Industry , or add WhatsApp: 15093222637 ; or send an email to: [email protected] , we will get in touch with you as soon as possible and provide you with the most professional service in the industry.
