The United Arab Emirates continues to expand its infrastructure, residential, commercial, and industrial construction sectors. This growth creates steady demand for high-quality concrete aggregates that meet strict gradation, cleanliness, and durability requirements. A 1000tph limestone aggregate mining and crushing project in the UAE can provide a reliable supply of 0-5mm, 5-10mm, and 10-20mm aggregates for ready-mix concrete, precast concrete, road construction, and large building projects.
、

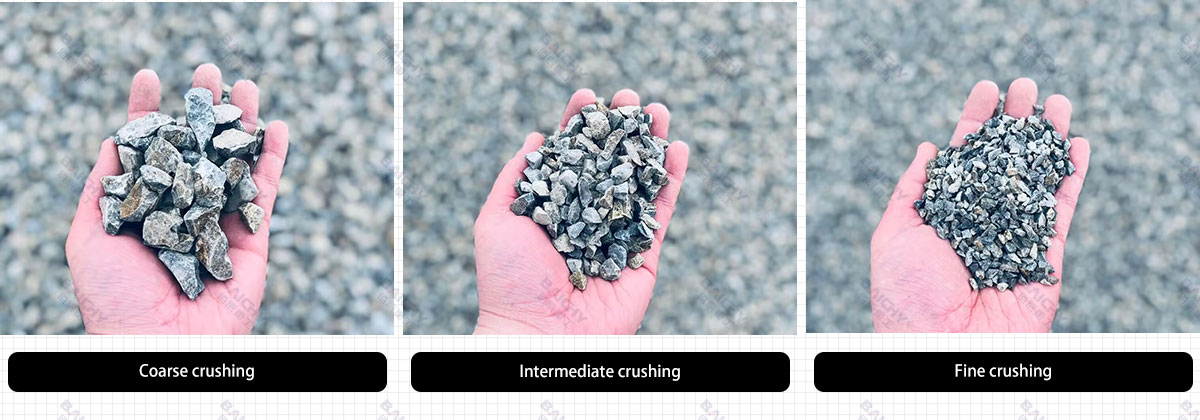

Limestone Crushing
Limestone is one of the most widely used raw materials for construction aggregates. It offers good crushability, consistent particle shape, and strong compatibility with concrete mixes. When processed through a modern crushing and screening plant, limestone can be turned into well-graded aggregates that support stable concrete performance and efficient construction operations.
Project Overview
This project is designed to mine, crush, screen, and stockpile limestone aggregates with a total processing capacity of 1000 tons per hour. The main output products are 0-5mm concrete sand, 5-10mm small stone, and 10-20mm coarse aggregate. These sizes are commonly used in concrete batching plants, precast yards, civil works, and general construction applications across the UAE.
The plant can be developed as an integrated quarry and aggregate processing facility. It may include limestone extraction, primary crushing, secondary and tertiary crushing, multi-deck screening, belt conveying, dust suppression, stockyard management, load-out systems, and environmental control measures. The design focuses on stable production, efficient size classification, low operating cost, and consistent product quality.
Typical Process Flow
The process begins with limestone extraction from the quarry face. The run-of-mine material is loaded into dump trucks and transported to the primary crushing station. A vibrating feeder regulates material flow and removes fine particles before the stone enters the primary crusher.
After primary crushing, the material is transferred to secondary and tertiary crushing stages. Cone crushers or impact crushers can be selected depending on limestone hardness, abrasiveness, and required product shape. The crushed material then enters multiple vibrating screens for size separation.
The screening system pides the material into 0-5mm, 5-10mm, and 10-20mm fractions. Oversized material is returned to the crusher for recirculation, while finished products are conveyed to separate stockpiles. Dust suppression systems, enclosed transfer points, and water spray units help control airborne dust during crushing and screening.
Product Specifications
| Product Size | Typical Application | Main Characteristics |
|---|---|---|
| 0–5 mm | Concrete sand, mortar, fine aggregate | Improves workability and filling capacity |
| 5–10 mm | Concrete, asphalt, precast elements | Provides balanced gradation and compaction |
| 10–20 mm | Structural concrete, road base, foundations | Offers high strength and stable particle skeleton |
The final product ratios can be adjusted by changing screen mesh sizes, crusher settings, and recirculation rates. This flexibility allows the plant to respond to different concrete mix designs and customer requirements.
Equipment Configuration
Complete System for a PE1200x1500 Jaw Crusher
A 1000tph limestone aggregate plant typically requires heavy-duty equipment with stable performance. The main equipment may include a vibrating feeder, primary jaw crusher, secondary cone crusher, tertiary cone crusher or impact crusher, multi-deck vibrating screens, belt conveyors, dust suppression units, electrical control systems, and loading systems.
The primary crusher reduces large limestone blocks to a manageable size. The secondary and tertiary crushers further refine particle size and shape. High-efficiency screens ensure accurate separation of 0-5mm, 5-10mm, and 10-20mm aggregates. Closed-circuit design helps improve yield and reduce oversized material in the final products.
UAE Market Advantages
The UAE construction market benefits from continuous urban development, transportation projects, housing programs, and industrial expansion. Aggregates are essential for concrete production, and local supply plays an important role in reducing logistics costs and delivery time.
A limestone aggregate plant located in the UAE can serve nearby concrete batching plants, contractors, precast factories, and infrastructure developers. Short transportation distances help improve project efficiency and reduce carbon emissions. The plant can also support large-scale projects that require long-term and stable aggregate supply.
Quality Control
Consistent aggregate quality is critical for concrete performance. The plant should implement regular sampling and testing for particle size distribution, flakiness index, dust content, moisture content, and bulk density. Laboratory testing helps ensure that 0-5mm, 5-10mm, and 10-20mm products meet project specifications.
Good stockpile management is also important. Separate storage areas should be maintained for each size fraction to avoid mixing. Stockpiles should be protected from contamination, excessive moisture, and segregation. Proper loading procedures help maintain stable gradation during dispatch.
Environmental and Safety Considerations
Quarry and crushing operations must follow local environmental and safety requirements. Dust control systems, water spraying, enclosed conveyors, and regular maintenance can help reduce emissions. Noise control measures should be applied around crushers, screens, and heavy equipment.
The project should also include safe access roads, protective guards, emergency stop systems, operator training, and routine equipment inspection. Sustainable quarry planning, progressive rehabilitation, and efficient water use can further improve the environmental performance of the plant.
Why This Project Is Competitive
A 1000tph limestone aggregate mining plant in the UAE offers high production capacity, flexible product sizes, and strong suitability for concrete applications. By producing 0-5mm, 5-10mm, and 10-20mm aggregates, the plant can meet perse construction needs while maintaining stable output and quality.
With proper equipment selection, process design, and environmental management, this project can become a reliable aggregate supply solution for UAE construction, infrastructure, and concrete production markets.
Frequently Asked Questions
1. What is the production capacity and output size of the plant?
The plant is designed for a capacity of 1000 tons per hour and produces three main limestone aggregate sizes: 0-5mm, 5-10mm, and 10-20mm. These products are suitable for ready-mix concrete, precast concrete, road construction, and general building projects in the UAE.
2. Can the product ratio be adjusted for different concrete mix designs?
Yes. The proportion of 0-5mm, 5-10mm, and 10-20mm aggregates can be adjusted by changing screen mesh sizes, crusher settings, and recirculation rates. This allows the plant to meet different concrete mix requirements and customer specifications.
3. What type of equipment is suitable for limestone crushing in the UAE?
A typical configuration includes a vibrating feeder, primary jaw crusher, secondary cone crusher, tertiary cone or impact crusher, multi-deck vibrating screens, belt conveyors, and dust suppression systems. The exact selection depends on limestone hardness, abrasiveness, and required product shape.
4. How is dust and environmental impact controlled at the quarry site?
Dust control is managed through water spray systems, enclosed transfer points, dust suppression units, and regular equipment maintenance. The plant should also follow local environmental and safety regulations, including noise control, stockpile management, and operator training.
5. Can this plant support large construction projects in the UAE?
Yes. With a 1000tph capacity and stable production of concrete-grade aggregates, the plant can serve concrete batching plants, contractors, precast factories, and infrastructure developers. Local supply helps reduce transportation costs and supports continuous project delivery.
