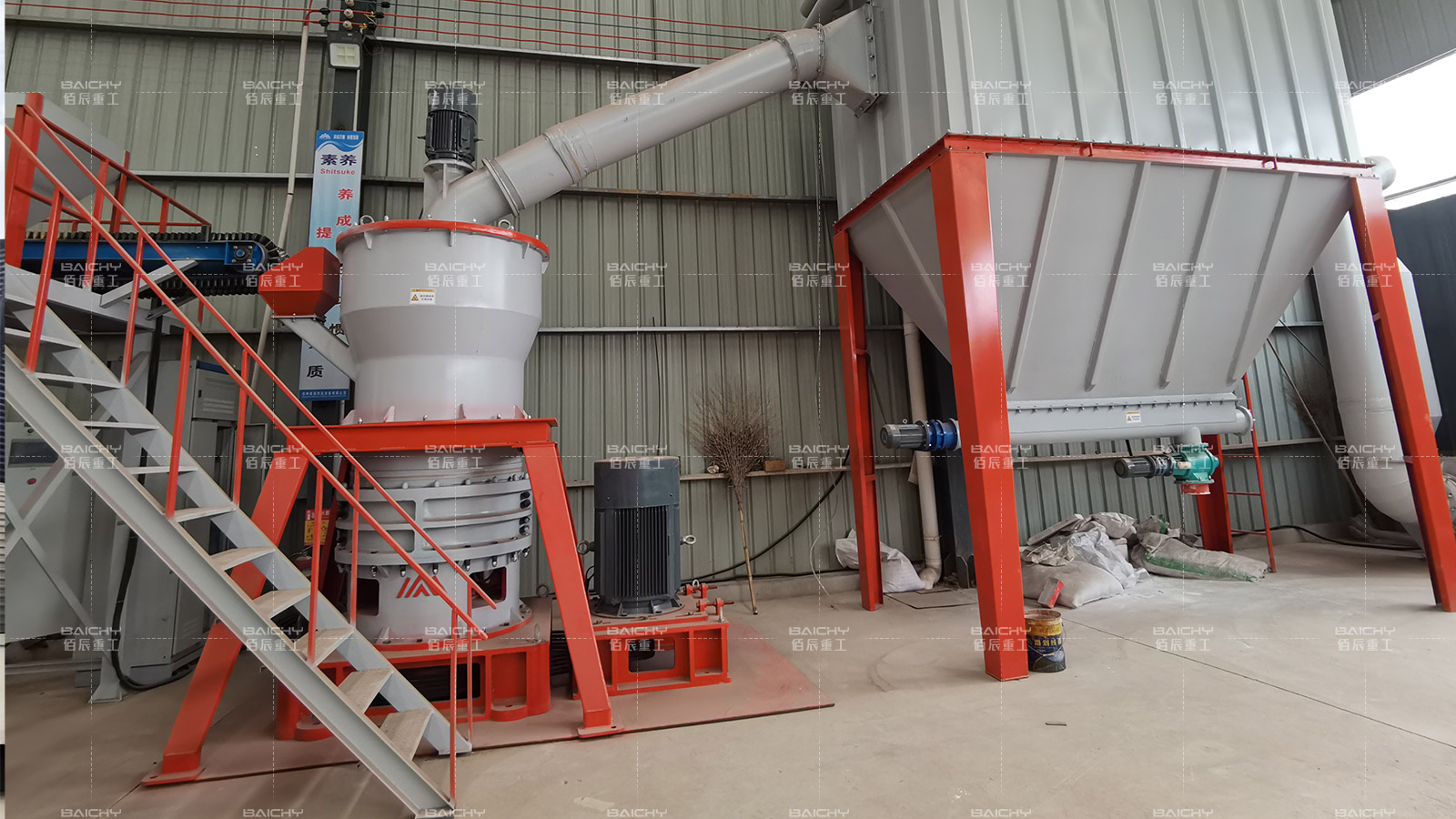

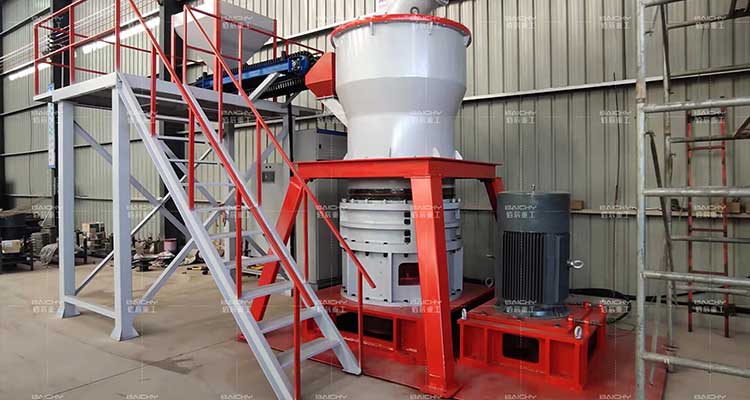

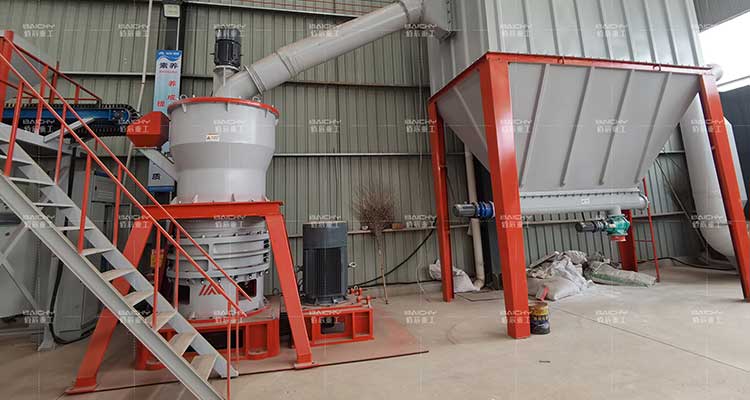

HGM micro powder grinding mill has been widely used for grinding materials with hardness less than 9 on the Mohs scale and humidity less than 6 percent in the industries of metallurgy, mining, chemistry, cement, construction, refractory materials, etc.
HGM series micro powder grinding mill is a new type of mining equipment for making micro powders with three-ring rollers. It is used to grind limestone, calcite, calcium carbonate, dolomite, gypsum, carbon black, gypsum, kaolin, marble, etc.
Micro powder grinding machine working principle：
After being crushed by the hammer crusher, the large rock becomes small ones and is sent to the storage hopper by elevator, and then evenly sent to the upper distribution plate of the turn plate by vibrating feeder and sloping feeding pipe. When the HGM grinding mill is at work, the main bearing and each dial are driven by an electromotor through a reducer, and all the grinding rollers are rolling in the ring channels driving by the dial through the plunger. The materials are driven to the edge of the turn plate by the centrifugal force and fall down into the grinding chambers. The high-pressure air blower constantly inhales air, and the airflow with crushed materials is brought to the classifier whose high-speed impeller will screen the airflow: the unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; a small proportion of the fine powders, with airflow, move to the dust cleaner. The materials from the above two lots are sent by the conveyor to get finished powders packed. In addition, filtered clean air will be emitted from the muffler in the end.
1. The whole powder grinding plant is equipped with an efficient pulse dust collector and muffler, which can reduce dust and noise. And the whole production won’t take effect on the environment.
2. The ring and roller are forged with special material with high utilization. The lifetime can reach 2-5 years for grinding calcite carbonate.
3. There’s no rolling bearing or screw in the grinding chamber, to avoid loose problems to destroying the machine.
4. The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 microns).
