Symons 4.25ft Cone Crusher: A Durable & Efficient Cone Crusher for Hard Rock Crushing

Symons Cone Crusher

Overview of the Symons 4.25ft Cone Crusher

The Symons 4.25ft cone crusher stands as a classic and highly respected model in the world of aggregate and mining crushing. Renowned for its robust construction, reliability, and consistent performance, it represents a proven design that has set industry standards for decades. This cone crusher excels in secondary, tertiary, and quaternary crushing stages, transforming coarse feed material into precisely sized, high-quality aggregate.

Its core principle utilizes a gyrating mantle within a fixed concave bowl, compressing and crushing rock against the hardened surfaces. The 4.25ft designation refers to the diameter of the crushing bowl, making it a versatile mid-sized powerhouse suitable for a wide range of production requirements. As a leading manufacturer of cone crusher equipment, we uphold the legacy of this design while integrating support for modern operational needs.

Key Features and Advantages

Why does the Symons 4.25ft cone crusher remain a preferred choice? Its advantages are clear and proven in the field.

Proven Symons Technology: The original, time-tested design ensures predictable performance, ease of operation, and straightforward maintenance.
Robust Construction: Built with heavy-duty components to withstand the continuous stress of crushing hard and abrasive materials.
High Efficiency and Productivity: Delivers consistent, high-volume output of well-shaped, cubical end products, maximizing your plant's yield.
Versatile Crushing Capabilities: Suitable for processing a variety of materials, from granite and basalt to limestone and gravel.
Reliable Overload Protection: The spring release system acts as a safeguard, allowing tramp metal to pass through the chamber without causing catastrophic damage to the cone crusher.

Primary Application Scenarios

The versatility of the Symons 4.25ft cone crusher makes it a key asset in several demanding industries:

Aggregate and Sand Production: Essential in quarries for producing high-quality crushed stone, sand, and gravel for construction and road building.
Mining Operations: Used in the mineral processing circuit for secondary and tertiary crushing of ores.
Construction and Demolition Waste Recycling: Effective in reducing reclaimed concrete and asphalt to reusable aggregate sizes.
Industrial Minerals: Crushing materials like limestone for agricultural lime or cement production.

Technical Specifications at a Glance

Below is a summary of the key parameters for the Symons 4.25ft cone crusher.

Parameter	Specification / Description
Bowl Diameter	4.25 Feet (1295 mm)
Standard Head Type	Available in coarse, medium, fine, and extra-fine configurations
Max Feed Size	Up to 230 mm (depending on cavity and settings)
Capacity Range	Approximately 100 - 400 metric tons per hour (varies with material, feed size, and closed side setting)
Power Requirement	Typically 150 - 220 kW (200 - 300 HP)
Main Frame Construction	Heavy-duty steel

Note: Capacities are indicative. Actual output depends on material characteristics, feed gradation, and crusher configuration.

Case Study: Enhanced Production in a Granite Quarry

A granite quarry in the Southeast US was experiencing bottlenecks and inconsistent product shape from their older secondary crushing stage. They installed a refurbished and optimized Symons 4.25ft cone crusher. The results were significant:

Production Increase: Achieved a stable 320 TPH output of 1-inch aggregate.
Improved Product Shape: The cubical product met strict state DOT specifications, increasing its market value.
Reduced Downtime: The crusher's reliability and easy access for liner changes minimized maintenance stops, boosting overall plant availability.

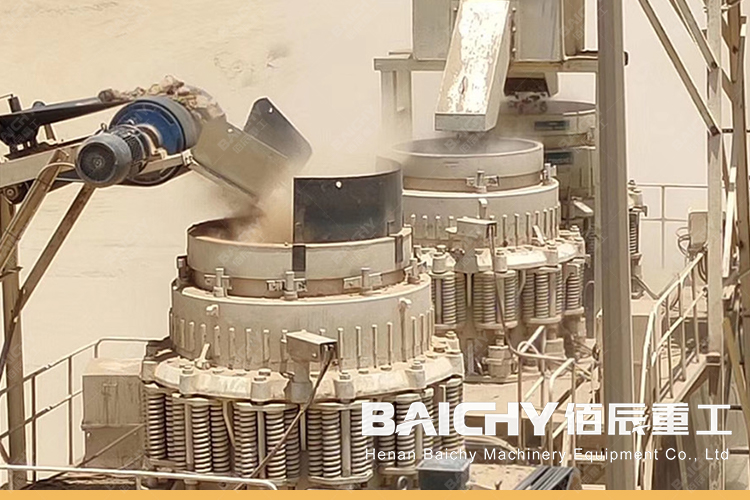

Symons Cone Crusher Customer Site

Recommended Related Equipment

To build a complete and efficient crushing circuit around your Symons 4.25ft cone crusher, we recommend:

Primary Jaw Crusher: A robust jaw crusher (e.g., 30"x42" or larger) to handle the initial size reduction of run-of-quarry rock, providing an optimal feed for the cone.
Vibrating Grizzly Feeder: To scalp out fines and evenly distribute material to the primary crusher, protecting it and improving overall circuit efficiency.
Horizontal Screen: A multi-deck vibrating screen for precise separation of the crushed product from the cone crusher into various aggregate sizes, with oversize material recirculated for further crushing.

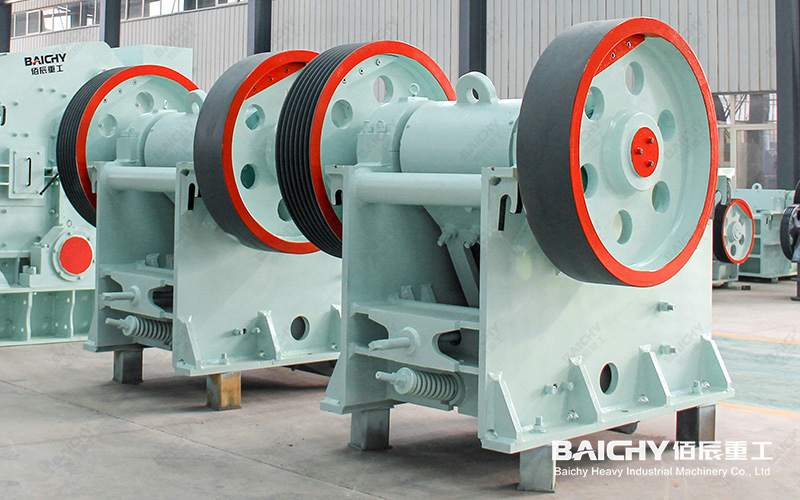

Jaw Crusher

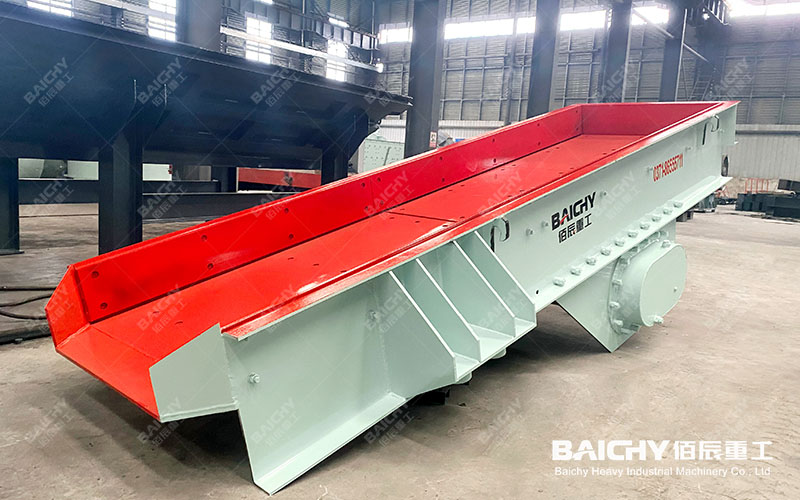

Vibrating Feeder

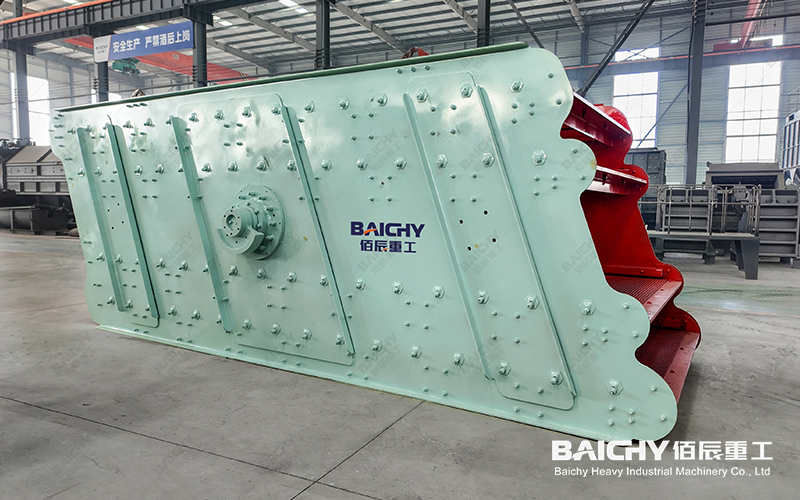

Vibrating Screen

Frequently Asked Questions (FAQ)

Q1: What is the main difference between standard and short head Symons 4.25ft cones?

A1: The primary difference is the shape of the crushing chamber. A standard head is designed for larger feed and producing a coarser product, ideal for secondary crushing. A short head has a steeper chamber for finer crushing and a smaller product size, making it perfect for tertiary or quaternary stages.

Q2: How often do the manganese liners (mantle and concave) need to be replaced?

A2: Liner life varies greatly based on the material's abrasiveness, throughput, and crusher settings. It can range from a few weeks in highly abrasive applications to several months in less demanding conditions. Regular inspection of liner thickness is crucial for planning maintenance.

Q3: Can this crusher be adapted for automated setting adjustment?

A3: Yes. Modern retrofit kits are available that can replace the manual adjustment system with a hydraulic system, allowing for remote and automatic adjustment of the crusher's closed-side setting (CSS) for quick and precise product size changes.
