PE400x600 Jaw Crusher
In Ethiopia's booming infrastructure construction and mining development, the reliability, weather resistance, and long-term operating costs of equipment are key indicators determining the project's return on investment (ROI) for primary crushing of basalt, granite, and limestone. Based on in-depth research into the geographical environment and power supply situation of the East African plateau, Baichy Heavy Industry recommends the classic PE400×600 jaw crusher.
Suitable for East African Conditions: Why Choose the PE400×600?
In small and medium-sized quarries or road construction projects in Ethiopia, the PE400×600 is widely recognized as the "gold standard." It not only possesses the rigidity required for primary crushing but also achieves an excellent balance between volume and energy consumption.
1. Robust Wear Resistance, Facing the Challenges of Basalt The Ethiopian plateau contains abundant high-hardness, highly abrasive basalt. Our PE400×600 uses thickened high-manganese steel (Mn13Cr2) lining plates, combined with a heat-treated heavy-duty eccentric shaft. This material combination effectively resists the impact of hard rock on the cavity, extending the life of vulnerable parts by more than 30% compared to the industry average.
2. Power Optimization: Compatible with Unstable Power Grids Considering the fluctuating power supply in some remote mining areas, this model comes standard with a 30kW high-efficiency energy-saving motor, offering high starting torque and smooth operation. It has extremely low load requirements for its own generator set, ensuring continuous operation even in off-grid conditions, avoiding downtime losses due to insufficient power.
3. Modular Transportation: Shortened Delivery Cycles The complex mountainous terrain from Djibouti Port to inland project sites presents challenges to equipment size. The PE400×600's compact design not only easily adapts to standard containers but also allows for land transportation via ordinary trucks, minimizing logistics costs and shortening on-site delivery time.

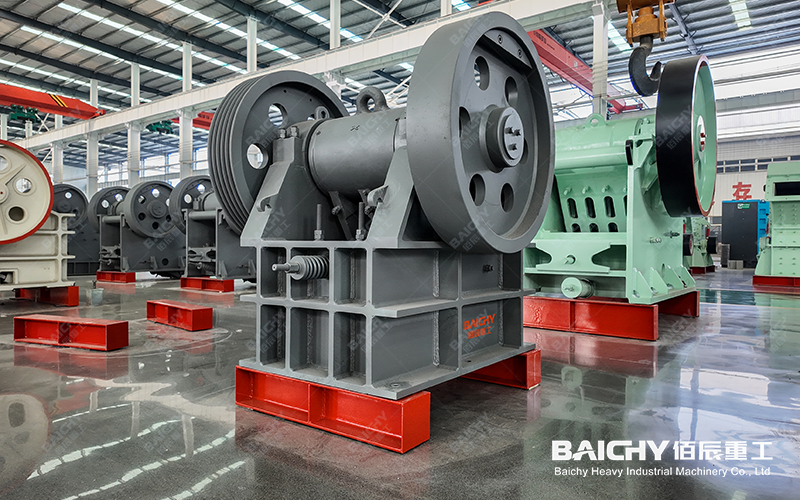

PE400x600 for Basalt & Granite Crushing
Technical Specifications and Performance Parameters
| Key Dimensions | Technical Indicators | Remarks |
| Feed Inlet Size | 400 × 600 mm | Maximum allowable feed size 340 mm |
| Capacity | 15–60 t/h | Depends on discharge port adjustment and material hardness |
| Discharge Port Range | 40–100 mm | Shim-type adjustment, 15-minute quick switch |
| Eccentric Shaft Speed | 275 r/min | Optimized crushing stroke, increasing throughput |
| Motor Power | 30 kW | Meets 380V/50Hz or custom voltage requirements |
Expert Advice: How to Maximize Value?
To ensure the long-term stable operation of the project in Ethiopia, we recommend:
Replacing Grinding with Crushing: By adjusting the discharge port of the PE400×600, the particle size of the material discharged from the primary crusher is more uniform, significantly reducing the wear burden on the secondary crusher (such as an impact crusher or cone crusher).
Extremely Simple Maintenance: This model uses a classic shim adjustment device, allowing on-site operators to perform particle size adjustments without specialized tools, greatly reducing the project's reliance on highly skilled technicians.
Baichy Heavy Industry not only provides high-quality crushing equipment but also is committed to providing technical solutions adapted to the local context. If you require a complete production line configuration list for Addis Ababa and the surrounding area, please feel free to contact our technical experts. We will provide your specific contact information.
Frequently Asked Questions
Q1: Why is the PE400×600 jaw crusher suitable for basalt crushing in Ethiopia?
A: Basalt, widely distributed in Ethiopia, is a high-hardness, highly abrasive material. The PE400×600 is specifically designed for this type of operation, reinforced with Mn13Cr2 high-manganese steel liners and a heavy-duty forged eccentric shaft. Its 400x600mm feed inlet design perfectly handles raw quarry material from small to medium-sized quarries, ensuring a high crushing ratio while extending the replacement cycle of wear parts by 25%-30%.
Q2: How is the power supply for this equipment handled in remote mining areas of Ethiopia?
A: Baichy equips this model with a standard 30kW Siemens (or equivalent) high-efficiency motor, fully compatible with Ethiopia's 380V/50Hz industrial power grid. Furthermore, addressing the pain point of unstable power supply in inland areas, this equipment can seamlessly connect to 50kVA-60kVA diesel generator sets. Its optimized flywheel design has a larger moment of inertia, effectively mitigating the impact of peak loads on the generator.
Q3: What is the logistics process for purchasing this equipment and shipping it to Addis Ababa?
A: We typically handle customs clearance and transportation through the Port of Djibouti. The PE400×600 adopts a modular disassembly design, allowing the entire unit to be loaded into a standard 20-foot container or transported by land using a standard 4.2-meter flatbed truck. This compact packaging significantly reduces cross-border logistics costs in inland areas and supports rapid assembly on-site within 2 hours.
Q4: What is the production capacity of the PE400×600? Can it meet a demand of 50 tons per hour?
A: The designed production capacity range for this model is 15 to 60 tons per hour. The specific output depends on the adjustment of the discharge port (CSS): when the discharge port is adjusted to 100mm, the peak output can be stabilized at 50-60t/h; if a fine material of 40mm is required, the average capacity is about 15-20t/h. It is an ideal primary crushing option for small and medium-sized road aggregate production lines in Ethiopia.
