For small and medium-sized gold mine owners in the Malaysian states of Pahang and Kelantan, where electricity is extremely scarce in remote forest areas and quartz vein gold ore reaches a hardness of 7 on the Mohs scale, the optimal equipment configuration is a gravity-separation-only production line featuring a "diesel-powered mobile jaw crusher (PE150x250/PE250x400) + 1200/1500 wet gold grinding mill." This setup enables rapid commissioning within 15 days, eliminates the need for high-voltage grid infrastructure investment, and fully complies with the environmental regulations of the Malaysian Department of Environment (DOE). Compared to traditional grid-powered ball mill production lines, this solution saves mine owners over 30,000 USD (approximately 140,000 MYR) in infrastructure costs for transformers and transmission lines in off-grid areas, while reducing energy consumption per ton of ore processed by up to 35%.

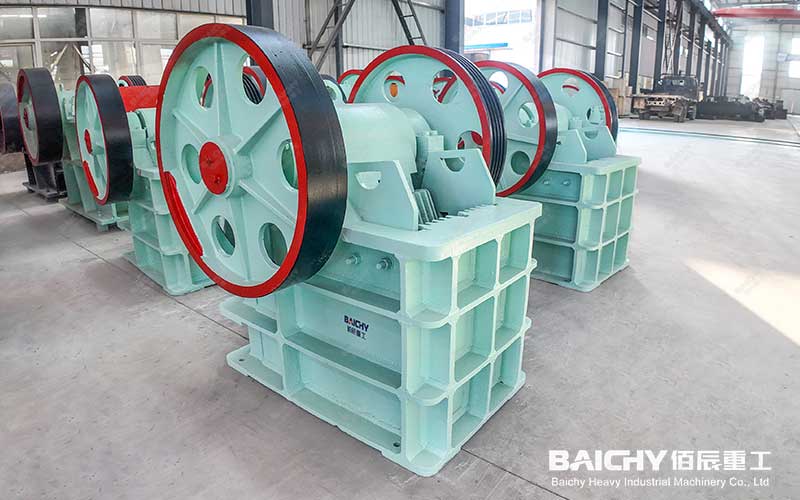

pe250x400 jaw crusher with diesel

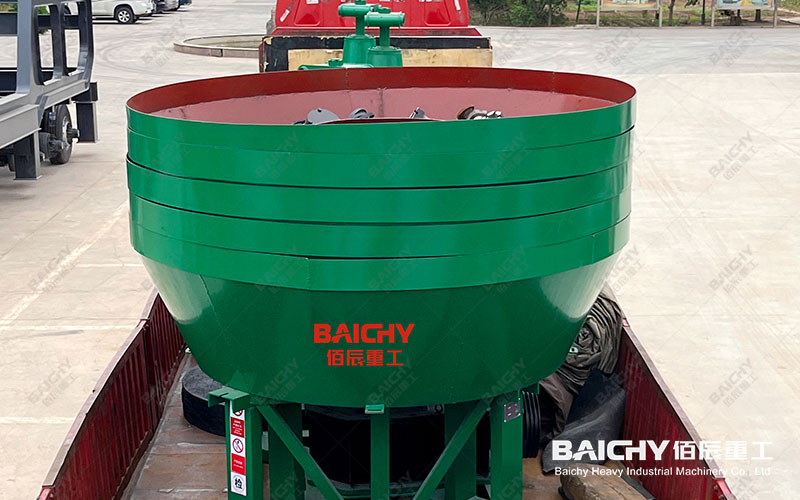

wet pan mill for gold mining
I. The "Three Major Survival Challenges" for Gold Mine Owners in Remote Malaysia
When mining hard-rock gold deposits (primarily quartz vein-hosted gold) in typical Malaysian mining areas such as Gua Musang and Raub, small and medium-sized mine owners often face three critical operational challenges:
1. Difficulty in accessing the high-voltage grid and high generator operating costs
Gold veins are often hidden deep within tropical rainforests. Extending power lines and installing transformers requires lengthy approval processes from government forestry and land departments (typically 6–12 months), and the infrastructure costs are astronomical. Relying entirely on high-power diesel generator sets to drive large electromagnetic ball mills results in exorbitant fuel and generator rental costs that rapidly erode the owner's initial profits.
2. High-hardness quartz veins (Mohs 7) cause extreme equipment wear
Primary gold deposits in Malaysia are predominantly hosted within high-hardness quartz veins. Standard crushers often feature flimsy frames and low-quality jaw plates; when processing highly abrasive hard rock (Mohs hardness of 7), they frequently suffer from frame deformation, rapid jaw plate wear (flattening), and the inability to close the discharge opening—all within less than 100 hours of operation—causing the entire production line to shut down.
3. Environmental Review (DOE): Zero tolerance for chemical reagents and pollution
The Department of Environment (DOE) in Malaysia enforces extremely strict regulations on chemical reagents used in gold mining (such as mercury amalgamation and cyanidation). Small and medium-sized mine owners often struggle to obtain expensive cyanide processing licenses during the initial stages and must instead utilize purely physical gravity separation processes. This places high technical demands on the uniformity of the grinding discharge particle size (to prevent fine gold loss caused by over-grinding).
II. Recommended Equipment and Technical Configuration (Typical 5–10 t/h Gold Gravity Separation Line)
To address the challenges mentioned above, engineers at Baichy Heavy Industry have customized a small-scale, portable, self-powered (non-electric) gold crushing, grinding, and gravity separation line for the Malaysian market. This configuration not only requires a minimal footprint (only 150 m² of simple, level ground) but also features equipment that perfectly complements one another.
Core Equipment Recommendation Table:
| Processing Stage | Recommended Equipment | Key Technical Specifications | Customer Benefits (Why it suits Malaysian operating conditions) |
| Stage 1: Coarse Crushing | PE250x400 Diesel-Powered Mobile Jaw Crusher | Feed opening: 250x400mm; Max feed size: 210mm; Powered by a 20–22 HP diesel engine (or dual diesel/electric drive); Unit mounted on a heavy-duty steel base or a mobile trailer with tires. | Saves 140,000 MYR in grid connection costs; installation completed in one day; self-contained diesel power eliminates the need for external electricity; large feed opening accepts quartz gold ore directly from excavators (up to 20cm), eliminating manual secondary breaking costs; processing capacity of 5–15 t/h. |
| Stage 2 ：Fine Grinding | 1500 Wet Pan Mill | Roller diameter: 1500mm; dual-roller weight: 2.0 tons; motor power: 11–15kW (can be powered by a smaller generator); discharge fineness: 100–200 mesh. | Replaces the "crusher + ball mill + classifier" combination with a single unit: utilizes powerful gravity crushing and shearing/grinding actions to reduce coarse sand (<20mm) directly to <150 mesh in one step, achieving full liberation of gold particles; reduces electricity consumption per ton by 40% compared to ball mills. |
| Stage 3：High-Precision Gravity Separation | 6S Shaking Table | Fiberglass-reinforced plastic (FRP) deck; dimensions: 4500x1500mm; oil-bath lubrication for the drive box; 1.1kW motor. | Fully compliant with Malaysia DOE environmental regulations: a purely physical gravity separation process that exploits the specific gravity difference between gold (19.3) and quartz (2.65) to achieve precise separation and zoning of heavy gold-bearing sands and tailings; gold recovery rate reaches 92%–95% (for free gold). |
III. How do technical parameters translate into net profit?
We reject empty rhetoric; instead, we use rigorous engineering logic and financial data to demonstrate the tangible commercial value that this "Diesel-powered Jaw Crusher + Gold Grinding Mill" combination offers you:
ROI Comparison: "Diesel Jaw Crusher + Gold Grinding Mill" vs. "Traditional Generator Set + Ball Mill"
| Comparison Criteria | Baichy Heavy Industry "Diesel Jaw Crusher + Gold Grinding Mill" Gravity Separation Solution | Traditional "High-power Generator + Ball Mill" Solution | Profit Increase for Malaysian Mine Owners with Baichy Solution |
| Initial Infrastructure & Power Setup Investment | Approx. $15,000 - $22,000 (Equipment cost + simple foundation; no grid connection required) | Approx. $45,000+ (Requires high-power diesel generator set, reinforced concrete foundation, and steel grinding media) | Immediate initial savings of over $23,000 (approx. 100,000 MYR) on infrastructure and equipment; significantly lowers initial investment risk. |
| Service Life of Core Wear Parts | Jaw Plates: 1,000+ hours (Forged High-Manganese Steel Mn13Cr2) Grinding Wheels/Base: 1,200+ hours (Thickened Alloy Cast Iron) |
Ball Mill Liner Plates: 800 hours Steel Ball Consumption: Up to 1.5kg per ton |
Reduces downtime for wear-part replacement by 8 days annually; zero steel ball consumption; saves over $5,000 per year on procurement and logistics. |
| Operational & Maintenance Complexity | Minimal. Local general laborers can master operation and adjustments after just 2 hours of training; no professional electrical engineer required. | High. Ball mills require precise control of slurry ratios and steel ball mixes, plus explosion-proof electrical cabinets; highly susceptible to motor burnout from voltage fluctuations. | Labor and maintenance costs reduced by 50%. High-paid electrical engineers are hard to recruit for remote mountain sites; Baichy’s purely mechanical design allows for easy repair even in forest locations. |
| Environmental Compliance (DOE) | 100% physical gravity separation; zero wastewater discharge. Gravity separation water is recyclable, ensuring easy compliance with Malaysian environmental assessments. | Combining this with cyanidation or amalgamation raises environmental compliance hurdles; conversely, relying solely on gravity separation alongside ball milling often leads to over-grinding (excessive fine sludge and significant gravity separation losses). | Achieve rapid environmental compliance within 15 days, avoiding the risk of heavy fines or mine closure by Malaysian environmental courts due to the improper use of chemical reagents. |
IV. Process Flow: From Quartz Ore to High-Purity Gravity-Separated Gold Sand
PROCESS-FLOW-FROM-QUARTZ-ORE-TO-HIGH-PURITY-CONCENTRATED-GOL
1. Primary Crushing: Gold ore (≤210mm) mined from the mountain is fed evenly—via conveyor belt or manual labor—into a PE250x400 diesel-powered mobile jaw crusher. A powerful eccentric shaft drives high-manganese steel jaw plates, instantly crushing hard quartzite (Mohs hardness 7) into uniform fragments of 20–50mm.
2. Fine Grinding: The crushed ore falls into the iron basin of a Model 1500 wet-grinding gold mill. Driven by an electric motor, two heavy cast-iron wheels (weighing 2 tons each) rotate and grind rapidly against the base. With the addition of recycled water, the ore is repeatedly pulverized through the combined action of the water flow and the heavy wheels.
3. Overflow Classification and Gravity Separation: Once the slurry inside the mill reaches the target grinding fineness (e.g., 150 mesh), the compliant fine slurry automatically overflows through the peripheral screen mesh and flows directly into a 6S shaking table. Under the influence of the table's asymmetric reciprocating motion and the washing action of transverse water flow, lightweight quartz tailings are washed away. Meanwhile, high-density gold particles and heavy sands (such as iron sand and pyrite) are trapped in the table's riffle grooves, concentrated, and moved toward the concentrate discharge end, yielding high-grade gold concentrate.
Frequently Asked Questions
Q1: How do you start your diesel-powered crushers in the remote forests of Pahang, Malaysia, where there is no mains electricity?
A1: Baichy Heavy Industry has specifically designed a diesel power system featuring a dual-start configuration (manual crank and electric start) for off-grid forest operations. The diesel-powered PE250x400 crusher comes equipped with a high-capacity battery and a high-horsepower diesel engine. With a simple push-button electric start, crushing operations can begin anywhere in the deep forest, completely eliminating the need to install high-voltage power lines.
Q2: Will the wet gold grinding mill wear out quickly when processing high-hardness quartz vein gold ore (Mohs scale 7) found in Malaysia?
A2: Absolutely not. The grinding wheels and grinding rings (base plates) of Baichy Heavy Industry’s 1200/1500 model wet gold grinding mills are precision-cast from thickened, specialized high-chromium alloy (Cr15/Cr20), offering three to four times the wear resistance of standard cast iron. When processing hard rock with a Mohs hardness of 7, a single set of wear parts lasts between 10 months and 1.5 years. Furthermore, replacement is extremely simple, taking just two hours to complete on-site at the mine.
Q3: Given Malaysia's rainy and humid climate, how are the equipment's diesel engine and core bearings protected against moisture and rust?
A3: Baichy Heavy Industry has implemented specific upgrades for equipment exported to tropical, high-rainfall regions like Malaysia:
① The diesel engine is fitted with a high-water-resistance protective cover to prevent direct exposure to heavy rain;
② All jaw crusher main bearings and grinding mill gearboxes utilize a multi-layer labyrinth-style fully sealed oil seal structure to block the ingress of rainwater, mud, and dust;
③ The entire steel structure undergoes Sa2.5 grade shot-blast cleaning and is coated with three layers of zinc-rich, heavy-duty anti-corrosion polyurethane paint, ensuring rust-free performance for five years in high-humidity tropical rainforest environments.
Q4: This small-scale gold mining setup doesn't include any belt conveyors; how are the various pieces of equipment connected?
A4: To help mine owners minimize initial procurement and logistics costs—and given the system's compact footprint—we utilize a stepped gravity-flow design. The PE250x400 jaw crusher is mounted on a slightly elevated platform; crushed material slides via a chute directly into the gold grinding mill below, while the mill's overflow feeds via piping into the shaking table at the base. This "belt-free" design not only saves thousands of Ringgit in conveyor procurement costs but also eliminates the maintenance associated with wear-prone conveyor belts.
Q5: Can a gravity shaking table recover gold particles if they are extremely fine (such as micro-fine encapsulated gold)?
A5: The 6S shaking table offers extremely high separation precision for free gold particles larger than 200 mesh (approx. 0.074mm). However, if your ore contains significant amounts of ultra-fine gold (finer than 300 mesh), we recommend installing a high-efficiency centrifugal concentrator (Knelson-type) between the grinding mill and the shaking table. By using high centrifugal force (60G–120G) to capture ultra-fine gold upfront—followed by final separation on the shaking table—the overall gold recovery rate can be boosted to over 95%.
Q6: What kind of after-sales and logistics support does Baichy Heavy Industry provide to customers in Malaysia?
A6: Baichy Heavy Industry has extensive experience exporting to Malaysia:
① We offer direct shipping from Qingdao or Tianjin, China, to Port Klang or Kuantan Port, with a transit time of only 10–14 days;
② We provide a complimentary set of spare parts for the diesel engine and sealing rings for the jaw plates;
③ We supply detailed installation videos (in Chinese and English) and 3D foundation layout drawings. Assist your on-site workers in quickly completing assembly and machine commissioning with the guidance of remote engineers available online 24 hours a day.
