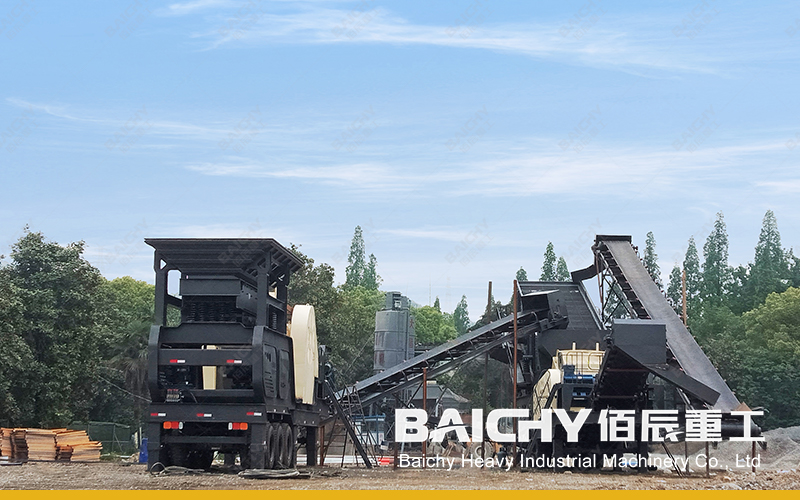

150-200 TPH Mobile Jaw Crusher Plant
Why a 150-200 TPH Mobile Jaw Crusher Plant Is a Smart Investment
For quarry owners, mine operators and aggregate producers, productivity and mobility are the two forces that decide profitability. A 150-200 tph mobile jaw crusher delivers exactly that balance: enough throughput to feed a commercial crushing line, yet compact and portable enough to move between job sites within days.
At Baichy Heavy Industry, we engineer combined mobile crushing stations that integrate a jaw crusher, feeder, belt conveyor, power system and control panel onto a single tracked or wheeled chassis. This turnkey design removes the need for fixed foundations, heavy civil works and lengthy installation — cutting your time-to-production from months to under a week.
This article explains everything you need to know: the core components, the working principle, the parameter table, application scenarios, operating costs, and how to choose the right configuration for your project.
What Is a Combined Mobile Crushing Station?
A combined mobile crushing station (also called a mobile jaw crusher plant or wheeled crushing plant) is a self-contained crushing unit. Unlike stationary crushers bolted into concrete foundations, the mobile plant integrates all crushing stages and auxiliary equipment on one movable frame.
For the 150-200 tph jaw crusher model, the station typically includes:
Key Components of the Mobile Jaw Crushing Plant
| Component | Function | Specification / Detail |
|---|---|---|
| Vibrating Feeder | Feeds raw material evenly into the crusher | GZD-960×3800 or equivalent, 10–15 kW |
| Jaw Crusher (Primary) | Primary reduction of large rocks | PE-750×1060 / PE-900×1200 series, 90–110 kW |
| Belt Conveyor | Transfers crushed material to stockpile or next stage | Width 800–1000 mm, adjustable height |
| Chassis / Undercarriage | Supports all units, enables transport | Wheeled or tracked, hydraulic or semi-trailer |
| Power System | Diesel engine or electric motor drive | 220–280 kW total installed power |
| Control Panel | Centralized start, stop and protection | PLC / electrical control, remote start option |
| Grizzly / Screen (Optional) | Pre-screening and grading of finished product | Optional double-deck vibrating screen |
Core Advantages Over Stationary Crushers
- Rapid deployment — arrive, level, start. No concrete foundation or steel structure required.
- Mobility across sites — relocate to a new quarry, demolition site or road project with a standard truck.
- Lower civil engineering cost — save on foundation pouring, permits and installation labor.
- Fuel and energy flexibility — choose electric drive for grid operation or diesel engine for off-grid sites.
- Recycling-friendly — ideal for turning demolition waste and recycled aggregate into sellable sand and stone.
- Scalability — combine a jaw crusher with cone or impact crusher to build a two-stage or three-stage line.

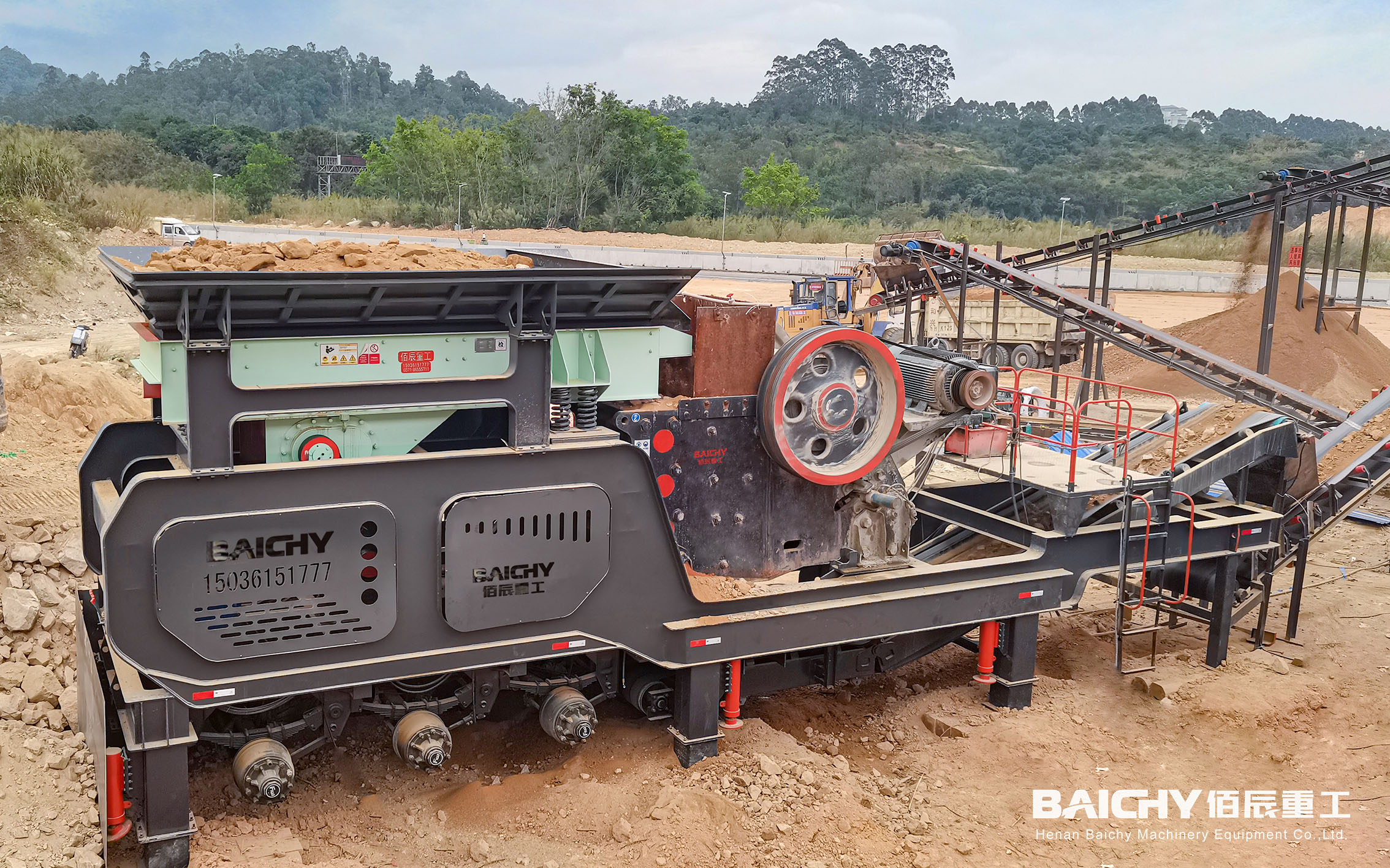

150-200 TPH Mobile Jaw Crusher Plant
150-200 TPH Mobile Jaw Crusher — Technical Parameter Table
Below is the standard specification sheet for the Baichy 150-200 tph combined mobile jaw crushing station. Actual figures may vary with your feed material and site conditions; contact our engineers for a tailored configuration.
| Parameter | Unit | Value / Range |
|---|---|---|
| Production Capacity | t/h | 150 – 200 |
| Max Feed Size | mm | 630 – 800 |
| Discharge Opening Range | mm | 75 – 200 |
| Main Crusher Model | — | PE-750×1060 / PE-900×1200 |
| Crusher Motor Power | kW | 90 – 110 |
| Feeder Model | — | GZD-960×3800 |
| Total Installed Power | kW | 220 – 280 |
| Chassis Type | — | Wheeled / Tracked (optional) |
| Belt Conveyor Width | mm | #ddd;">800 – 1000 |
| Mobile Form | — | Combined crushing station |
| Power Drive | — | Diesel / Electric / Diesel-Electric hybrid |
| Applicable Materials | — | Granite, basalt, limestone, river stone, ore, concrete waste |
| After-Sales Support | — | On-site installation, training, spare parts |
How the 150-200 TPH Mobile Crushing Station Works
Working Principle in Four Steps
1. Feeding — Raw material (up to 630–800 mm) is dumped into the hopper; the vibrating feeder meters the feed rate to prevent choking.
2. Primary Crushing — The jaw crusher compresses the rock between the fixed jaw plate and the movable jaw plate, reducing it to 75–200 mm discharge.
3. Conveying — Belt conveyors carry the crushed stone to a stockpile or into a secondary cone/impact crusher for finer products.
4. Grading (Optional) — A vibrating screen separates finished sizes (e.g., 0–5, 5–10, 10–20 mm) ready for sale.
Single-Stage vs. Two-Stage Mobile Configurations
| Configuration | Stage | Best For |
|---|---|---|
| Jaw crusher only (single-stage) | Primary | Base aggregate, road base, recycling |
| Jaw + Cone crusher | Two-stage | Hard rock, premium aggregate, cubical shape |
| Jaw + Impact crusher | Two-stage | Soft-medium stone, high fines demand |
| Jaw + Cone + Screen | Three-stage | High-spec products, multiple size fractions |
Application Scenarios for the 150-200 TPH Mobile Jaw Crusher
- Quarrying & Aggregates — produce road base, railway ballast and construction aggregate close to the demand point.
- Mining — crush run-of-mine ore before feeding a grinding or beneficiation line; ideal for open-pit operations.
- Construction & Demolition Recycling — turn concrete rubble and asphalt waste into reusable recycled aggregate.
- Road & Bridge Projects — set up near the project to cut hauling costs and avoid material shortages.
- River Stone & Pebble Processing — pre-crush oversized cobbles for downstream sand-making plants.

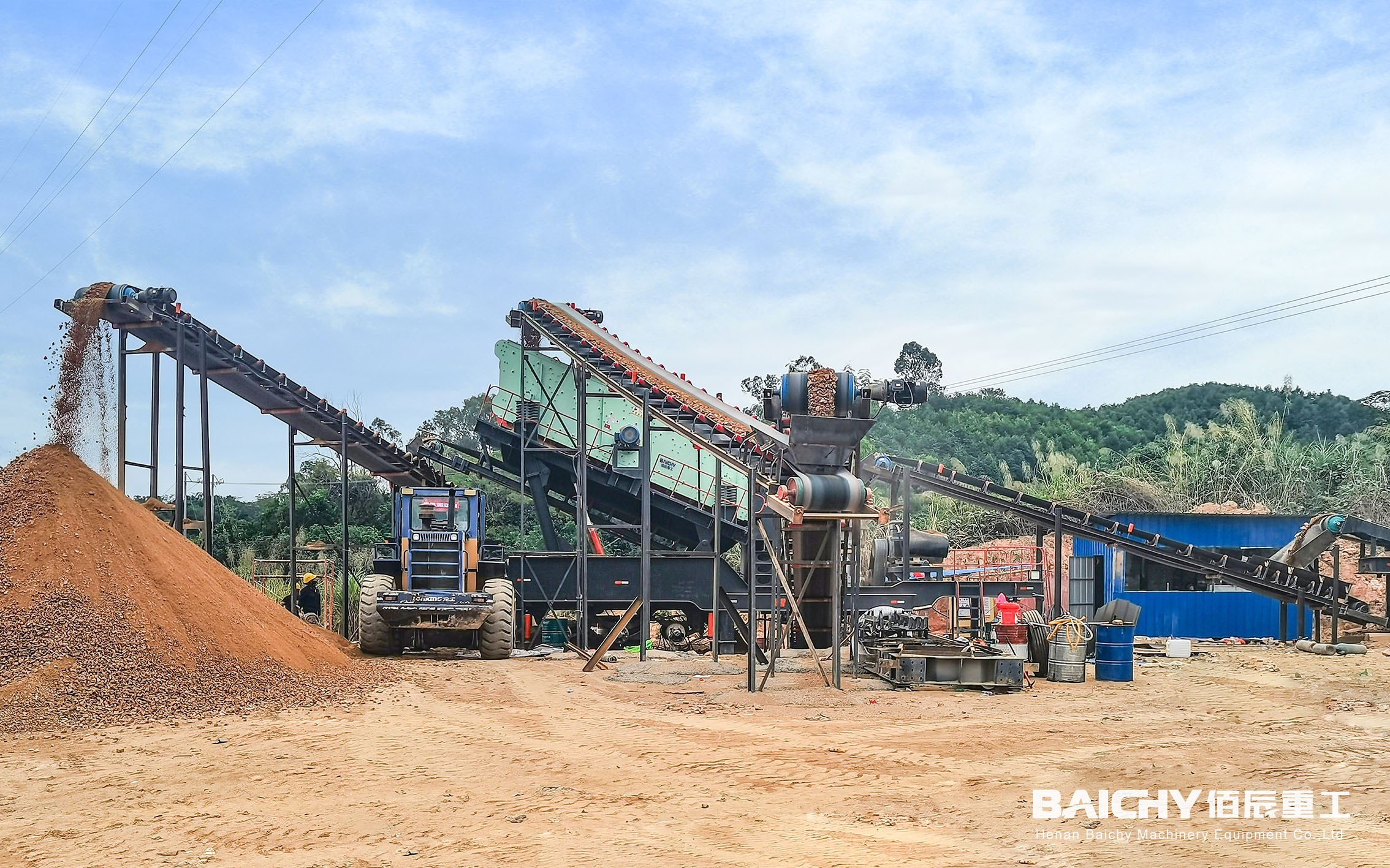

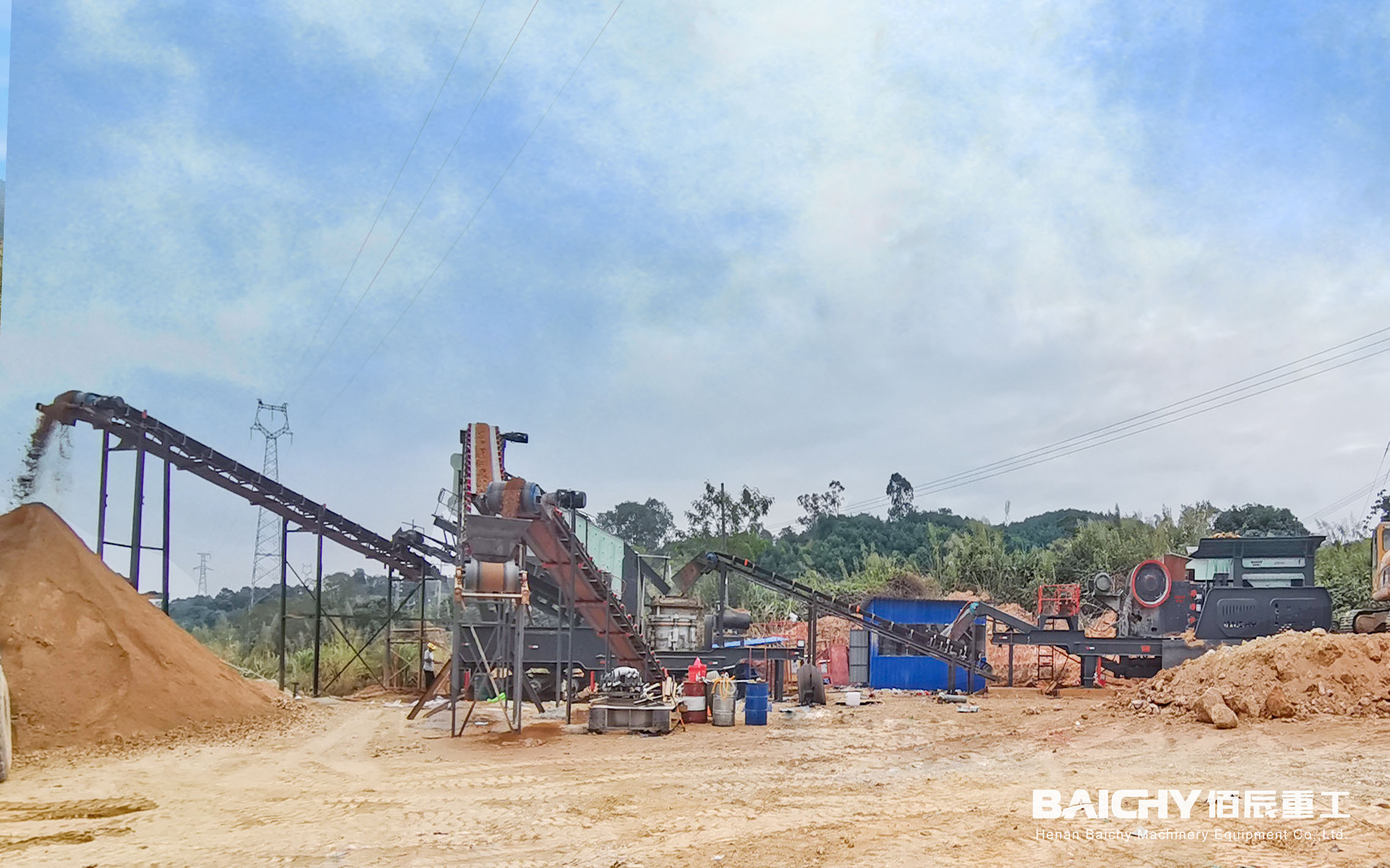

150-200 TPH Mobile Jaw Crusher Plant
Operating Costs and Return on Investment
The 150-200 tph mobile jaw crusher offers a strong cost advantage. Because the plant moves to the material, you eliminate long-haul trucking of raw stone — often the single largest cost in aggregate production. Typical savings:
- Haulage reduction: up to 30–40% lower transport cost.
- Installation saving: no foundation and civil works, cutting 10–20% of project capex.
- Fuel efficiency: modern diesel engines or electric drives lower energy cost per ton.
With 150–200 tons per hour, a single shift (8 hours) yields roughly 1,200–1,600 tons of crushed product per day — a throughput that quickly pays back the investment on high-volume projects.
How to Choose the Right 150-200 TPH Mobile Crushing Station
Five Buying Considerations
1. Feed size and hardness — basalt and granite need stronger jaws and possibly a cone crusher; limestone can use a lighter setup.
2. Required product sizes — decide whether you need a screen and how many fractions.
3. Power availability — electric drive cuts running cost where grid power exists; diesel suits remote sites.
4. Mobility frequency — tracked chassis for frequent moves, wheeled for semi-permanent sites.
5. After-sales support — choose a manufacturer with local parts, training and commissioning engineers.
Maintenance Tips to Maximize Uptime
- Lubricate jaw bearings and toggle plate regularly per the manual.
- Inspect jaw plates for wear; rotate or replace before excessive gap reduces output.
- Check belt tension and conveyor rollers weekly.
- Keep the feed uniform to avoid jamming and uneven plate wear.
- Schedule monthly inspection of hydraulic and electrical systems.
Why Choose Baichy Heavy Industry
Baichy Heavy Industry is a professional manufacturer of mining crushing, ore grinding and mineral processing equipment. Our combined mobile crushing stations are built with:
- Robust steel frames and high-chromium wear parts for long service life.
- CE-compliant electrical and safety systems.
- Modular design for fast assembly and easy maintenance.
- Global service network — we provide design, installation, commissioning and training.
Every 150-200 tph mobile jaw crusher plant is configured around your specific stone type, site conditions and output requirements — not a one-size-fits-all box.
Frequently Asked Questions (FAQ)
FAQ 1 — How much area is required to set up the 150-200 tph mobile jaw crusher station?
A typical layout needs roughly 800–1,500 m² of flat, stable ground (including stockpiles and access roads). Because the station is self-contained, no concrete foundation is required — just leveled ground that can bear the machine's weight. Our engineers provide a site layout plan before shipment.
FAQ 2 — Can the mobile crushing station process very hard rock like granite and basalt?
Yes. The PE-750×1060 / PE-900×1200 jaw crusher handles granite, basalt and river stone with compressive strength up to about 300 MPa. For extremely hard rock and premium cubical products, we recommend adding a secondary cone crusher to the line. Tell us your rock type and we will size the jaws accordingly.
FAQ 3 — What is the difference between electric-drive and diesel-drive versions?
The electric-drive version runs on grid power and has the lowest running cost per ton — ideal where three-phase power is available. The diesel-drive version is fully self-contained and works in remote or temporary sites with no power grid. We also offer a diesel-electric hybrid for maximum flexibility.
FAQ 4 — How long does installation and commissioning take?
Because the plant arrives pre-assembled on its chassis, setup usually takes 1–3 days, including leveling, connecting the power, and test running. Our commissioning engineers train your operators on-site so production can start almost immediately.
FAQ 5 — How many finished products can I get, and can I add a screen?
Yes, an optional double-deck vibrating screen can be added to produce multiple fractions (e.g., 0–5, 5–10, 10–20, 20–40 mm) simultaneously. You can also extend the station later with a cone or impact crusher and a screen to build a complete two- or three-stage line as your demand grows.
Conclusion — Boost Your Output with a 150-200 TPH Mobile Jaw Crusher
A 150-200 tph mobile jaw crusher combined mobile crushing station is the most efficient way to bring high-capacity crushing directly to your material. It combines the proven crushing power of a jaw crusher with the mobility, fast setup and low operating cost of a portable plant — a combination that directly improves project profitability.
Whether you need a single-stage primary unit, a two-stage hard-rock line, or a recycling solution, Baichy Heavy Industry can configure the right mobile crushing station for you.
Ready to start? Contact our team today for a free capacity calculation, site layout and quotation.
