100-150t/h Mobile crushing plant

The 100–150 tons/hour mobile crushing production line is an efficient and flexible crushing solution designed specifically for small-to-medium-scale stone processing, the recycling of construction waste, and various mining and road construction projects. This production line features a scientifically engineered combination of a mobile jaw crushing station (for primary coarse crushing) and a mobile impact crushing station (for secondary fine crushing). Together, they form a complete two-stage crushing process capable of continuous, high-efficiency material processing. The resulting finished products exhibit excellent particle shape, making the line widely applicable for processing rocks of varying hardness levels and for the production of recycled aggregates.

Component Analysis:

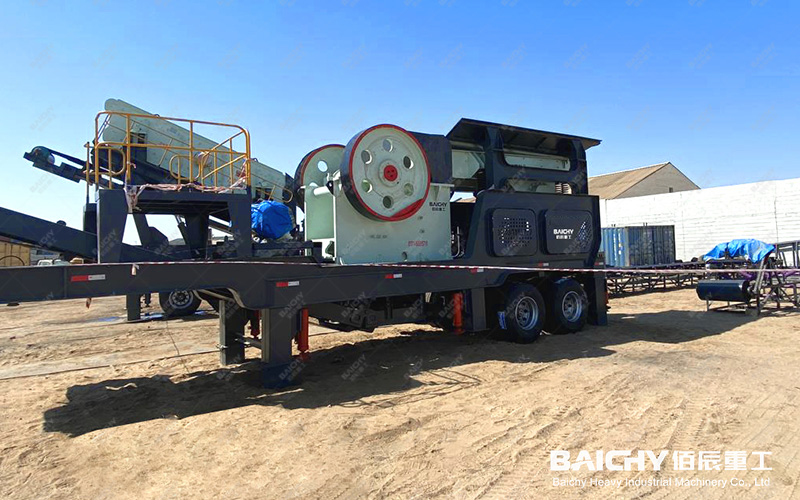

Coarse Crushing Unit: YDPZ69-9638 Mobile Jaw Crushing Station

• Core Equipment: Typically equipped with a PEW European-style jaw crusher, featuring a feed opening size of approximately 600 x 950 mm.

• Processing Capacity: Its rated capacity serves as the critical factor determining the upper limit of the entire production line's output, falling within the range of approximately 100–150 tons per hour.

Function: Responsible for the initial crushing of large raw materials (≤ 500 mm) extracted from mines, reducing them to a medium particle size (e.g., under 150 mm) in preparation for the subsequent crushing stage.

Secondary/Fine Crushing Unit: YDPZ1214-180 Mobile Impact Crushing Station

• Core Equipment: Typically equipped with a PFW European-style impact crusher, featuring a rotor size of approximately Φ1250 x 1400 mm.

• Processing Capacity: Designed to integrate seamlessly with the jaw crusher, its capacity can reach 150–200 tons per hour, thereby meeting the material supply requirements of the preceding stage.

Function: Receives material from the jaw crusher to perform secondary crushing and particle shaping. The finished products from the impact crusher exhibit excellent particle shape—predominantly cubic—making this unit particularly suitable for producing high-quality aggregates (such as 12mm and 13mm gravel, as well as stone fines).

Production Line Flow and Features:

Process Flow: Raw Material → Vibrating Feeder (Pre-screening/Soil Removal) → Mobile Jaw Crusher (Coarse Crushing) → Material Conveyed via Belt Conveyor → Mobile Impact Crusher(Secondary/Fine Crushing) → Vibrating Screen (Screening into various finished product specifications) → Finished Product Stockpile.
