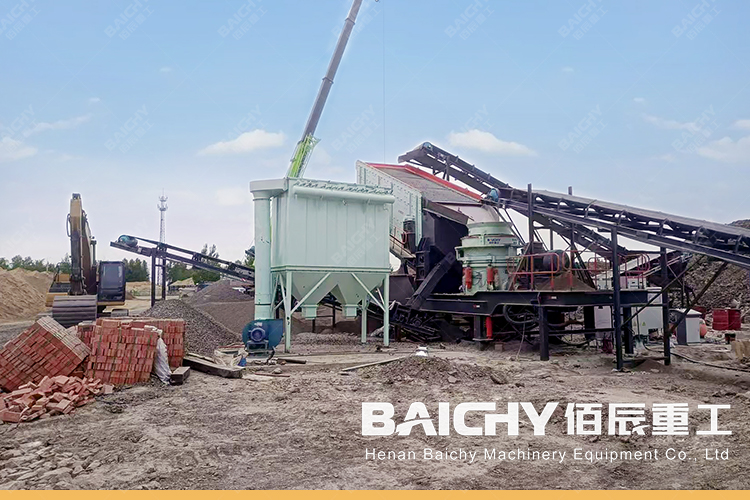

Installing a 500 TPH stone crushing and screening equipment is a complex process that requires precise planning. The following are detailed installation steps and precautions to ensure smooth installation and efficient operation of the equipment:
Pre-construction preparation
1. Construction site survey: Confirm the installation location of the equipment and evaluate whether the surrounding environment meets the installation requirements, including foundation, power supply, drainage and other facilities.
2. Develop an installation plan: According to the equipment model, specifications and actual site conditions, develop a detailed installation plan, including construction period, personnel, materials, tools, etc.
3. Prepare construction materials: According to the installation plan, purchase the required construction materials in advance, such as bolts, washers, sealants, etc.
Equipment inspection and acceptance
1. Equipment inspection: Conduct a comprehensive inspection of the stone crushing and screening machine to ensure that the equipment is free of damage, deformation and other problems, and meets the design requirements.
2. Equipment acceptance: According to the equipment list, check the model, specifications, quantity, etc. of the equipment to ensure that the equipment is complete.
Foundation construction and acceptance
1. Foundation construction: According to the design requirements, carry out foundation construction, including foundation excavation, steel bar binding, formwork erection, etc.
2. Foundation acceptance: After the foundation construction is completed, acceptance is carried out to ensure that the foundation size, elevation, strength, etc. meet the design requirements.
Equipment installation and positioning
1. Equipment handling: Use appropriate handling tools to transport the stone crushing and screening machine to the installation location to ensure that the equipment is not damaged during the handling process.
2. Equipment positioning: According to the design requirements, the equipment is positioned to ensure that the relative position of the equipment and the foundation and other equipment is correct.
3. Equipment fixing: Use bolts, washers and other connectors to fix the equipment on the foundation to ensure that the equipment is stable and reliable.
Electrical system installation
1. Cable laying: Lay the cable according to the electrical schematic diagram to ensure that the cable direction is reasonable and firmly fixed.
2. Electrical component installation: Install electrical control cabinets, motors, sensors and other electrical components to ensure the correct installation position and firm connection.
3. Electrical system debugging: Debug the electrical system to ensure that each electrical component works properly and the control system runs stably.
Debugging and trial operation
1. Debugging preparation: Check the installation of each component of the equipment to ensure that there is no looseness, damage and other problems.
2. No-load test run: Perform no-load test run, observe the operation of the equipment, and check whether there are abnormal sounds, vibrations, etc.
3. Load test run: After confirming that there are no problems with the no-load test run, perform a load test run to check whether the equipment performance meets the design requirements.
Safety protection measures
1. Safety signs: Set safety warning signs around the equipment to remind personnel to pay attention to safety.
2. Protective devices: Install necessary protective devices, such as protective covers, safety doors, etc., to ensure the safety of the equipment during operation.
3. Firefighting facilities: Configure corresponding firefighting facilities, such as fire extinguishers, fire hydrants, etc., according to the actual situation on site.
Construction quality acceptance
After the installation is completed, the construction quality is inspected, including the appearance of the equipment, installation accuracy, electrical system, etc. Ensure that the equipment meets the design requirements and can operate safely and stably.
During the installation process, the following matters need to be paid attention to:
1. Strictly follow the installation instructions and drawings to ensure that every step is correct.
Use appropriate tools and materials to ensure installation quality.
2. Pay attention to safety protection measures to ensure the safety of personnel and equipment.
3. During the installation process, if you encounter any problems or abnormal situations, you should stop the installation immediately and seek help from professionals.
About of Baichy Heavy Industry
Baichy Heavy Industry is a high-tech mining equipment company integrating R&D, manufacturing, sales, and after-sales service. Focusing on crushing, grinding, and mineral processing equipment, we provide professional solutions to our customers. We are ISO9001:2015 銆乧ertified, and our products include mobile crushing palnts, crawler crushing plant, construction waste crushing plants, jaw crushers, sand making machines, cone crushers, fine crushers, grinding mills, ball mills, etc., all with reliable performance to meet diverse project needs.
Our advantages:
• Professional pre-sales support: Free project design and comprehensive solutions to help you accurately select the right equipment;
• Comprehensive on-site service: Providing installation guidance and worker training to ensure smooth equipment commissioning;
• Reliable after-sales guarantee: A complete after-sales system, timely response to technical inquiries and equipment maintenance, ensuring long-term stable operation.
To protect your rights, please contact us through the following official channels for professional service:
Official Website Customer Service
https://wa.me/+8615093222637
Email: [email protected]
We are committed to providing high-quality equipment and full-cycle services to deliver comprehensive intelligent solutions for the global mining industry!
Frequently Asked Questions
1: What key parameters require special attention during the pre-construction site survey?
• Foundation Bearing Capacity: The foundation must meet the dynamic load requirements of the equipment. A geological survey is recommended to ensure the bearing capacity is no less than the design specifications (typically ≥ 0.15 MPa).
• Power Supply Capacity: Verify that the total power supply voltage and capacity are sufficient for the equipment's total power consumption (a 500 TPH production line typically requires ≥ 600 kW), and ensure adequate transformer capacity is reserved.
• Drainage and Flood Control: The site drainage slope should be ≥ 2% to prevent water accumulation around the equipment foundations; simultaneously, assess the risk of flooding during the rainy season.
2: How can common quality issues be avoided during the construction of equipment foundations?
• Concrete Curing: After pouring, the foundation concrete must undergo continuous curing for at least 7 days. During winter construction, thermal insulation measures must be implemented; equipment installation is strictly prohibited until the concrete strength reaches the required standard.
• Precision of Embedded Parts: The positional deviation of embedded anchor bolts must be controlled within ± 2 mm. It is recommended to use positioning templates to secure the bolts, and to verify their verticality and elevation during the final acceptance inspection.
• Vibration Isolation Measures: Install vibration-damping pads (e.g., rubber pads) between the foundation and the equipment—particularly in the vibrating screen area—to reduce the dynamic loads transmitted to the foundation.
3: During the loaded trial run phase, how should one troubleshoot if the production capacity fails to meet the target?
• Check Feeding Uniformity: Verify that the feeder speed is appropriately matched to the material particle size to prevent blockages or interruptions in the material flow; installing material level sensors is recommended.
• Analyze Screening Efficiency: If the finished product contains a high percentage of impurities, adjust the vibrating screen's inclination angle, amplitude, or mesh size; also, inspect the screen surface for any blockages.
• Optimize Crusher Parameters: Adjust the crusher's discharge opening size (ensuring it remains within the equipment's permissible range), and inspect the hammer heads or jaw plates for wear; replace wear parts as necessary.
