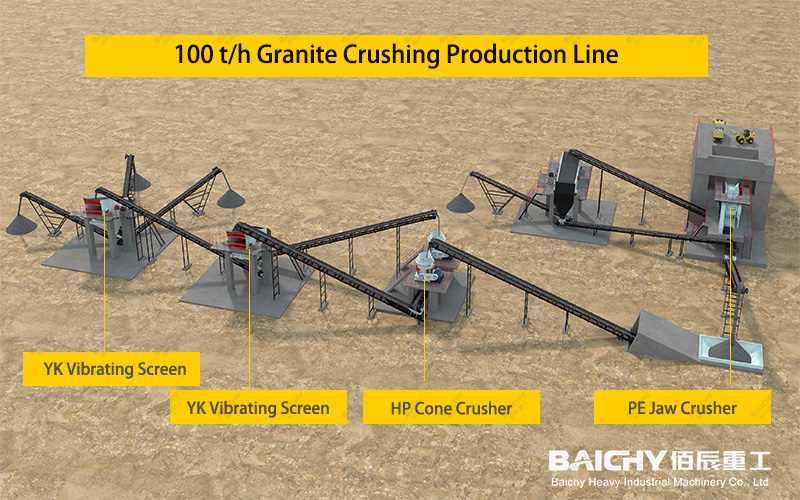

Secondary Crushing Production Line
Three-Stage Crushing Production Line
In modern ore crushing production lines, the optimization of the tertiary crushing stage is typically the pivotal factor determining final product particle size, throughput, and operational economics. Serving as a critical link in the chain, the tertiary crushing stage must process intermediate products from secondary crushing while simultaneously providing qualified feed material for subsequent grinding and beneficiation processes. Optimizing the tertiary crushing stage can significantly boost throughput, reduce energy consumption and wear part costs, and simultaneously improve particle shape. This optimization is not merely a matter of adjusting a single parameter; rather, it is a systematic undertaking encompassing feed management, equipment parameters, process flow, and routine maintenance. This article will delve into practical methods and commissioning experiences aimed at enhancing the efficiency of tertiary crushing operations.
Core Optimization Strategies: Four Approaches to Boosting Efficiency
Achieving the objectives of tertiary crushing optimization requires comprehensive adjustment and control across the following four key dimensions:
1. Ensure Uniform, Continuous, and Stable Feeding
Feeding conditions constitute the foundation upon which a crusher's optimal performance depends. An uneven, "feast-or-famine" feeding pattern causes fluctuations in the crushing chamber's fill rate; this not only diminishes instantaneous processing capacity but also triggers sudden shifts in equipment load, thereby accelerating liner wear and wasting energy.
• Practical Method: Install an intermediate hopper and feeder (such as a vibrating feeder) equipped with constant-speed control or material-level sensing capabilities upstream of the tertiary crusher. Ensure that the material flow entering the crushing chamber is continuous and stable, and that it is distributed uniformly across the distribution plate, thereby maintaining a consistently optimal fill rate within the crushing chamber.
2. Fine-Tune Equipment Operating Parameters
Equipment operating parameters directly determine crushing force, throughput, and product particle size. Among these, the adjustment of spindle speed and the closed-circuit circulation ratio are of paramount importance.
• Spindle Speed: Appropriately increasing the spindle speed can increase the frequency of impact crushing events within the chamber, thereby facilitating better particle shape and finer product output. However, excessively high speeds may lead to increased energy consumption and accelerated wear, and could potentially cause qualified fine particles to be discharged prematurely, thereby increasing the circulating load. On-site commissioning—guided by factors such as material hardness, feed particle size, and target product specifications—is essential to identify the optimal operating point.
• Closed-Circuit Circulation Ratio: This serves as the primary mechanism for controlling product particle size within the context of tertiary crushing optimization. By adjusting the screen mesh size and the recirculation ratio of the closed-circuit screening equipment, the maximum particle size of the final product can be effectively controlled. A detailed and well-designed layout for a three-stage, closed-circuit crushing process serves as the foundation for efficient operation. Increasing the recirculation ratio (i.e., the closed-circuit circulation rate) allows materials to undergo multiple passes within the crushing chamber, thereby improving particle shape and increasing the yield of fine materials. For further details, please refer to the article: [Closed Circuit Tertiary Crushing for Better Particle Shape].
Reference Table for Typical Commissioning Parameter Ranges of Tertiary Cone Crushers
| Parameter Name | Recommended Range / Adjustment Direction | Optimization Objective |
| Main Shaft Speed | Adjustable within ±10% of the rated speed, depending on the specific model | To identify the optimal balance point between yield, particle shape, and energy consumption |
| Closed-Circuit Screen Mesh Size | Slightly smaller than the target product's maximum particle size | To control the finished product's particle size and prevent over-crushing |
| Discharge Opening Size | Set in coordination with the closed-circuit screen; typically 1.3 to 1.5 times the screen mesh size | To ensure a reasonable circulating load (recommended range: 120%–180%) |
| Maximum Feed Size | No larger than 2.5 times the discharge opening size | To protect the equipment and facilitate inter-particle crushing (layer crushing) |
3. Implement Preventive Maintenance and Strictly Control Wear Part Costs
The liners, bowl liners, and mantle liners of a three-stage crusher constitute the primary sources of wear part costs. Scientific maintenance practices can directly extend the service life of these components and reduce the cost per ton of processed material.
• Regular Inspection and Record-Keeping: Establish a wear history log for wear parts; regularly measure critical dimensions to predict replacement cycles; and schedule planned downtime for replacements to avoid unexpected breakdowns and consequential damage.
• Uniform Wear: By periodically rotating or swapping the positions of the fixed cone and moving cone liners, more uniform wear can be achieved, thereby maximizing material utilization. This is a key practice highlighted in the article: [How to Select the Right Tertiary Crusher for Your Project？].
4. Application Scenarios and Success Stories
Application Scenarios: This comprehensive three-stage crushing optimization solution is widely applied in production lines requiring the generation of high-quality aggregates (such as materials for highways and high-speed rail construction) or the preparation of fine-grained feed for mineral grinding operations (such as preparatory beneficiation stages for iron, copper, and gold mines).
Advantages and Case Studies:
• Granite Aggregate Project: The client's original production line suffered from unstable output during the three-stage crushing phase, and the final product contained an excessive proportion of flaky particles. Our engineers implemented the following optimizations by installing a surge bin to stabilize feed flow, increasing the main shaft speed by 5%, and reconfiguring the closed-circuit screening sequence:
◦ Crushing efficiency increased by 18%, successfully meeting the target hourly output.
◦ The proportion of cubical particles in the final product increased significantly, leading to a higher market selling price.
◦ Through the monitoring of liner wear cycles and the implementation of scheduled replacements, the cost of wear parts decreased by approximately 15% year-on-year.
• Energy Consumption Reduction: Thanks to the optimized system's smooth operation and balanced load distribution, the overall electricity consumption per unit of product decreased by approximately 8%.

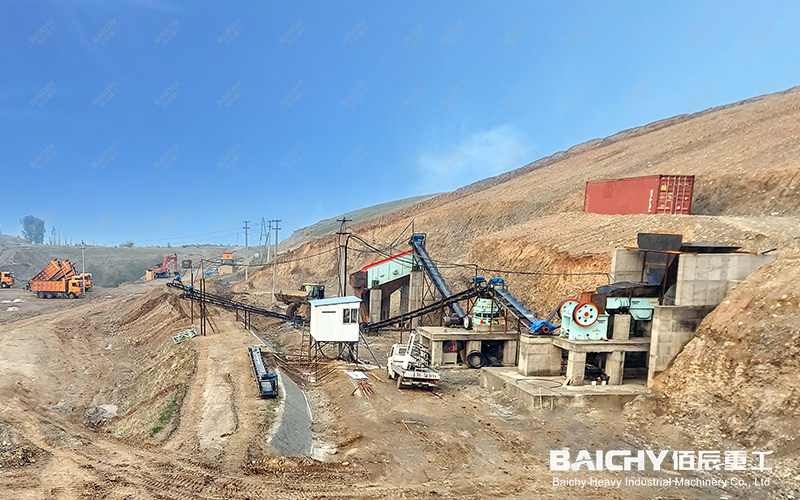

Secondary Crushing Production Line — Customer Site

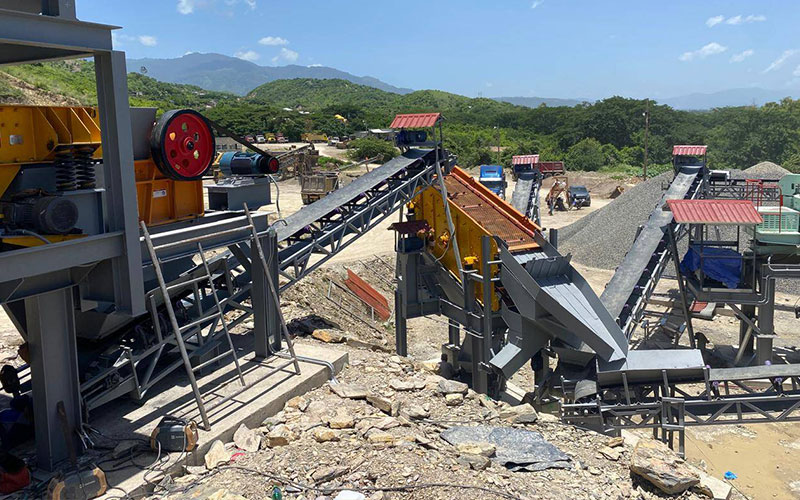

Customer Site: Three-Stage Crushing Production Line
Core Equipment Recommended for Achieving Optimization Goals
To realize the systemic optimizations described above, selecting three-stage crushing equipment that offers exceptional performance, sensitive adjustability, and reliable operation is a prerequisite. We highly recommend our company's HPT/HST series multi-cylinder hydraulic cone crushers or single-cylinder hydraulic cone crushers as the core equipment for the three-stage crushing phase.
• High Energy Efficiency: Utilizing the principle of inter-particle crushing (lamination crushing), these machines deliver higher processing capacity and a finer crushing ratio at equivalent power consumption, making them a powerful tool for boosting crushing efficiency.
• Intelligent Control: The hydraulic system allows for real-time adjustment of the discharge opening and provides effective tramp iron protection. With a high degree of automation, the system easily facilitates constant discharge opening control, thereby ensuring stable product granularity.
• Convenient Maintenance: All components can be accessed and disassembled from the top or side, allowing for rapid liner replacement. This minimizes maintenance downtime and strongly supports the implementation of a preventive maintenance strategy.
• Economical and Durable: Key components are manufactured using high-strength materials and optimized designs. With proper feeding and maintenance practices, these machines offer a long service life, effectively supporting the objective of reducing long-term operating costs within the three-stage crushing optimization process.
Frequently Asked Questions (FAQ)
Q1: How much cost can I save by optimizing my three-stage crushing process?
A1: Cost savings are comprehensive in nature. Typically, effective optimization can achieve a 5%–15% reduction in energy consumption per unit of product and a 10%–20% reduction in the cost of wear parts. Furthermore, the combined benefits resulting from increased output and reduced downtime can exceed 20%. The specific figures depend on the existing condition of the production line.
Q2: What factors require attention when adjusting the closed-circuit circulation ratio?
A2: Particular attention must be paid to the "circulating load" (the ratio of the material returned to the crusher to the volume of new product generated). If the circulating load is too low, crushing will be insufficient, resulting in poor particle shape; conversely, if it is too high, it will lead to equipment overload and increased energy consumption. The ideal circulating load typically falls within the range of 120%–180%. When making adjustments, one should simultaneously monitor the main motor current and the operational stability of the crusher.
Q3: Aside from the points mentioned in the text, what other optimization areas can yield quick results?
1) Lubrication System: Ensure that the oil temperature, oil pressure, and oil quality are maintained at optimal levels; this serves as the foundation for the equipment's stable operation under heavy loads.
2) Drive Belt Tension: Inspect and adjust the tension regularly; belts that are either too loose or too tight will result in efficiency losses and component damage. 3) Foundation Inspection: Verify that the equipment foundation is secure and free of looseness, and ensure that vibration-damping devices are functioning effectively to minimize energy waste caused by unnecessary vibrations.
