River stone crushing
In the sand and aggregate industry, river pebbles are renowned for their high hardness (exceeding 7 on the Mohs scale) and high silica content, making them a universally acknowledged "tough nut to crack." For medium-scale production lines with an output of 100–150 tons per hour (tph), traditional stationary crushing lines often face critical pain points: difficult permitting processes, high relocation costs, and lengthy foundation construction cycles. In this context, the YMC106 Track-Mounted Mobile Jaw Crushing Station has emerged as the industry's recognized "standard solution."
I. Why Choose the YMC106?
It is custom-engineered specifically for crushing hard rock. Equipped with a jaw crusher featuring a large 1060 × 700 mm feed opening, it not only effortlessly processes large river pebbles but also—thanks to wear-resistant components made of high-manganese steel—significantly minimizes the abrasive wear caused by the pebbles on the machinery. Its core advantage lies in its "mobility"—requiring no concrete foundation, it can be driven directly onto the site and begin operations immediately, with the crushed finished product conveyed via belt directly to the secondary crushing stage.
Applicable Scenarios:
• Simultaneous extraction and crushing operations at river dredging sites.
• Operations at scattered or decentralized sites within infrastructure projects.
• Short-term projects requiring frequent relocation between sites.
Baichy E-Catalog PDF，Download ↓↓↓
II. Why is the YMC106 the Preferred Choice for 100–150 tph Solutions?
Output Matching: The theoretical capacity of the YMC106 ranges from 150 to 300 tph; however, when crushing extremely hard river pebbles—factoring in the influence of the discharge opening setting and feed particle size—its actual stable output falls within the range of 100–180 tph. This range perfectly meets operational requirements of 100–150 tph while providing a 20% operational buffer. This effectively prevents the machine from running at full load continuously over extended periods, thereby extending its service life.
Material Adaptability: River pebbles are characterized by their smooth surfaces and extreme hardness. The YMC106 employs a deep-cavity crushing principle to achieve a high crushing ratio. Furthermore, the angles of its jaw plates have been optimized to effectively prevent river pebbles from "slipping" or bouncing upward within the crushing chamber, thereby ensuring consistent crushing efficiency. Terrain Adaptability: The hydraulically driven tracked chassis boasts exceptional climbing capabilities, delivering performance that far surpasses wheeled equipment on soft, rugged terrains such as riverbanks.
Crawler Jaw Crusher

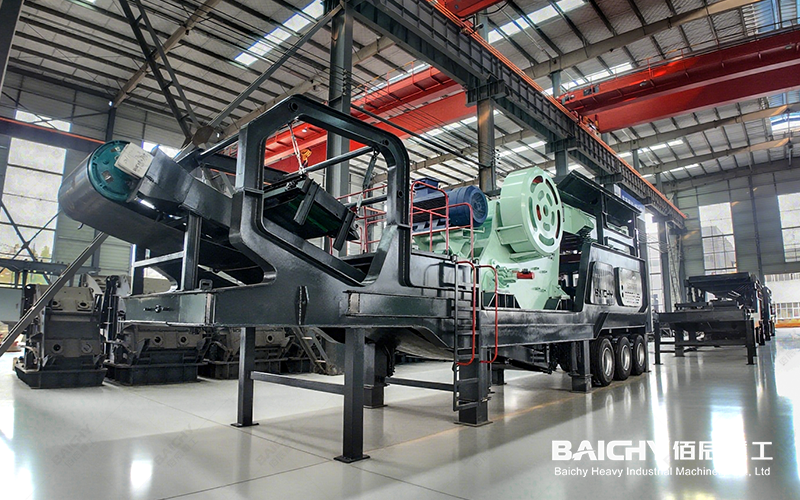

Mobile Jaw Crushing Station (Wheel-Mounted)
III. Solution Comparison: Crawler-type (YMC106) vs. Wheel-type (Mobile Jaw Crusher)
| Comparison Dimension | Crawler-type Mobile Jaw Crusher (YMC106) | Wheel-type Mobile Jaw Crusher |
| Mobility Method | Self-contained hydraulic drive; wireless remote-controlled movement | Requires a tractor unit for towing and relocation |
| Site Requirements | Extremely Low: Large crawler ground contact area; adaptable to soft or rugged terrain | Moderate to High: Requires a level site; hydraulic outriggers required for stabilization during operation |
| Deployment Speed | Instant Operation: No foundation required; ready for operation within 1 hour | Slower: Requires setting up outriggers; may even require simple ground preparation/foundation work |
| Operational Flexibility | Can move in real-time within quarry zones, following the active mining face | Requires tractor intervention; relocation costs are relatively higher |
| Initial Investment Cost | Higher (due to the hydraulic chassis drive system) | Lower (due to relatively simpler structure) |
| Recommended Application | Preferred choice for complex environments (e.g., riverbeds, mines) | Preferred choice for level sites and long-distance road transport |
IV. YMC106 Crawler-type Crushing Station (Reference Values)
| Parameter Name | Technical Specifications / Performance Indicators |
| Main Unit Model | 1060 × 700 mm (Typical Configuration) |
| Max. Feed Size | ≤ 580 mm |
| Output Range | 100 - 300 t/h (Varies based on material hardness) |
| Discharge Opening Adjustment Range | 70 - 150 mm |
| Total Power | Approx. 250 - 350 kW (Includes diesel generator/electric motor) |
| Drive Mode | Dual-Power (Diesel-Electric) / Full Hydraulic Drive |
| Chassis Type | High-Strength Crawler Undercarriage |
| Transport Weight | 45 - 55 Tons |
As the core equipment for primary crushing (coarse crushing), the YMC106 is capable of operating independently; however, in a river pebble processing line with a capacity of 100–150 t/h, producing finished materials that meet construction standards (e.g., 5–10 mm, 10–20 mm, etc.) typically requires pairing it with secondary crushing, screening, and auxiliary equipment.
For river pebbles (high-hardness materials), the most scientifically sound and economical equipment configuration is as follows:

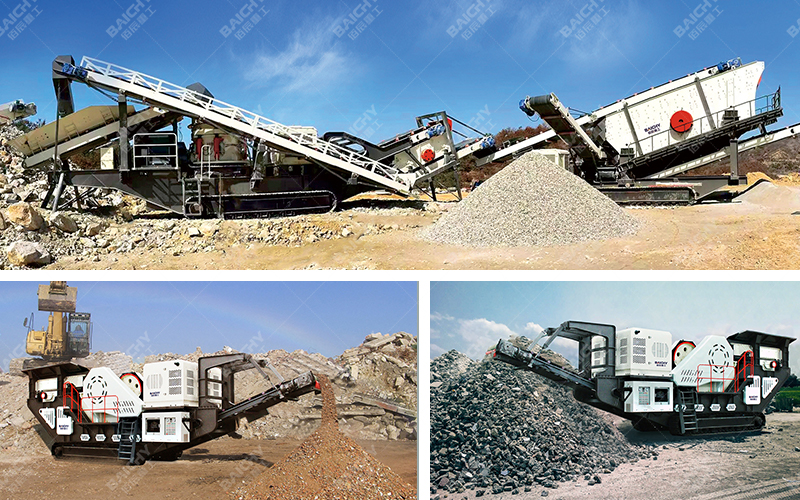

Track-Mounted Jaw Crushing Station — Customer Site
1. Classic "Hard Rock" Two-Stage Configuration (Most Common)
Configuration: YMC106 (Jaw Crusher) + Tracked Cone Crushing Station + Tracked Screening Station
Paired Equipment: Mobile Cone Crusher (e.g., a mobile station equipped with an HP300 or GP200 series crushing unit).
Rationale for Pairing:
Material Adaptability: River pebbles are extremely hard and highly abrasive. After the jaw crusher completes the initial reduction, the cone crusher—utilizing the inter-particle crushing principle—serves as the ideal secondary crushing device for processing river pebbles.
Wear Part Costs: If an impact crusher were used for the secondary stage, the rapid wear of the blow bars when processing river pebbles would result in prohibitively high operating costs. Cone crushers, conversely, offer significantly longer service life for their bowl liners and mantle liners.
Finished Product Shape: Cone crushers significantly improve the particle shape of crushed river pebbles, effectively reducing the proportion of flaky and needle-like particles.

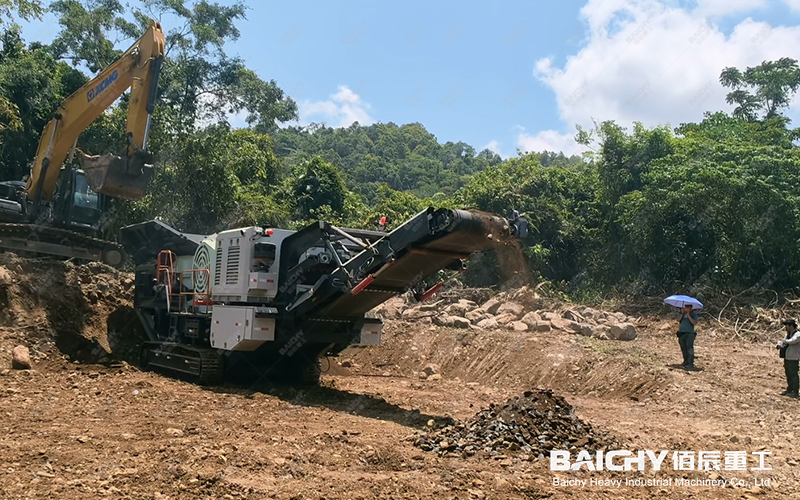

YMC106 Track-Mounted Jaw Crushing Station
2. Premium Manufactured Sand Configuration (Sand-Making Focus)
Configuration: YMC106 (Jaw Crusher) + Mobile Cone Crusher + Mobile Impact Crusher (VSI Sand Maker) + Mobile Screening Station
Paired Equipment: Mobile Vertical Shaft Impact (VSI) Crushing Station.
Rationale for Pairing:
If the client's requirement for the finished product is premium manufactured sand (0–5 mm), a combination of only a jaw crusher and a cone crusher is insufficient to achieve the desired level of fineness. The impact crusher utilizes the "stone-on-stone" crushing principle; it is employed for final-stage shaping and sand production, yielding sand with a continuous gradation and high sphericity.
3. Closed-Circuit Configuration (Compact Solution)
Solution: YMC106 (Jaw Crusher) + Track-Mounted Integrated Crushing & Screening Station
Complementary Equipment: A cone crushing station equipped with a return conveyor system.
Rationale for Pairing:
Ideal for projects with limited site space. Crushed material flows directly into a screening system integrated into the secondary crushing unit; oversized material that fails to pass the screen is returned to the cone crusher via a return conveyor for re-crushing.
4. Auxiliary Support Equipment
In addition to the core crusher, the YMC106 typically requires the following auxiliary equipment:
Track-Mounted Stacker:
Given the high output of mobile crushing stations—and the relatively short length of their built-in discharge conveyors—the discharge point can quickly become overloaded. Pairing the unit with a mobile stacker allows for the creation of large stockpiles, thereby reducing the frequency of material transfer by wheel loaders and saving on both labor and fuel costs.
Sand Washer:
River pebbles often contain clay impurities. When producing finished sand products, a downstream wheel-bucket or spiral-type sand washer is typically required to enhance the cleanliness of the sand and aggregate.
Iron Separator:
Typically installed on the YMC106's discharge conveyor, this device prevents ferrous contaminants—such as iron rods or steel rebar—entrained within the material from damaging the downstream cone crusher. ---
5. Summary Table of Recommended Configuration Schemes (100-150 t/h)
| Scheme Name | Equipment Combination (Fully Track-Mounted) | Finished Products | Advantages |
| Standard Aggregate Line | YMC106 + YMC300 (Cone Crusher) + YMS518 (Screening Station) | 1-2, 1-3 Sized Gravel | The most cost-effective and wear-resistant solution specifically for river pebbles. |
| Versatile Manufactured Sand Line | YMC106 + Cone Crusher + VSI Sand Maker + Screening Station | Manufactured Sand + Gravel | Highest added value; suitable for suppliers operating mixing plants. |
| Simplified Road Material Line | YMC106 + Mobile Impact Crusher (with Screening) | Water-Stabilized Base Material / Base Course Material | Low investment cost; however, not recommended for extremely hard river pebbles. |
Recommendation: For river pebble processing schemes in the 100-150 t/h range, the combination of YMC106 + Mobile Cone Crusher + Mobile Screening Station constitutes the "Golden Triangle" for optimal cost-performance. This combination ensures that when facing high-hardness river pebbles, you can not only effectively crush the material but also keep the long-term maintenance costs for wear parts within a controllable range.
About of Baichy Heavy Industry
Baichy Heavy Industry is a high-tech mining equipment company integrating R&D, manufacturing, sales, and after-sales service. Focusing on crushing, grinding, and mineral processing equipment, we provide professional solutions to our customers. We are ISO9001:2015 、certified, and our products include mobile crushing palnts, crawler crushing plant, construction waste crushing plants, jaw crushers, sand making machines, cone crushers, fine crushers, grinding mills, ball mills, etc., all with reliable performance to meet diverse project needs.
Our advantages:
• Professional pre-sales support: Free project design and comprehensive solutions to help you accurately select the right equipment;
• Comprehensive on-site service: Providing installation guidance and worker training to ensure smooth equipment commissioning;
• Reliable after-sales guarantee: A complete after-sales system, timely response to technical inquiries and equipment maintenance, ensuring long-term stable operation.
To protect your rights, please contact us through the following official channels for professional service:
Official Website Customer Service
https://wa.me/+8615093222637
Email: [email protected]
We are committed to providing high-quality equipment and full-cycle services to deliver comprehensive intelligent solutions for the global mining industry!
VI. Frequently Asked Questions (FAQ)
You may directly refer to the content below when submitting an inquiry to a supplier:
1: Focus on Core Configuration and Wear Resistance (Specific to River Pebbles)
> Subject: Inquiry for YMC106 Track-Mounted Crushing Station for 100-150 t/h River Pebble Crushing
> Content: Our company plans to undertake a river pebble crushing project with a capacity of 100-150 t/h at a specific river site in Sichuan. The material has a Mohs hardness rating of 7-8. Please provide a quotation specifically for the YMC106 model, addressing the following key points: 1. Regarding high-silica river pebbles, what are the materials used for the jaw plates and liner plates, and what is their expected service life? 2. Does the equipment feature a "dual-power" (diesel-electric) capability? 3. Fastest delivery lead times and on-site installation/commissioning policies.
2: Focus on Mobility and After-Sales Support
> Subject: Inquiry regarding Technical Specifications and Quotation for the YMC106 Track-Mounted Jaw Crushing Station
> Content: We require the purchase of a track-mounted mobile jaw crushing station, targeting a production output of 150 t/h. The operational site features complex terrain with steep gradients.
Please provide the following:
1. The climbing angle and travel drive force parameters for the YMC106 chassis.
2. Is the main conveyor belt equipped with an iron remover/magnet?
3. Do you have a resident after-sales service team and a stock of common spare parts located within our company's region (XX Province)?
3: Comprehensive Comparison and Integrated Solution Inquiry
> Subject: Phase I of River Pebble Crushing Line — Tender for YMC106 Mobile Crushing Station
> Content: Our company is currently inviting tenders for a mobile crushing project with a target capacity of 100–150 t/h. The required equipment must feature track-mounted drive capabilities, with the main crushing unit being a 106-class jaw crusher. Please provide a detailed configuration list (including the feeder, main crusher unit, conveyor belts, control system, and diesel power unit).
The quotation should include:
1. Ex-factory price (both tax-exclusive and tax-inclusive).
2. Freight costs and on-site installation fees.
3. A selection list specifying the brands chosen for key components (e.g., bearings, motors).
