Choosing between a multi cylinder hydraulic cone crusher and a single cylinder hydraulic cone crusher is one of the most important decisions when setting up or upgrading a crushing plant. Both machines perform medium and fine crushing of hard rock, but they differ sharply in structure, crushing force, capacity, maintenance and cost. Selecting the wrong type can mean higher energy bills, lower product quality and more downtime.
As a professional manufacturer of mining crushing, ore grinding and mineral processing equipment, Baichy Heavy Industry helps plant owners make this choice based on real operating data. This guide compares the two designs across every factor that affects your bottom line — so you can match the right hydraulic cone crusher to your material, output target and budget.
What Is a Single Cylinder Hydraulic Cone Crusher?
A single cylinder hydraulic cone crusher uses one hydraulic cylinder mounted at the bottom of the main shaft to support and adjust the moving cone. The spindle is long and passes through the eccentric sleeve, and all lifting, adjusting and overload release actions are driven by that single cylinder.

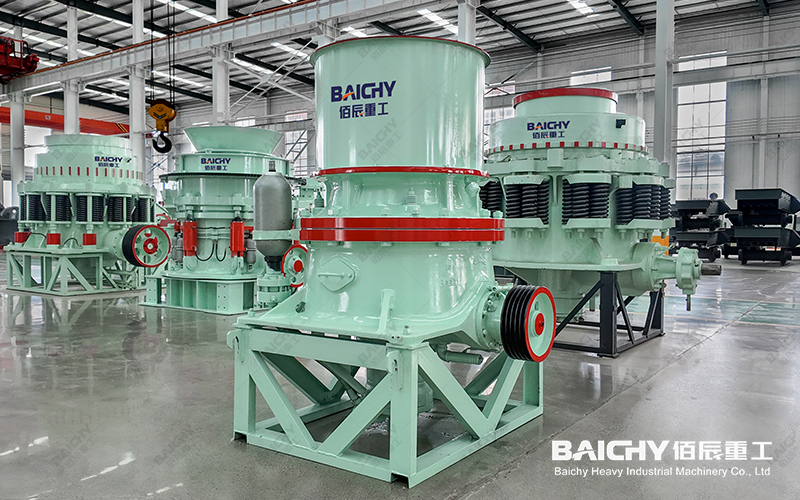

Single Cylinder Hydraulic Cone Crusher
Its main features:
- Simple and compact structure with fewer moving parts
- Lower initial investment and lower cost per ton for soft rock
- High passing capacity for soft and weathered ores
- Easier operation and maintenance for small and medium plants
- Typical capacity range of about 40–1000 t/h depending on model
Because the design is simpler, the single cylinder crusher is easier to install and troubleshoot. It remains the economical choice for limestone, soft aggregates and small to medium sand and gravel plants where extreme crushing force is not required.
What Is a Multi Cylinder Hydraulic Cone Crusher?
A multi cylinder hydraulic cone crusher distributes several hydraulic cylinders around the main frame, pressing the fixed cone down against the moving cone. This creates a much higher, more uniform crushing force and allows finer, more precise discharge setting control.

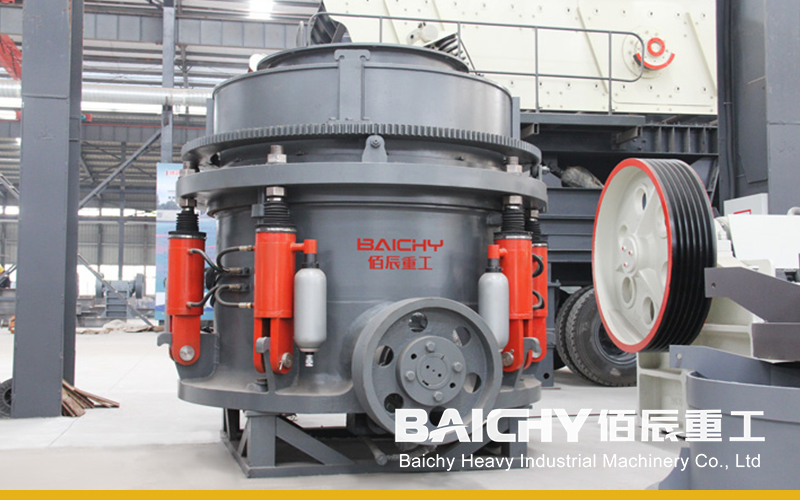

Multi Cylinder Hydraulic Cone Crusher
Its main features:
- Higher crushing force suitable for medium-hard and hard ores
- Better particle shape and cubical product for premium aggregate
- Precise automatic adjustment of the discharge opening
- Faster overload protection and automatic chamber clearing
- Higher capacity for fine crushing of hard stone at the same specification
- Typical capacity range of about 90–1200 t/h depending on model
Multi cylinder machines are the standard choice for metal mines (iron, copper, gold ore), basalt, granite and any application that demands high-quality cubical aggregate at high throughput.
Key Differences Between Single and Multi Cylinder Hydraulic Cone Crusher
1. Structural Design and Crushing Chamber
The single cylinder hydraulic cone crusher has a long spindle with one cylinder at the bottom; the moving cone moves up and down around a fixed pivot, which limits how much force it can apply to very hard material. The crushing chamber is simpler, and the motion is more vertical.
The multi cylinder hydraulic cone crusher uses multiple cylinders arranged around the frame to press the fixed cone downward. This produces a more even and powerful squeezing action between the mantle and concave. The result is a more uniform particle size distribution and better flake reduction — meaning more cubical, less elongated product.SMMVIK Machinery
2. Crushing Force and Output
This is the biggest performance gap. When processing soft or weathered ore, the single cylinder crusher shows high passing capacity and can even out-produce the multi cylinder model. But as soon as the material becomes medium-hard or hard, the multi cylinder design wins clearly.
Under identical specifications and for fine crushing of medium-hard and harder ores, a multi cylinder hydraulic cone crusher typically produces more qualified finished product. Industry data indicates the multi cylinder machine can deliver roughly 5–10% higher capacity and better flake reduction under the same energy input.MACHRISE The harder the ore, the larger the output difference between the two types.Hangzhou Sanming Machinery Co., Ltd.JXSC Mine Machinery
3. Discharge Adjustment and Automation
The single cylinder crusher adjusts its discharge opening by raising or lowering the main shaft through the bottom cylinder. This is reliable but slower and less precise.
The multi cylinder crusher adjusts by changing the thickness of the hydraulic cylinders, which gives finer and faster control. It is far easier to integrate into automated and intelligent crushing lines, supports remote adjustment, and can compensate automatically for liner wear. If you run a high-volume automated plant, the multi cylinder design is the better fit.LIMING Heavy Industry
4. Overload Protection and Chamber Clearing
Both types offer hydraulic overload protection, but the multi cylinder responds faster and is safer for hard ores. When tramp iron or uncrushable material enters the chamber, the multi cylinder releases pressure quickly across several cylinders, protecting the main frame. Clearing a blocked or packed chamber is also quicker because the fixed cone can be lifted by the multi-cylinder system.
5. Application Scope and Material Suitability
| Feature | Single Cylinder Hydraulic Cone Crusher | Multi Cylinder Hydraulic Cone Crusher |
|---|---|---|
| Best material | Soft, weathered, low–medium hardness (limestone) | Medium-hard and hard rock (granite, basalt, iron/copper ore) |
| Typical compressive strength | Up to about 250–300 MPa | Above 300 MPa |
| Typical capacity | Approx. 40–1000 t/h | Approx. 90–1200 t/h |
| Crushing force | Lower, more vertical | Higher, uniform, more powerful |
| Particle shape | Good for medium crushing | Superior cubical product, low flake rate |
| Discharge adjustment | Bottom cylinder, less precise | Multi-cylinder, fine and fast, automatic |
| Automation | Limited | High, suited to intelligent lines |
| Overload response | Slower | Fast, safer for hard rock |
| Maintenance | Simple, fewer parts, low cost | More hydraulic components, skilled service needed |
| Initial investment | Lower | Higher |
| Best plant size | Small & medium plants | Large plants, metal mines, premium aggregate |
6. Maintenance and Operating Cost
The single cylinder crusher has fewer hydraulic parts, so maintenance is simpler and cheaper, and most small plants can service it with basic skills. The multi cylinder machine demands more attention to its hydraulic system and seals, and requires technicians who understand the circuit. However, its higher output and better product quality often pay back the extra maintenance cost quickly in hard-rock operations.JXSC Mine Machinery
7. Cost and Investment
The single cylinder hydraulic cone crusher is more economical upfront, making it ideal for budget-limited projects processing medium materials. The multi cylinder hydraulic cone crusher costs more initially but delivers higher capacity, better shape and higher automation — a stronger long-term return for large plants and metal mines.Baichy Heavy Industrial Machinery Co., Ltd
How to Choose: Practical Selection Guide
- Choose a single cylinder hydraulic cone crusher if: your feed is soft or medium hardness (limestone, weathered rock), your plant is small to medium, your budget is limited, or you mainly need secondary crushing with simple maintenance.
- Choose a multi cylinder hydraulic cone crusher if: you process hard rock or metal ore, you need premium cubical aggregate, you want automated and precise discharge control, or you run a large high-throughput line.
A practical rule used by many engineers: if you process medium-hard ore and above and want the most qualified finished product per ton, a multi cylinder crusher of the same specification will generally outperform the single cylinder model — and the gap grows as the rock gets harder.
Baichy's Recommendation
At Baichy Heavy Industry, we manufacture both types and advise clients based on test data from their own feed material. For efficient, intelligent and high-capacity production on hard rock, we recommend the multi cylinder hydraulic cone crusher. For budget-conscious projects processing medium or low hardness materials such as limestone, the single cylinder hydraulic cone crusher is the more economical and practical choice. Contact us with your raw material, feed size and target output, and our engineers will recommend the right hydraulic cone crusher — including capacity, cavity type and discharge setting — for your project.

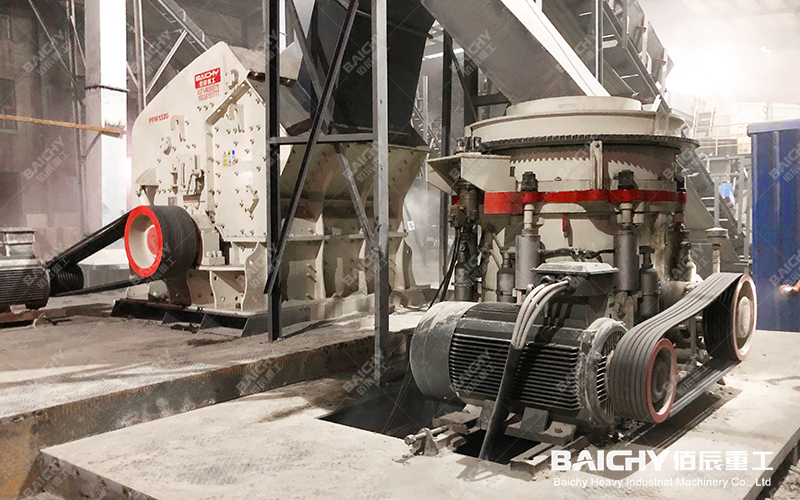

Customer site featuring a multi-cylinder hydraulic cone crusher.

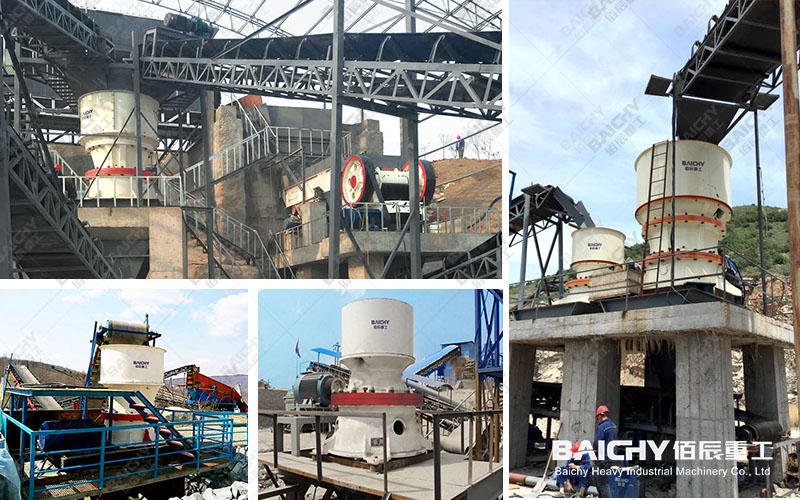

Customer site featuring a single-cylinder hydraulic cone crusher.
Frequently Asked Questions
Q1: What is the main difference between single and multi cylinder hydraulic cone crushers?
A: The core difference is structural. A single cylinder machine uses one bottom cylinder to support and adjust the moving cone, giving a simpler and cheaper design. A multi cylinder machine presses the fixed cone with several cylinders around the frame, producing higher crushing force, finer adjustment and better product shape — at a higher initial cost.
Q2: Which crusher gives higher capacity for hard rock?
A: For medium-hard and hard ores at the same specification, the multi cylinder hydraulic cone crusher generally produces more qualified output, often 5–10% higher under the same energy input. The harder the rock, the bigger the capacity advantage of the multi cylinder design.
Q3: Is a single cylinder hydraulic cone crusher easier to maintain?
A: Yes. The single cylinder design has fewer hydraulic parts and a simpler structure, so maintenance is cheaper and easier for small plants. The multi cylinder machine requires more skilled service for its hydraulic system and seals, but pays this back with higher output in hard-rock operations.
Q4: Can both crushers crush granite and basalt?
A: Yes, both can process granite and basalt, but a multi cyli
