Addressing Customer Pain Points: Are You Facing This Dilemma? — Your raw materials (whether tailings, weathered sand, or complex ores) are clearly rich in silica (quartz), kaolin, and titanium minerals; yet, do you struggle to find a mineral processing plant capable of "extracting every last drop" of value from them? Most facilities are limited to simple screening operations, resulting in high-value kaolin being discarded as waste mud, while expensive titanium resources lie dormant within tailings ponds.

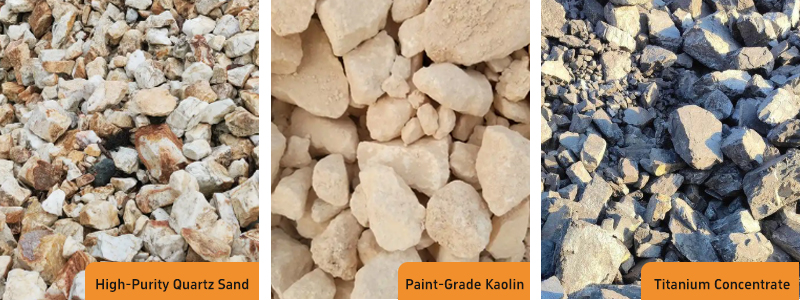

SiO₂ + Kaolin + Ti
Baichy Heavy Industry fully understands your value-driven requirements. We are not merely equipment manufacturers; we are process experts specializing in the synergistic separation of non-metallic and rare metallic minerals. In this article, we will break down exactly how you can leverage our EPC solutions to transform your complex raw materials into three distinct, high-value product lines.
I. Why is the "SiO₂ + Kaolin + Ti" Separation a Major Challenge in Mineral Processing?
This is not a matter of simple physical screening; rather, it is a complex systems engineering challenge involving "particle size control, mineral liberation, and surface flotation."
Conventional sand processing plants often fail at the following critical stages:
| Target Mineral | Separation Challenges | Common Mistakes by Conventional Sand Plants | |
| High-Purity Quartz Sand (SiO₂) | Requires the removal of feldspar, mica, and iron-titanium impurities; demands precise control over intergranular fracture during crushing. | Produces only construction-grade coarse sand, failing to achieve the purity levels required for photovoltaic or glass-grade applications. | |
| Coating-Grade Kaolin | Highly prone to "sliming" (turning into fine mud); requires preservation of its delicate lamellar structure, along with intensive iron removal and whitening treatments. | Treats kaolin as "waste mud," discharging it directly into tailings dams—resulting in massive economic losses. | |
| Titanium Concentrate (TiO₂) | Often constitutes less than 5% of the raw ore; requires highly efficient beneficiation (combining gravity separation, magnetic separation, and flotation). | Lacks sophisticated sorting processes, allowing valuable titanium to be lost along with the tailings stream. |
Conclusion: What you need is a partner equipped with comprehensive, end-to-end capabilities—spanning "crushing, grinding, classification, flotation, magnetic separation, and dewatering"—rather than a mere standalone stone-crushing plant.
II. Baichy Heavy Industry: The Foundation for Your "Comprehensive Mineral Recovery" Strategy
Based on the specific characteristics of your raw materials—such as weathered granite crusts, beach sands, or industrial tailings—Baichy offers customized solutions for the recovery of "triple concentrates." Our comprehensive equipment ecosystem is designed to fully cover every stage of this complex processing chain:
1. Core Process Matching: How We Achieve "Step-by-Step Separation"
• Quartz Sand Purification Line:

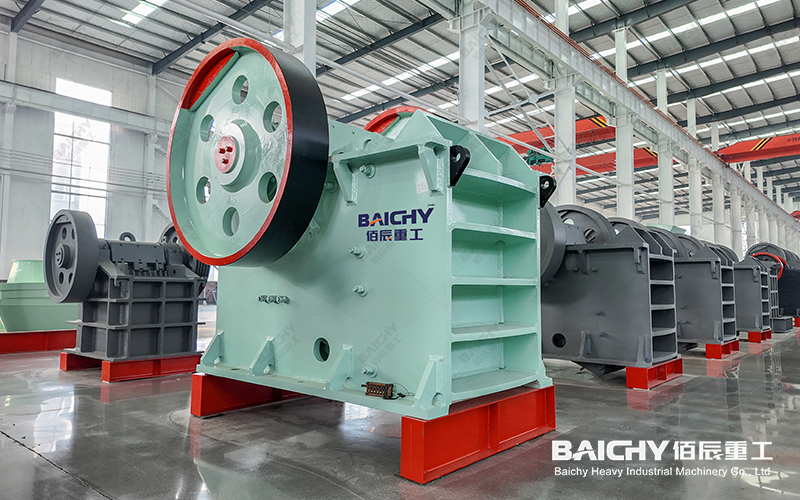

PE Jaw Crusher
Ball Mill
◦ Process: Coarse Crushing → Grinding (Scrubbing/Delamination) → Hydraulic Classification → Flotation (for Mica/Feldspar removal) → Magnetic Separation (for Iron removal).
◦ Baichy Equipment: Jaw Crusher/Cone Crusher + High-Energy Ball Mill + Flotation Machine Series + High-Gradient Magnetic Separator.
◦ Output: High-purity quartz sand with SiO₂ content > 99.5%, suitable for photovoltaic applications or high-end glass manufacturing.
• Kaolin Beneficiation Line:
◦ Process: High-gradient strong magnetic separation of fine-grained mineral slimes (for Iron/Titanium removal) → Chemical Bleaching (Optional) → Delamination → Spray Drying.
◦ Baichy Equipment: High-Gradient Magnetic Separator (specialized for weakly magnetic impurities), Delaminator, Thickener.
◦ Output: Paper/coating-grade kaolin with a whiteness > 90%.
• Titanium Enrichment & Recovery Line:

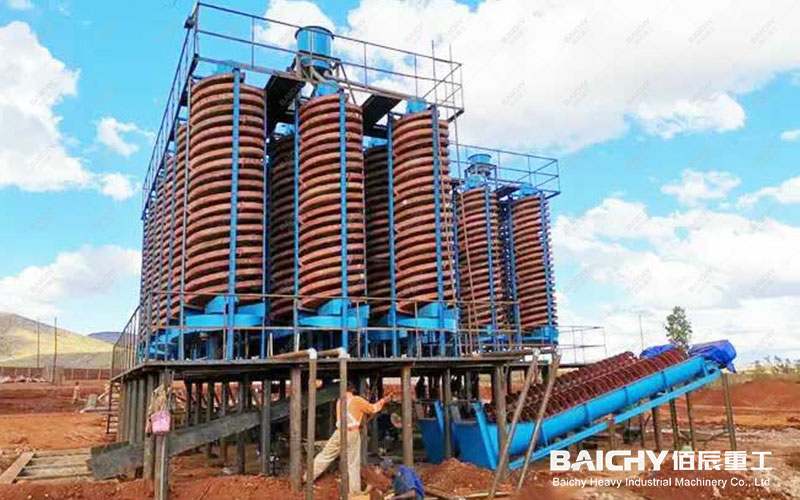

Spiral Chutes
◦ Process: Enrichment of Rutile/Ilmenite from the tailings of gravity separation (spiral chutes) using Jiggers or Flotation Machines.
◦ Baichy Equipment: Spiral Chute, Jigger, Flotation Machine.
◦ Output: Titanium concentrate with TiO₂ content > 90%, serving as raw material for titanium dioxide pigments or metallic titanium production.
2. Baichy's Differentiated Advantages
• Non-Metallic Mineral Expertise: We possess an extensive portfolio of proven case studies for processing non-metallic minerals—such as quartz, kaolin, and calcium carbonate—and possess deep expertise in preserving the crystalline structure of these minerals throughout the process.
• Comprehensive EPC Capabilities: From standalone equipment to complete turnkey production lines, we provide a one-stop service encompassing process design, equipment manufacturing, installation and commissioning, and personnel training—ensuring the successful realization of your project.
• Global Delivery: Our products are exported to over 150 countries. We offer worldwide logistics support and localized technical assistance, providing full coverage across both the U.S. and international markets.
III. Case Study: From "Inefficient Utilization" to "Value Maximization"
Project Background: A client possessed reserves of weathered granite crust but initially sold only the raw ore, resulting in meager profits. Following an upgrade implemented by Baichy, the operation was transformed from "one mine" into "three mines":
| Product | Original Approach (Selling Raw Ore) | Baichy Solution (After Deep Processing) | Value Increase |
| Quartz Sand | Contaminated with impurities; low selling price | Purified to 99.6% purity; used for photovoltaic glass | +300% |
| Kaolin | Discarded as waste mud (zero revenue) | Refined into coating-grade kaolin (92% whiteness) | New Product Line |
| Titanium Concentrate | Discarded along with tailings | Enriched and recovered (92% TiO₂) | Additional Profit Stream |
IV. How to Verify the Feasibility of the Solution?
We fully understand that a mineral processing solution cannot remain merely a concept on paper. To ensure a solid return on your investment, we recommend taking the following risk-free first step:
1. Ore Sample Analysis: Please provide a sample of your raw ore (1–2 tons) and ship it to the Baichy laboratory.
2. Free Testing: We will conduct a comprehensive Mineral Processing Test, simulating the separation process on a small-scale production line, and issue a detailed report on grade and recovery rates.
3. Customized Solution: Based on the test data, we will provide you with a precise list of recommended equipment and a detailed Return on Investment (ROI) analysis.
About of Baichy Heavy Industry
Baichy Heavy Industry is a high-tech mining equipment company integrating R&D, manufacturing, sales, and after-sales service. Focusing on crushing, grinding, and mineral processing equipment, we provide professional solutions to our customers. We are ISO9001:2015 、certified, and our products include mobile crushing palnts, crawler crushing plant, construction waste crushing plants, jaw crushers, sand making machines, cone crushers, fine crushers, grinding mills, ball mills, etc., all with reliable performance to meet diverse project needs.
Our advantages:
• Professional pre-sales support: Free project design and comprehensive solutions to help you accurately select the right equipment;
• Comprehensive on-site service: Providing installation guidance and worker training to ensure smooth equipment commissioning;
• Reliable after-sales guarantee: A complete after-sales system, timely response to technical inquiries and equipment maintenance, ensuring long-term stable operation.
To protect your rights, please contact us through the following official channels for professional service:
Official Website Customer Service
https://wa.me/+8615093222637
Email: [email protected]
We are committed to providing high-quality equipment and full-cycle services to deliver comprehensive intelligent solutions for the global mining industry!
Frequently Asked Questions (FAQ)
Q1: How do you separate kaolin from quartz?
A1: We employ a three-step process: "Classification – Grinding – Flotation." First, we use hydrocyclones to separate the fine kaolin mud from the coarse quartz sand. Next, we utilize scrubbing machines to perform selective grinding, ensuring that the structural integrity of the kaolin is preserved. Finally, flotation machines are used to purify the quartz, yielding two distinct products: high-purity quartz sand and kaolin.
2: Is it economically viable to recover titanium when its content is low?
Yes, it is. We employ a combined "gravity separation + beneficiation" process: first, we perform a preliminary enrichment of titanium minerals from the tailings using spiral chutes, followed by a final beneficiation stage using magnetic or electrostatic separators. This approach allows us to extract high-grade titanium concentrates from large volumes of tailings at a low cost, effectively transforming waste into profit.
3: Can you provide a comprehensive service package?
Absolutely. We offer a one-stop service covering the entire spectrum from initial testing through to full-scale production: free mineral sample analysis → laboratory-scale testing to determine the optimal processing scheme → customized process design → equipment manufacturing and installation → commissioning and operator training → and long-term technical support—all to ensure the project launches and operates smoothly.
