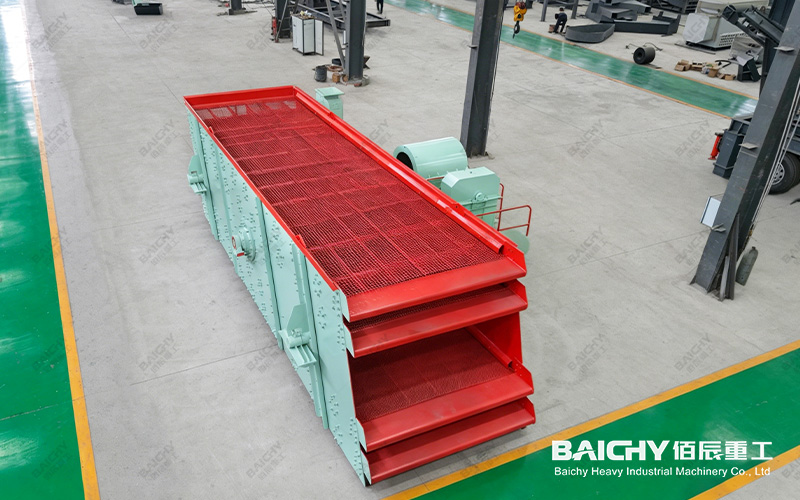

2026 Model Heavy-Duty Mining YK Series Circular Vibrating Screen
By 2026, the global mining industry has fully entered the second half of a competitive era characterized by large-scale operations, high efficiency, and intelligent automation. With the continuous deepening of green mining policies and the widespread adoption of large-scale sand and aggregate production lines, screening equipment—serving as the critical bottleneck link in mining production—is facing unprecedented challenges.
Today, we will conduct an in-depth analysis of the 2026 Model Heavy-Duty YK Series Circular Vibrating Screen designed for mining applications. How exactly does this heavy-duty machine—dubbed the heart of the production line—manage to stand out in such a fiercely competitive market?
I. Structure of the YK Series Circular Vibrating Screen

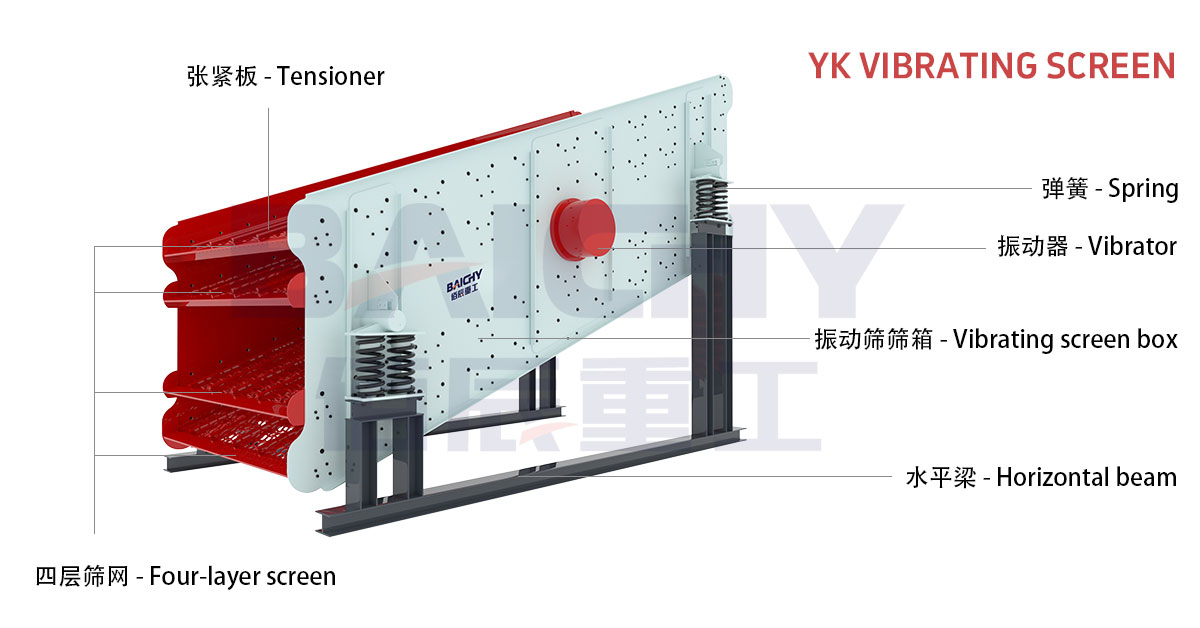

Structure of the YK Series Circular Vibrating Screen
1. Screen Box
The screen box serves as the main body of the equipment; it carries the material and performs the classification process.
Side Plates: Constructed from single sheets of high-quality boiler steel (thickness varies depending on the specific model).
Key Feature: Modern heavy-duty YK screens typically employ a weld-free design for their side plates, utilizing aviation-grade annular groove rivets for cold-connection assembly. This approach prevents welding-induced stresses that could otherwise lead to cracking under prolonged, high-frequency vibration.
Crossbeams: Connect the two side plates and support the screen deck. These are typically constructed from seamless steel pipes or large-gauge channel steel, and are externally coated with a wear-resistant rubber layer to extend their service life.
2. Vibration Exciter — The Heart of the System
The core reason the YK series is classified as a circular vibrating screen lies in the specific construction of its vibration exciter.
Eccentric Structure: The YK series predominantly utilizes a Block Eccentric structure. By adjusting the weight or position of the eccentric blocks, the vibration amplitude can be easily fine-tuned.
Cylindrical Housing Design: The vibration exciter is typically designed with a cylindrical housing mounted onto the side plates. Internally, it houses the main shaft and high-performance, specialized vibration-resistant bearings.
Lubrication: Smaller models typically employ grease lubrication, whereas heavy-duty mining models (such as the 2026 edition) widely adopt oil lubrication. This method offers superior heat dissipation and significantly extends bearing life.
3. Screen Deck & Mesh
Depending on the specific characteristics of the material being processed, the screen deck can be configured with anywhere from one to four layers. Materials:
Manganese Steel Woven Mesh: Low cost, high open area ratio; suitable for general sand and gravel applications.
Polyurethane (PU) Screen Panels: Extremely wear-resistant; service life is 3 to 5 times that of metal screens; suitable for heavy-duty mining operations.
Grizzly Bars: Used for the pretreatment (primary screening) of large-sized materials.
Fixing Method: Secured using tension hooks or wedge blocks to ensure the screen remains firmly in place during vibration.
4. Damping Support System
Responsible for supporting the entire screen body and isolating vibrations, preventing vibration transmission to the ground foundation.
Damping Springs:
Steel Coil Springs: A classic structural design offering excellent stability.
Rubber Springs / Composite Springs: A key trend for the 2026 models; offers lower noise levels and ensures smoother passage through the resonance zone during startup and shutdown.
Support Base Frame: A robust steel structure that anchors the spring support points to the foundation.
5. Electric Motor and Drive System
Motor: Mounted on the side frame (isolated from the screen body).
Flexible Coupling / Belt Drive: The motor drives the exciter via V-belts. The belt drive acts as a buffer and prevents motor damage in the event of an overload.
6. New for 2026 Models: Smart Sensing Components
In the latest heavy-duty versions, the structure has been enhanced with the addition of:
Accelerometers: Monitor the 3D vibration trajectory.
Temperature Sensors: Monitor the real-time temperature of the exciter bearings.
Rotary Encoders: Monitor the rotational speed of the motor and the eccentric shaft.
Summary of the YK Series Structural Working Principle:
The electric motor drives the main shaft of the exciter via V-belts. The unbalanced eccentric blocks on the main shaft generate centrifugal force (excitation force), driving the screen box—and the entire screen surface—to follow an approximately circular motion trajectory. Materials on the inclined screen surface undergo a continuous throwing motion; particles smaller than the screen apertures pass through the mesh and fall below, while particles larger than the apertures are discharged from the front end, thereby achieving automated material classification.
2026 Model Heavy-Duty Mining YK Series Circular Vibrating Screen
II. High-Efficiency Production: Unrivaled Screening Ratios and Throughput
For mine owners, output is the lifeline. By optimizing dynamic parameters, the 2026 YK Series achieves a dual leap forward in both efficiency and capacity:
1.Fifth-Generation Excitation System: Features an intelligent block-eccentric exciter that delivers powerful yet adjustable excitation force. Materials on the screen surface undergo a large-amplitude, long-trajectory circular throwing motion, effectively resolving the persistent challenge of screen blinding (clogging).
2.Ultra-High Processing Capacity: Optimized specifically for heavy-duty production lines with hourly outputs of 1,000 tons or more. The processing capacity per unit has increased by 25%–30% compared to traditional models, while screening efficiency remains consistently above 90%.
III. Green & Low-Carbon: Compliant with 2026 Global ESG Standards
In an era of increasingly stringent environmental regulations, the 2026 YK Series pushes the boundaries of eco-friendly performance:
Ultimate Noise Reduction: Employs new vibration-damping rubber springs to replace traditional steel springs, reducing operating noise by 10–15 decibels and significantly improving the working environment.
Energy-Efficient Drive System: Equipped standard with IE5 ultra-high-efficiency motors and frequency-conversion start technology; overall energy consumption has been reduced by over 15% compared to products from five years ago.
Integrated Dust Control Solution: Offers an optional fully enclosed, eco-friendly dust cover, allowing for easy compliance with even the most rigorous indoor dust emission standards.
Conclusion: More Than Just Equipment—A Tool for Profitability
In the field of mining equipment, every improvement in detail directly impacts a user's Return on Investment (ROI). The 2026 Heavy-Duty Mining YK Series Circular Vibrating Screen represents far more than a mere product update; it is a precise solution engineered to meet the demands of high-yield, intelligent, and eco-friendly mining operations.
If you are planning to upgrade your existing production line or are currently establishing a large-scale mining project, the YK Series heavy-duty screen is undoubtedly a strategic asset worthy of your closest attention in 2026.
About of Baichy Heavy Industry
Baichy Heavy Industry is a high-tech mining equipment company integrating R&D, manufacturing, sales, and after-sales service. Focusing on crushing, grinding, and mineral processing equipment, we provide professional solutions to our customers. We are ISO9001:2015 、certified, and our products include mobile crushing palnts, crawler crushing plant, construction waste crushing plants, jaw crushers, sand making machines, cone crushers, fine crushers, grinding mills, ball mills, etc., all with reliable performance to meet diverse project needs.
Our advantages:
• Professional pre-sales support: Free project design and comprehensive solutions to help you accurately select the right equipment;
• Comprehensive on-site service: Providing installation guidance and worker training to ensure smooth equipment commissioning;
• Reliable after-sales guarantee: A complete after-sales system, timely response to technical inquiries and equipment maintenance, ensuring long-term stable operation.
To protect your rights, please contact us through the following official channels for professional service:
Official Website Customer Service
https://wa.me/+8615093222637
Email: [email protected]
We are committed to providing high-quality equipment and full-cycle services to deliver comprehensive intelligent solutions for the global mining industry!
Frequently Asked Questions (FAQ)
Q1: Specifically, how much has the processing capacity of the 2026 YK Series Circular Vibrating Screen improved compared to previous models?
A: The 2026 YK series has undergone dynamic optimization specifically for large-scale production lines with capacities in the thousand-ton range, incorporating a fifth-generation intelligent block eccentric excitation system. Compared to traditional models, its single-unit processing capacity has increased by approximately 25% to 30%. Furthermore, even under high-load operation, its screening efficiency remains consistently above 90%, effectively resolving the critical bottleneck issues often encountered in large-scale mining operations.
Q2: How does this equipment address the increasingly stringent environmental protection regulations anticipated in 2026?
A: This equipment fully complies with global ESG standards. First, it utilizes a new type of rubber vibration-damping spring, reducing operational noise levels by 10 to 15 decibels. Second, it comes standard with an IE5 ultra-high-efficiency motor, resulting in a 15% reduction in overall energy consumption. Additionally, an optional fully enclosed, eco-friendly dust cover is available to ensure dust emissions meet regulatory standards, thereby contributing to the development of green mines.
Q3: What practical functions do the intelligent sensing components of the YK series circular vibrating screen perform?
A: The intelligent sensing components introduced in the 2026 model—including accelerometers, temperature sensors, and speed encoders—serve as the equipment's health monitoring system. They provide real-time monitoring of vibration trajectories, bearing temperatures, and motor speeds, enabling early fault warnings and predictive maintenance to prevent the substantial production losses that can result from sudden, unexpected shutdowns.
