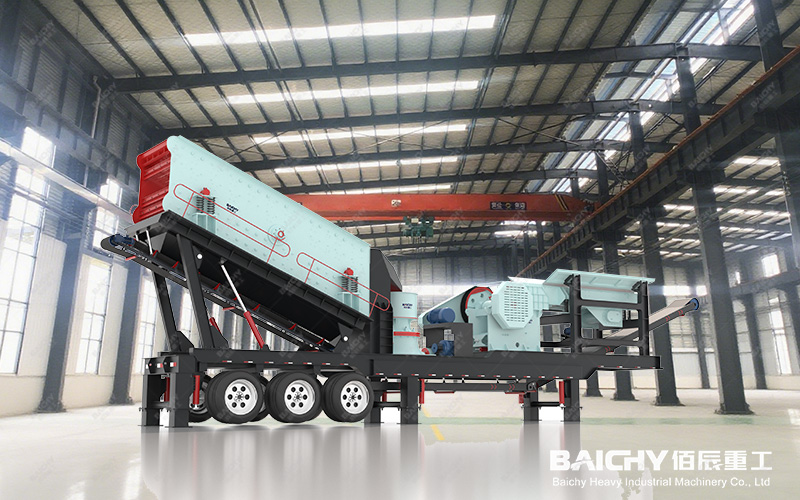

In modern construction and infrastructure development, efficient and flexible stone production equipment has become an essential requirement. The four-combination mobile crushing station, with its unique "truck-driven" design, completely overcomes the limitations of traditional fixed crushing lines, providing users with unprecedented production flexibility.
Four-combination mobile crushing stationscan be pided into the following types based on the configuration of the main crushing unit, each designed to meet different material characteristics and production requirements:

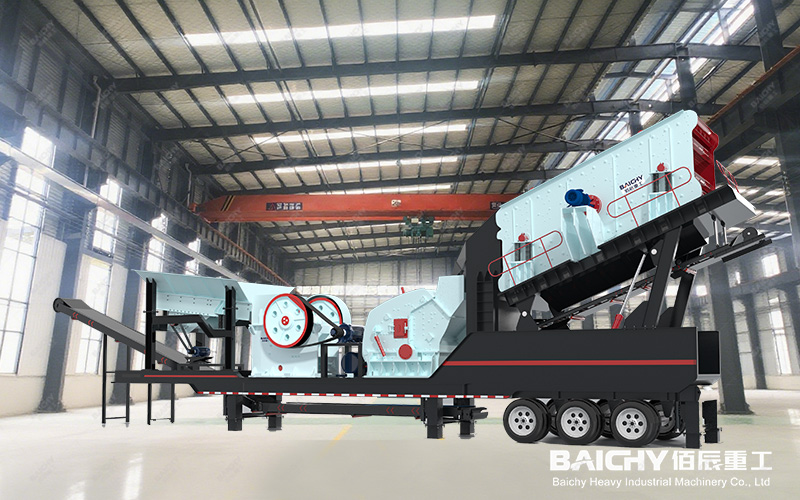

1. Jaw Crusher + Impact Crusher Combination
Applicable Materials: Medium-hard materials (limestone, bluestone, etc.), construction waste
Configuration Features:
• A jaw crusher is used for primary crushing, ensuring efficient coarse crushing of bulk materials
• An impact crusher is used for secondary crushing, producing a well-shaped finished product
Typical output sizes: 0-5mm, 12mm, 13mm, 24mm
Advantages:
✔ Large processing capacity, up to 120-150 tons per hour
✔ Excellent finished product shape, suitable for commercial concrete mixing plants
Moderate equipment investment
Applications:
• Urban construction waste recycling
• Limestone quarrying
• Highway base aggregate production
2. Jaw Crusher + Symon Cone Crusher Combination
Applicable Materials: High-hardness materials (granite, basalt, etc.)
Configuration Features:
• A jaw crusher is used for primary crushing, ensuring efficient coarse crushing of bulk materials.
• A cone crusher is used for secondary crushing, achieving stone shaping and sand production.
Typical output sizes: 0-5mm (machine-made sand), 12mm, 13mm, and 24mm.
Advantages:
✔ Long wear-resistant parts life and low operating costs
✔ Wide adjustable range of finished product gradations
✔ High sand production rate and adjustable sand fineness modulus
Applications:
• High-hardness rock sand production line
• High-quality commercial aggregate production
• Aggregate production for high-speed rail and highway applications
3. Jaw Crusher + Single-Cylinder Cone Crusher Combination
Applicable Materials: Medium-to-low hardness brittle materials (such as gangue and shale)
Configuration Features:
• Primary Crushing: Deep-cavity jaw crusher (feed size ≤ 650mm)
• Secondary Crushing: Single-cylinder hydraulic cone crusher (medium and fine crushing)
• Supporting Equipment: Multi-layer high-efficiency vibrating screen + intelligent control system
Typical discharge sizes: 0-5mm (stone dust), 10-12mm (fine aggregate), 13-15mm, 20-25mm
Highlights
1. Highly Efficient and Energy-Saving Performance
✔ Single-cylinder hydraulic system saves 15-20% energy compared to multi-cylinder models
✔ Hydraulically adjustable discharge opening (range: 8-38mm)
✔ Intelligent iron overload protection device reduces malfunctions
2. Excellent Finished Product Quality
✔ Aggregate cube content ≥ 90%
✔ Flake content < 8% (exceeds national standards)
✔ Particularly suitable for high-grade concrete aggregate production
Modular Host Configuration
"Customizable Host" is the core design concept of the four-combination mobile crusher. Users can flexibly choose from a variety of host crushers, including jaw crusher, cone crusher, impact crusher, or impact crusher, based on raw material characteristics (hardness, moisture content, mud content, etc.) and final product requirements, to achieve optimal crushing results.
