Mobile hard rock crusher is mainly used to crush large hard rocks (such as granite, limestone, basalt, etc.) to meet the requirements of material particle size in different projects or production.

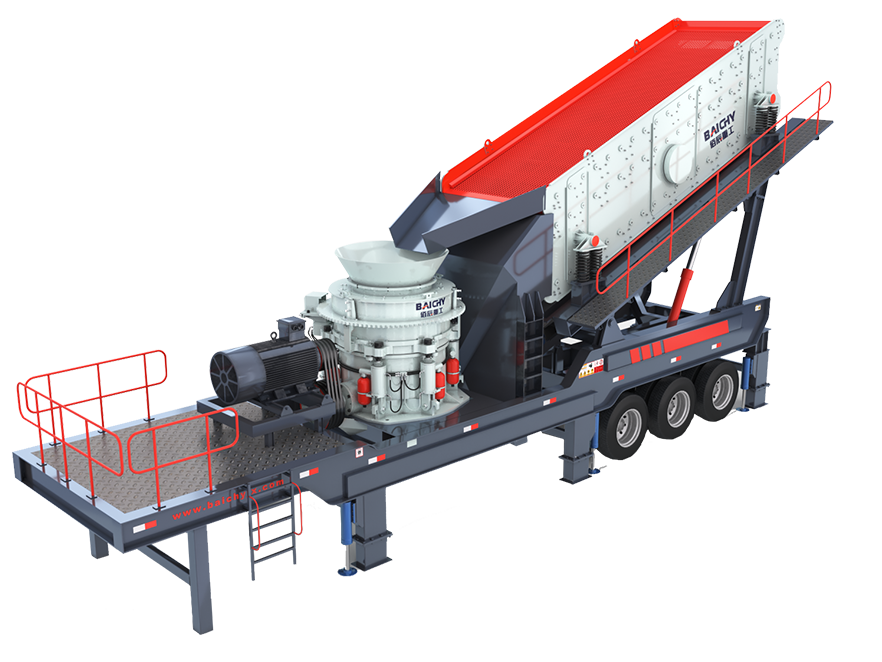

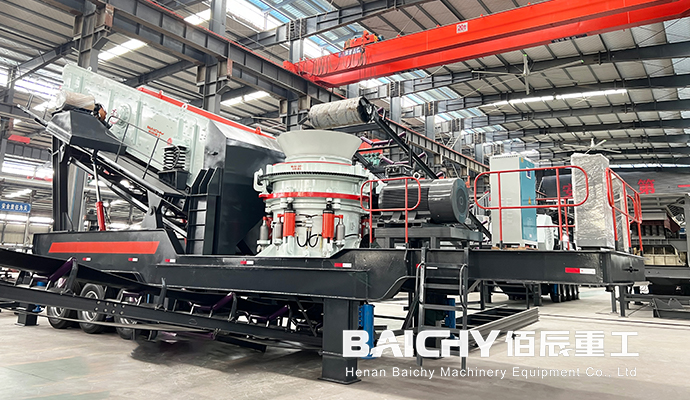

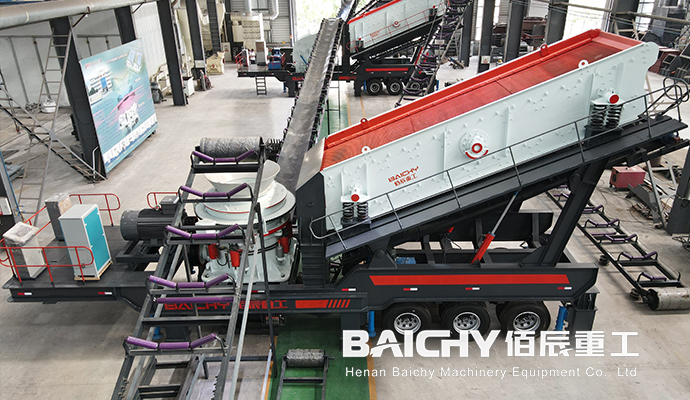

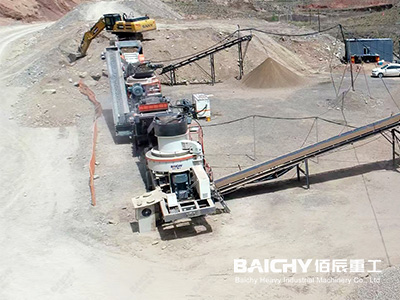

Mobile cone crushing plant, also known as a mobile cone crusher, is a mobile equipment specially designed to process stone of various hardness. Its main features are its high flexibility and powerful crushing capacity.
Hard stones usually refer to those with high hardness and strength. These stones often have stable mineral composition and tight crystalline structure in nature.For these stones, suitable crushing equipment needs to be selected.
Common types of hard stones include granite, basalt, quartz, iron ore (and other metal ores), river pebbles, etc.
Mobile hard stone crushing station is a mechanical equipment that crushes large hard stone materials in multiple stages and screens them according to certain discharge specifications.
The main crushing equipment includes a jaw crusher, cone crusher, impact crusher, etc., and the configuration depends on actual needs.

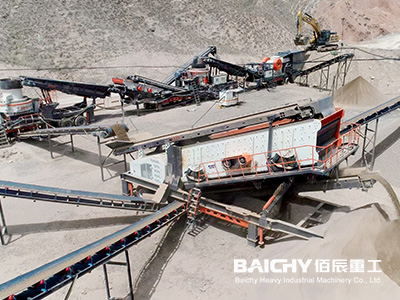

Mobile hard stone crushing station usually consists of a primary crusher, secondary crushing, and screening plant, belt conveyor, etc. Each level of crusher is an independent working unit, that can complete its different responsibilities, and the belt conveyor is responsible for material transportation and stacking between crushing stations.
Mobile hard rock crusher does not require fixed infrastructure installation, is easy to transfer, and can move with the advancement of raw material mining, saving a lot of infrastructure and relocation costs; it adopts advanced crushing technology and screening technology, with high crushing efficiency and low energy consumption.

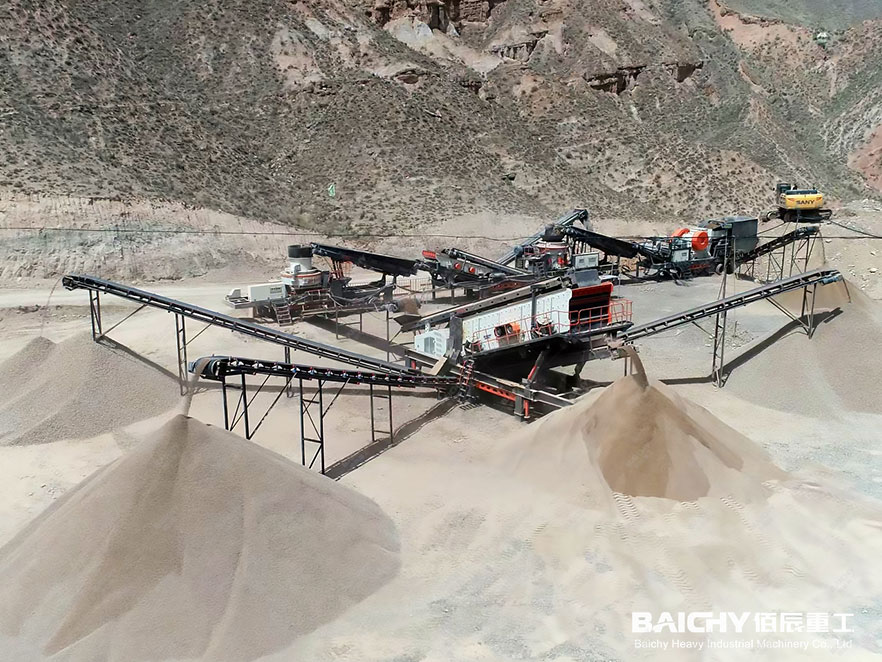

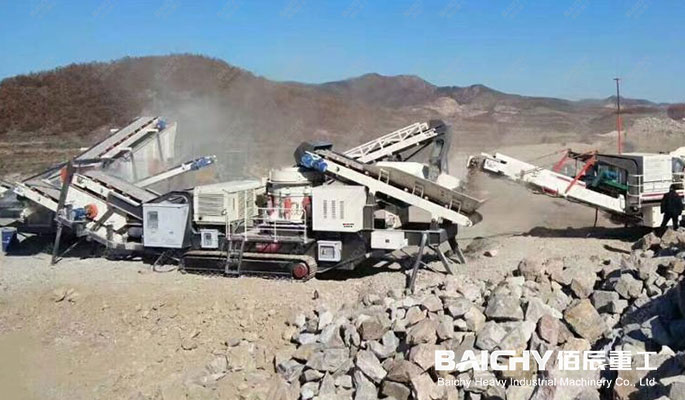

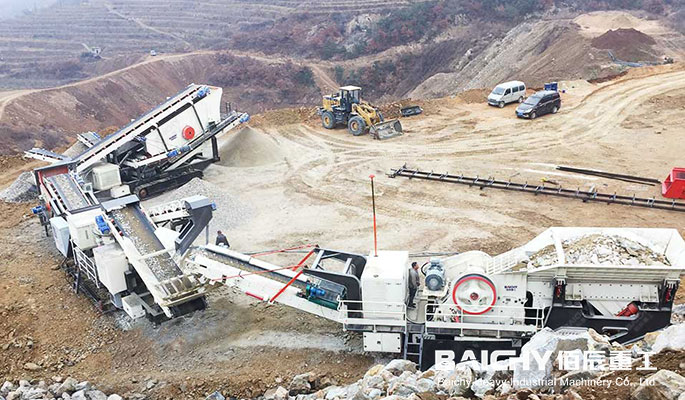

Mobile hard rock crushers usually include primary crushing stations, secondary crushing and screening stations, and material conveying systems; large hard rock materials are fed into the feeding port of the mobile crushing station through equipment such as loaders or conveyor belts.
In the primary crusher, the material is initially crushed by equipment such as jaw crushers to break it into smaller particle sizes. The initially crushed material enters the secondary crushing and screening plant and is further crushed by equipment such as cone crushers and impact crushers, and the materials that meet the requirements are separated by screening equipment.
The materials that meet the requirements are transported to the designated location by equipment such as belt conveyors for stacking or further processing.
| Model | SMC120SMHS | SMC180SMHS | SMC180SMH | SMC250SMHS | SMC250SMH | |
| Transport size | ||||||
| Length(mm) | 11200 | 11800 | 10000 | 12300 | 10816 | |
| Width(mm) | 2743 | 2743 | 2480 | 2900 | 2743 | |
| Height(mm) | 4200 | 4200 | 4160 | 4200 | 4160 | |
| Alex weight(kg) | 15500 | 16300 | 14300 | 31100 | 22900 | |
| King pin weight(kg) | 12900 | 14200 | 8100 | 17600 | 12800 | |
| Cone crusher | ||||||
| Model | SMH120 | SMC180 | SMC180 | SMC250 | SMC250 | |
| Max Feed opening(mm) | 160 | 180 | 180 | 240 | 240 | |
| setting range(mm) | 22-32 | 22-32 | 22-32 | 26-51 | 26-51 | |
| Vibrating screen | ||||||
| Model | 3YK1545 | 4YK1548 | ||||
| Belt conveyor | ||||||
| Model | B800X8 | B1000X8 | B1000X8 | |||
