The crawler-mounted mobile crushing station is a highly integrated solution built on a robust crawler chassis, offering superior mobility and adaptability to varying terrains and operating conditions. By combining feeding, crushing, screening, and conveying into a single mobile unit—a "micro-plant" on tracks—it eliminates the need for fixed infrastructure. Capable of direct deployment at mining sites, demolition zones, or active construction faces, it enables efficient on-site crushing that significantly reduces material transportation costs.
Crawler Mobile Crushing Units

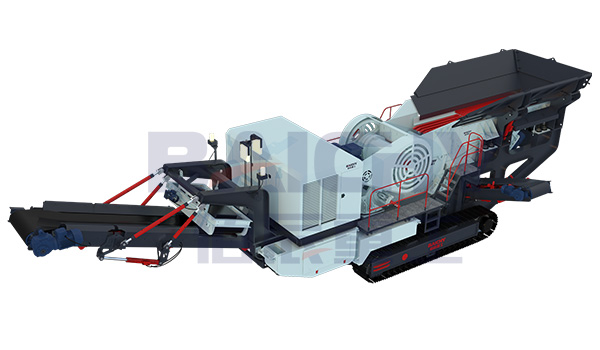

The YMC96 Crawler-Mounted Mobile Jaw Crushing Station is a high-performance mobile unit designed for medium-to-large-scale primary crushing operations. Its core highlight is the integration of the C96 European-style jaw crusher—a technologically mature component characterized by a high crushing ratio.
| Capacity | 100-200t/h |
| Vibrating feeder | GZD9638 |
| Jaw Crusher | C96 |
| Max. Feeding Size | 480mm |

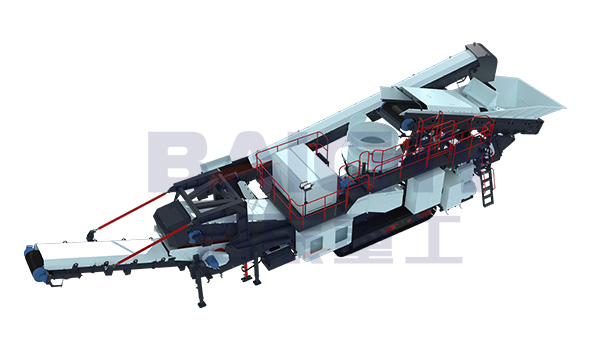

The YMH30S Crawler-Mounted Mobile Cone Crushing Station is an integrated, automated mobile plant designed for medium and fine crushing applications; its core crushing unit features the industry-renowned HP300 multi-cylinder hydraulic cone crusher.
| Capacity | 150-380t/h |
| Vibrating feeder | 1000X7000 |
| Cone Crusher | HP300 |
| Max. Feeding Size | 190mm |

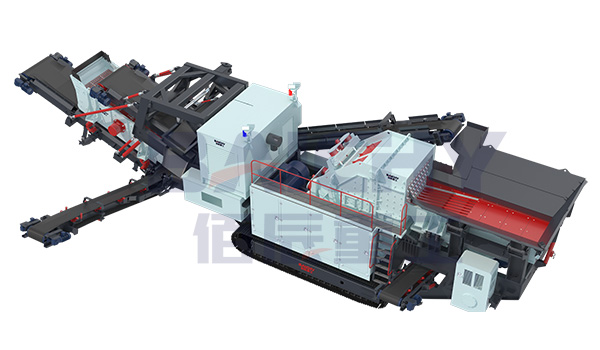

The YMCI12 Crawler-Mounted Impact Crushing Station is a high-performance mobile unit specifically designed for crushing medium-hardness materials and recycling construction waste. Its core power is derived from the technologically advanced CI1213 European-style impact crusher.
| Capacity | 150-300t/h |
| Vibrating feeder | GZD1135 |
| Impact Crusher | CI1213 |
| Max. Feeding Size | 550mm |
