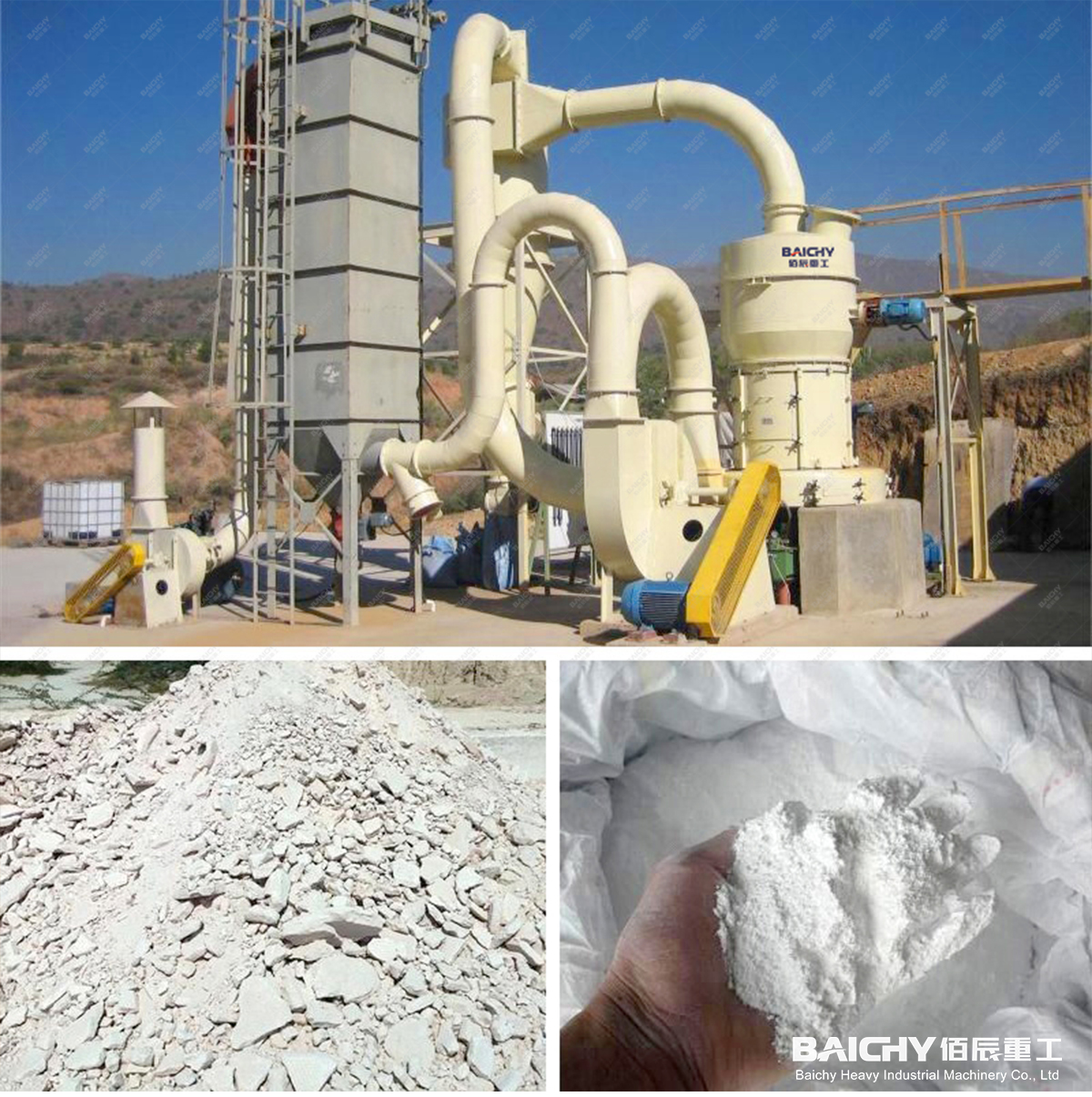

YGM75 High Pressure Grinding Mill for Tanzania Cement Plant
Addressing the small-to-medium scale cement grinding needs in Tanzania, the Baichy YGM75 high-pressure grinding system integrates dynamic classifier technology and modular production configuration, achieving fully automated operation from block crushing to 400-mesh finished product output. With a total installed power of 35kW, the system provides a stable capacity of 1-3t/h, making it an ideal investment choice for local cement grinding aid processing and specialty cement production.
I. Why is YGM75 suitable for Tanzanian cement plants?
1. Precise Particle Size Gradient (60-400 mesh)
Cement activity depends on particle size distribution. The dynamic classifier equipped in the YGM75 allows operators to directly adjust the finished product mesh size via the control cabinet. Whether used for ordinary Portland cement (OPC) or composite cement, it ensures that the proportion of ultrafine particles below 0.033mm meets international standards.
2. Reinforced High-Pressure Spring Structure
The main unit utilizes high-pressure springs for pressurization. When grinding cement clinker or additives, the roller-to-ring grinding pressure is 800-1200 kg higher than that of a conventional Raymond mill. This means that with the same energy consumption, the output is finer and the wear is lower.
3. Complete Turnkey Process Flow We provide not just a grinding mill, but a complete production unit:
• Front end: A PE150×250 jaw crusher pre-crushes the raw material to below 15mm.
• Middle end: A T160 bucket elevator enables vertical feeding, significantly reducing the plant footprint.
• Final end: A centralized electrical control panel allows a single person to operate the entire line, reducing labor costs.
Ⅱ.Technical Specifications
| Key Parameters | Specifications |
| Main Unit Model | YGM75 (3-roller) |
| Feed Limit | ≤15mm |
| Finished Product Range | Finished Product Range | 60-400 mesh (adjustable) |
| System Capacity | 1-3 Tons/Hour |
| Dynamic Classifier Power | 2.2 kW (Variable Frequency Control) |
| Full Line Configuration | Crushing + Lifting + Feeding + Grinding + Electrical Control |
YGM75 High Pressure Grinding Mill for Tanzania Cement Plant
Tanzanian Customer Concerns
Q: Tanzania's voltage is 400V/50Hz. Is the equipment compatible?
A: Fully compatible. Our motors can be customized according to Tanzanian standards and have enhanced insulation for the local high-temperature environment.
Q: How to solve dust pollution during cement grinding?
A: The system adopts a closed-loop circulation air path, combined with a high-efficiency cyclone dust collector. A pulse dust collector is optional in the quotation to ensure that workshop emissions meet East African environmental standards.
Q: How does after-sales service cover the Tanzanian project site?
A: Baichy provides a complete set of installation drawings and remote video guidance. With years of installation experience in Africa, our engineering team can travel to the site for commissioning and local worker training.
