Small Jaw Crusher PE250x400 for Sale
Investing in small-scale crushers hinges on low trial-and-error costs and high turnover rates. For first-time investors or small contractors entering the mining industry, blindly pursuing large capacity often translates to heavy financial leverage and operational burdens. Baichen's PE250x400 jaw crusher, through its minimalist structural design and flexible power configuration, keeps initial investment to the tens of thousands of RMB, achieving extremely high asset liquidity while ensuring a capacity of 5-20 t/h.
I. Technical Parameters: Hard Indicators Supporting Hard Logic
| Key Indicators | Detailed Parameters | Customer Benefits |
| Feed Opening Size | 250 × 400 mm | Supports direct entry of stones up to 210mm, no secondary crushing required |
| Discharge Opening Adjustment Range | 20 - 60 mm | Flexible production of 1-2 and 1-3mm stones, adaptable to various infrastructure needs |
| Processing Capacity | 5 - 20 t/h | Stable daily production of 40-160 tons, rapid capital recovery |
| Matching Motor/Diesel Engine | 15 kW / 22 HP | Ultra-low energy consumption, supports diesel engine drive or PTO power in remote areas |
II. Three Core Advantages: Addressing Pain Points of Small Projects
1. Modular Design, Daily Maintenance Can Be Performed by One Person. The PE250x400 adopts a deep cavity crushing structure, and the moving jaw plate and fixed jaw plate are interchangeable. This means that when one end is severely worn, you can directly turn it around for use without immediately purchasing new parts, increasing the utilization rate of wear-resistant parts by 50%.
2. Power Flexibility: Adaptable to off-grid and remote working conditions. In regions with unstable power supply, such as Africa, Southeast Asia, and Latin America, we offer a variety of solutions including electric motors, diesel generator sets, or tractor PTO drives. This "power-flexible" characteristic allows your equipment to operate anytime, anywhere, in mines, construction sites, and even agricultural infrastructure projects.
3. Extremely High Residual Value: Small crushers are highly sought after in the used market. Thanks to Baichen's high-manganese steel casting technology and reinforced frame, even after 3-5 years of use, the residual value can still maintain 40%-60% of the original price, far exceeding that of large-scale customized production lines, providing a safety net for your investment exit.

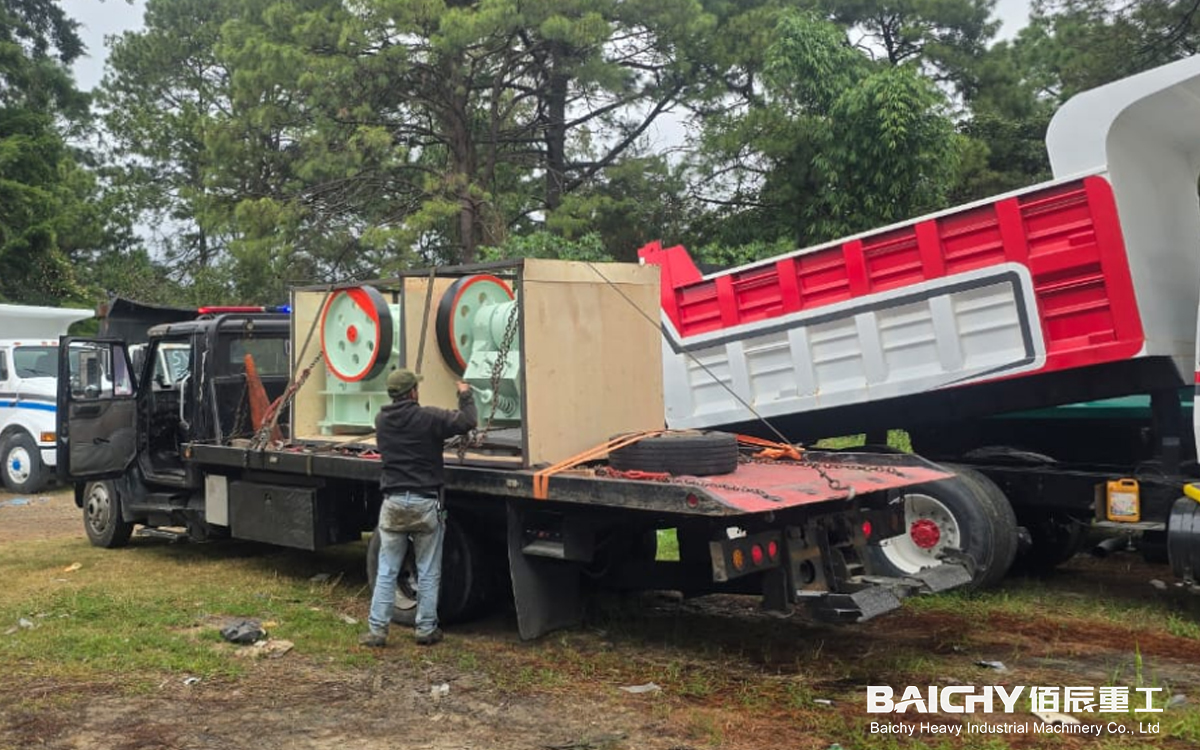

PE250x400-jaw-crushers-arrive-in-South-Africa-and-are-being-unloaded.
Frequently Asked Questions
Q1: How many tons per hour can the PE250x400 small crusher produce?
A1: Theoretical capacity is 5-20 tons/hour. Actual output is affected by material hardness (e.g., granite vs. limestone), feed particle size, and target output size.
Q2: Can this small crusher crush hard rocks like granite?
A2: Yes. This model uses high-manganese steel (Mn13Cr2) jaw plates, with a crushing strength of up to 320MPa, perfectly capable of primary crushing of hard rocks such as granite, basalt, and river pebbles.
Q3: How will this equipment operate if my construction site has no power?
A3: We support configurations with high-horsepower diesel engines and are equipped with a clutch device, making it ideal for field operations or mobile office scenarios where power is scarce.
Q4: What are the vulnerable parts of this machine? How often should they be replaced?
A4: The main vulnerable parts are the moving jaw plate, the fixed jaw plate, and the side guard plates. When crushing medium-hard limestone, the jaw plate life is typically 8-12 months; for crushing extremely hard rock, it is recommended to check every 4-6 months.
Q5: How do I choose between PE250x400 and PE150x250?
A5: If the feed stones are larger than 100mm, PE250x400 is recommended as the first choice. Although PE150x250 is lighter, its feed inlet limits the feeding efficiency. PE250x400 is the golden balance point of cost-effectiveness for small commercial projects.
