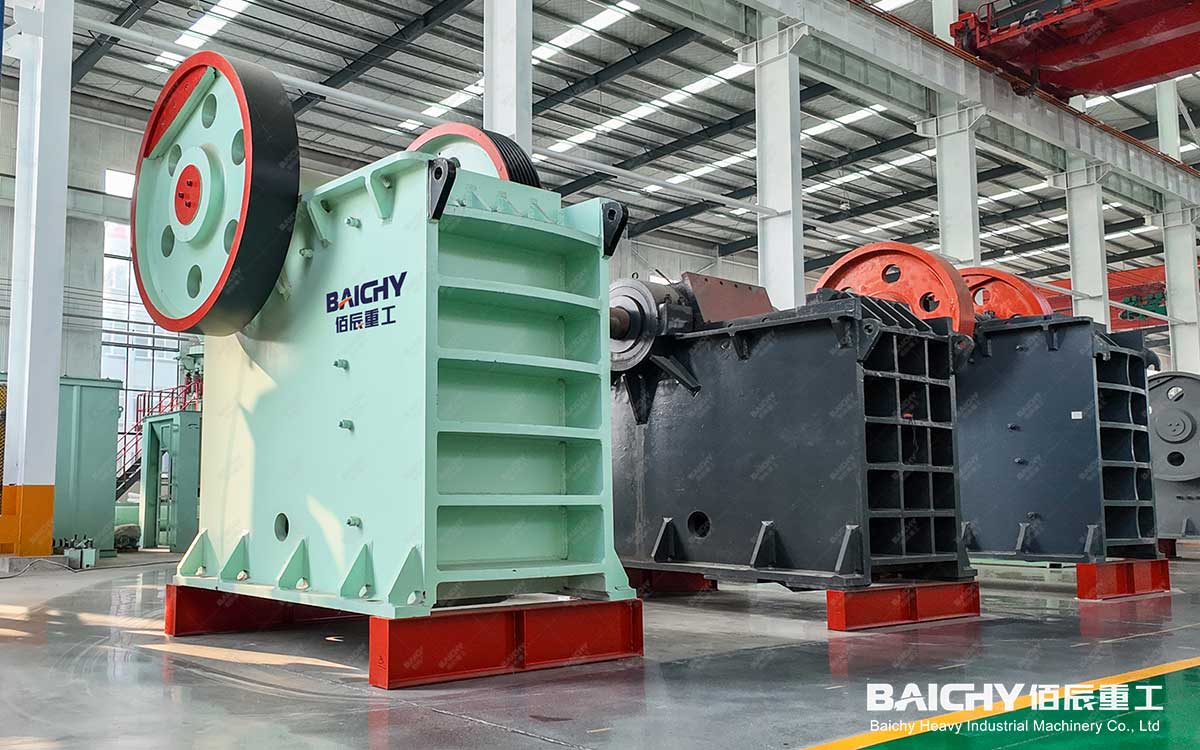

PE750x1060-Jaw-Crusher
The PE750x1060 is the core component for achieving a balance of "low maintenance and high throughput" in 1500-2500 ton/hour production lines in the Brazilian market. When your production line demand exceeds 120 t/h, the PE750x1060 Jaw Crusher, with its powerful 110kW drive and massive 750x1060mm feed inlet, significantly reduces blasting costs in upstream processes and ensures continuous feeding in downstream processes.
I. Deep Pain Point: "Fear of Failure" Under High Output Requirements
In the Bahia (granite) or Minas Gerais (iron ore) mining areas of Brazil, the direct output loss from a one-hour downtime is often measured in tens of thousands of reais (BRL). For heavy-duty blasting machines of the PE750x1060 class, mine owners are most concerned about:
1. Spindle breakage: Metal fatigue caused by prolonged handling of highly abrasive materials.
2. Bearing overheating: Lubrication failure due to Brazil's tropical climate.
3. Difficulty in finding spare parts: Long import wait times due to non-standard parts.
Bailly Heavy Industries' PE750x1060 addresses these pain points by equipping the entire series with WEG Brazilian-made motors and reinforced 40Cr eccentric shafts, achieving true "Brazilian operating condition adaptation."
Rwanda PE750x1060 jaw crusher customer site
II. Technical Characteristics of PE750x1060
| Technical Characteristics | Customer Benefits |
| 110kW WEG High-Efficiency Motor | Deeply compatible with 60Hz power grid, no voltage harmonic interference, motor life extended by 25%, annual maintenance cost savings of approximately $2,800 |
| 750x1060mm Feed Inlet | Allows for stones up to 630mm in size, high single-pass crushing ratio, reducing blasting operations in upstream processes by 15% |
| V-Shaped Deep Cavity Crushing Technology | Eliminates "dead zones," optimized meshing angle, 20% increase in capacity at the same power, lower unit power consumption cost |
| Integral Cast Steel Bearing Housing | Compared to welded housings, it can withstand 40% more instantaneous impact force, completely eliminating the risk of frame cracking |
III. Performance Measurement: PE750x1060 Core Parameter Table
| Parameter Name | Specification Data (Technical Data) | Brazilian Standard/Working Condition Adaptation Instructions |
| Feed Inlet Size (mm) | 750 × 1060 | Matching 30-40 Ton Large Excavator Feeding |
| Maximum Feed Size (mm) | 630 | Easily handles large, hard granite blocks commonly found in Brazil |
| Discharge Port Adjustment Range (mm) | 80 - 160 | Meets the feeding requirements of 0-40mm aggregate or subsequent cone crusher |
| Processing Capacity (t/h) | 110 - 320 | Depends on CSS settings and material hardness |
| Eccentric Shaft Speed (r/min) | 250 | Scientific speed ensures high material throughput |
| Motor Power (kW) | 110 (60Hz) | Core Advantage: Forced matching with WEG or Siemens Brazil version |
| Total Weight (t) | ~29.5 | Heavy-duty frame ensures vibration absorption capacity |
IV. Application Scenarios: Brazilian Working Condition Map
1. Iron Ore Coarse Crushing: For high-grade iron ore from Minas Gerais, as a primary crushing system to provide qualified particle size for subsequent ball milling.
2. Hard Rock Quarry: Produces high-grade infrastructure aggregates (0-40mm) from granite in Bahia and basalt in Santa Catarina.
3. Mobile Crushing Station Integration: As the core unit of the Baichy YDPZ series mobile crushing station, it is adapted for flexible operations requiring frequent relocation in the mountainous regions of Brazil.

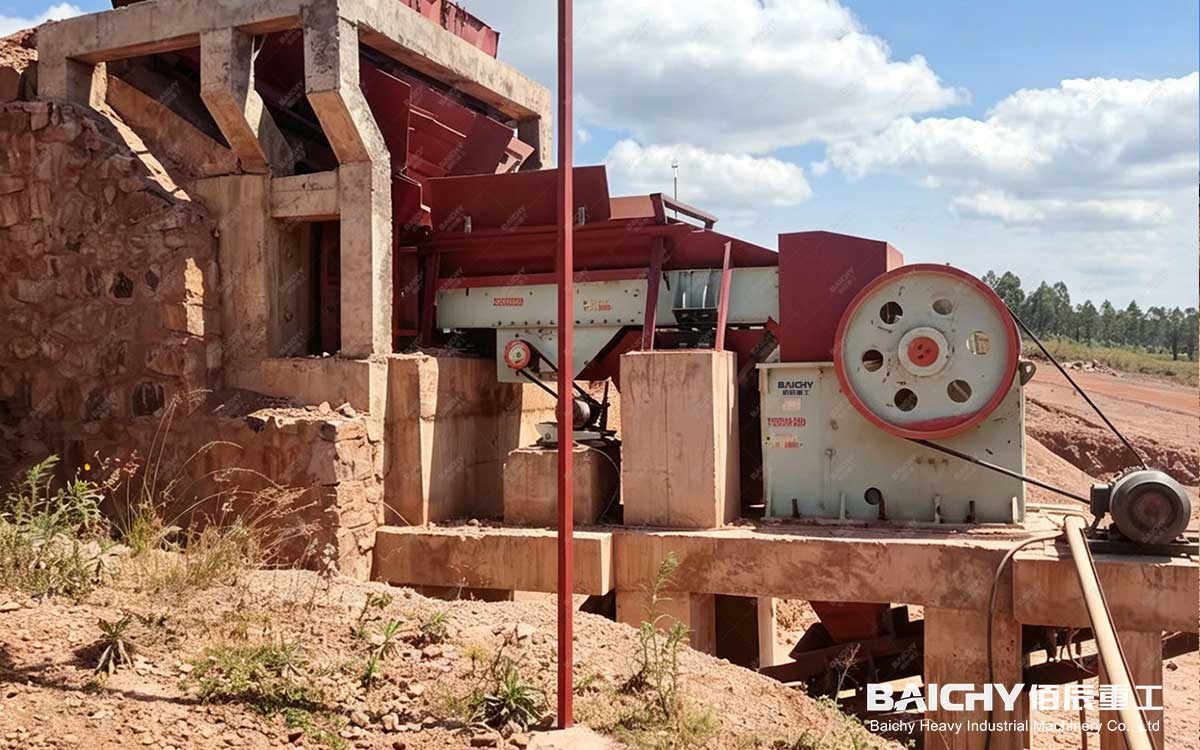

Rwanda-PE750x1060-Jaw-Crusher-Customer-Site-02
Frequently Asked Questions:
Q1: Must the motor for this PE750x1060 model be 110kW?
A1: The default configuration is 110kW (150HP). This is for safety redundancy when dealing with materials with a Mohs hardness of 7.5 or higher in Brazil. If your material is softer, such as limestone, you can choose the 90kW version to save energy.
Q2: How does Baichy handle after-sales service and spare parts supply in the Brazilian market?
A2: We have deep partners in Brazil and provide a "spare parts pre-positioning plan". Commonly used jaw plates and toggle plates are readily available in São Paulo and Belo Horizonte, with delivery to core mining areas within 48 hours via SF Express/FedEx.
Q3: Can this machine handle wet, sticky materials?
A3: If the moisture content exceeds 15%, it is recommended to replace the jaw plates with toothed, dedicated anti-stick jaw plates. The deep cavity design of the PE750x1060 inherently provides good discharge flow, but when the clay content is high, it needs to be pre-screened using a bar screen feeder.
Q4: Will the machine's vibration frequency change under a 60Hz power supply?
A4: When designing the flywheel and eccentric shaft dynamic balancing, we have already compensated for the motor speed under a 60Hz environment. Actual testing shows stable operation in a 440V/60Hz environment in Brazil, with noise levels controlled below 95dB.
