Jaw Crusher PE 600x900
I. Equipment Overview
The PE 600x900 Jaw Crusher—a classic model within the jaw crusher series—serves as the core equipment for primary crushing operations in mining, aggregate production, construction, and related fields. Its model designation directly reflects its key technical specifications: featuring a feed opening size of 600mm x 900mm, it is capable of efficiently processing medium-sized raw ores and rocks. Distinguished by its robust frame structure, deep-cavity crushing design, and reliable "toggle plate" overload protection system, this model has earned a reputation within the industry as the "workhorse of primary crushing." With its high output, low failure rate, and broad adaptability to various materials, it stands as the preferred primary crushing equipment for numerous production lines.
PE Jaw Crusher PDF,Download ↓↓↓
II. Core Application Scenarios
Thanks to its powerful crushing force and appropriately sized feed opening, the PE 600x900 Jaw Crusher plays an indispensable role across a wide range of sectors.
1. Metal and Non-metal Mining
In the mining of iron ore, copper ore, gold ore, limestone, granite, and similar deposits, it functions as the primary crusher, reducing large blocks of raw ore—extracted through blasting—to a particle size suitable for subsequent crushing stages.
2. Sand and Aggregate Production Lines
At large-scale commercial concrete mixing plants and aggregate production bases supporting major infrastructure projects, it serves as the primary crushing unit, breaking down mountain rock or river pebbles into raw materials ready for subsequent sand-making processes.
3. Construction Waste Recycling
It is utilized to crush construction waste—such as concrete blocks and masonry rubble—providing the initial crushing stage required for the production of recycled aggregates.
4. Other Industrial Fields
In engineering construction projects across industries such as metallurgy, building materials, highways, railways, and water conservancy, it is employed for the on-site primary processing of stone materials.

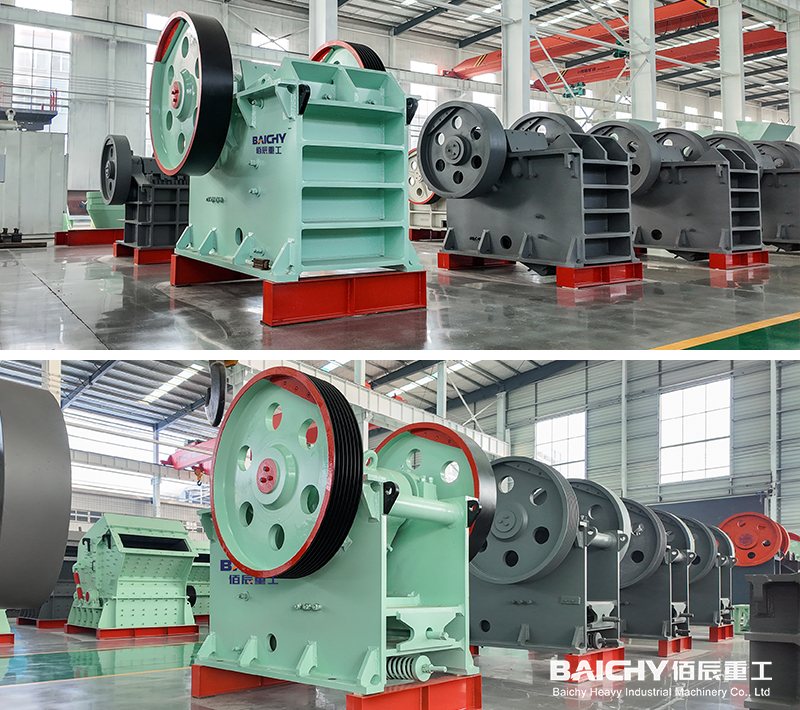

Jaw Crusher PE 600x900
III. Analysis of Core Advantages
Choosing the PE 600x900 means selecting stability and efficiency for your production line.
• Robust Structure, Reliable Operation: Featuring a high-quality cast steel frame and high-manganese steel jaw plates, the unit boasts exceptional structural strength. It is capable of withstanding immense crushing forces and the rigors of continuous, long-term operation, ensuring a long service life for the equipment.
• High Crushing Ratio, Efficient Output: The optimized crushing chamber design delivers a larger crushing ratio and a high one-pass shaping rate. With its robust processing capacity, it effectively meets the feeding requirements of large- and medium-scale production lines.
• Convenient Adjustment, Controllable Discharge: The discharge opening size—and consequently the final product granularity—can be easily adjusted by manipulating the wedges or shims located behind the jaw plate, offering simple and flexible operation.
• Easy Maintenance, Low Operating Costs: The structural design facilitates easy maintenance, and the core bearings utilize a centralized lubrication system for convenient daily upkeep. The wear-resistant components feature extended service life, effectively reducing long-term operating costs.
• Optimized Power Configuration, Energy-Efficient: The motor power is scientifically matched to the unit, ensuring powerful crushing force while prioritizing energy consumption control, thereby delivering excellent economic benefits.
IV. PE 600x900 Key Technical Parameters
The following table presents the key performance parameters for the PE 600x900 Jaw Crusher, provided for your selection reference.
| Parameter | Specification/Data |
| Model | PE-600×900 |
| Feed Opening Size | 600×900 mm |
| Max. Feed Size | ≤ 500 mm |
| Discharge Opening Adjustment Range | 65–160 mm |
| Processing Capacity | 50–180 t/h |
| Main Shaft Speed | 250 r/min |
| Motor Power | 55–75 kW |
| Overall Dimensions (L×W×H) | 2190×2206×2300 mm |
| Equipment Weight | ≈ 15.5 t |
Note: Processing capacity may vary depending on material properties, feed size, and the discharge opening setting.
V. Relevant Success Stories
Our PE 600x900 Jaw Crusher has been successfully deployed in numerous projects worldwide. Below are two typical case studies:
• Case Study 1: Large-scale Granite Aggregate Project in East China
This project produces 5 million tons of high-quality aggregate annually. We supplied a PE 600x900 unit to serve as the primary crusher (head crusher), processing raw granite material delivered directly from the mine. Over three years of operation, the equipment has demonstrated exceptional stability, achieving an average hourly output of 140 tons. The discharge size has remained consistently below 150 mm, creating ideal conditions for subsequent medium-to-fine crushing and sand-making processes. The client has expressed high praise for the equipment's reliability and low maintenance costs.
• Case Study 2: Iron Ore Crushing Production Line in Southeast Asia
During an expansion project at this iron mine, the client needed to process iron ore characterized by high hardness and strong abrasiveness. We recommended the PE 600x900 model, equipped with reinforced jaw plates and a heavy-duty main shaft. Since commissioning, the unit has successfully withstood harsh operating conditions, serving as a robust foundation for the entire beneficiation line and helping the client increase their raw ore processing capacity by over 30%.
VI. Recommended Ancillary Equipment
A complete crushing production line involves far more than just a single jaw crusher. Based on varying process requirements, we recommend the following equipment—designed to integrate seamlessly with the PE 600x900—to create a highly efficient and energy-saving production system:
1. Secondary Crushing Equipment:
◦ HPT/HST Series Hydraulic Cone Crushers: Suitable for crushing medium-to-high hardness ores (e.g., granite, river pebbles, iron ore). These units produce well-shaped aggregates, feature long-lasting wear parts, and offer a high degree of automation.
◦ PF/CI5X Series Impact Crushers: Suitable for crushing medium-to-low hardness materials (e.g., limestone, concrete). These units produce aggregates with excellent shape, making them ideal for applications with strict requirements regarding stone shape.
2. Feeding and Screening Equipment:
◦ GZD/ZSW Series Vibrating Feeders: Provide a uniform and continuous feed to the PE 600x900, preventing blockages and ensuring efficient, full-load operation.
◦ 3YZS/4YKZ Series Circular Vibrating Screens: Classify and screen the crushed materials, ensuring that only qualified products proceed to the next stage, thereby enhancing the overall efficiency of the production line.
3. Fine Crushing and Sand-Making Equipment:
◦ VSI/VU Series Impact Sand Makers: If the production of manufactured sand is required, this equipment serves as the perfect downstream solution, producing high-quality artificial sand characterized by a rounded grain shape and excellent gradation.
VII. Frequently Asked Questions (FAQ)
Q1: What is the maximum feed size that the PE 600x900 jaw crusher can handle?
A1: The maximum designed feed size for this model is approximately 500 mm. To ensure efficient and stable operation of the equipment—and to protect the jaw plates—we recommend keeping the regular feed size at or below 480 mm.
Q2: How often do the jaw plates (liner plates) typically need to be replaced?
A2: The service life of the jaw plates depends on the hardness and abrasiveness of the material being crushed, as well as the equipment's production volume. When crushing medium-hardness limestone, a single set of jaw plates can process between 100,000 and 200,000 tons of material under normal operating conditions. When crushing high-hardness materials, such as granite or iron ore, the service life will be correspondingly shorter. Regularly inspecting the jaw plates for wear—and promptly reversing or replacing them when necessary—is crucial for maintaining consistent production capacity and product particle size.
Q3: Can this unit be used in a mobile crushing station?

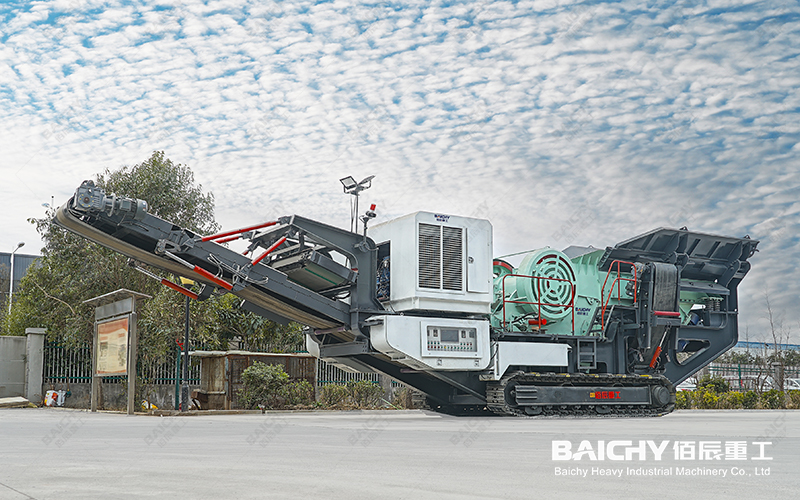

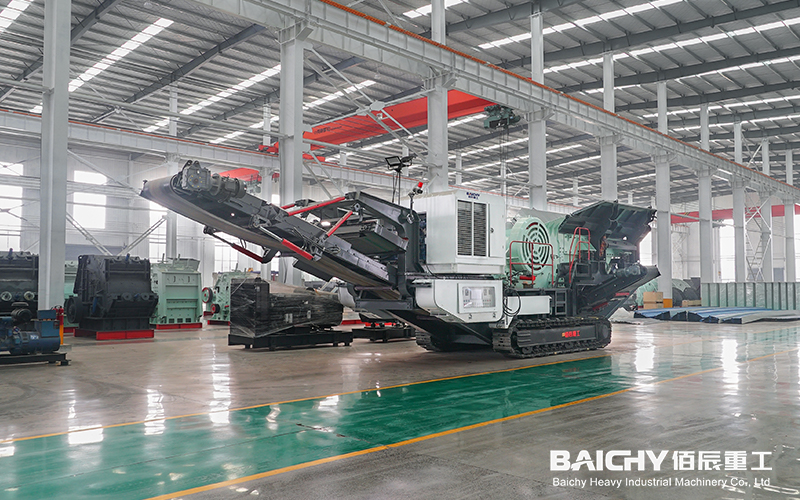

A3: Absolutely. The PE 600x900 serves as an ideal primary unit for constructing medium-sized mobile jaw crushing stations. Its compact structure and moderate weight make it highly suitable for integration onto a mobile chassis, creating a flexible and convenient mobile crushing line. This configuration is widely utilized in engineering demolition projects, construction waste processing, and quarrying operations that require frequent site relocation.
