In industries such as construction, glass manufacturing, foundry operations, and ceramics, the demand for sandstone—an essential industrial raw material—continues to rise. Establishing an efficient, eco-friendly, and profitable sandstone processing plant hinges on selecting the right processing technologies and equipment. As a specialized manufacturer of mining crushing, grinding, and beneficiation equipment, we offer a comprehensive guide to setting up a sandstone plant, covering every stage from core processing techniques to equipment selection.
I. Sandstone Processing Overview: The Journey from Raw Stone to Fine Powder
Sandstone processing is an industrialized workflow that transforms large blocks of raw stone into sand, gravel, or fine powder of various specifications. A standardized production line typically comprises the following key stages:

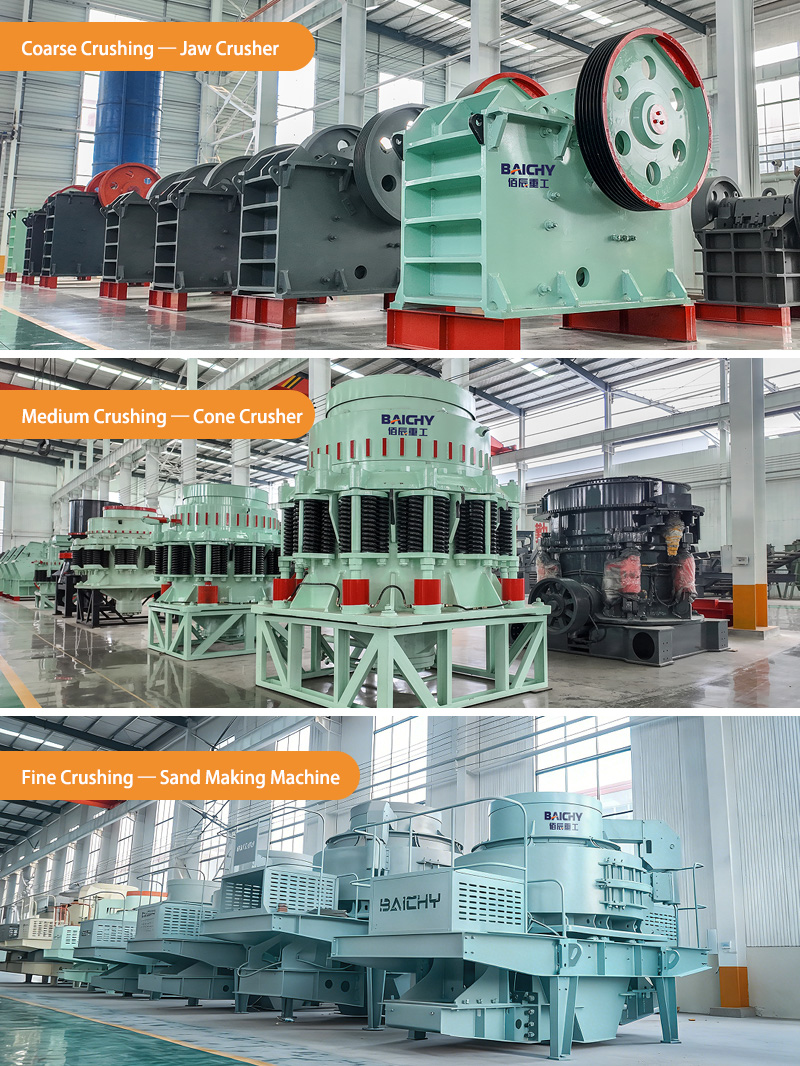

Rock and Sand Crushing Equipment
1. Coarse Crushing Stage: Jaw crushers are utilized to break down the massive, newly mined sandstone ore into medium-sized fragments (typically less than 250 mm).
2. Medium & Fine Crushing Stage: Cone crushers or impact crushers are employed to further reduce the size of the coarsely crushed material, yielding smaller, more uniform stone particles (typically under 40 mm).
3. Sand Making & Shaping Stage: For applications requiring high-quality manufactured sand, a Vertical Shaft Impact (VSI) crusher—commonly known as a sand-making machine—serves as the pivotal device; it crushes and shapes the stone particles into sand grains with superior grain shape and quality.

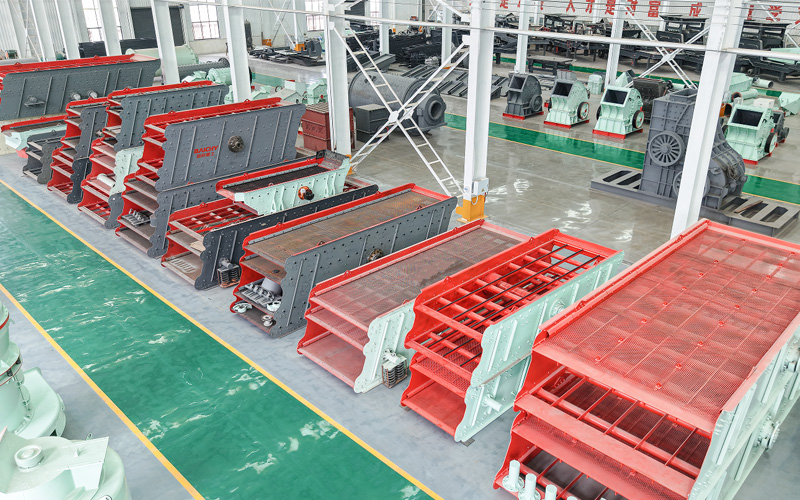

Rock and Sand Screening Equipment
4. Screening & Grading Stage: Multi-deck vibrating screens precisely sort the crushed material according to different particle size specifications; compliant materials are directed to the finished product stockpile, while oversized or non-compliant materials are returned to the preceding equipment for further processing.
5. Grinding & Beneficiation Stage: For applications requiring ultra-fine powders (such as glass sand or ceramic raw materials), grinding mills (e.g., Raymond mills or vertical roller mills) are used for pulverization, followed by beneficiation equipment to purify and upgrade the material.

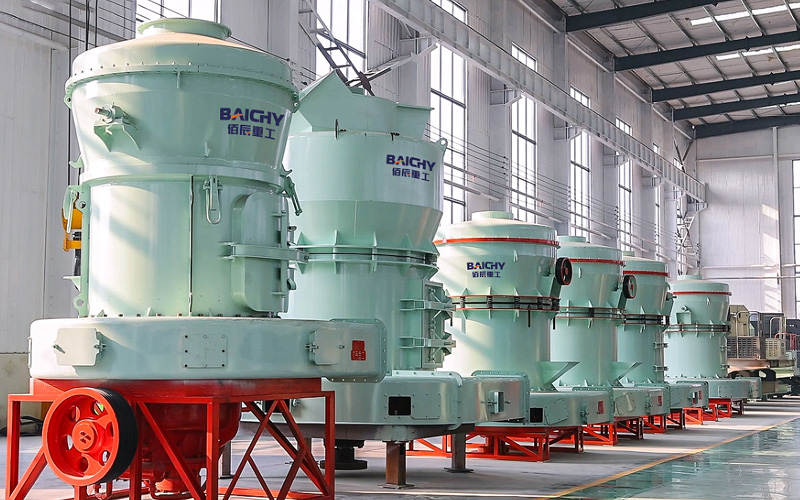

Grinding Equipment
II. Core Application Scenarios and Product Specifications for Sandstone Plants
A well-designed sandstone processing plant can flexibly meet Perse market demands, producing finished products that are widely utilized in the following areas:
• Construction Aggregates & Manufactured Sand: Used for road base layers, concrete mixing plants, dry-mix mortars, and similar applications, serving as a vital raw material for infrastructure development.
• Glass Manufacturing: High-purity quartz sandstone is a core raw material for producing flat glass and glass vessels, subject to strict requirements regarding SiO₂ content and limits on iron impurities. • Foundry Industry: Used as foundry sand (molding sand, core sand), requiring uniform grain size and high refractoriness.
• Ceramics and Refractory Materials: Provides essential siliceous raw materials for the production of ceramic tile bodies, glazes, and refractory bricks.
The following table illustrates a typical correspondence between product specifications and applications at a sandstone processing plant:
| Product Specifications (mm) | Primary Application Scenarios | Corresponding Processing Equipment |
| 0–5 mm | High-quality manufactured sand, foundry sand, glass raw materials | Sand making machines, sand washing machines |
| 5–10 mm, 10–20 mm | Concrete aggregates, asphalt aggregates, construction gravel | Cone crushers, vibrating screens |
| 20–40 mm | Road base layers, railway ballast | Jaw crushers, impact crushers |
| 200–325 Mesh (0.074–0.044 mm) | Ceramic body materials, fillers | Raymond mills, air classifiers |
| > 325 Mesh (< 0.044 mm) | High-end glass sand, fine ceramic glazes, fillers | Vertical mills, jet mills, flotation machines |
III. Key Advantages of Our Sandstone Processing Equipment
By choosing our equipment to establish your sandstone processing plant, you will gain the following core benefits:
• High Efficiency and Energy Savings; Controllable Costs: Our crushers utilize the principle of laminated crushing, while our grinding mills are equipped with high-efficiency turbine classification systems. Compared to standard equipment, energy consumption is reduced by 15–20% for the same output volume, directly lowering your production cost per ton.
• Superior Product Shape for Higher Value: In particular, our Vertical Shaft Impact (VSI) crushers (sand making machines) and high-efficiency cone crushers produce aggregates with an excellent cubical shape and optimized gradation. This significantly enhances concrete strength and boosts the market competitiveness of your manufactured sand.
• Intelligence and Stability: Our equipment is outfitted with an intelligent PLC control system that enables remote monitoring, fault pre-warning, and automatic adjustment. This ensures the continuous and stable operation of your sandstone plant, thereby minimizing downtime losses.
• Eco-friendly Design for Green Production: Our entire equipment line features multi-layer sealing and high-efficiency pulse dust removal systems, combined with advanced noise control technologies. This ensures that your plant meets strict environmental protection standards and achieves green, sustainable development.
IV. Success Story: A Large-Scale Integrated Sandstone Processing Project in Southeast Asia
We designed and constructed a sandstone processing plant with an annual output of 3 million tons for a client in Southeast Asia. The client's objective was to simultaneously supply both construction aggregates and raw sand for glass manufacturing.
• Challenges: The raw materials had a complex composition, requiring the simultaneous production of products with various specifications, while the purity requirements for the glass sand were extremely stringent.
• Solution: We designed two parallel production lines. One was an "aggregate line" featuring jaw crushing, cone crushing, sand making, and screening stages; the other was a "premium glass sand line" involving fine crushing, vertical milling, flotation, and dewatering processes. Notably, the flotation process effectively removed iron and feldspar impurities.
• Results: The plant operates stably; the aggregate products fully meet local high-standard construction requirements; and the premium glass sand achieves an SiO₂ content exceeding 99.5%, having been successfully exported to high-end glass manufacturers. Consequently, the client's return on investment period was shortened by 18% compared to initial projections.
V. Recommended Equipment List for Establishing a Sandstone Processing Plant
Based on varying production scales and product positioning, we recommend the following core equipment combinations:
1. Medium-Scale Sandstone Aggregate Plant (100–200 tons/hour):
◦ Coarse Crushing: PE Series Deep-Cavity Jaw Crusher
◦ Medium & Fine Crushing: HPT Series Multi-Cylinder Hydraulic Cone Crusher
◦ Sand Making: VSI6X Series Vertical Shaft Impact Crusher
◦ Screening: 3YKH Series Heavy-Duty Circular Vibrating Screen
2. Premium Glass Sand / Ceramic Powder Deep Processing Plant (50 tons/hour):
◦ Fine Crushing: HST Series Single-Cylinder Hydraulic Cone Crusher
◦ Grinding: LM Series Vertical Roller Mill
◦ Mineral Processing: XCF/KYF Series Flotation Machine
◦ Dewatering: High-Efficiency Deep-Cone Thickener + Plate and Frame Filter Press
VI. Frequently Asked Questions (FAQ)
Q1: How much investment is required to establish a small to medium-sized sandstone processing plant?
A1: The investment amount varies significantly depending on the scale, degree of automation, and environmental protection requirements. For a standardized aggregate production line with an output of approximately 100 tons per hour, the equipment investment typically falls within the range of several million RMB. We recommend that you provide specific details regarding your raw material characteristics and product specifications; this will enable our engineers to provide you with a more precise budget estimate.
Q2: In a sandstone grinding production line, how does one choose between a Raymond mill and a vertical mill?
A2: The choice primarily depends on the required fineness of the finished product and the desired production capacity. Raymond mills are suitable for processing powders within the 80–325 mesh range and involve lower initial investment costs. Vertical mills, conversely, are ideal for large-scale projects (with hourly outputs exceeding several tens of tons) requiring product fineness between 200 and 1000 mesh; they offer lower energy consumption and superior drying capabilities, making them the preferred choice for the grinding section of large-scale, modern sandstone processing plants.
Q3: How does the facility ensure compliance with environmental standards? How are dust and noise controlled?
A3: Our comprehensive system solutions incorporate a complete environmental protection design. Dust collection hoods are strategically installed at key dust-generating points—such as the crusher feed inlet and conveyor transfer points—and are connected to pulse-jet bag filters, achieving a dust removal efficiency of over 99.8%. Furthermore, we utilize soundproof enclosures and vibration-damping foundations for the equipment, and incorporate green belts within the plant grounds to ensure that noise levels at the facility boundary remain in full compliance with national standards.
