Model 1200 Wet Pan Mill
In the field of ore processing, the fine grinding stage is a critical process that determines the final product grade and recovery rate. As a professional manufacturer of mining crushing and grinding equipment, we deeply understand the importance of efficient and stable fine grinding machinery in enhancing the overall efficiency of an entire production line. This article will provide an in-depth analysis of one of our core products—the Model 1200 Wet Pan Mill—offering you a comprehensive overview of its technical characteristics, application advantages, and the reliable value it delivers to our global mining clients as we celebrate the New Year of the Wood Horse.
What is a Wet Pan Mill?
A wet Pan mill is a highly efficient fine grinding device that employs a wet grinding process. It utilizes two counter-rotating grinding Pans to subject mineral particles—suspended in a slurry—to compressive, shearing, and grinding forces, thereby reducing them to the desired fineness. Compared to dry grinding, wet grinding effectively prevents dust dispersion, reduces energy consumption, and is ideally suited for subsequent wet beneficiation processes; it represents an optimal choice for the fine grinding operations of both metallic and non-metallic ores.
Design Analysis of the Model 1200
The designation "Model 1200" typically refers to the effective working diameter of the grinding Pans, making it a flagship model within our equipment series. Its design strikes a perfect balance between processing capacity, energy consumption, and footprint requirements, rendering it suitable for medium-to-large-scale beneficiation plants. This model incorporates a modular design philosophy to facilitate ease of transport, installation, and maintenance—a testament to our deep understanding, as a manufacturer, of the practical operational needs at our clients' sites.

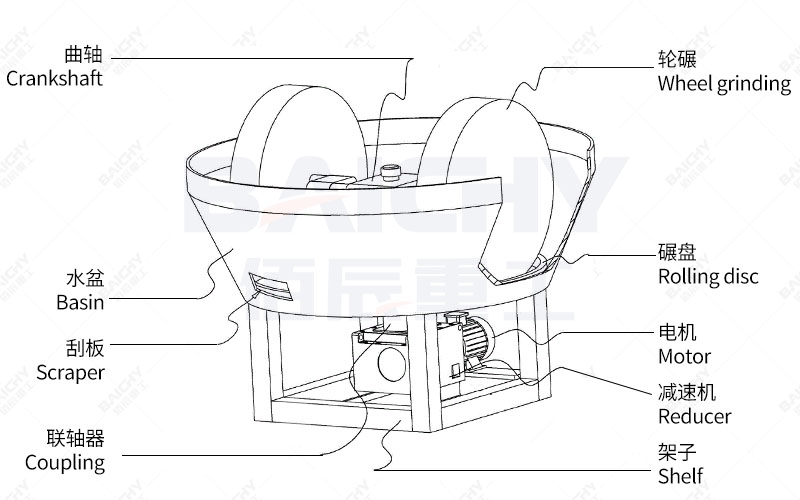

Wet Pan Mill Machine Structural Diagram
Core Advantages of the Model 1200 Wet Pan Mill
1. High Efficiency and Energy Savings: Reducing Operational Costs
This machine features an optimized linear speed for the grinding Pans and a refined grinding chamber structure, ensuring that energy is concentrated more effectively on material comminution. Consequently, its specific energy consumption (energy consumed per unit of product) is significantly lower than that of traditional ball mills. Furthermore, when paired with a high-efficiency hydraulic system, the unit enables precise gap adjustment and tramp iron protection, thereby enhancing operational efficiency while simultaneously safeguarding equipment integrity.
2. Uniform Product Fineness: Minimizing Over-Grinding
The unique principle of inter-particle comminution—combined with controllable grinding pressure—results in a narrow particle size distribution range for the Panharge product, significantly reducing the phenomenon of "over-grinding." This not only boosts the recovery rate of target minerals but also creates favorable conditions for subsequent mineral separation processes.
3. Stable Operation, Easy Maintenance
The main structure of the equipment is robust, and critical components—such as the grinding Pans—are manufactured from highly wear-resistant alloy materials, ensuring a long service life. A centralized lubrication system and an easy-to-disassemble design make daily inspections and routine maintenance tasks simple and rapid, thereby effectively guaranteeing high equipment uptime.
Typical Application Cases
Our Model 1200 Wet Pan Mill has been successfully deployed in numerous projects worldwide. Below is a brief overview of two typical case studies:
| Case Location | Processed Mineral | Feed Size | Product Fineness (P80) | Summary of Client Feedback |
| Iron Ore Beneficiation Plant (East China) | Magnetite | < 1 mm | 45 μm | The equipment operates smoothly with stable and controllable product fineness; the grade of the iron concentrate increased by approximately 1.5%. |
| Tin Mining Project (Southeast Asia) | Cassiterite | < 2 mm | 75 μm | The wet operation environment is eco-friendly; tin recovery rates have improved, and the replacement cycle for wear-resistant components is extended. |
Recommended Related Equipment
A complete crushing and grinding production line requires the efficient coordination of equipment at every stage. In addition to the Model 1200 Wet Pan Mill, we recommend that you consider the following complementary equipment:
• Jaw Crusher (Coarse Crushing): Serving as the primary crusher, it prepares raw materials of the appropriate particle size for the subsequent grinding stage.
• Cone Crusher (Medium & Fine Crushing): Enables highly efficient medium and fine crushing operations, reducing the feed size entering the mill to save energy and boost production output.
• Hydrocyclone Cluster: Forms a closed-circuit grinding system in conjunction with the Pan mill, facilitating classification and circulation to optimize grinding efficiency.
Frequently Asked Questions (FAQ)
Q1: What are the main advantages of the Model 1200 Wet Pan Mill compared to a ball mill of equivalent specifications?
A1: The primary advantages include higher grinding efficiency (reducing energy consumption by approximately 20–30%), a narrower product particle size distribution, lower noise levels, and a smaller footprint. It is particularly well-suited for processes that require precise control over product fineness and the avoidance of over-grinding.
Q2: Does the equipment have any specific requirements regarding the hardness or moisture content of the ore?
A2: This machine is suitable for processing various types of ores with medium hardness or lower. Wet grinding operations inherently require the addition of water to form a slurry; therefore, there are no specific requirements regarding the moisture content of the raw feed itself. However, the feed particle size must be controlled to remain within the equipment's design specifications (typically less than 3 mm).
Q3: What is the service life of the grinding Pan's wear parts? Is their replacement a complicated process?
A3: The grinding Pan liners are manufactured using a specialized high-chromium alloy, ensuring a long service life—though the exact duration depends on the abrasiveness of the ore being processed. We have adopted a quick-installation design that allows for liner replacement without the need to dismantle core components, such as the main shaft, thereby significantly reducing downtime for maintenance.
Conclusion
In today's environment—where the pursuit of efficient mineral utilization and eco-friendly processing is paramount—selecting a reliable piece of fine grinding equipment is of critical importance. Our Model 1200 Wet Pan Mill combines the advantages of high efficiency, operational stability, and ease of maintenance, serving as a steadfast partner to help you achieve your goals of cost reduction and efficiency enhancement. We warmly invite inquiries from interested parties across all sectors; let us Panuss your specific project requirements and work together to achieve outstanding results in this Year of the Horse.
