T900 Powder Classifier
The Demand for High-Quality Aggregates in Iraq's Infrastructure Development
In recent years, as Iraq's post-war reconstruction efforts have deepened and infrastructure projects have steadily advanced, the country's demand for construction aggregates, cement, and various mineral products has continued to rise. As a sector supplying fundamental raw materials, the mining industry—specifically its production efficiency and the quality of its finished products—bears a direct relationship to the pace of reconstruction and the structural safety of buildings. Consequently, efficient and reliable mining crushing and grinding equipment has become an urgent necessity within the local market. The export of the T900 classifier represents a pivotal step aimed precisely at meeting the Iraqi market's critical need for precise powder classification and for enhancing the added value of mineral products.
Market Positioning of the T900 Classifier
The T900 classifier is a high-efficiency dynamic classifier designed specifically for the fine classification of materials such as mineral ores, cement raw meal and clinker, and pulverized coal. Its technical specifications align perfectly with the core demands of Iraq's mining sector at its current stage of development—namely, "improving efficiency, ensuring quality stability, and reducing energy consumption." By enabling local enterprises to optimize their processes in areas such as limestone pulverizing, cement production, and slag micro-powder processing, the T900 helps them produce high-quality products that meet international standards.
Equipment Overview: Key Features of the T900 Classifier
The T900 classifier employs an advanced planar vortex classification principle. Utilizing a variable-speed cage rotor and a unique fan blade design, it generates a stable and uniform forced vortex field within the classification chamber. Within this airflow, materials undergo highly efficient separation based on differences in particle size and density; fine particles are entrained by the airflow and collected, while coarse particles—driven by centrifugal force—are returned to the grinding mill for further pulverization.
Overview of Key Technical Parameters:
| Parameter | Technical Specifications / Description |
| Model | T900 |
| Processing Air Volume (m³/h) |
50 - 280 (Variable Frequency Adjustable) |
| Main Shaft Speed (rpm) | |
| Classification Particle Size Range (μm) | 30 - 150 |
| Max. Feeding Capacity (t/h) | 65 - 85 (Depending on material characteristics) |
| Main Motor Power (kW) | 55 - 75 |
| Total Equipment Weight (Approx., kg) | 8,500 |
| Core Advantages | High classification efficiency, convenient fineness adjustment, stable operation, wear-resistant design |
Key Advantages: Why Choose the T900 Air Classifier?
1. Exceptional Classification Efficiency and Precision
The equipment features a superior internal flow field design and excellent dispersion capabilities. This effectively minimizes the "short-circuiting" phenomenon of coarse particles, significantly boosting classification efficiency. Consequently, it increases the overall output of the entire grinding system while ensuring consistent product fineness and an optimal particle size distribution.
2. High Operational Flexibility
By utilizing a variable frequency drive to achieve stepless adjustment of the cage rotor speed, operators can easily and precisely control product fineness during operation. This allows for "one-touch" adjustment to meet the production requirements of various product specifications, offering the flexibility needed to cater to the perse range of orders prevalent in the Iraqi market.
3. Outstanding Reliability and Adaptability
Key components—such as the dispersion plate, guide vanes, and rotor blades—are manufactured using highly wear-resistant materials. This makes the unit particularly well-suited for processing the highly abrasive mineral raw materials often encountered in the Iraqi region. With its robust structure and user-friendly maintenance design, the equipment is capable of withstanding the high-temperature and dusty operating environments typical of the Middle East, thereby guaranteeing long-term, continuous, and stable operation.
4. Significant Energy Savings
The unit's highly efficient classification capability directly reduces the phenomenon of "over-grinding" within the mill, thereby increasing the system's hourly output. This results in a significant reduction in electricity consumption per unit of product, effectively lowering production costs for our clients in Iraq.

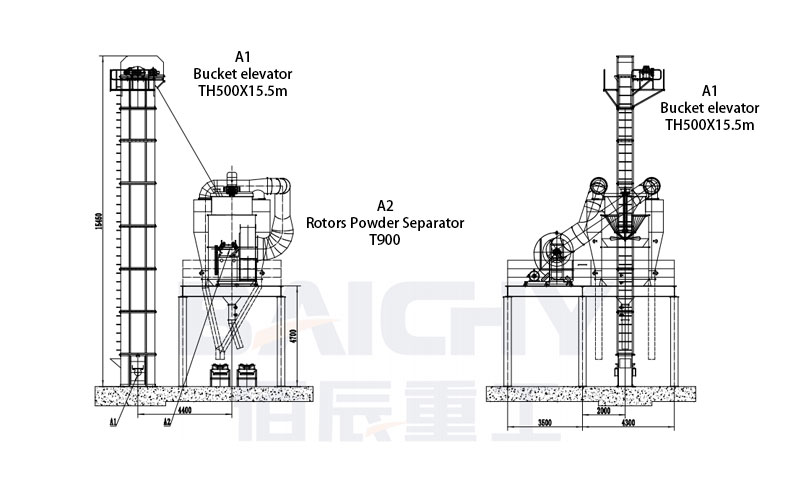

Schematic Diagram of the Air Classifier Process
Application Case Study: The T900 in an Iraqi Limestone Grinding Project
We recently supplied a T900 air classifier to a major building materials company in Northern Iraq. This unit has now been successfully integrated into their newly constructed limestone grinding production line. • Client Requirement: To produce limestone powder for use in asphalt concrete and construction mortars (with a passing rate of ≥90% through a 200-mesh sieve), requiring stable output and controllable fineness.
• Solution: Implementation of a closed-circuit grinding system utilizing a "Vertical Mill + T900 Air Classifier" configuration.
• Operational Results: Since commissioning, the system's output has exceeded the designed capacity by 15%. The product fineness adjustment is responsive and stable, fully meeting the requirements for high-end construction materials. The equipment operates smoothly, and the service life of wear-resistant components has exceeded the client's expectations, earning us high commendation from the client and laying a solid foundation for future cooperation.
Recommended Related Equipment
For our mining and construction materials clients in Iraq, we provide comprehensive grinding system solutions. Key equipment designed to integrate with the T900 Air Classifier includes:

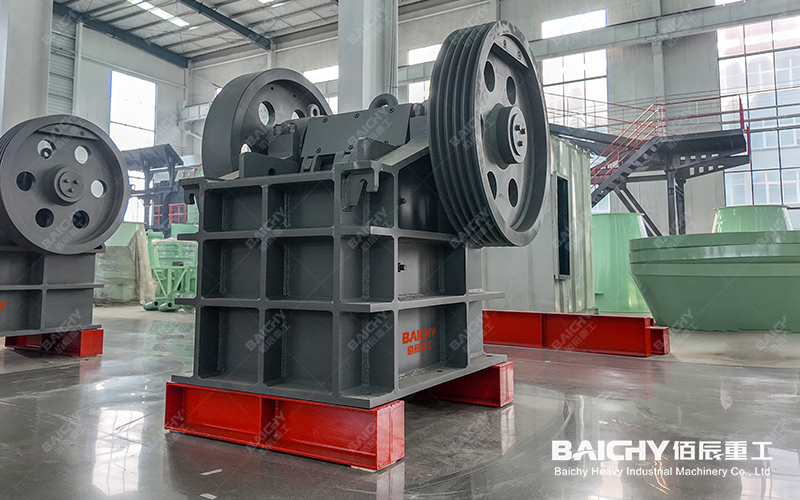

• Jaw Crusher: Used for the primary crushing of ore, preparing suitable feed material for the grinding process.
• Vertical Mill / Ball Mill: The core grinding machinery, forming a highly efficient closed-circuit loop in conjunction with the air classifier.
• Pulse Bag Dust Collector: Ensures the entire production process is environmentally friendly and complies with dust emission standards.
• Quantitative Feeding System: Guarantees the continuous and uniform feeding of materials into the mill—a critical factor for stable operation.
Frequently Asked Questions (FAQ)
Q1: How well does the T900 Air Classifier adapt to the local power supply fluctuations in Iraq?
A1: The T900 Air Classifier's main drive motor can be configured with a variable frequency drive (VFD) capable of handling a wide voltage range, allowing it to withstand grid voltage fluctuations within certain limits. We recommend that clients equip critical production lines with voltage stabilizers or backup power sources to ensure optimal operational reliability; we can provide specific recommendations regarding the appropriate electrical configurations.
Q2: What are the key maintenance priorities for the equipment given Iraq's dry and dusty environment?
A2: The primary focus is ensuring the effectiveness of the lubrication and sealing systems. We employ a multi-layer sealing design and an optional centralized automatic lubrication system to effectively prevent dust intrusion into critical components, such as bearings. Regular inspections, along with the timely replacement of lubricants and seals, are essential for maintaining the equipment's long-term reliability. We provide detailed maintenance manuals and on-site training support.
Q3: Can your company provide installation guidance and after-sales technical support?
A3: Certainly. For every set of equipment exported to Iraq, we provide comprehensive technical documentation, including detailed installation drawings, foundation plans, electrical wiring diagrams, and more. We can dispatch experienced engineers to provide on-site or remote guidance for installation and commissioning, as well as offer comprehensive training on operation and maintenance. We have established a 24/7 remote technical support channel and are committed to promptly supplying spare parts and technical services whenever necessary.
About of Baichy Heavy Industry
Baichy Heavy Industry is a high-tech mining equipment company integrating R&D, manufacturing, sales, and after-sales service. Focusing on crushing, grinding, and mineral processing equipment, we provide professional solutions to our customers. We are ISO9001:2015 、certified, and our products include mobile crushing palnts, crawler crushing plant, construction waste crushing plants, jaw crushers, sand making machines, cone crushers, fine crushers, grinding mills, ball mills, etc., all with reliable performance to meet diverse project needs.
Our advantages:
• Professional pre-sales support: Free project design and comprehensive solutions to help you accurately select the right equipment;
• Comprehensive on-site service: Providing installation guidance and worker training to ensure smooth equipment commissioning;
• Reliable after-sales guarantee: A complete after-sales system, timely response to technical inquiries and equipment maintenance, ensuring long-term stable operation.
