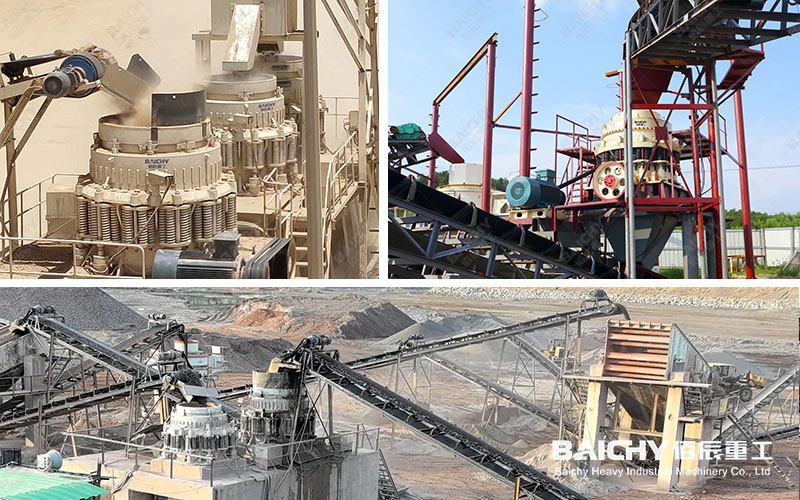

Symons 4ft Standard Cone Crusher (CS110) is a secondary crushing equipment designed for medium and high hardness stones (such as granite, basalt, diabase, etc.), and is widely used in quarries, mines, aggregate production lines, etc. This model is based on the classic Symons cone crusher technology, combined with modern optimized design, providing advantages such as high crushing ratio, low energy consumption, stable operation, etc., and is an ideal choice for granite crushing.
Core advantages
✔ Efficient crushing: Optimized cavity design, improved crushing efficiency of hard rocks such as granite, and stable output.
✔ Wear-resistant and durable: High manganese steel liner + hydraulic adjustment device, reduce wear and extend service life.
✔ Intelligent control: Optional automation system, real-time monitoring of operating status, reducing manual intervention.
✔ Easy maintenance: Modular design, key components are easy to replace, reducing downtime.
Design and structure:
• This crusher is designed and developed based on the principle of laminated crushing and the concept of more crushing and less grinding on the basis of introducing and absorbing foreign technology.
• It integrates high swing frequency, optimized cavity type, and reasonable stroke, and has the characteristics of reliable structure and high production efficiency.
Applicable materials:
• It is mainly suitable for the crushing of various rocks such as river pebbles, granite, basalt, iron ore, shale, limestone, coal gangue, quartz stone, diabase, marble, etc.
Technical specifications:
• Model: CS110
• Feed size: The maximum feed size can reach 130mm
• Production capacity: According to different application scenarios and material characteristics, the production capacity ranges from 63-308t/h.
• Discharge size: It can be adjusted according to demand, and the discharge size range is usually between 13-51mm.
• Power: 110kw
• Weight: 20000kg
• Dimensions: 2821×1974×2651mm
Performance characteristics:
• The spring insurance system is an overload protection device that allows metal foreign bodies to pass through the crushing chamber without harming the machine.
• Dry oil sealing is adopted to isolate the stone powder from the lubricating oil to ensure reliable operation.
• The combination between the crushing cone and the fixed cone is tight, which is ensured by pouring zinc alloy.
• The adjustment device of the cone crusher makes the discharge port easy to adjust and convenient to operate.
Application areas:
This crusher is widely used in metal and non-metallic minerals, cement, construction, sand and stone metallurgy, and other industries.
Symons 4-foot standard cone crusher CS110 is an efficient and reliable granite crushing equipment that can meet the needs of rock crushing in quarries and other places.
