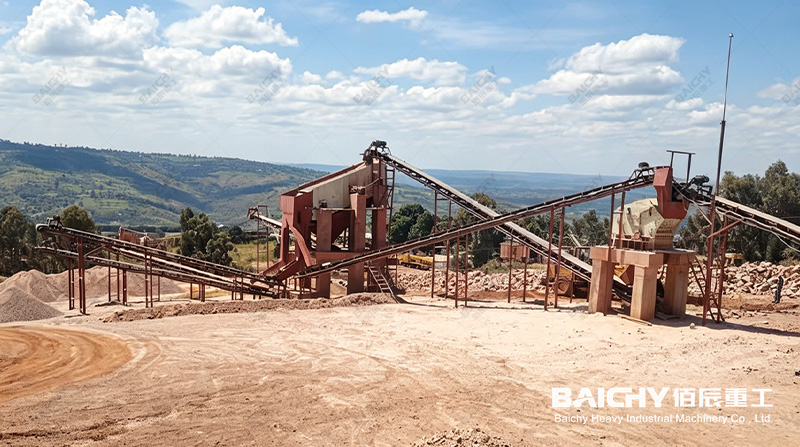

100-150TPH Crushing Plant in Rwanda
For Rwanda’s rapidly expanding road construction and urbanization projects, a 100–150 t/h crushing production line represents the optimal choice for balancing Return on Investment (ROI) with output quality. By utilizing a PE600×900 jaw crusher for primary crushing—followed by a PF1214 impact crusher for secondary and tertiary crushing—this configuration produces high-specification construction aggregates with exceptionally low wear costs.
1. Why the "69 Jaw Crusher" paired with the "1214 Impact Crusher"?
In typical crushing operations involving Rwanda’s prevalent basalt, granite, or limestone, this specific configuration demonstrates exceptional stability:

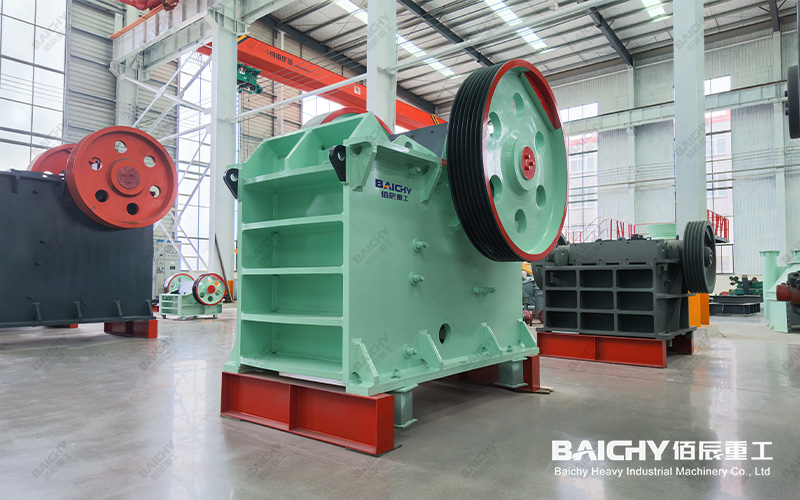

PE600x900 Jaw Crusher
Primary Crushing: PE600×900 Jaw Crusher
• Feed Size: Capable of accepting feed sizes up to 500 mm, directly processing the majority of raw blasted material from quarries.
• Robust Performance: Features a deep crushing chamber with no dead zones; high-manganese steel liners ensure an extended service life, even when crushing hard rock.

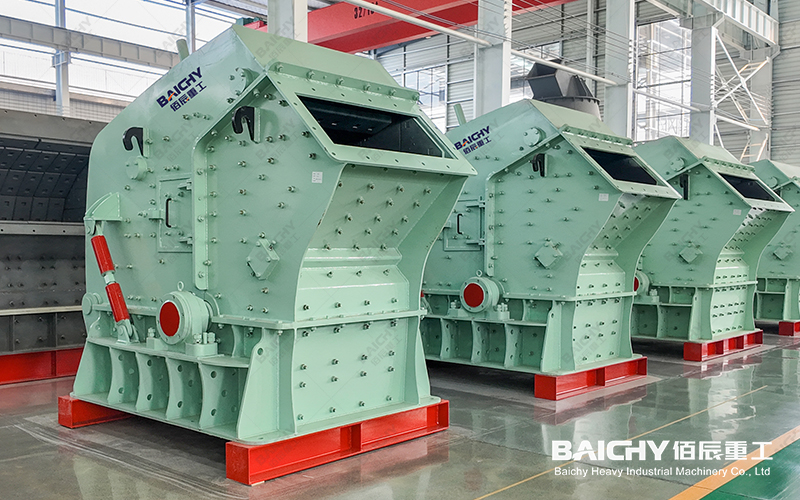

PF1214 Impact Crusher
Secondary Crushing: PF1214 Impact Crusher
• Product Shape: This constitutes the core competitive advantage of this combination. The stone produced by the impact crusher is predominantly cubical in shape, with extremely low levels of needle-like or flaky particles—fully meeting the strict gradation requirements for high-standard roadways in Rwanda (such as the Kigali urban road expansion projects).
• Capacity Matching: The processing capacity of the PF1214 integrates seamlessly with that of the 600×900 jaw crusher, ensuring the entire production line operates at a steady pace within the 100–150 t/h range, thereby eliminating the risk of material accumulation.
2. Directly Addressing Key Market Challenges in Rwanda

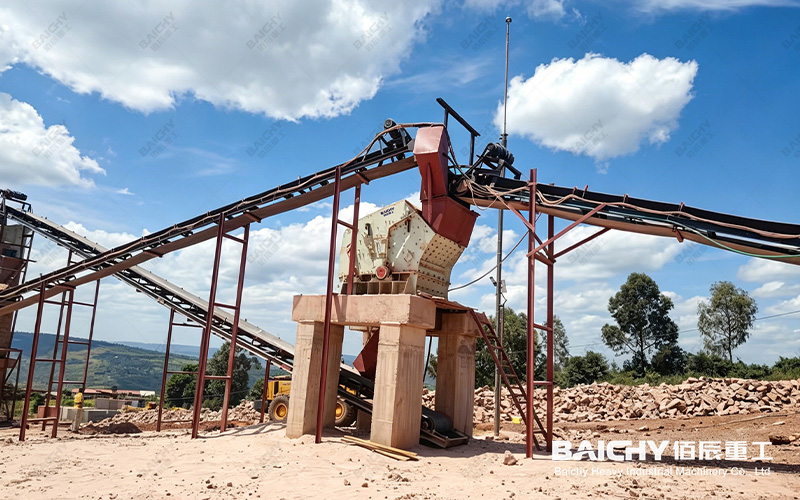

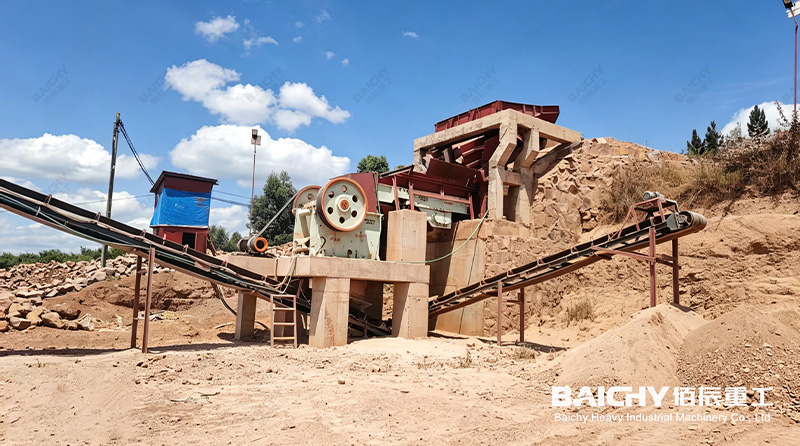

Rwanda 100–150 t/h Crushing Line: On-site View
• High Altitude and Terrain Adaptability: Known as the "Land of a Thousand Hills," Rwanda presents unique topographical challenges. The modular design of the equipment facilitates easy installation in mountainous environments, significantly reducing the scope of civil engineering works required.
• Resilience to Power Fluctuations: The complete production line system from Baichy can be configured with heavy-duty electric motor drives or optionally equipped with diesel generator sets, effectively resolving issues related to unstable power supplies often encountered in remote mining areas.
• Low Operating Costs: Tailored to the specific characteristics of stone materials found in Rwanda, we have optimized the materials used for the blow bars and liner plates; consequently, the cost of wear parts per ton of processed material is reduced by approximately 15% compared to traditional configurations.
3. Technical Specifications at a Glance (100-150 TPH Line)
| Key Parameters | Parameter Details |
| Capacity | 100 - 150 Tons per Hour (TPH) |
| Max. Feed Size | 500 mm |
| Finished Product Sizes | 0-5mm, 5-10mm, 10-20mm, 20-40mm (Adjustable) |
| Main Equipment Power | PE600×900 (75kW) + PF1214 (132kW) |
| Application Scenarios | Quarries, Road Construction, Building Construction, Hydropower Projects |
4. Frequently Asked Questions (FAQ)
Q: How long does it take to recoup the investment for a 100-150 TPH crushing line in Rwanda?
A: Based on estimates of local aggregate market prices and operating costs, and assuming full-load production, the capital payback period for this specific production line model is typically between 8 and 12 months. Its high output-to-energy consumption ratio is the key to achieving rapid profitability.
Q: Why do road construction projects in Rwanda tend to prefer stone aggregates produced by Impact Crushers?
A: This is because Impact Crushers utilize impact energy to break down materials, causing the stone to fracture along its natural cleavage planes. The resulting aggregates possess higher compressive strength and a more cubical, rounded shape, which enhances the bonding strength between the aggregate and the concrete or asphalt mixture.
5. About Baichy Heavy Industry
As specialists deeply rooted in the East African industrial equipment market, Baichy Heavy Industry offers not only robust, high-performance machinery but also on-site technical guidance and a readily available inventory of spare parts for rapid response. We possess an intimate understanding of every inch of Rwanda's mining landscape, and we aim to leverage our most reliable machinery to help forge connections across the "Land of a Thousand Hills."
