10 TPH Gypsum Mill for 35-Micron Powder in Egypt
Egyptian gypsum processors need a grinding system that can deliver stable production, consistent fineness, and effective dust control. For a project targeting approximately 10 tons per hour of raw gypsum powder at 35 microns, the main grinding mill is the core of the plant. It must work with the feeder, classifier, fan, dust collector, conveying system, and finished-product storage equipment.
A mill with a built-in classifier can provide a practical solution. The mill reduces the size of raw gypsum, while the classifier separates fine powder from oversized particles. Qualified powder moves to the collection system, and coarse material returns to the grinding zone for further treatment.
Final selection should be based on the actual gypsum properties. Moisture, feed size, hardness, grindability, and the exact meaning of “35 microns” can all affect capacity and performance.
Understanding the Project Requirement
The initial requirement is to process natural or raw gypsum at about 10 tons per hour and produce a powder with a target size of 35 microns. However, 35 microns may mean a sieve-passing percentage, average particle size, D90, D95, or D97. These standards describe different particle-size distributions and may require different operating settings.
| Project item | Requirement or point to confirm |
|---|---|
| Material | Natural gypsum or raw gypsum |
| Target capacity | Approximately 10 t/h |
| Target fineness | 35 microns; confirm the test standard |
| Main equipment | Mill with built-in dynamic classifier |
| Feed size | Confirm maximum lump size |
| Feed moisture | Provide a representative laboratory value |
| Product moisture | Confirm the allowable final moisture |
| Operation | Continuous production with stable feeding |
| Site | Egypt; confirm power and plant conditions |
| Dust control | Enclosed circuit with pulse-jet filtration |
Why Use a Built-In Classifier?
Raw gypsum enters the grinding chamber through a controlled feeder. Grinding components reduce the material, and airflow carries the particles toward the classifier. Fine particles that meet the selected setting pass into the collection system. Larger particles are rejected and returned for additional grinding.
This integrated arrangement can provide:
• Better fineness control: Classifier speed and airflow influence particle-size distribution.
• More stable quality: Continuous separation limits oversized material in the finished powder.
• A compact layout: Grinding and classification are coordinated in one principal system.
• Simplified operation: Feeding, grinding, airflow, classification, and dust collection can be linked through one control system.
• Fewer transfer points: A shorter material path can help reduce leakage and unnecessary conveying.
The classifier does not remove the need for engineering. Its performance still depends on gypsum properties, feed rate, airflow, system pressure, and the customer's fineness standard.
Recommended Process Flow

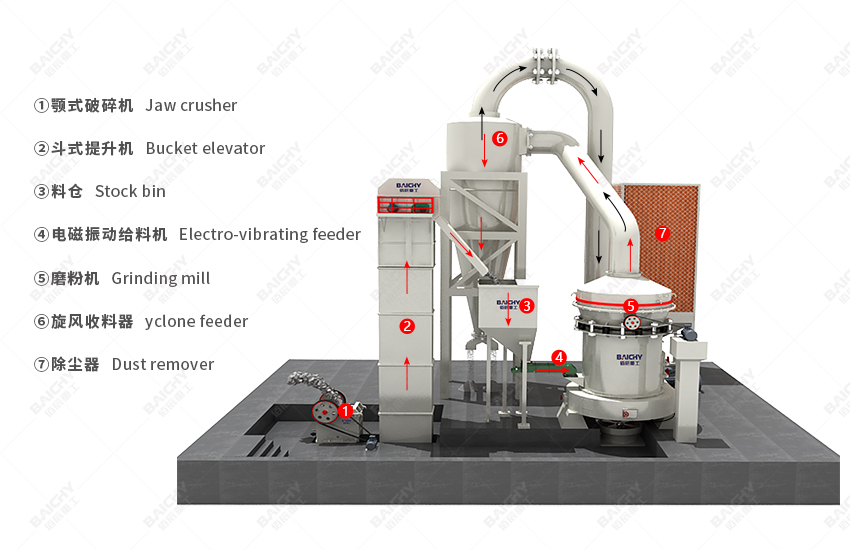

Process Flowchart of a Raymond Mill
Raw gypsum bin → controlled feeder → main grinding mill → built-in classifier → dust collector → finished-product silo → packing or bulk loading
Feeding and Pre-Treatment
A storage bin provides a buffer between quarry delivery and the mill. A vibrating, belt, or screw feeder delivers gypsum at a controlled rate. Stable feeding is essential because overfeeding can reduce capacity, while irregular feeding can cause fluctuations in output and fineness.
If the feed contains large lumps, a crusher or pre-screening stage may be installed. A magnetic separator can be considered where metal contamination is possible. The correct upstream equipment depends on the customer's raw material report.
Grinding and Classification
The main mill performs the principal size reduction. Its selection should consider feed size, gypsum hardness, moisture, required capacity, and target particle-size distribution. The mill should be evaluated at the actual 35-micron condition, not at a coarser reference fineness.
Classifier speed affects how much material is accepted as finished powder and how much returns for further grinding. Airflow and fan performance also influence separation efficiency. During commissioning, feed rate, classifier setting, and airflow may need adjustment to balance capacity, energy use, and product quality.
Dust Collection and Product Handling
Fine gypsum powder should be processed in an enclosed circuit. A pulse-jet bag filter, induced-draft fan, sealed transfer points, and a finished-product silo can help control airborne dust and improve housekeeping. The final powder may be sent to valve-bag packing, jumbo-bag filling, or bulk loading equipment.
The filter and fan should be sized as part of the complete process. Conveying equipment should reduce leakage and protect the product from moisture.

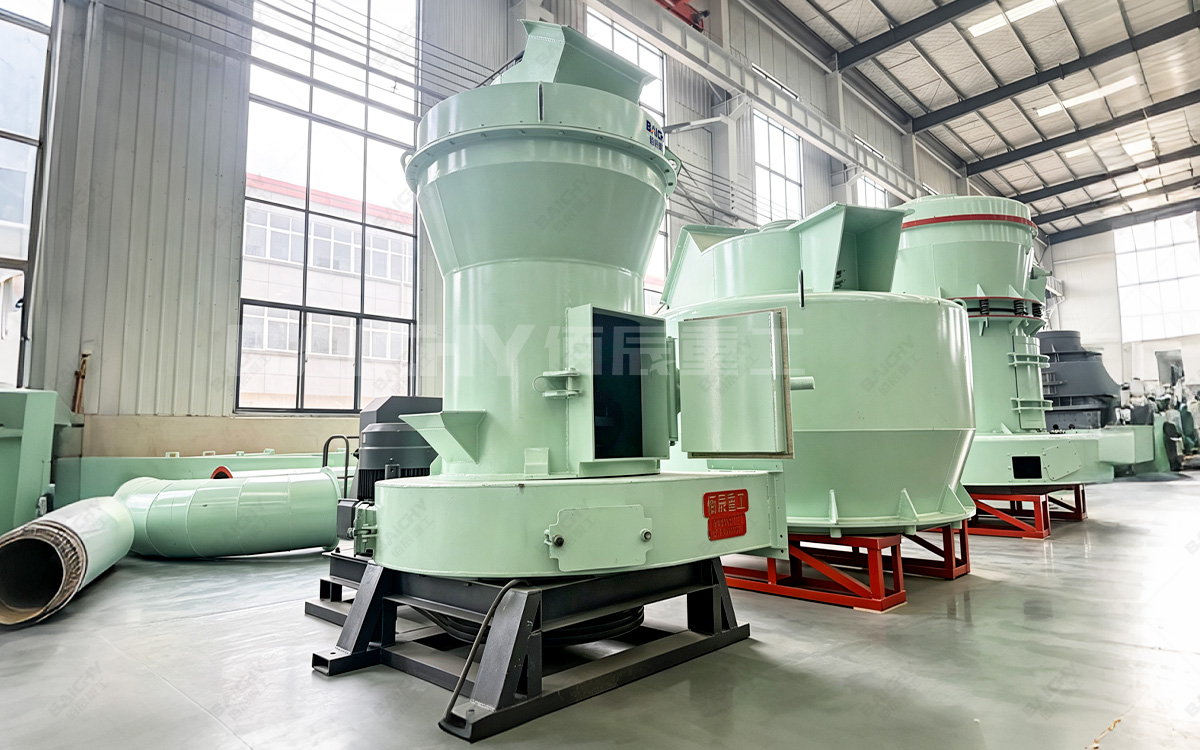

raw gypsum grinding machine
Frequently Asked Questions
1. Can this type of mill process natural or raw gypsum?
Yes. A suitable gypsum grinding mill can be designed for natural raw gypsum. The final model and auxiliary equipment depend on moisture, hardness, feed size, grindability, and product requirements. A representative material test is recommended.
2. Can the system produce 10 tons per hour at 35 microns?
The system can be engineered around this target, but actual performance depends on gypsum properties and the definition of 35 microns. Capacity should be verified under the customer's actual feed and fineness conditions.
3. Does the built-in classifier replace the dust-collection system?
No. The classifier separates particles by size, while the dust collector captures fine powder and controls airborne dust. A complete line normally needs a filter, fan, sealed transfer points, and finished-product collection equipment.
4. Is a dryer always required for raw gypsum?
No. Drying depends mainly on feed moisture and mill operating requirements. If moisture causes sticking, unstable feeding, or poor classification, a hot-air or drying stage should be considered.
5. What should an Egyptian customer confirm before ordering?
The customer should confirm material data, moisture, feed size, capacity, the exact particle-size standard, product use, power conditions, plant space, packing method, and performance acceptance criteria. These details are essential for an accurate quotation and reliable installation.
