UAE Grinding Production Line Site
In the United Arab Emirates, under the rigorous operating conditions of extreme heat and aridity, achieving highly stable output within the fineness range of 200 to 400 mesh is the key to boosting production efficiency. Baichy’s YGM series High-Pressure Raymond Mill is engineered specifically for the processing of non-metallic minerals; boasting a screening pass rate of up to 99% and a fully enclosed circulation system, this equipment series has established itself as the industry benchmark in the UAE region for processing drilling-grade barite powder and construction-grade limestone powder.
I. Precision Tailoring for the UAE’s Core Industries

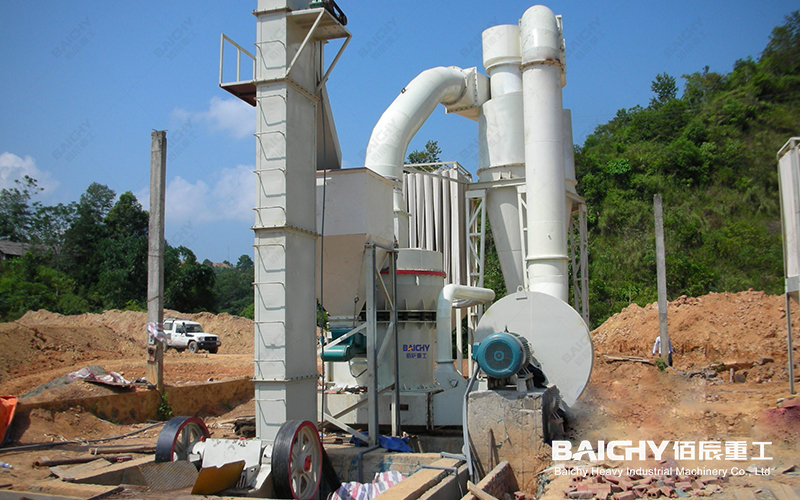

Limestone Grinding Site
In the UAE, the grinding process involves considerations far beyond mere fineness; ensuring the chemical stability of specific raw materials is equally critical:
• Oil & Gas (Barite): There is a massive demand for weighting agents (200-mesh powder and finer) used in drilling fluids. Baichy Raymond Mills ensure the specific gravity of the powder remains stable, fully complying with API (American Petroleum Institute) standards.
• Construction & Infrastructure (Limestone, Gypsum): Primarily utilized in dry-mix mortars, cement additives, and fillers. Ultra-fine powders within the 200–400 mesh range significantly enhance the density and structural integrity of construction materials.

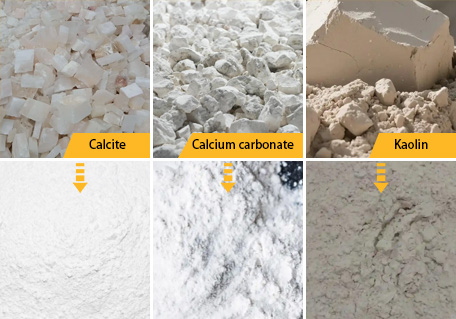

• Chemical Fillers (Calcite, Talc): Providing the coatings and plastics industries with industrial raw materials characterized by a uniform particle size distribution.
II. Technical Advantages of Baichy Raymond Mills (A Deep pe: "Beyond the Clichés")
• Heat-Resilient and Built for Durability: Featuring optimized main bearing and fan cooling structures, the equipment is specifically engineered to withstand the rigorous challenges of the Middle Eastern desert environment. The application of high-performance wear-resistant materials not only extends the replacement cycle for wear parts but—more importantly—ensures uninterrupted operation even under extreme ambient temperatures exceeding 45°C.
• Seamless Switching Between 200–400 Mesh: Equipped with a built-in high-precision classifier and a variable-frequency speed control system. Operators can directly and precisely adjust the particle size distribution of the finished product via a central control system, without the need for equipment shutdown or disassembly.
• Low Energy Consumption, High-Pressure Output: Utilizes high-pressure springs to generate superior grinding force (10–20% higher than traditional mills), thereby producing a significantly larger volume of qualified fine powder while consuming the same amount of electrical energy.
• Dust Removal Efficiency >99.9%: A fully enclosed system combined with a pulse-jet dust collector ensures complete compliance with the UAE's increasingly stringent environmental protection regulations.
III. Core Technical Parameters (Structural Data)
| Specification | Value | Remarks |
| Processable Materials | Limestone, Barite, Gypsum, Calcite, etc. | Mohs Hardness < 9.3 |
| Finished Product Fineness | 80 – 425 Mesh (0.198mm – 0.033mm) | Primarily concentrated between 200 – 400 Mesh |
| Screening Rate | ≥ 99% | Ensures uniform and consistent particle size |
| Number of Grinding Rollers | 3 – 6 | Configured according to model (3R/4R/5R/6R) |
| Production Capacity | 1 – 25 t/h | Multiple models available; supports customized production lines |
IV. Why Choose Baichy?
We do not merely sell grinding mills; we provide "Mineral Value Enhancement Solutions."
• UAE Project Support: We offer comprehensive technical guidance, covering the entire process from small-scale pilot testing to final assembly.
• Core Component Customization: We customize the material composition of the grinding rollers and rings based on the hardness of the local raw materials.
Frequently Asked Questions (FAQ)
Q: Can the Raymond Mill stably produce ultra-fine powder at 400 mesh?
A: Yes. By equipping our YGM series mills with high-frequency variable-frequency classifiers, Baichy can control the proportion of the 200–425 mesh particle fraction in the finished product within an extremely tight tolerance range, thereby meeting the rigorous fineness requirements demanded by industrial fillers.
Q: What challenges does the high-temperature environment in the UAE pose regarding the maintenance of the Raymond Mill?
A: In high-temperature environments, lubricating grease tends to thin out. Baichy employs heat-resistant sealing materials and a forced-circulation lubrication system; this significantly reduces the risk of bearing overheating and, compared to traditional equipment, lowers maintenance frequency by 15%.
Q: How does the barite grinding process impact compliance with API standards?
A: The uniformity of powder fineness directly influences the rheological properties of drilling mud. Our equipment ensures a highly consistent Particle Size Distribution (PSD) at both the 200-mesh and 325-mesh levels, thereby assisting clients in producing barite powder that fully complies with API-13A standards.
