PC Hammer Crusher Selection Guide: Single-Stage Crushing for Medium-Soft Rock—Cut Per-Ton Costs by 20%

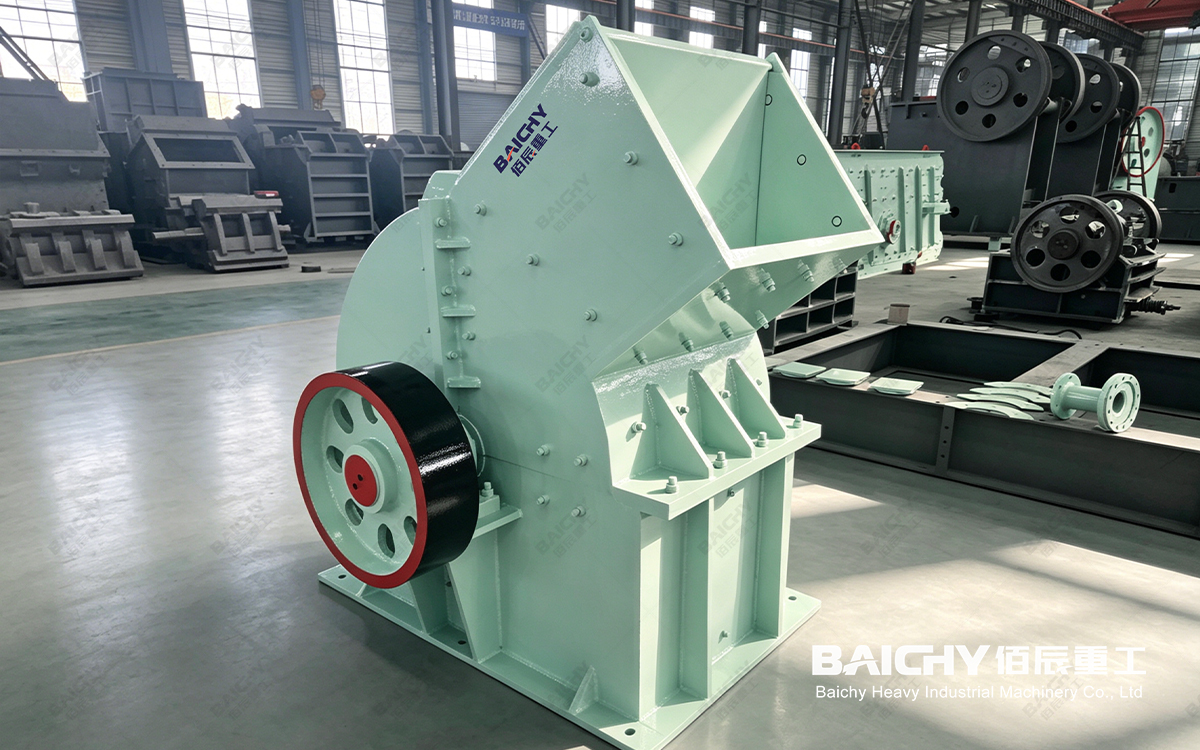

PC Hammer Crusher

1. What is a PC Hammer Crusher? Understanding the Logic of Single-Stage Crushing

The PC Hammer Crusher is a single-stage crushing machine that utilizes hammers mounted on a high-speed rotating rotor to reduce material to the target particle size in one pass through impact and shearing forces. Its key specifications are straightforward: a maximum feed size of approximately 300 mm and a controllable output size of under 35 mm. It typically achieves a crushing ratio of 10–25, far exceeding the 3–8 ratio of jaw crushers.

In short, its value lies in combining "primary crushing" and "secondary crushing" into a single process. In traditional workflows, quarried limestone undergoes primary crushing in a jaw crusher followed by secondary crushing in an impact crusher—requiring two sets of equipment, two infrastructure setups, and two stages of power consumption. In contrast, the PC Hammer Crusher handles feeding and shaping in one step; material smaller than the grate bar spacing discharges immediately, providing an inherent "screening" function that ensures uniform output gradation and minimizes over-crushing.

It is crucial to note the machine's material limitations: it is suitable only for medium-soft, brittle materials with a compressive strength of ≤150 MPa and a moisture content of ≤15%. Hard rock materials such as granite, basalt, and iron ore fall outside its application range. Using a hammer crusher on hard rock drastically shortens hammer lifespan—a common pitfall in equipment selection.

II. Application Scenarios: Which industries use PC hammer crushers?

Take a cement plant as an example: for a production line with a daily clinker output of 5,000 tons, adopting a single-stage hammer crusher solution for limestone eliminates the need for a primary jaw crusher—along with the associated civil engineering and electrical control investments. This results in fewer pieces of equipment and fewer potential points of failure across the entire line, which is the fundamental reason why PC hammer crushers have long held a dominant position in the cement industry.

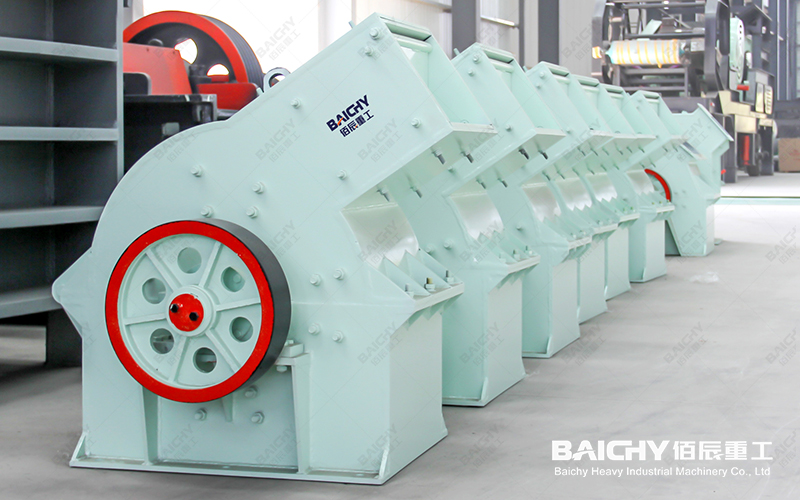

PC Hammer Crusher

III. Core Advantages: The Economic Logic Behind the Specifications

3.1 Key Technical Specifications of the PC Series

Note: Capacity is based on limestone (bulk density approx. 1.6 t/m³); when processing lightweight materials such as coal or coke, a conversion factor of 0.45–0.55 must be applied. Please specify the material bulk density during equipment selection.

3.2 Advantage Breakdown: From Specifications to Profitability

Single-stage crushing; equipment investment reduced by over 30%. By eliminating the secondary crusher, associated conveyors, and related civil works, the total investment for the production line drops significantly for the same capacity—this represents the most direct financial benefit of the single-stage crushing process.

Lower electricity consumption per ton. A single machine performs the work of two crushing stages, reducing electricity consumption per unit of product by approximately 15%–20% compared to a two-stage process; for an annual output of 1 million tons of limestone, this translates to annual electricity cost savings in the hundreds of thousands of yuan.

Uniform output size and minimal over-crushing (fines generation). The grate screen plate controls the maximum discharge size, ensuring stable product gradation and minimizing fines loss, thereby providing a consistent feed for downstream grinding mills or screening equipment.

The structure is simple, resulting in low maintenance costs. The hammers are easily replaceable and made of high-chromium alloy; the rotor and grate plates allow for quick disassembly and assembly, shortening maintenance times and significantly reducing unplanned downtime.

Suitable for both dry and wet applications (optional configuration). For materials with high moisture content—such as coal or gypsum—a wet crushing configuration is available to prevent clogging and adapt to a wider range of operating conditions.

IV. Related Case Studies: Real-world performance under typical operating conditions

Case A: Limestone single-stage crushing line at a Southeast Asian cement plant (reference configuration).

Raw material: limestone; feed size: ≤300mm; required discharge size: ≤30mm (direct feed to raw meal mill). Equipment selected: PC1200×1000 hammer crusher; measured capacity: approx. 75 t/h; configured with a ZSW vibrating feeder and dust removal system. Compared to a "jaw crusher + impact crusher" setup of similar scale, equipment investment costs were reduced by approximately 32%, and electricity consumption per ton dropped by 18%. The line has operated smoothly since commissioning, with a hammer service life of approximately 6 months (based on limestone processing).

Case B: Domestic coal gangue comprehensive utilization project (reference configuration).

Raw material: coal gangue (low bulk density, friable). Equipment selected: PC800×600 hammer crusher; calculated capacity: approx. 30 t/h; discharge size: ≤15mm (followed by brick-making or grinding processes). Due to the material's lightweight nature, actual capacity was approximately 25% higher than the limestone baseline, validating the practical significance of the conversion factor for lightweight materials.

Note: The above examples illustrate applications under typical industry conditions. Please base specific equipment selection on material analysis reports (compressive strength, bulk density, moisture content). Baichen Heavy Industry offers free material testing and system design services.

V. Recommended Ancillary Equipment: A Complete Solution for PC Hammer Crushers

PC hammer crushers are rarely operated in isolation; proper integration is essential to maximize the value of the entire production line:

1. ZSW Series Vibrating Feeder—Ensures uniform feeding, prevents direct material impact on hammerheads, and extends the service life of wear parts;

2. PE/PEX Series Jaw Crusher—Used for pre-screening and primary crushing if raw material blocks are oversized (>300mm) or contain hard rock inclusions;

3. Vibrating Screen (Circular/Linear)—Screens the discharge to grade aggregates or return oversized/unqualified material for re-crushing;

4. PF Series Impact Crusher—Used for secondary shaping of hammer crusher output in sand-making applications involving medium-soft rock;

5. Ball Mill/Raymond Mill—Processes crushed material for fine grinding (e.g., cement raw meal, gypsum powder, or pulverized coal preparation);

6. Dust Removal & Conveying Systems—Pulse-jet bag filters and belt conveyors to meet environmental emission standards and ensure continuous operation.

Whether you require a standalone unit, a stationary crushing line, or a mobile crushing station, Baichen Heavy Industry offers turnkey solutions tailored to your specific materials and production capacity requirements.

VI. FAQ

1. What materials are suitable for the PC hammer crusher?

The PC hammer crusher is designed for medium-soft, brittle materials with a compressive strength of ≤150 MPa and a moisture content of ≤15%, such as limestone, coal, coal gangue, gypsum, shale, chalk, and salt. For hard rock materials like granite or basalt, a combination of jaw crusher and cone crusher is recommended; otherwise, hammerhead wear becomes excessive, leading to uncontrollable operating costs.

2. How do I choose between a PC hammer crusher and an impact crusher?

While both rely on impact crushing principles, they serve different purposes: The PC hammer crusher is a single-stage primary crushing machine capable of handling feed sizes up to 300mm and producing output ≤35mm, aiming for "one-step crushing to finished product." The impact crusher is primarily used for secondary crushing and shaping, yielding superior particle shapes with minimal flaky or elongated particles. If the material is medium-soft rock (such as limestone) and the process requires simplicity, the PC hammer crusher is the preferred choice; if high standards for product particle shape (aggregate shaping) or flexibility in adjusting the output gradation are required, an impact crusher should be selected.

3. How is the capacity of the PC hammer crusher calculated?

Standard capacity charts are based on limestone (bulk density of approximately 1.6 t/m³). When processing lightweight materials such as coal or coke, the capacity should be adjusted by a factor of 0.45–0.55; material hardness, moisture content, and feed gradation also affect actual capacity. When selecting equipment, please provide material analysis reports and target capacity figures so the manufacturer can determine the appropriate model and motor configuration, thereby avoiding discrepancies between "nominal capacity" and "actual operational capacity."

VII. Summary: When choosing a PC hammer crusher, first verify the material, then consider cost-effectiveness.

The core competitive advantage of the PC hammer crusher lies in its ability to achieve single-stage crushing and shaping of medium-soft materials with minimal equipment and energy consumption. There are only two golden rules for selection: first, the material's compressive strength must be ≤150 MPa; second, capacity must be verified using actual material parameters rather than simply relying on standard reference charts. Provided these two conditions are met, the PC series stands out as one of the most cost-effective solutions for crushing medium-soft rock.
