Stone Crushing Hammer Mill
A stone crushing hammer mill is the most cost-effective single machine for reducing limestone, gypsum, coal and construction waste from 200 mm feed to finished aggregate in one pass. For soft-to-medium-hard rock, a stone crushing hammer mill cuts capital cost by 30–50% and operating cost per ton by up to 20% versus jaw-plus-cone crushing lines. This guide covers how it works, where it pays off, verified specifications, project cases and the right Baichy models for your tonnage.
What Is a Stone Crushing Hammer Mill?
A stone crushing hammer mill, also called a hammer crusher, crushes material with high-speed rotating hammers striking a hardened breaker plate. Material enters the chamber, is impacted repeatedly at 1,000–1,600 rpm rotor speed, and exits through a bottom grate once it reaches the set discharge size. Because one stone crushing hammer mill replaces both primary and secondary stages, cement plants, brick plants and mineral processors use it to simplify flowsheets and cut installed power.
Key Applications of a Stone Hammer Mill
1. Limestone, Gypsum and Cement Raw Materials
Over 80% of stone crushing hammer mill installations serve cement and building-material plants, grinding limestone and gypsum for clinker production and FGD desulfurization. The adjustable grate delivers 0–40 mm kiln feed or 0–5 mm fines from a single unit.
2. Coal, Gangue and Coke
Ring-type hammer mills crush coal, gangue and coke at up to 15% moisture without clogging, making the stone crushing hammer mill standard in power stations and coking plants.
3. Construction Waste and Manufactured Sand
Fixed and portable configurations turn demolished concrete and brick into recycled aggregate. Combined with a vibrating screen, a stone crushing hammer mill produces manufactured sand at lower cost per ton than VSI-only lines on soft feed.

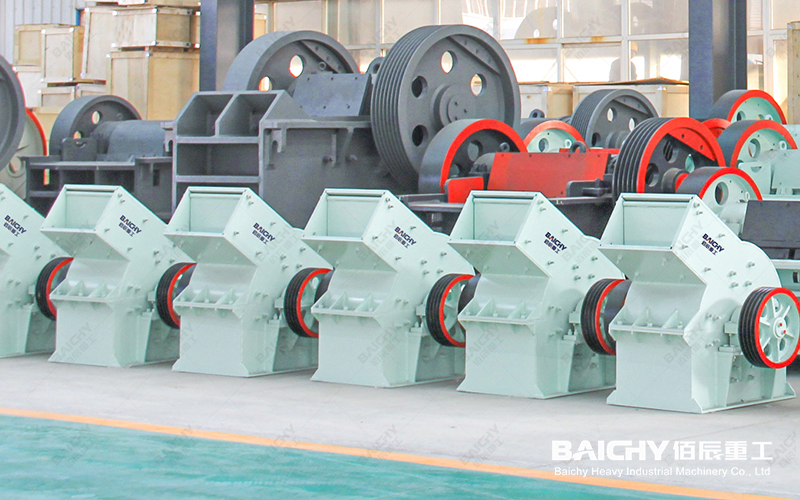

hammer mill for limestone
6 Advantages That Lower Your Cost Per Ton
1. One-stage crushing. Feed up to 200 mm to finished product — no jaw crusher, no cone crusher, no extra conveyors.
2. High reduction ratio. Up to 25:1 in one pass versus 4–6:1 for a jaw crusher.
3. Adjustable output. Swap grate bars to switch from 0–40 mm aggregate to 0–5 mm powder within an hour.
4. Lower energy cost. The PC800×600's 55 kW motor drives 20–40 t/h — about 30% fewer kWh per ton than a jaw+cone line.
5. Low wear cost. Reversible high-manganese steel hammers last 300–600 hours on limestone; replacement takes one shift.
6. Compact footprint. Skid-mounted design installs in days with minimal civil works — ideal for remote sites.
Technical Specifications: PC Series Hammer Mill
| Model | Rotor Dia.×Length (mm) | Max Feed (mm) | Capacity (t/h) | Motor Power (kW) | Discharge Size (mm) |
|---|---|---|---|---|---|
| PC400×300 | 400×300 | 100 | 5–10 | 11 | 0–25 |
| PC600×400 | 600×400 | 120 | 10–22 | 22 | 0–30 |
| PC800×600 | 800×600 | 150 | 20–40 | 55 | 0–35 |
| PC1000×800 | 1000×800 | 200 | 30–55 | 110 | 0–40 |
Capacity is rated on limestone (1.6 t/m³). For denser ores, multiply by 0.6–0.7; for coke, by 0.45–0.55. Send your material for a free test rating.
Real-World Case: 100–120 t/h Limestone Line
Baichy delivered a complete limestone line to an East African cement plant: ZSW490×110 feeder + PC1000×800 stone crushing hammer mill + YK screen. The hammer mill takes run-of-quarry feed to 200 mm and delivers 0–30 mm kiln feed at 100–120 t/h. Versus the plant's original jaw+cone proposal, the stone crushing hammer mill layout cut equipment CAPEX by 41%, reduced installed power from 180 kW to 110 kW, and shortened commissioning from six weeks to two. For construction-waste recycling in Southeast Asia, a mobile hammer mill package — crusher, diesel generator and screen — produces 60–80 t/h of recycled aggregate with one operator and no concrete foundations.
Recommended Related Equipment
PCK Reversible Hammer Crusher — fine crushing to 0–5 mm for sand, cement additives and desulfurization powder.
2PC Double-Rotor Hammer Crusher — single-stage crushing of 1,200 mm boulders for mega limestone mines.
PCH Ring Hammer Crusher — first choice for coal, coke and sticky wet materials.
Ancillary package: ZSW vibrating feeder, YK vibrating screen, belt conveyors, baghouse dust collector, PLC control panel.
FAQ
1. Hammer crusher vs impact crusher: what is the difference?
A hammer crusher breaks rock mainly by direct hammer impact against a breaker plate and grate, suits soft-to-medium-hard rock and gives higher reduction (up to 25:1). An impact crusher throws material against impact plates with blow bars, handles larger feed, but costs more per ton on abrasive feed. For limestone, gypsum and coal, the hammer mill wins on cost per ton.
2. What is the maximum feed size and moisture for a stone crushing hammer mill?
Maximum feed is 100–200 mm depending on model; never feed boulders wider than the rotor. Recommended moisture is below 15% — above that, output drops and the grate can clog. For wet sticky coal, choose the PCH ring hammer type instead.
3. How do I choose the right hammer mill model?
Match capacity and discharge size: PC400×300 for 5–10 t/h pilot lines, PC600×400 for 10–22 t/h small plants, PC800×600 for 20–40 t/h mid-size plants, PC1000×800 for 30–55 t/h. Confirm feed size, moisture and local voltage (380V/50Hz, 400V/50Hz or 60Hz) with Baichy engineers — a material test is free.
