Mobile Impact Crushing and Screening Plant
In modern mining operations, building demolition, and infrastructure development, the efficient and localized processing of materials has become an imperative requirement for reducing costs, enhancing efficiency, and meeting environmental compliance standards. Traditional stationary crushing lines, while stable and reliable, are often constrained by site limitations, relocation challenges, and high transportation costs. The Mobile Impact Crushing and Screening Station emerged to address these challenges; it seamlessly integrates the high-efficiency medium-to-fine crushing capabilities of an impact crusher with the flexible mobility of a mobile chassis, providing customers with a powerful production tool that allows them to "crush wherever the work takes them."
Equipment Core Overview
The Mobile Impact Crushing and Screening Station is an integrated, mobile crushing production line. At its core, it features a high-performance impact crusher mounted on a heavy-duty crawler or wheeled mobile chassis. It can be optionally equipped with vibrating feeders and pre-screening units; furthermore, select models can operate in tandem with mobile screening stations to form a closed-circuit processing loop. The unit can be driven directly to the material source—such as a mining face, construction site, or demolition zone—to perform on-site crushing and screening, thereby directly producing finished aggregates that meet specific quality requirements.

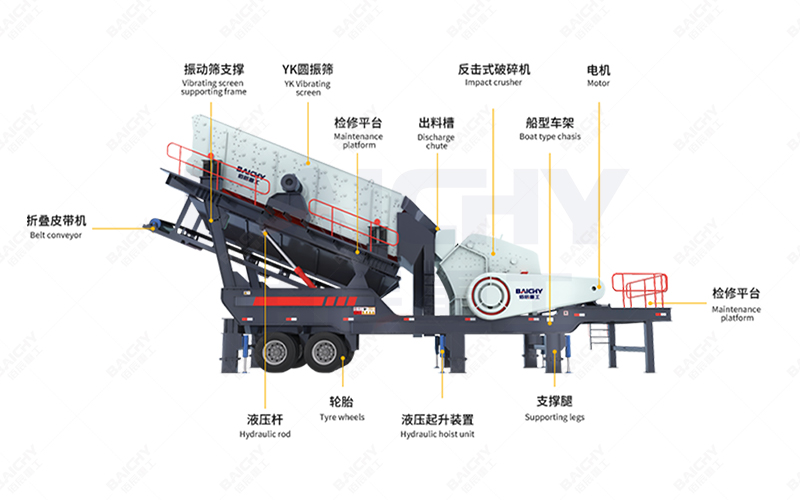

Mobile Impact Crushing Station — Structural Diagram
Core Working Component: The Impact Crusher
The equipment's primary advantage stems from the impact crusher it utilizes. This crusher employs a high-speed rotating rotor to drive blow bars (hammers) into the material, causing the material to undergo repeated impacts and fragmentation between the blow bars and the impact plates. This operating principle results in finished products with excellent particle shape—predominantly cubical—and a low content of needle-like or flaky particles, making them particularly suitable for use as high-standard concrete aggregates.
Key Application Scenarios
• Construction Waste Recycling: At urban renewal and building demolition sites, the unit can directly crush concrete blocks, asphalt chunks, and waste bricks on-site. These materials are transformed into recycled aggregates suitable for road sub-bases, brick manufacturing, and other applications, thereby significantly reducing transportation and landfill disposal costs.
• Mines and Quarries: It is particularly well-suited for small-to-medium-sized mining operations characterized by complex terrain or dispersed mining points. The unit can advance in lockstep with the mining face, minimizing the haulage distance for mining trucks and reducing initial capital investment in civil engineering works.
• Infrastructure Construction: It is utilized for the on-site processing of roadbed aggregates during highway and railway construction, as well as for the crushing and processing of rock spoil generated during tunnel excavation. • Cement and Metallurgical Mines: Performs medium-to-fine crushing operations on low-to-medium hardness materials such as limestone, dolomite, and slag.
Key Advantages of the Mobile Impact Crushing and Screening Station
Compared to traditional solutions, our mobile impact crushing and screening station demonstrates unparalleled advantages:
| Advantage Category | Specific Description |
| Ultimate Flexibility | Features crawler-type mobility and remote control operation, allowing for rapid site transfers—even enabling uphill movement and repositioning *during* production—and offering strong adaptability to complex terrain. |
| Significant Economic Benefits | Eliminates material transport costs from the mining point to a fixed crushing line; avoids the need for expensive fixed foundation construction; and ensures a rapid return on investment. |
| Integrated Design, Rapid Deployment | Upon arrival at the site, the equipment requires only simple site leveling and power connection to begin production within a few hours, ensuring extremely fast deployment. |
| Environmental Protection & Noise Reduction | On-site crushing reduces the frequency of truck transport, thereby minimizing the impact of dust and noise on surrounding communities. The equipment can be optionally fitted with water spraying and dust removal systems. |
| Superior Product Quality | Thanks to the "stone-on-stone" and "stone-on-iron" crushing principles of the impact crusher, the finished aggregate features excellent particle shape and controllable gradation, resulting in high market value. |
| Intelligent Control & Safety | Equipped with a PLC intelligent control system that monitors equipment operating status in real-time, performs automatic fault diagnostics, and ensures safe, convenient operation. |
Case Studies
Case Study 1: A Construction Waste Processing Center in East China
Mobile Impact Crushing Station — Customer Site
This center acquired one of our mobile impact crushing and screening stations (crawler-mounted) to process construction waste generated by urban redevelopment projects. On-site, the equipment crushes mixed concrete blocks and waste masonry—while simultaneously performing iron removal and light-material separation—to produce high-quality recycled aggregates in three size specifications: 0–5mm, 5–10mm, and 10–31.5mm. These aggregates are widely utilized in the water-stable base layers of municipal roads, effectively transforming "waste into treasure" with an annual processing capacity exceeding 500,000 tons.
Case Study 2: A Limestone Mine in Southeast Asia
The mining area featured dispersed mining points and rugged terrain. The client selected our tire-mounted mobile impact crushing and screening station, allowing them to flexibly relocate the equipment to different mining points based on their respective reserve volumes. This site successfully processed blasted limestone (with a particle size of <750mm), reducing it in a single pass to a finished product of <40mm. This material is supplied directly to a nearby cement plant, thereby eliminating the costs associated with multiple fixed production lines and long-distance transportation; consequently, the return on investment has exceeded expectations.
Recommended Complementary Equipment
A complete mobile crushing and screening solution typically requires the collaborative operation of multiple units. Based on your specific process requirements, we recommend pairing the following equipment with the Mobile Impact Crushing and Screening Station:
1. Mobile Jaw Crushing Station: The perfect partner for primary crushing. It performs the initial coarse crushing of large raw materials (e.g., boulders up to 1200mm), after which the Mobile Impact Station handles the secondary and tertiary crushing stages, establishing a highly efficient two-stage mobile crushing workflow.
2. Mobile Heavy-Duty Vibrating Screening Station: Forms a closed-circuit loop with the Mobile Impact Station. It screens the crushed material to precise particle size specifications and returns oversized particles to the impact crusher for re-crushing, ensuring a 100% yield of qualified finished product.
3. Mobile Iron Removal Conveyor: For processing construction waste or materials containing metallic impurities, equipping an iron remover effectively extracts rebar, iron scraps, and similar items, thereby protecting downstream equipment and enhancing the purity of the recycled aggregate.
Frequently Asked Questions (FAQ)
Q1: Is the Mobile Impact Crushing and Screening Station suitable for crushing hard rocks such as granite and basalt?
A1: Impact crushers are better suited for processing materials of medium-to-low hardness—such as limestone, concrete, and weathered granite. When used on high-hardness materials like fresh granite or basalt, the wear rate on the blow bars and impact plates accelerates significantly, resulting in higher operating costs. For hard rock applications, we recommend a combined solution utilizing a "Mobile Jaw Crushing Station + Mobile Cone Crushing Station."
Q2: What are the fuel consumption and power requirements for this equipment?
A2: Track-mounted mobile stations are typically powered by onboard diesel generator sets, enabling them to be completely self-driven. Energy consumption varies depending on the specific model of the main unit, the hardness of the material being crushed, and the required production output. Taking our medium-sized equipment as an example, fuel consumption under full-load operation is approximately 20 to 35 liters per hour. If a stable industrial power grid is available on-site, an electric-drive mode can also be selected as an option, resulting in lower operating costs.
Q3: Do you provide after-sales and maintenance support for the mobile crushing stations?
A3: Absolutely. We offer global after-sales services, including professional guidance on installation and commissioning, operator training, year-round spare parts supply, remote technical support, and on-site engineering services. We also provide our clients with detailed preventive maintenance plans to ensure the long-term, stable operation of the equipment.
