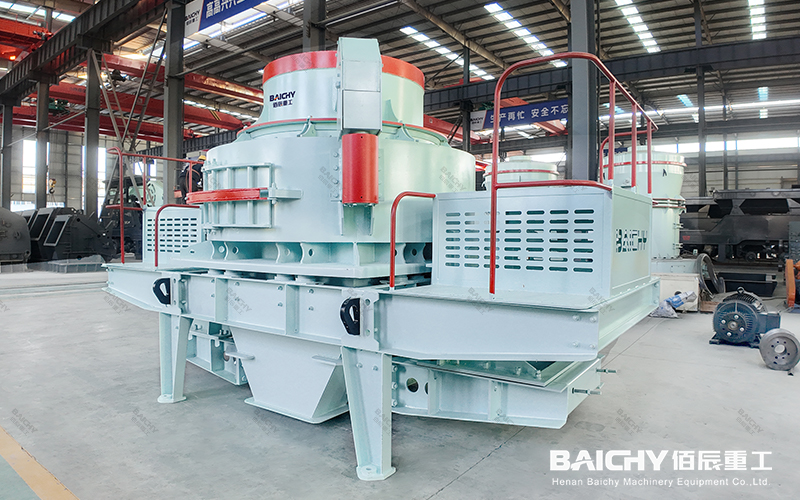

VSI-9526 Sand Making Machine | Manufacturer's Guide

In modern aggregate production, manufactured sand has emerged as a core raw material for infrastructure projects such as buildings, highways, and bridges. As a specialized manufacturer of mining crushing, grinding, and beneficiation equipment, we fully understand that the performance of sand-making machinery directly determines both the quality of the final product and the profitability of a project. Today, we will provide an in-depth analysis of our flagship product—the VSI-9526 Sand Making Machine (also known as the VSI Impact Crusher)—and demonstrate how its exceptional performance makes it the "Profit Core" of your sand production line.

I. Overview of the VSI-9526 Sand Making Machine

The VSI-9526 Sand Making Machine is a highly efficient Vertical Shaft Impact (VSI) crusher developed by our company using advanced international technology. It employs a combined working principle of "stone-on-stone" and "stone-on-iron" crushing; by utilizing a high-speed rotating impeller to accelerate and eject material, it generates intense impact and friction against surrounding anvil blocks or material liners, thereby achieving the fine crushing and shaping of the material. This model is particularly well-suited for the sand-making and shaping of medium-to-high hardness ores and rocks (such as granite, basalt, river pebbles, limestone, etc.), making it the ideal choice for producing high-quality manufactured sand.

II. Core Advantages and Application Scenarios

1. Key Technical Advantages

• Superior Product Shape: The finished product features a cubic shape with a rational gradation; the fineness modulus is adjustable, and the content of needle-like and flaky particles is extremely low, fully meeting national high-standard requirements for construction sand.

• Economical Operating Costs: Core wear-resistant components are manufactured using high-chromium alloys or ceramic composite materials, ensuring a long service life, minimal wear, and low energy consumption per unit of output.

• Eco-friendly and Clean Production: The machine can be integrated with dust collection and noise reduction systems, creating a friendly working environment that meets green mining construction standards.

• "Multi-purpose" Functionality: It can be utilized exclusively for sand making, or employed to shape coarse-crushed stone materials, thereby enhancing their market value.

2. Wide Range of Applications

This VSI sand making machine is widely utilized in the following scenarios:

• The sand-making and shaping stages of large-to-medium scale aggregate production lines.

• Raw material preparation for cement plants and commercial concrete mixing stations.

• Projects with extremely stringent requirements for aggregate shape—such as highways, high-speed railways, and hydroelectric dams.

• Fine crushing and processing of minerals in industries such as metallurgy, building materials, and chemicals.

VSI-9526 Sand Maker Structural Diagram

III. Key Performance Parameters

IV. Customer Case Study: Granite Sand-Making Production Line

A major building materials group in East China faced issues with its original production line, specifically poor sand particle shape and weak market competitiveness. In early 2025, our company designed a customized upgrade solution for them, centering on two VSI-9526 sand-making machines dedicated to particle shaping and sand production. Following the upgrade, the manufactured sand produced featured a rounded particle shape and continuous gradation; furthermore, its crushing value was significantly reduced. Consequently, the product quickly became the designated material for local commercial concrete mixing plants, and the client's investment payback period was shortened by approximately 30%.

V. Supporting and Recommended Equipment

An efficient sand-making production line relies on a scientifically designed combination of equipment. We recommend the following equipment to complement the VSI-9526 sand-making machine:

1.  Primary Crushing Equipment: PE Series Jaw Crushers, used for the coarse crushing of large-sized ore blocks.

2.  Secondary & Tertiary Crushing Equipment: HPT/HST Series Multi-cylinder Hydraulic Cone Crushers, used for the stable intermediate crushing of medium-hard and harder materials.

3.  Feeding & Screening Equipment: ZG Series Vibrating Feeders and YKN Series Circular Vibrating Screens, ensuring continuous, uniform feeding and precise classification.

4.  Auxiliary Systems: Dry Dust Removal System and Centralized Electric Control System, enabling intelligent and clean production operations.

VI. Frequently Asked Questions (FAQ) Regarding VSI Sand Making Machines

Q1: Can the VSI-9526 sand making machine process wet materials?

A1: This equipment is primarily designed to process materials with moderate or lower moisture content. For viscous materials with high moisture levels, it is recommended to perform pre-screening or drying treatments beforehand to prevent material clumping within the crushing chamber, which could negatively impact throughput and equipment efficiency.

Q2: How is the fineness of the finished sand adjusted?

A2: Adjustment is primarily achieved through three methods:

1) Adjusting the impeller speed;

2) Replacing the screening components (e.g., vibrating screen meshes) with those of different specifications;

3) Adjusting the gap settings of the peripheral grate bars or impact plates. Our engineers will assist you in identifying the optimal combination of parameters during the commissioning phase.

Q3: What is the replacement cycle for the core wear parts?

A3: This depends on the hardness and abrasiveness of the material being crushed. For highly abrasive materials—such as granite or basalt—the service life of core wear parts (such as the throwing heads and peripheral guard plates) typically ranges from 300 to 600 operating hours under normal working conditions. We offer a variety of wear-resistant components made from different materials, allowing you to select the most suitable options based on your specific operating conditions to optimize overall operating costs.
