In the demanding world of mineral processing and aggregate production, achieving optimal particle size is paramount. While crushers are the undisputed champions of size reduction, their performance is often limited by bottlenecks in material handling. Enter the Vibrating Crusher—not as a single machine, but as a sophisticated, synergistic combination of a crusher and a vibrating screen. This integrated system represents a leap forward in efficiency, throughput, and final product quality for modern mining and quarrying operations.
Core Components: Understanding the System
-
The Crusher: This is the primary size reduction unit. It can be a jaw crusher for initial coarse crushing, a cone crusher for secondary or tertiary crushing, or an impact crusher for shaping aggregates. Its job is to break down large feed material into smaller fragments.
-
The Vibrating Screen: Typically installed in a closed circuit with the crusher, the screen acts as a smart classifier. It continuously sorts the crushed material, allowing correctly sized particles to pass through as final product, while oversized material is efficiently recirculated back to the crusher for further processing.
Jaw Crusher

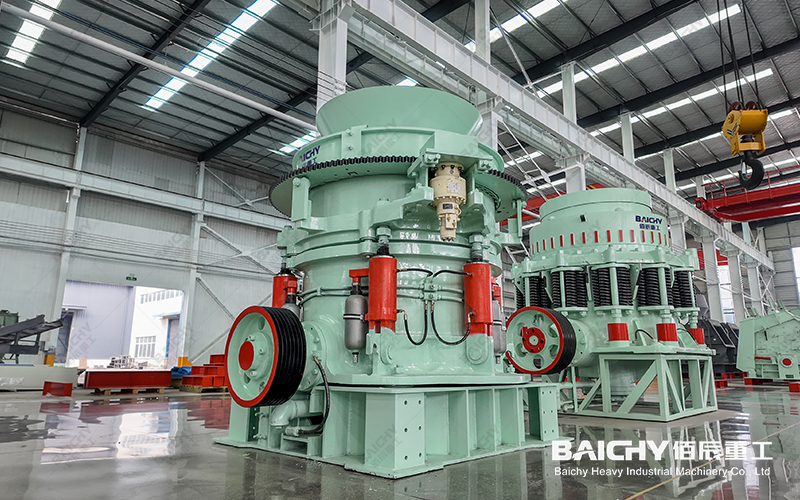

Hydraulic Cone Crusher

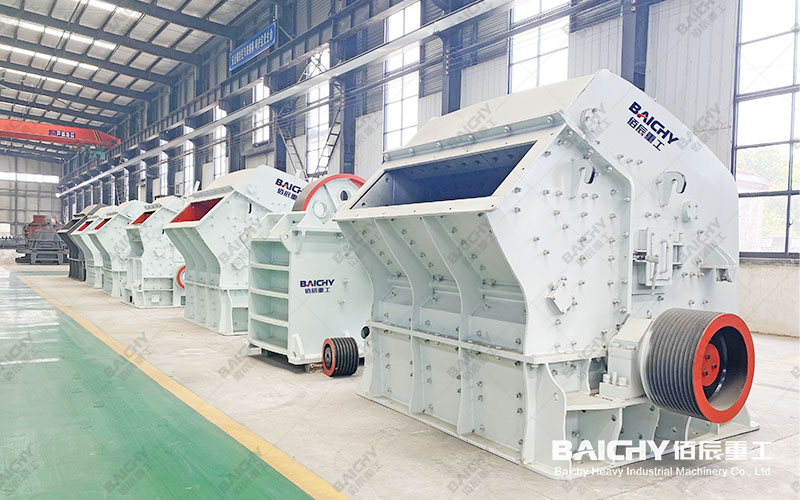

Impact Crusher
Key Advantages of an Integrated Crusher and Screen System
-
Maximized Throughput and Efficiency: The vibrating screen prevents properly sized material from remaining in the crushing chamber, eliminating unnecessary re-crushing. This allows the crusher to focus its energy on only the oversized rocks, significantly increasing overall system capacity.
-
Superior Product Quality Control: By ensuring that only oversized material is returned for crushing, the system produces a more consistent final product with a tighter particle size distribution. This is critical for meeting strict specifications in construction and asphalt production.
-
Reduced Operational Costs and Wear: Less time spent crushing already-sized material translates to lower energy consumption. Furthermore, it reduces unnecessary wear on crusher liners and other wear parts, extending their service life and lowering maintenance costs.
-
Enhanced Automation and Stability: The closed-circuit system creates a more stable and self-regulating process. It minimizes the risk of crusher overload (cavity choking) and allows for smoother, more automated operation with less manual intervention.
System Configuration and Application Cases
-

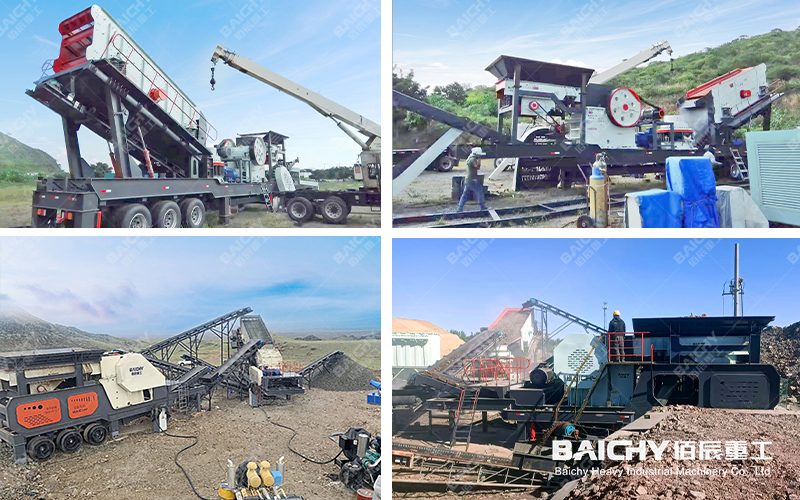

Mobile Crushing & Screening Plant: A jaw crusher and a heavy-duty vibrating screen are mounted on a single chassis. This setup is ideal for quarry face operations or demolition sites, offering high mobility and quick setup to process material on location.
-

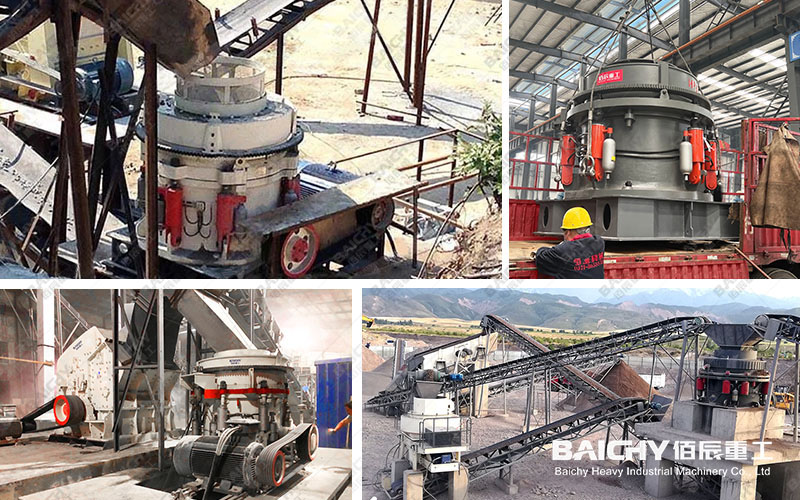

Stationary Aggregate Production Line: In a large quarry, a primary jaw crusher feeds into a secondary cone crusher. A multi-deck vibrating screen is placed in closed circuit with the cone crusher. It precisely separates the output into 3-4 different final products (e.g., 0-5mm sand, 5-10mm, 10-20mm aggregate).
-
Recycling Plant: An impact crusher paired with a robust vibrating screen is perfect for processing concrete and asphalt rubble. The screen efficiently removes fine contaminants and separates recycled aggregate into usable sizes for new construction projects.
Selecting the Right Equipment for Your Needs
-
For Primary Crushing: A robust Jaw Crusher paired with a grizzly feeder or a scalping screen to remove fines before crushing.
-
For Secondary/Tertiary Crushing: A high-performance Cone Crusher in closed circuit with a multi-deck Vibrating Screen for producing precisely shaped aggregates.
-
For All-in-One Mobility: Our MP Series Mobile Plants, which integrate a crusher, vibrating screen, and conveyors on a single frame, offering unparalleled flexibility.
Frequently Asked Questions (FAQ)
Q1: Is a vibrating crusher a single machine?
Q2: What are the main benefits of a closed-circuit crushing system?
Q3: Can I retrofit an existing crusher with a vibrating screen to create this system?
