Looking for a Mobile Screening Solution That Truly Keeps Up with Your Jobsite?

Track-Mounted Mobile Screening Stations

In the modern fields of aggregate production, mining operations, and construction waste recycling, efficiency and flexibility are the critical factors determining project success. The crawler-mounted mobile screening station is a revolutionary piece of equipment designed specifically to meet this core demand. Integrating feeding, screening, and conveying functions into a single unit—and equipped with a self-propelled crawler chassis—it enables rapid site transfers and flexible deployment even under the most demanding working conditions, embodying the operational philosophy: "Where the material is, that is where production takes place."

Compared to traditional fixed screening lines, the mobile screening station completely eliminates constraints related to infrastructure and site limitations, thereby reducing initial investment and operating costs. It is particularly well-suited for projects involving dispersed work areas, tight deadlines, or requirements for frequent operational relocation. Whether for the pre-screening of raw ore, the grading of finished products, or the sorting and recycling of construction waste, it serves as a pivotal tool for boosting overall production efficiency.

Core Application Scenarios: Where Does It Excel?

Thanks to its exceptional adaptability, the crawler-mounted mobile screening station plays an indispensable role across a wide range of industries.

1. Mines and Quarries

In open-pit mines or quarries, the unit can be utilized to pre-screen raw ore following blasting operations. It separates finished aggregates that are ready for immediate use, while screening out oversized lumps that exceed the required crushing size and feeding them into the next stage of crushing equipment. This process optimizes the entire crushing and screening workflow, thereby enhancing the efficiency of the production line.

2. Construction Aggregate Production

In construction projects—such as roads, bridges, and real estate developments—the unit can be deployed directly to the material source or the immediate vicinity of the construction site. It screens various types of rock (including granite, limestone, and basalt) to produce crushed stone and manufactured sand of different specifications, meeting the specific gradation requirements for concrete mixing plants, asphalt mixing stations, and roadbed base layers.

3. Construction Waste Recycling

In urban renewal and demolition projects, the mobile screening station serves as a core component in the resource-oriented processing of construction waste. It screens demolished concrete blocks, bricks, tiles, and rubble to separate out soil and light impurities, yielding clean recycled aggregates. These aggregates can then be utilized for backfilling or for the production of new recycled building materials, effectively transforming "waste into valuable resources." 4. Other Applications

Furthermore, it is widely utilized in industries such as soil remediation, river sand screening, coal classification, and metallurgical slag processing, demonstrating its powerful capability as a versatile, multi-functional machine.

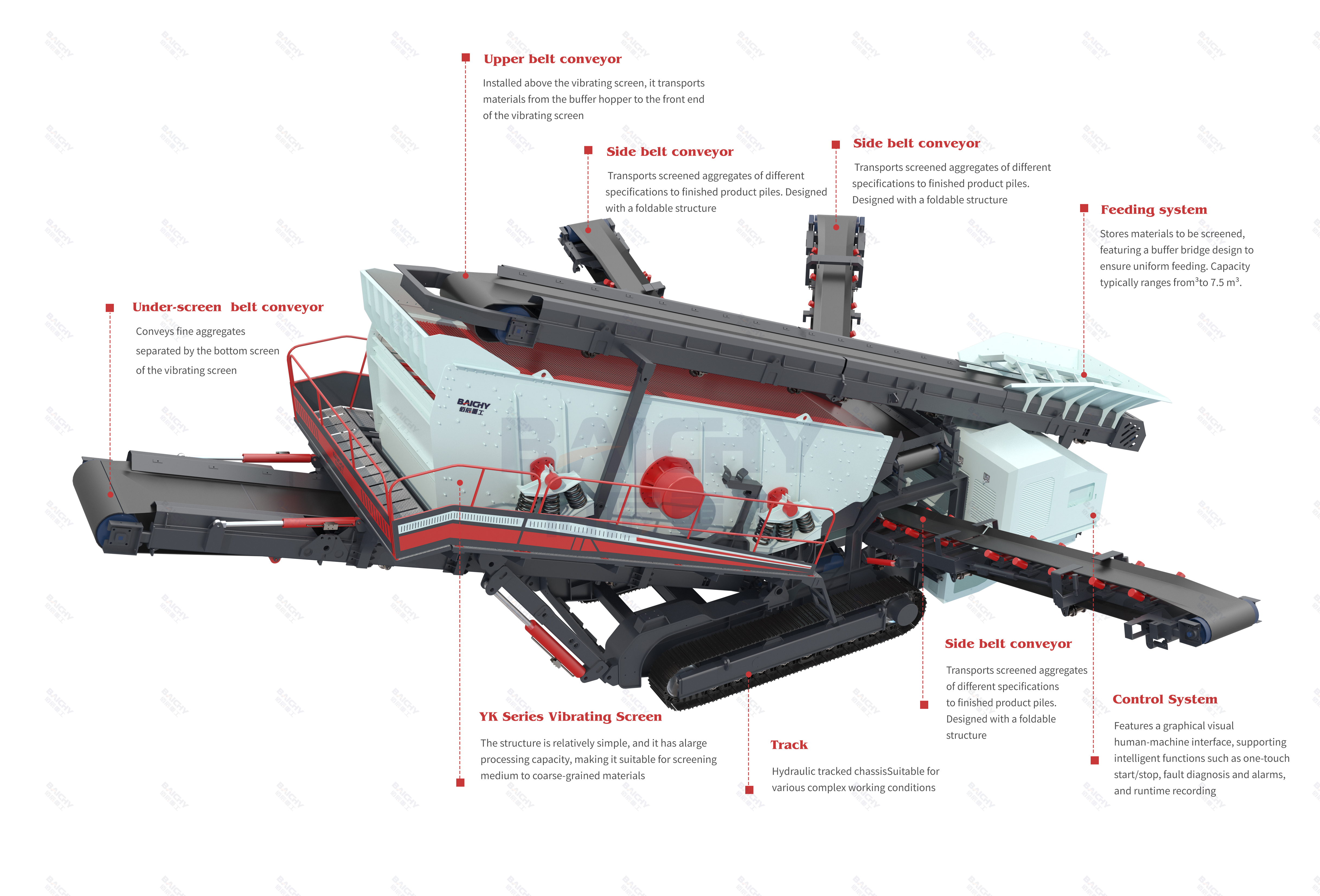

Track-Mounted Screening Station Structure Diagram

Core Equipment Advantages: Why Choose Our Mobile Screening Station?

Our crawler-mounted mobile screening equipment integrates years of experience in mining machinery manufacturing, offering significant advantages in terms of design, performance, and reliability:

1.  Ultimate Flexibility, Rapid Deployment: Equipped with a heavy-duty crawler travel system, the unit boasts strong climbing capabilities and excellent adaptability to various site conditions. Its hydraulic drive system enables rapid unfolding, folding, and relocation; upon arrival at a new site, the machine can typically be ready for production within just 30 minutes.

2.  Integrated Design, Cost Savings: The equipment integrates a vibrating screen, feeder, conveyors, generator (or external power interface), hydraulic system, and intelligent electrical controls into a single unit. This eliminates the need for complex civil engineering foundations, thereby significantly reducing installation, transportation, and labor costs.

3.  High-Efficiency Screening, Stable and Reliable: Featuring a high-capacity, multi-layer vibrating screen, the unit delivers exceptional screening efficiency. Screen meshes with varying apertures can be quickly interchanged to suit the specific characteristics of the processed materials. Core components are sourced from internationally renowned brands, ensuring a robust structure that guarantees stability and a long service life, even under heavy loads and continuous operation.

4.  Intelligent Control, Easy Maintenance: Equipped with an advanced PLC touchscreen control system, the unit enables one-touch start/stop operations, parameter configuration, and fault diagnostics. A centralized lubrication system and easily accessible inspection hatches make routine checks and maintenance tasks safer and more convenient.

5.  Eco-Friendly and Energy-Efficient, Highly Adaptable: Optional features—such as enclosed conveyor belts and water-spray dust suppression systems—are available to effectively control dust emissions. A dual-power configuration (diesel-electric) offers an optimal energy solution for Perse operating environments, including remote mining sites where grid power is unavailable.

Technical Parameter Reference (Taking the Mainstream Model YDPS-1860 as an Example)

The table below presents the key technical parameters for a typical crawler-mounted mobile screening station; specific configurations can be customized to meet inPidual client requirements.

Note: The above parameters are illustrative examples; actual equipment specifications are subject to the final technical agreement.

Track-Mounted Screening Plant — Customer Site

Case Studies

Case Study 1: A Large-scale Granite Quarry in East China

This quarry previously operated a fixed production line; however, their newly opened mining face was located a considerable distance away. We provided them with a mobile screening station, specifically configured for aggregate classification at the new work site. Upon delivery, the equipment required no road construction or foundation work; it drove directly to the site and, paired with a mobile crushing station, formed a temporary production line. Within just three days, it began producing qualified finished products, significantly shortening the commissioning cycle for the new mining face. The client spoke highly of the equipment's flexibility and the quality of its output.

Case Study 2: A Construction Waste Recycling Project in North China

The project owner required a screening solution to process mixed construction waste generated by urban demolition activities. Our mobile screening equipment—fitted with a magnetic separator and an air classification system—successfully achieved the efficient separation of concrete blocks, waste bricks, soil/rubble, and light materials (such as plastics and wood). The resulting clean concrete aggregates were subsequently utilized in the production of recycled bricks, yielding significant economic and environmental benefits.

Recommended Related Equipment

A complete mobile crushing and screening solution typically involves the collaborative operation of multiple pieces of equipment. In addition to mobile screening stations, we also recommend the following complementary equipment:

1.  Track-mounted Mobile Jaw Crushing Station: As the primary unit for coarse crushing, it processes large-sized raw materials, providing feed of the appropriate particle size for subsequent screening and crushing stages.

2.  Track-mounted Mobile Cone Crushing Station / Impact Crushing Station: Used for medium to fine crushing, these units produce high-quality cubical aggregates and manufactured sand; they can be configured with the screening station to form either a closed-circuit or open-circuit processing loop.

3.  Mobile Feeder: Designed to provide a uniform and continuous feed of material—whether from stockpiles or loaders—this unit protects downstream crushing and screening equipment, serving as the essential front-end safeguard for the efficient and stable operation of the entire production line.

Frequently Asked Questions (FAQ)

Q1: ​​What is the difference between a track-mounted mobile screening station and a wheel-mounted mobile screening station?

A1: The primary difference lies in their locomotion mechanisms and mobility. Track-mounted units utilize hydraulically driven tracks, featuring low ground pressure that makes them ideal for complex terrains—such as muddy or rugged sites—and even allows them to climb slopes directly during operation; however, their travel speed is relatively slow. Wheel-mounted units require towing by a semi-trailer tractor; they are best suited for scenarios involving medium-to-long-distance transfers between different sites where road conditions are good, offering faster travel speeds when moving along public roads.

Q2: What is the power source for the equipment? Can it be used in remote mining areas?

A2: Our equipment typically comes standard with a high-performance diesel engine as the primary power source, enabling complete self-sufficiency in terms of power supply. Consequently, the units can operate entirely independently in remote mines or quarries where there is no access to a municipal power grid. Additionally, select models feature an external power interface, allowing them to switch to grid power in locations with a stable electrical supply, thereby reducing fuel costs and operational noise.

Q3: Is it easy to replace the screen mesh? Can the equipment screen wet or sticky materials?

A3: Our screen boxes are typically designed with quick-tensioning and locking mechanisms, making the replacement of the screen mesh a relatively quick and convenient process. For the screening of damp, clog-prone, and cohesive materials—such as highly weathered rock with high soil content or sticky clay—we recommend opting for auxiliary screen-cleaning devices (such as bouncing balls or ultrasonic cleaners) or utilizing non-clogging polyurethane screen panels. These solutions effectively resolve screen-blinding issues and ensure optimal screening efficiency.

Summary and Interaction

In conclusion, in today's pursuit of efficient, flexible, and sustainable production, a high-performance crawler-mounted mobile screening plant serves not only as a powerful tool for boosting production capacity but also as a strategic investment for tackling the Perse challenges of various projects. By integrating a complete screening facility onto a mobile chassis, it fundamentally redefines the way materials are processed.
