Crushing & Screening Equipment Guide: Boost Your Mining & Aggregate Production Efficiency

Crushing and Screening Plant

In mining, quarrying, construction aggregate production, and solid waste recycling projects, Crushing and Screening Equipment forms the core backbone of the material processing circuit. Their performance directly determines the final product's size, gradation, output, and overall operational costs. As a leading manufacturer of mining crushing equipment, we understand that each piece of machinery is not just a tool but a vital partner for our clients to achieve ROI and production targets. This article will systematically analyze the technological essence, core advantages, and application practices of modern crushing and screening equipment.

1. Core Functions and System Overview

What is a Crushing and Screening System?

A complete crushing and screening system is a precisely designed production line. Its core mission is to process large raw ore extracted from the quarry into finished products of different sizes that meet specific application requirements (e.g., coarse aggregate, fine sand, or stone powder) through multi-stage crushing and screening. Typically, the process includes stages like primary crushing, secondary/tertiary crushing, screening, and sometimes material washing.

2. Key Advantages of Modern Equipment

Investing in advanced crushing and screening equipment brings transformative value to production lines.

2.1 High Efficiency and Energy Saving

Modern equipment utilizes optimized crushing chambers, high-inertia rotors, and efficient drive systems. This significantly improves the crushing ratio and throughput per unit of time while reducing energy consumption per ton of product, effectively lowering long-term operating costs.

2.2 Excellent Product Shape and Gradation Control

Advanced crushing principles (e.g., inter-particle crushing in cone crushers) and precise screening systems ensure the final product has excellent cubical shape and controllable, stable gradation. This is particularly critical for high-value applications like high-grade concrete aggregate.

2.3 Strong Adaptability and Intelligence

Modern equipment can handle materials of varying hardness and abrasiveness. Furthermore, integration with automation control systems enables remote monitoring, automatic adjustment of operating parameters, fault diagnosis, and predictive maintenance, minimizing downtime and enhancing operational safety.

3. Classic Case Study: Granite Aggregate Production Line

Project Background: A large sand and gravel aggregate base in Southeast Asia needed to produce high-quality granite aggregates for local infrastructure projects.

Equipment Configuration: Our company provided a complete set of solutions, including a vibrating feeder, a jaw crusher (for primary crushing), two cone crushers (for secondary and tertiary crushing), multiple vibrating screens, and belt conveyors.
Process Flow: Large granite blocks (<800mm) → Jaw Crusher (crushed to below 200mm) → Cone Crusher 1 (secondary crushing) → Pre-screening → Oversize material to Cone Crusher 2 (tertiary shaping) → Final screening → Classification into 0-5mm, 5-10mm, 10-20mm, 20-31.5mm finished products.
Achieved Results: The production line operates stably with an hourly output exceeding 550 tons. The product shape is cubical with a flakiness content of less than 10%, fully meeting the high-standard requirements for concrete aggregates. Intelligent control has reduced energy consumption by approximately 15%.

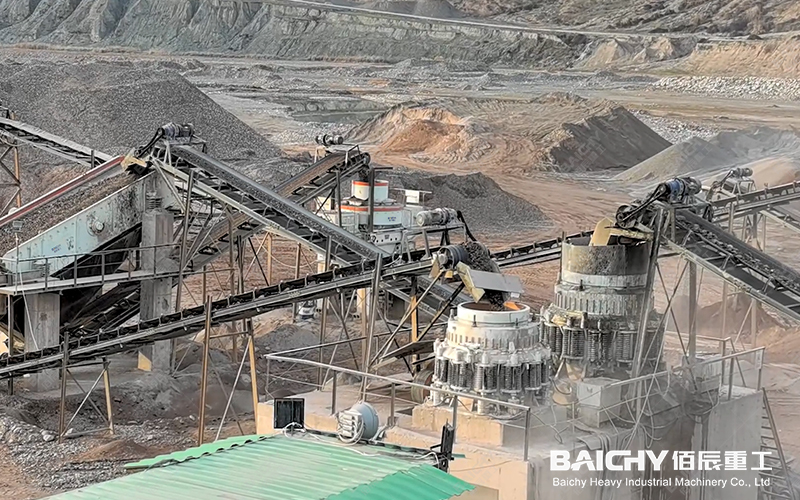

Crushing Production on Site

4. Equipment Selection and Configuration Recommendations

Selecting the right equipment requires comprehensive consideration of material characteristics, desired capacity, and product specifications.

For Primary Crushing (High Hardness, Large Feed): Recommend sturdy and reliable Jaw Crushers or Gyratory Crushers.
For Secondary/Tertiary Crushing (Shaping & Medium/Fine Crushing): Cone Crushers are the preferred choice for high-hardness abrasives; Impact Crushers are suitable for medium-hardness materials requiring excellent grain shape.
For Screening (Classification): Choose from Circular Vibrating Screens, Linear Vibrating Screens, or multi-frequency screens based on screening efficiency, accuracy, and handling capacity requirements.
Mobile Solutions: For projects requiring frequent relocation (e.g., construction waste recycling, distributed mining), Mobile Crushing and Screening Plants offer exceptional flexibility and rapid deployment.

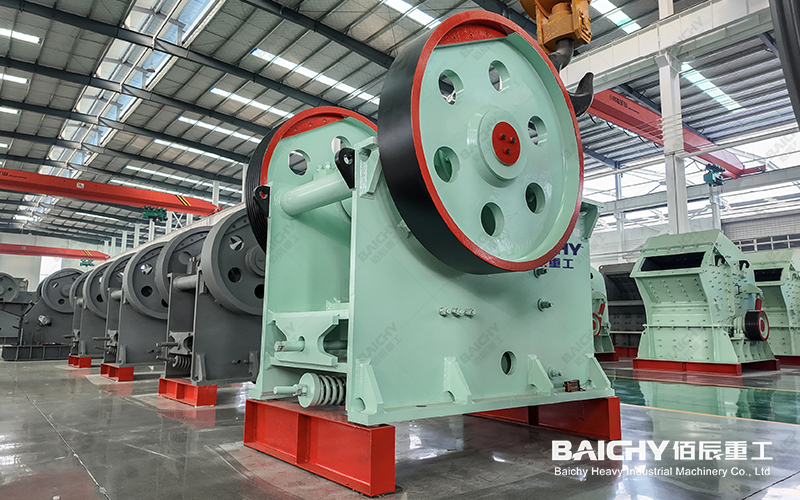

Jaw Crusher

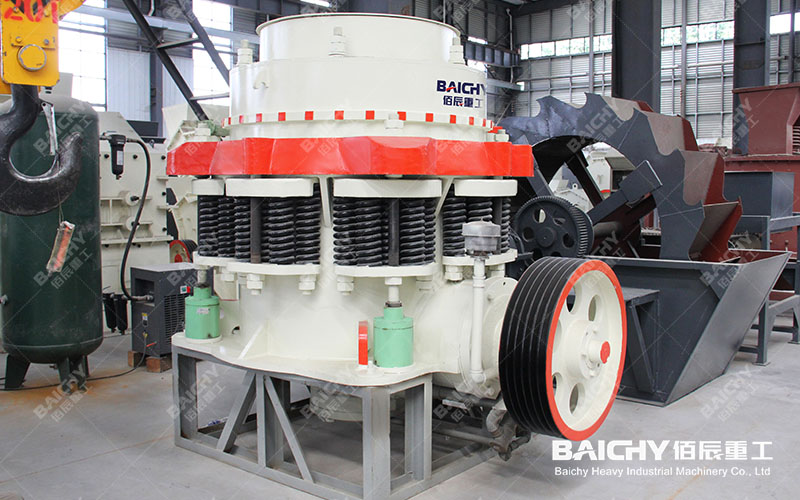

Symons Cone Crusher

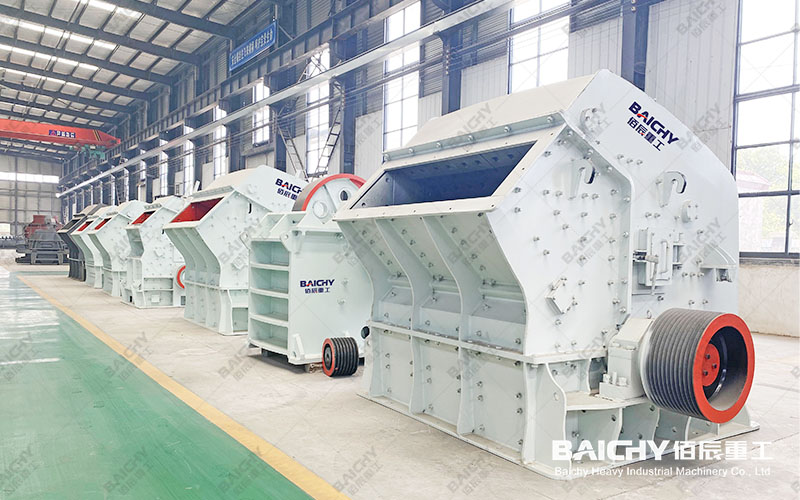

Impact Crusher

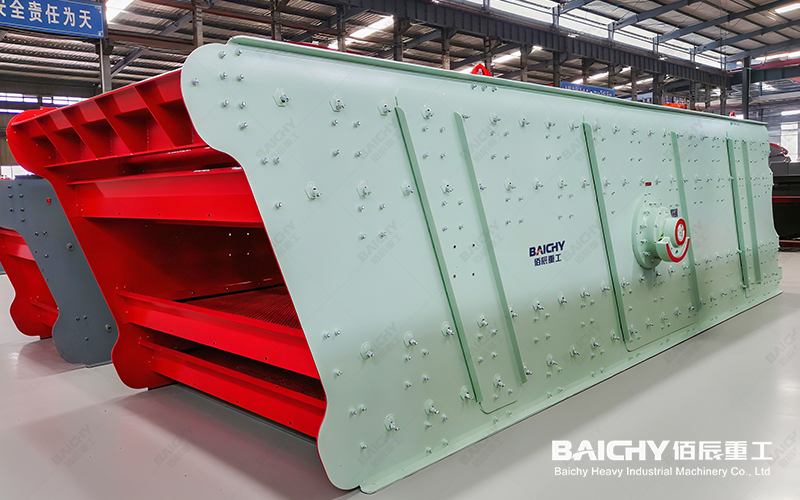

Vibrating Screen

Mobile Crushing and Screening Station

5. Frequently Asked Questions (FAQ)

Q1: How to choose between a fixed production line and a mobile crushing station?

A: Fixed production lines are suitable for large-scale, long-term, and concentrated material source projects, offering advantages in high output, stability, and lower operating costs. Mobile stations are ideal for scattered material sources, projects requiring frequent relocation, or sites with limited space, providing unmatched flexibility and quick commissioning.

Q2: How to reduce excessive wear on wear parts like crusher liners and screens?

A: First, ensure the equipment selection matches the material's abrasiveness and hardness. Second, maintain a continuous and even feed, avoiding empty operation or overload. Third, establish a regular inspection and maintenance schedule, recording wear patterns to optimize replacement timing. Using wear-resistant materials (e.g., high-manganese steel, alloy steel) is also crucial.

Q3: What preparatory work is needed before installing a crushing and screening line?

A: Key preparatory work includes: 1) Conducting material analysis and testing; 2) Planning the site layout, ensuring sufficient space for equipment, maintenance, and material stockpiling; 3) Securing stable power and water sources; 4) Preparing a solid equipment foundation; 5) Training operational and maintenance personnel.
