How to Choose a Reliable Jaw Crusher Manufacturer: Baichy Factory Guide

Introduction

Choosing the right jaw crusher manufacturer is the single most important decision in any crushing plant investment. The jaw crusher — as the primary stage equipment — determines the throughput, reliability, and long-term operating cost of the entire production line. With dozens of manufacturers claiming "factory-direct pricing," how do you separate genuine industrial manufacturers from trading companies?

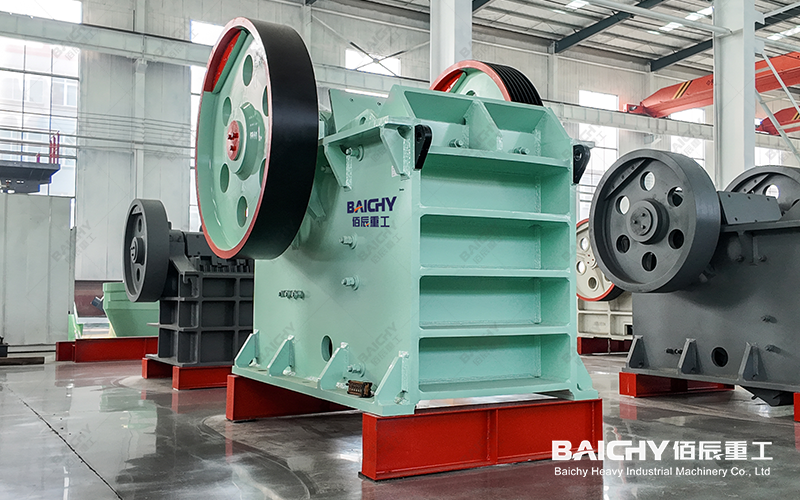

PE Jaw Crusher

Baichy Heavy Industry has been manufacturing jaw crushers since 1990 at our 30,000m² production base in Zhengzhou, China — one of the world's largest heavy machinery manufacturing hubs. This guide walks you through the 5 critical evaluation criteria for selecting a jaw crusher manufacturer, and what makes Baichy's PE/PEX series the preferred choice for 120+ countries.

5 Key Criteria for Evaluating a Jaw Crusher Manufacturer

1. Manufacturing Capability & Factory Scale

A genuine manufacturer operates its own foundry, welding workshop, machining center, and assembly line — not a rented office with outsourced production. At Baichy's Zhengzhou factory, every jaw crusher frame is cast from Grade HT250 gray iron or ZG270-500 cast steel. Key components — eccentric shaft (40Cr forged steel), toggle plate (ductile iron), and bearing housing — are machined on CNC boring-milling machines with ±0.05mm tolerance. Look for: ISO 9001:2015 certification, in-house testing lab, and a factory tour video (not just product brochures).

2. Product Range & Technical Specifications

A professional jaw crusher manufacturer offers a complete model range covering perse capacity requirements. Baichy's PE series (coarse jaw crusher) spans 15 models from PE150×250 (1-3 t/h) to PE1200×1500 (400-800 t/h), with feed opening sizes from 150mm to 1200mm. The PEX series (fine jaw crusher) covers 7 models for secondary crushing at 10-90 t/h. Each model is engineered for specific feed size, discharge range, and motor power — not a one-size-fits-all approach.

3. Quality Control & Testing Protocols

The difference between a 5-year crusher and a 15-year crusher is quality control.

Baichy implements a 4-stage QC protocol:

Stage 1: Raw material incoming inspection — chemical composition analysis and hardness testing of every steel batch

Stage 2: In-process inspection — ultrasonic flaw detection on all welded joints, dimensional verification on machined surfaces

Stage 3: Assembly tolerance check — gap measurement between movable and fixed jaw plates, bearing clearance verification

Stage 4: 8-hour no-load test run — vibration level, bearing temperature rise, and noise level monitoring before crating

4. Global Logistics & After-Sales Support

A jaw crusher weighs 3 to 100 tons. Shipping a 50-ton PE900×1200 from China to Lagos or Mombasa requires experienced freight handling. Baichy's export team manages container loading, flat-rack securing, FCL/LCL arrangement, and destination port customs clearance support. Post-installation, our engineers provide remote commissioning guidance, spare parts catalog with 48-hour dispatch, and on-site technical support for large-scale projects.

5. Real-World Case Studies & Client Portfolio

Never trust a manufacturer without verifiable client projects.

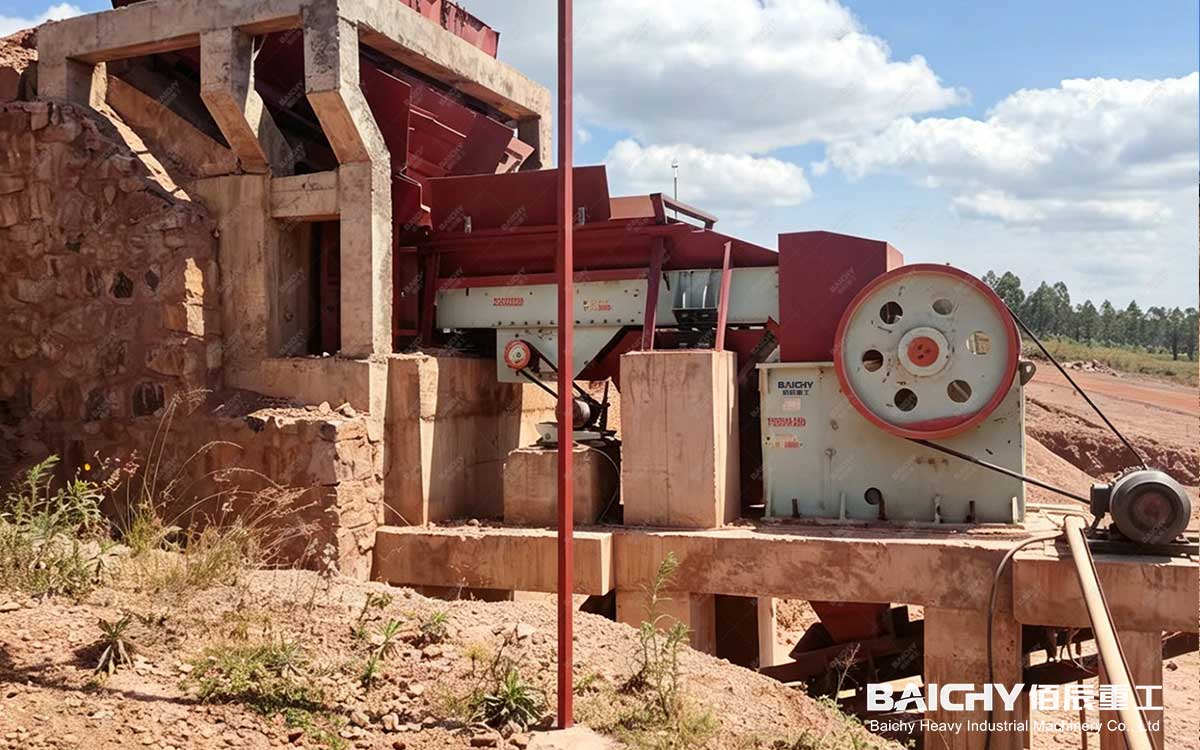

Rwanda-PE750x1060-Jaw-Crusher-Customer

Baichy has delivered jaw crushers for:

• 200 TPH granite crushing plant, Kenya — PE750×1060 primary crusher producing 0-40mm aggregate for road construction

• 300 TPH limestone line, Philippines — PE900×1200 jaw crusher with hydraulic CSS adjustment for cement plant feed

• 150 TPH basalt plant, Mexico — PE600×900 jaw crusher handling highly abrasive volcanic rock

<<80-100TPH Crushing And Sand-Making Production Line in Dominican Republic>>

<<C90 Jaw Crusher River Stone Crushing Plant - Philippines Case Study>>

PE Series — Coarse Jaw Crusher

PEX Series — Fine Jaw Crusher

Jaw Crusher Components & Manufacturing Process

A jaw crusher consists of 6 core assemblies:

Frequently Asked Questions

Q: How do I select the right jaw crusher model?

A: Provide three parameters to our engineers:

(1) material type and hardness,

(2) maximum feed size,

(3) required output capacity in tons per hour.

We will recommend the optimal PE or PEX model with motor power and discharge range configuration.

Q: Can I visit the factory before ordering?

A: Yes. Baichy welcomes factory visits at our Zhengzhou production base. We can arrange airport pickup and hotel accommodation. Contact us at least one week in advance to schedule a tour of our foundry, machining workshop, and assembly line.

Q: What is the warranty on Baichy jaw crushers?

A: 12-month warranty from the date of commissioning or 18 months from shipment, whichever comes first. Warranty covers manufacturing defects in mainframe, eccentric shaft, and bearing housing. Wear parts (jaw plates, toggle plate, side liners) are excluded from warranty but available as spare parts with 48-hour dispatch.
