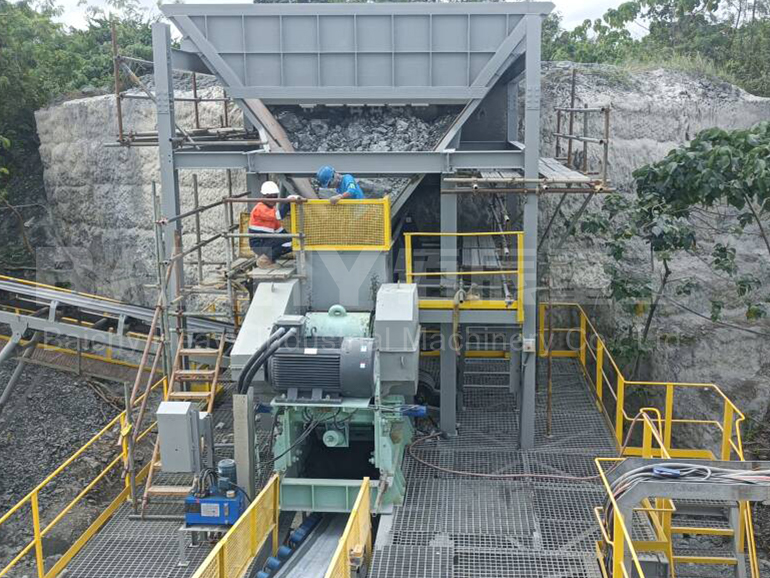

C90 Jaw Crusher River Stone Crushing Plant - Philippines Case Study

Market Background

The Philippine infrastructure construction industry is experiencing historic expansion. According to Mordor Intelligence, the Philippine construction market size will reach US$45.48 billion in 2025 and is projected to grow to US$61.7 billion by 2034 (CAGR 4.56%). The Marcos government's "Build Better More" (BBM) infrastructure program maintains annual public infrastructure spending at 5%–6% of GDP, far exceeding the Southeast Asian average.

The topography of the Philippine archipelago dictates the regionalized nature of aggregate supply—each major island requires a separate crushing site to meet local demand. Luzon, as the population and economic heartland (accounting for over 70% of the national GDP), has a particularly urgent need for high-quality concrete aggregates, and its abundant river stone resources provide a natural advantage for on-site, fixed-site crushing solutions.

The core challenge: The infrastructure investment surge driven by the BBM program requires massive quantities of high-quality aggregates, while Luzon's existing small-scale crushing plants suffer from dispersed capacity, aging equipment, and poor particle shape, failing to meet modern engineering construction standards—introducing efficient and reliable primary stone crushing equipment has become a top priority for quarry owners.

Equipment Selection Logic: Why the C90 European Jaw Crusher?

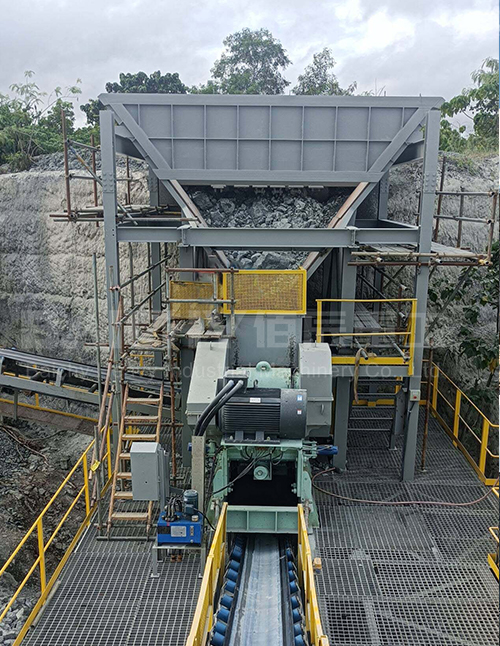

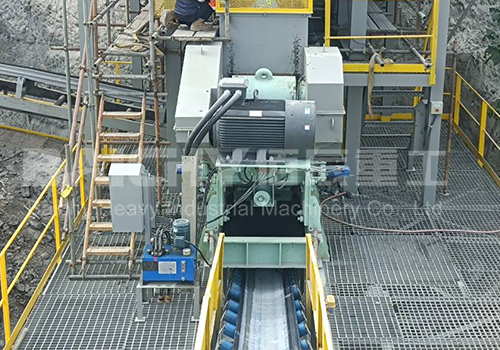

This project adopts a simplified process of "single-stage jaw crusher coarse crushing + vibrating screen grading." For medium-hardness materials (Mohs 6–7) such as river stones/pebbles, the C90 European-style jaw crusher can complete the crushing task from raw stone to multi-size finished aggregates as a single unit, eliminating the need for secondary crushing and significantly reducing investment threshold and operational complexity.

C90 European C-Series Jaw Crusher — Core Primary Crushing Equipment

Selection Rationale

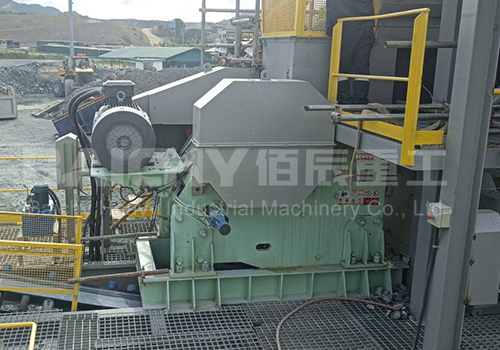

1. "River-Friendly" Feed Opening Design: The C90's 610×910mm feed opening easily accepts natural river stones with a particle size ≤500mm. 1. Raw stones collected from Luzon's river channels can be directly fed into the crusher after simple screening to remove silt, eliminating the need for secondary blasting or pre-crushing, thus saving a pre-treatment step and associated equipment and labor costs.

2. High crushing ratio with European-style chamber design: The C-series utilizes a deep-cavity bending compression crushing principle, achieving a crushing ratio of 4–6, providing excellent "biting" ability for smooth, rounded pebbles. Compared to traditional PE series jaw crushers, the C-series' wedge-type jaw plate fixing structure and optimized moving jaw movement trajectory allow river stones to remain in the crushing chamber for a longer compression time, significantly reducing the content of needle-like and flaky particles.

3. Hydraulic discharge port adjustment: Traditional jaw crushers require stopping the machine, loosening bolts, and manually adjusting shims to adjust the discharge port—taking 30–60 minutes. The C90's hydraulic adjustment system can complete the discharge port adjustment within 5 minutes without stopping the machine. For quarries that frequently switch finished product specifications based on order demands (e.g., from 10-20mm aggregate to 20-40mm roadbed material), this advantage directly translates into increased capacity utilization.

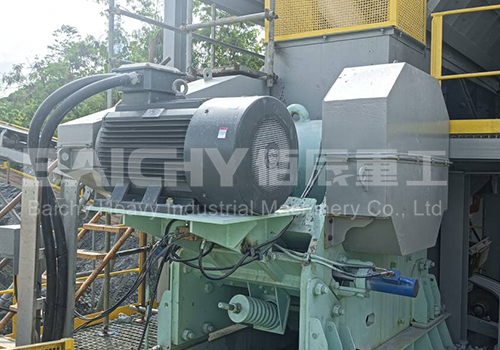

4. Integrated Motor Mount Design: The motor mount and main frame utilize an integrated casting/welding structure, saving installation space and shortening the center distance between the motor and main unit, reducing V-belt vibration and wear, and extending the lifespan of the transmission system. In the humid and hot environment of the Philippines, a stable transmission system means less downtime for maintenance.

5. Compatibility with the Philippine Power Grid: The 75kW motor is compatible with the local 60Hz power standard (the Philippines uses the US standard 60Hz/220V/440V three-phase power), eliminating the need for additional frequency converters or transformers. Furthermore, the 75kW power output is considered low-power for its capacity level; based on an actual capacity of 100 tph, the unit power consumption is approximately 0.55–0.65 kWh/ton.

Why choose C90 instead of PE600×900?

For stationary crushing plants aimed at long-term stable production, the combined advantages of the C90 European jaw crusher in terms of ease of maintenance, wear part life, and finished product quality are sufficient to recover the initial price difference with the PE series within 12–18 months.
