Crawler Jaw Crusher
The diverse and often challenging terrain of the Philippine islands presents unique obstacles for iron ore mining operations: inaccessible sites, changing locations, and limited infrastructure. Traditional stationary crushing plants, with their long setup times and fixed nature, struggle in these conditions. This begs the question: Can a mobile, crawler-mounted jaw crusher provide the solution? Absolutely. As the heart of mobile crushing systems, these versatile machines are becoming essential for efficient and profitable iron ore extraction in the Philippines.
Analysis: Why It Fits the Philippine Context
Many Philippine iron ore deposits are located in mountainous or remote areas with poor road access. Stationary plants require massive concrete foundations and complex installation, leading to high upfront costs and becoming obsolete once a pit is depleted. Furthermore, numerous mining projects are smaller or contract-based, demanding rapid deployment and relocation.
A crawler-mounted jaw crusher, integrating feeding, crushing, and conveying on a self-propelled track chassis, can be driven directly to the mining face. It solves the core issues of terrain limitation and frequent relocation, making it ideal for the scattered and rugged mining landscape of the Philippines.
Overview: What is a Crawler-Mounted Jaw Crusher?

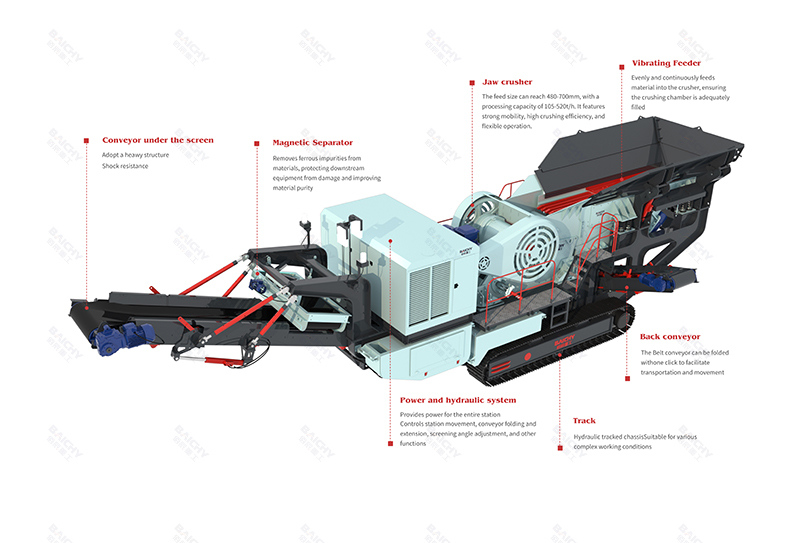

It is a mobile crushing station that combines a robust jaw crusher, a vibrating grizzly feeder, and conveyors onto a heavy-duty crawler track. The jaw crusher, known for its strength and high-compression crushing action, is perfectly suited for the medium-to-high hardness iron ores (like magnetite and hematite) found in the Philippines. The entire unit can be controlled via remote control or from an onboard cabin for movement, positioning, and operation.
Key Advantages for Philippine Operations
1. Unmatched Mobility and Flexibility
The crusher moves with the mining face, implementing the “crush-at-source” strategy. This drastically reduces truck haulage distances and costs, a critical factor in the confined spaces of Philippine mountain mines.
2. Rapid Setup, Reduced CAPEX
The plant is operational shortly after arrival on site, eliminating the need for civil works and structural steel erection. It can be easily redeployed between different sites or projects, maximizing asset utilization—perfect for contract mining.
3. Conquers Rough Terrain
The powerful crawler tracks allow operation on muddy, uneven, and primitive mine roads with strong climbing ability. It minimizes site preparation needs.
4. Lowers Overall Operating Costs
By crushing run-of-mine ore to a conveyable size at the source, it enables cheaper conveyor transport for subsequent material handling, replacing a portion of expensive truck haulage, leading to significantly lower OPEX.
Case Study

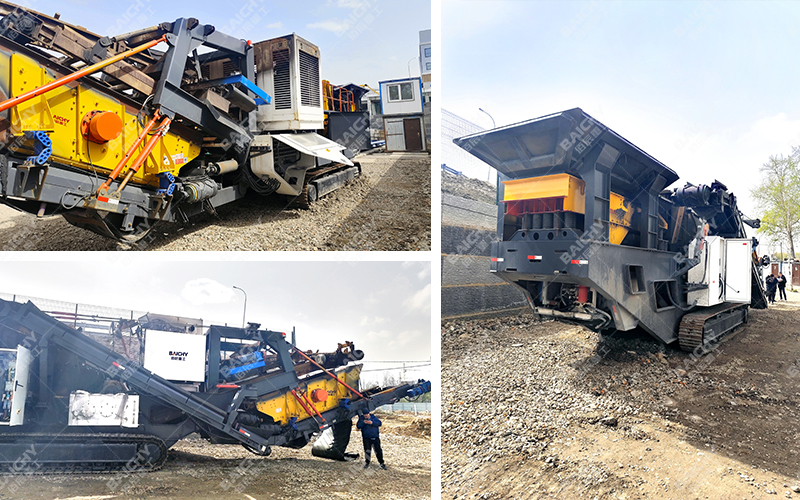

At a medium-sized hematite project in Luzon, Philippines, the client faced multiple discontinuous ore bodies. After deploying our YMC-106 Crawler Jaw Crusher, the operation was transformed. After initial crushing at the first site, the crusher self-relocated 3km to the second site in half a day, resuming production the next day. Throughout the project, with 4 relocations, it saved approximately 60% in primary haulage costs and allowed production to start 2 months ahead of schedule.
Model Recommendations for Philippine Iron Ore
For typical Philippine iron ore (150-250MPa compressive strength), we recommend:
-
Primary Models: YMC-106 / YMC-116: With feed openings of 850x550mm and 1200x800mm respectively, they offer ideal capacity and top mobility for most mines.
-
Heavy-Duty Model: YMC-120: For larger-scale operations with bigger feed size, serving as a semi-stationary primary unit.
-
Crucial Configuration: Always equip with a magnetic separator and a heavy-duty grizzly to remove tramp metal and fine, sticky soil, protecting the jaw dies and downstream equipment from typical Philippine sticky feed material.
Frequently Asked Questions (FAQ)
Q1: Can it handle wet, sticky Philippine iron ore?
Yes, with proper configuration. Our recommended models can be fitted with heavy-duty grizzly feeders with wider spacing to prevent clogging. Using a dedicated excavator for even feeding at the hopper is also advised.
Q2: How is power supplied in remote locations?
We offer multiple options. The standard electric motor drive is most economical with grid power. For remote sites, we provide “Diesel Direct” or “Diesel-Electric Dual Power” versions for complete independence.
Q3: How to match it with secondary crushing and screening?
The crawler jaw acts as the mobile primary unit. It can be perfectly matched with a crawler-mounted cone or impact crusher for secondary crushing and a crawler screening plant, forming a complete, fully mobile crushing and screening train.
In the demanding environment of Philippine iron ore mining, the crawler-mounted jaw crusher has evolved from an option to a strategic necessity for enhancing efficiency, controlling costs, and ensuring operational flexibility. It merges the reliability of a stationary plant with the agility of mobile equipment, making it the dependable partner for modern, efficient mining in the Philippines.
