C106 Jaw Crusher Price and Specifications
In hard rock processing lines with an annual output of 1-3 million tons, the stability of the primary crusher determines the overall uptime of the line. The C106 jaw crusher, with its non-welded modular frame structure, optimized kinematic design, and throughput capacity of up to 360t/h, has become the preferred choice for crushing granite, basalt, and river pebbles. It not only solves the pain point of traditional crusher frame cracking but also achieves a better return on investment by reducing unit energy consumption.
I. Why is the C106 the performance benchmark for stone crushers?
1. Modular, Non-Welded Frame Design
Unlike traditional welded frames, the C106 uses a high-strength alloy steel plate assembly structure. This design eliminates welding residual stress, maintaining structural integrity even under extremely high loads and completely eliminating the downtime risk caused by weld cracking.
2. Kinematic Simulation Optimization
Through in-depth optimization of the moving jaw's motion trajectory, the C106 has a larger stroke at the bottom of the crushing chamber. This means that when processing extremely hard rocks, it possesses stronger clamping force and higher crushing efficiency, producing finished products with more regular particle shapes.
3. Integrated Motor Base and Convenient Maintenance
The motor base is directly mounted on the crusher frame, reducing civil engineering costs. Furthermore, the wedge-type discharge port adjustment system allows operators to adjust the CSS (discharge port) within minutes without manually adding shims.

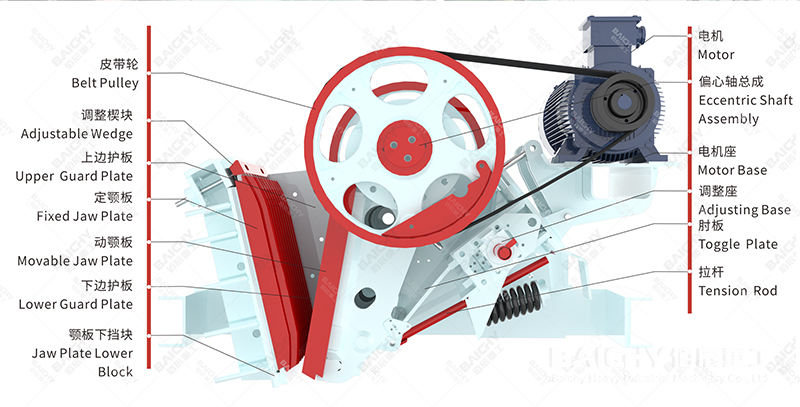

C106 jaw crusher structural diagram
II. Core Technical Parameters of C106 Jaw Crusher
| Parameter Item | Technical Specifications | Remarks |
| Feed Opening Size (mm) | 1060 x 700 | Suitable for maximum feed ~600mm |
| Maximum Feed Size (mm) | 580 | Depends on stone hardness |
| Discharge Opening Adjustment Range (mm) | 70 - 200 | Infinitely adjustable wedges |
| Processing Capacity (t/h) | 160 - 360 | Depends on material type and CSS settings |
| Motor Power (kW) | 110 / 132 | Optional high-efficiency configuration |
| Machine Weight (kg) | ~16,000 | Modular structure, easier to transport |
III. Application Scenarios: From Basalt to Mine Waste
1. Hard Rock Processing: C106 performs exceptionally well with materials such as granite, basalt, and river pebbles with a Mohs hardness of 7 or higher.
2. Large Road and Bridge Aggregates: Provides standard cubic aggregates for key projects such as Longcheng Airport or the Ethiopian Highway.
3. Mobile Crushing Plant Integration: Thanks to its compact structure and integrated motor configuration, the C106 is the ideal "heart" of a tracked or wheeled mobile crushing plant.

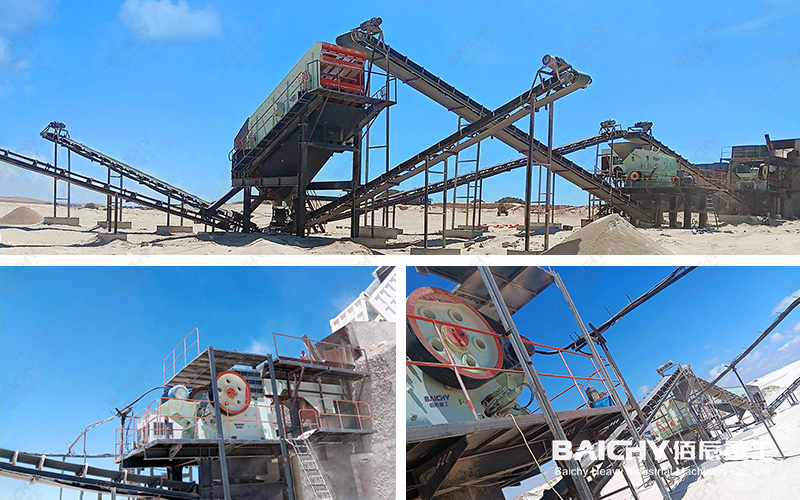

C106 jaw crusher granite Crushing site
IV. Frequently Asked Questions (FAQ)
Q1: What is the unit operating cost (OPEX) of the C106 jaw crusher?
A: Through its optimized jaw plate engagement design, the C106 significantly reduces abnormal wear on the jaw plates. When processing medium-hardness limestone, its jaw plate life is increased by approximately 30% compared to the traditional PE series. Combined with a 110kW high-efficiency motor, power consumption per ton can be reduced by 15%-20%.
Q2: Does the C106 support automated integration?
A: Yes. The C106 provided by Baichy can be equipped with an automated monitoring system to monitor bearing temperature, operating frequency, and load status in real time, and supports linkage with the entire production line's central control system to achieve intelligent feed adjustment.
Q3: What are the special requirements for the foundation when installing the C106?
A: The modular design includes built-in damping and shock absorption support options, which greatly reduces the impact load on the concrete foundation. The integrated motor base design also simplifies the installation process and shortens the on-site commissioning cycle.
