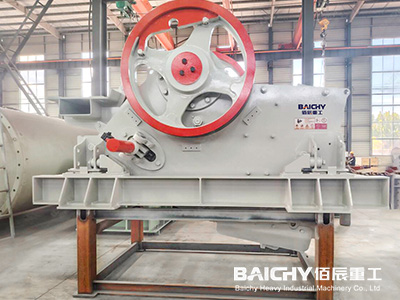

Efficient crushing: The C106 jaw crusher adopts an optimized crushing cavity design and advanced crushing technology to achieve efficient and uniform crushing effects.
Large crushing ratio: This model has a high crushing ratio and can crush materials to smaller particle sizes at one time.
Large processing capacity: The C106 jaw crusher has a large feed opening and high processing capacity, and is suitable for processing materials of various hardnesses.
High reliability: Using high-strength materials and precision manufacturing processes, the equipment has a solid structure and stable and reliable operation.
Easy operation: The equipment is easy to operate and easy to maintain and maintain.

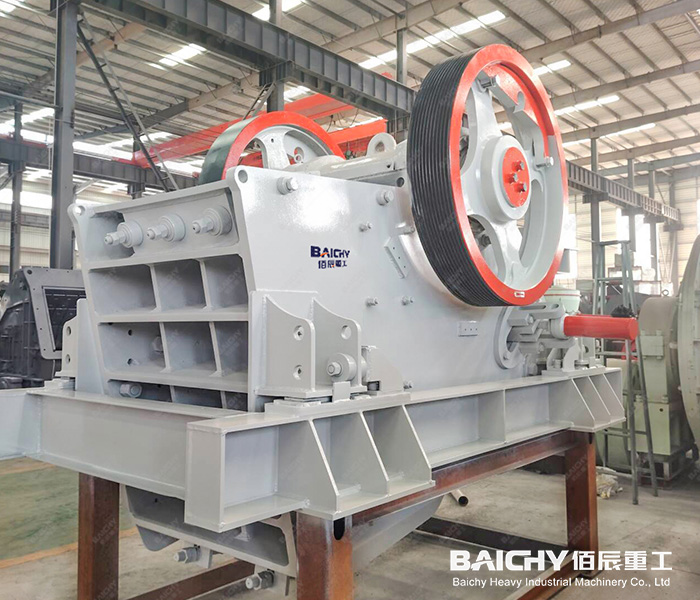

C series jaw crusher adopts an innovative modular, non-welded structure frame, high-quality alloy steel castings, and rolling bearings, which greatly improves the fatigue resistance and operation reliability of the equipment and fully guarantees the high output and high efficiency of crushing operations. High efficiency and low cost; a variety of flexible installation methods to meet different application options.
C series jaw crusher adopts an innovative modular, non-welded structure frame, high-quality alloy steel castings, and rolling bearings, which greatly improves the fatigue resistance and operation reliability of the equipment and fully guarantees the high output and high efficiency of crushing operations. High efficiency and low cost; a variety of flexible installation methods to meet different application options.
| Model | C106 |
|---|---|
| Feeder Opening Size(mm) | 700×1060 |
| Max. Feeding Size(mm) | 580 |
| Outlet adjusting Range(mm) | 70-180 |
| Centrifugal Shaft Speed(rmp) | 280 |
| Motor Power(kw) | 110 |
| Capacity(t/h) | 150-300 |
| Model | YMC106 |
|---|---|
| Feeder | G2D1142 |
| Jaw Crusher | C106 |
| Main Discharge Belt | B1000x12m |
| Side Discharge Belt | B500x3.8m |
| Capacity | 160-360t/h |
Crawler chassis: Provides mobility and stability, allowing the crushing station to work in different terrains and environments.
C106 jaw crusher: As the core crushing equipment, it has strong crushing capacity and high crushing efficiency, and is suitable for processing materials of various hardnesses.
Feeding equipment: such as a vibrating feeder or belt conveyor, is used to feed materials into the crusher evenly and continuously.
Screening equipment: Optional configuration, used to screen the crushed materials to obtain products of different particle sizes.
Conveying equipment: transport the crushed materials to a designated location, such as a stockyard or the next processing link.
Efficient crushing: The C106 jaw crusher adopts advanced crushing technology and optimized crushing cavity design to achieve efficient and uniform crushing effects.
Flexible configuration: Different feeding equipment, screening equipment and conveying equipment can be selected according to actual needs to meet different crushing needs.
Strong mobility: The crawler chassis enables the crushing station to have good mobility and adaptability, allowing it to quickly reach the job site and start work.
Intelligent operation: Equipped with advanced control systems and automation technology, it can realize intelligent operations such as remote control and one-key start and stop, improving work efficiency and safety.
